Default toyota coils for COP conversion w/plugs

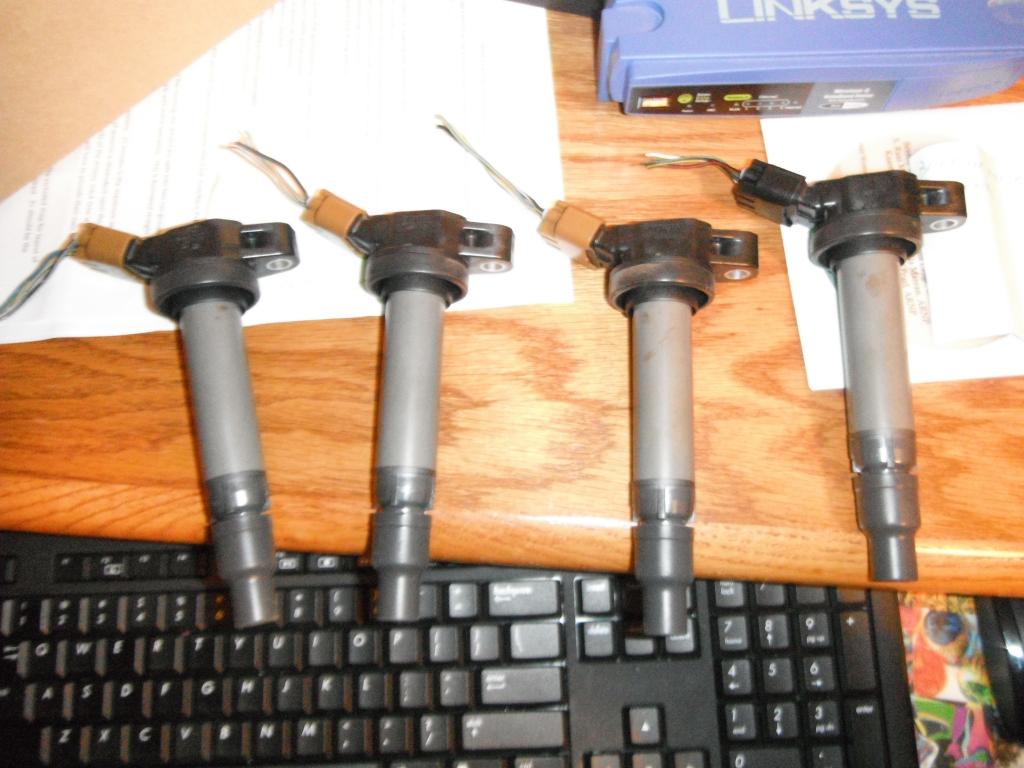

i have 2 sets of toyota coils.
part number on both sets is 90919-c2002.
they are from a 2.4L 2az-fe motor.
im sure they'll work for COP conversions but i havent seen anything with this part number.

1 set includes connectors for making your own harness- SOLD!

the other set is just the coils, no connectors-$SOLD
Attached Thumbnails
toyota coils for COP conversion w/plugs-2013-02-19001.jpg

Last edited by Trboboost91; 03-02-2013 at 10:31 AM. Reason: Sold
Trboboost91 is offline
Old 02-20-2013, 12:18 PM   #2
Junior Member

laguna96's Avatar

Join Date: Oct 2011
Posts: 77
Total Cats: 5
Default

so you haven't tried them? did you just find them in a salvage yard or something? I'm interested in COPs but not enough to trust assumptions on new part numbers...
laguna96 is offline
Old 02-20-2013, 12:59 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

They came off a junkyard engine that was going into a car here at work.
They were tested and are working.
The only faux pas is they are off a 2az motor not a 1zz motor as
People typically use.
I'll toss them on a 1zz here in a bit and see if there's any fitament issues.
Trboboost91 is offline
Old 02-20-2013, 04:22 PM   #4
Junior Member

Join Date: Dec 2012
Location: Akron/Cleveland Ohio
Posts: 155
Total Cats: 0
Default

Interested in the set with pigtails, but yeah.. They gotta fit!

Can anyone confirm that these will not only fit the 1zz, but definitely work?

Jesse
sbcrx007 is offline
Old 02-20-2013, 06:00 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

Tested fitament on a 1zz, they are about a inch longer and where they seal to the valve cover is a bit smaller.
I have adjusted prices accordingly.
I'm sure the coil function is the same as 1zz coils, size is slightly different.
They probably won't bolt up to a readily made coil bracket but could be used
With a DIY bracket.
Trboboost91 is offline
Old 02-21-2013, 01:21 AM   #6
Newb
iTrader: (1)

Join Date: Oct 2012
Posts: 31
Total Cats: 0
Default

These will not fit miatas, there to tall and too wide they won't go into sparkplug hole
Quote:
Originally Posted by sbcrx007 View Post
Interested in the set with pigtails, but yeah.. They gotta fit!

Can anyone confirm that these will not only fit the 1zz, but definitely work?

Jesse
bombton_roadster is offline
Old 02-21-2013, 08:34 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

Too tall, sure, by an inch.
But too wide?
How bout this, I'll just take a picture of one of them in a miata spark plug tube.
Trboboost91 is offline
Old 02-21-2013, 09:43 AM   #8
Junior Member

Join Date: Dec 2012
Location: Akron/Cleveland Ohio
Posts: 155
Total Cats: 0
Default

Thank you for honesty, good deal for someone who can make them work, rig up some spacers!
sbcrx007 is offline
Old 02-28-2013, 09:12 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Posts: 54
Total Cats: -2
Default

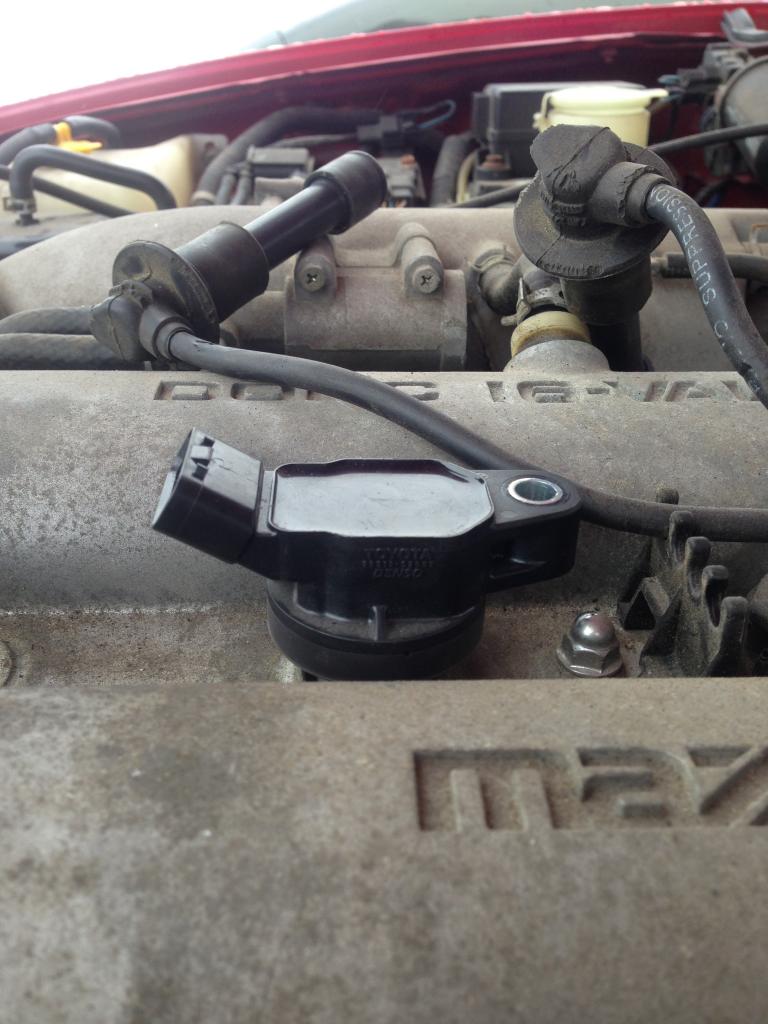

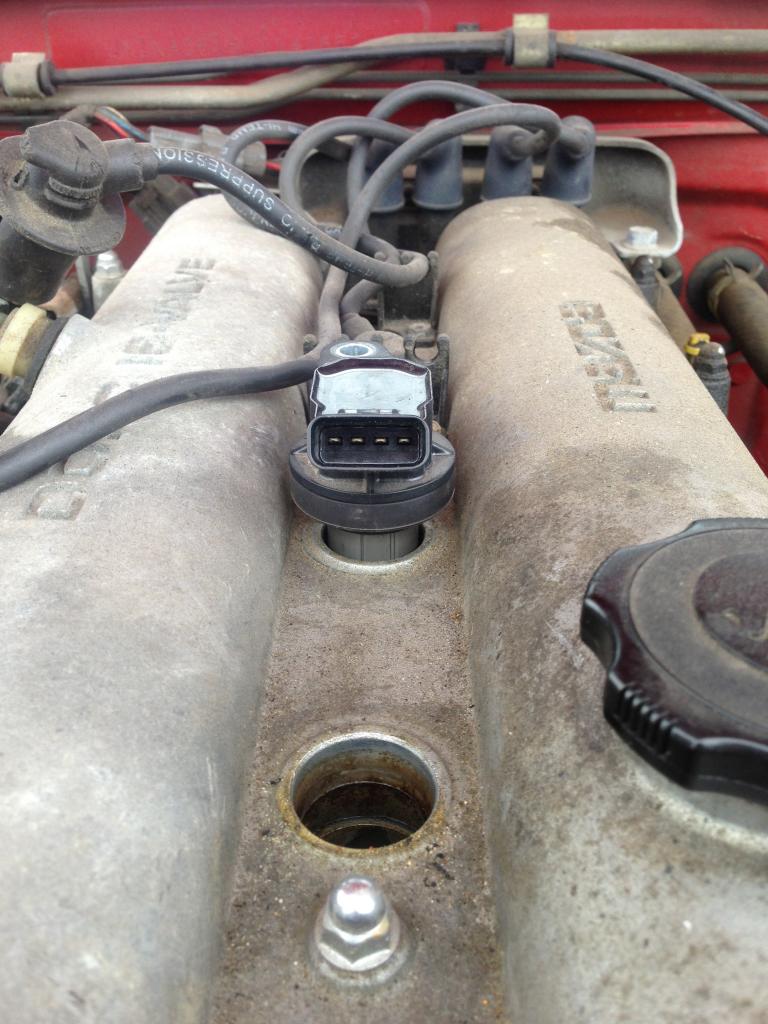

finally got those pics.
dude with the big gay white steering wheel was wrong, imagine that.
they are an inch too tall as i described but fit in the wells perfect.
great for a diy guy who can fab a spacer/bracket.
this was on a 1.6
Attached Thumbnails
toyota coils for COP conversion w/plugs-2013-02-27002.jpg   toyota coils for COP conversion w/plugs-2013-02-27001.jpg
Trboboost91 is offline
