Default Another Saturday at MS Labs

So its Saturday, I'm out of Megasquirt boards, what to do?

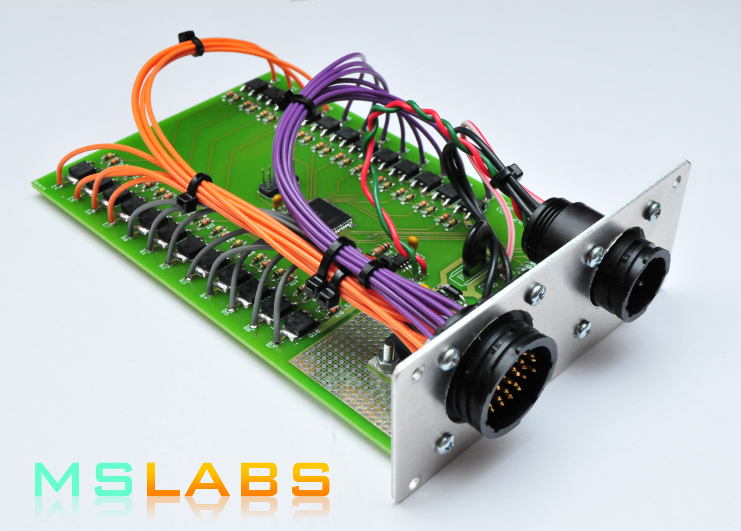

Oh wait. Lets build something pretty and useful, like a 24-output CAN expander for the Megasquirt:



Feeling satisfied for the day.
Attached Thumbnails
Another Saturday at MS Labs-expander1_zps2e0f179b.jpg
Reverant is offline   Reply With Quote
Old 01-12-2013, 02:25 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I just like that you take good pictures.
Braineack is offline   Reply With Quote
Old 01-12-2013, 02:44 PM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Thanks. There's no such thing as having too many hobbies.

(Nikon D300, 18-55 non-VR, SB-700)
Reverant is offline   Reply With Quote
Old 01-12-2013, 02:54 PM   #4
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Nice board work.

Nice camera, too. Did you start out shooting film or digital?
Miater is offline   Reply With Quote
Old 01-12-2013, 02:57 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Son of bitch, ****. You make me feel like I'm not living my life properly.
hustler is offline   Reply With Quote
Old 01-12-2013, 02:58 PM   #6
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Digital. I've only shot film with a compact when I was a kid and I hated it.
Reverant is offline   Reply With Quote
Old 01-12-2013, 02:59 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

If I lived in Greece, I'd be making wine right now...probably wouldn't even have a car. You know what they say, the philo is always thinner on the other side.
hustler is offline   Reply With Quote
Old 01-12-2013, 03:02 PM   #8
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

You could probably make some nice Moschofilero.
Reverant is offline   Reply With Quote
Old 01-12-2013, 03:04 PM   #9
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Mil spec connectors
MD323 is offline   Reply With Quote
Old 01-12-2013, 03:09 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
You could probably make some nice Moschofilero.
I'd have to pay someone to make it so I could put my label on it...if I wanted it to be drinkable. lol
hustler is offline   Reply With Quote
Old 01-12-2013, 03:11 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Have you ever thought of making some-sort of a TPS output for us track rats data logging on the track? I'd love to get throttle data into my G2X.
hustler is offline   Reply With Quote
Old 01-12-2013, 03:11 PM   #12
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by MD323 View Post
Mil spec connectors
Circular connectors, not mil-spec (these are plastic).

Still way better than a D-sub or a rectangular AMP. I grew to love the positive lock, twisting action back when I was in the army.
Reverant is offline   Reply With Quote
Old 01-12-2013, 03:13 PM   #13
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
Have you ever thought of making some-sort of a TPS output for us track rats data logging on the track? I'd love to get throttle data into my G2X.
The Enhanced MS3 has provisions for several (essentially pass-through) outputs, such as TPS, CLT, INJ1 (to monitor duty cycle and/or feed to a water injection system such as the Snow Performance S3 kit), so that you won't have to splice into the stock harness.
Reverant is offline   Reply With Quote
Old 01-12-2013, 03:14 PM   #14
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Not to dookie on you balaclava, but what's the point of CAN on a miata with it's 70s technology? Educate me.
Oscar is offline   Reply With Quote
Old 01-12-2013, 03:16 PM   #15
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by hustler View Post
You know what they say, the philo is always thinner on the other side.
Truly thin Phyllo only has one side.

C
chriscar is offline   Reply With Quote
Old 01-12-2013, 03:17 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by chriscar View Post
Truly thin Phyllo only has one side.

C
Topology fail.
hustler is offline   Reply With Quote
Old 01-12-2013, 03:19 PM   #17
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Oscar View Post
Not to dookie on you balaclava, but what's the point of CAN on a miata with it's 70s technology? Educate me.
Less wiring, more reliable, increased noise immunity. So nothing really important.

I ditched my entire Innovate logchain for this.
Reverant is offline   Reply With Quote
Old 01-12-2013, 03:22 PM   #18
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I got that, just didn't see how to implement this on a miata which had no CAN provision.
Oscar is offline   Reply With Quote
Old 01-12-2013, 03:24 PM   #19
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Which is why running CAN (2 wires) across the car is extremely easy and efficient.
Reverant is offline   Reply With Quote
Old 01-12-2013, 03:29 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Oscar View Post
I got that, just didn't see how to implement this on a miata which had no CAN provision.
Beyond its obvious use in things like aftermarket sensors and display gauges, CAN is the most common protocol for interfacing external serial devices to the MS family of ECUs. The MS2 and 3 CPUs have a provision for interfacing via CAN to sub-processors which can provide a variety of inputs and outputs above and beyond those provided for by the CPU's own physical I/O pins.

Thus, if one requires more inputs or outputs on a Megasquirt than are afforded in the stock configuration, one can chain a secondary processor to it via CAN to provide those additional I/O.

What interface would you rather see used here, ethernet?
Joe Perez is offline   Reply With Quote
