Old 10-28-2016, 07:09 AM   #101
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,508
Total Cats: 217
Default

If your original instructions said to use 1.0.2, use 1.0.2 and not 1.0.4 or you'll break things.

You can connect the yellow wire to any of the spare analog input instead and use a generic sensor input calibration to watch the offset.

No idea on the 3rd.
Reverant is online now   Reply With Quote
Old 10-28-2016, 07:31 AM   #102
Elite Member
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,062
Total Cats: 357
Default

Quote:
Originally Posted by Reverant View Post
If your original instructions said to use 1.0.2, use 1.0.2 and not 1.0.4 or you'll break things.

You can connect the yellow wire to any of the spare analog input instead and use a generic sensor input calibration to watch the offset.

No idea on the 3rd.
I think I meant to say update from 1.01 as shipped to 1.02. Unfortunately, I'm not with the unit or instructions. I will do whatever the instructions say to do.
DNMakinson is offline   Reply With Quote
Old 10-28-2016, 07:41 AM   #103
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,508
Total Cats: 217
Default

No, do not update. The ini version is firmware/board specific.
Reverant is online now   Reply With Quote
Old 10-28-2016, 10:50 AM   #104
Elite Member
iTrader: (1)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 3,062
Total Cats: 357
Default

Quote:
Originally Posted by Reverant View Post
No, do not update. The ini version is firmware/board specific.
Even better. Leave well enough alone and all that.
DNMakinson is offline   Reply With Quote
Old 05-06-2017, 01:37 PM   #105
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,290
Total Cats: 57
Default

Looking for troubling shooting tips.

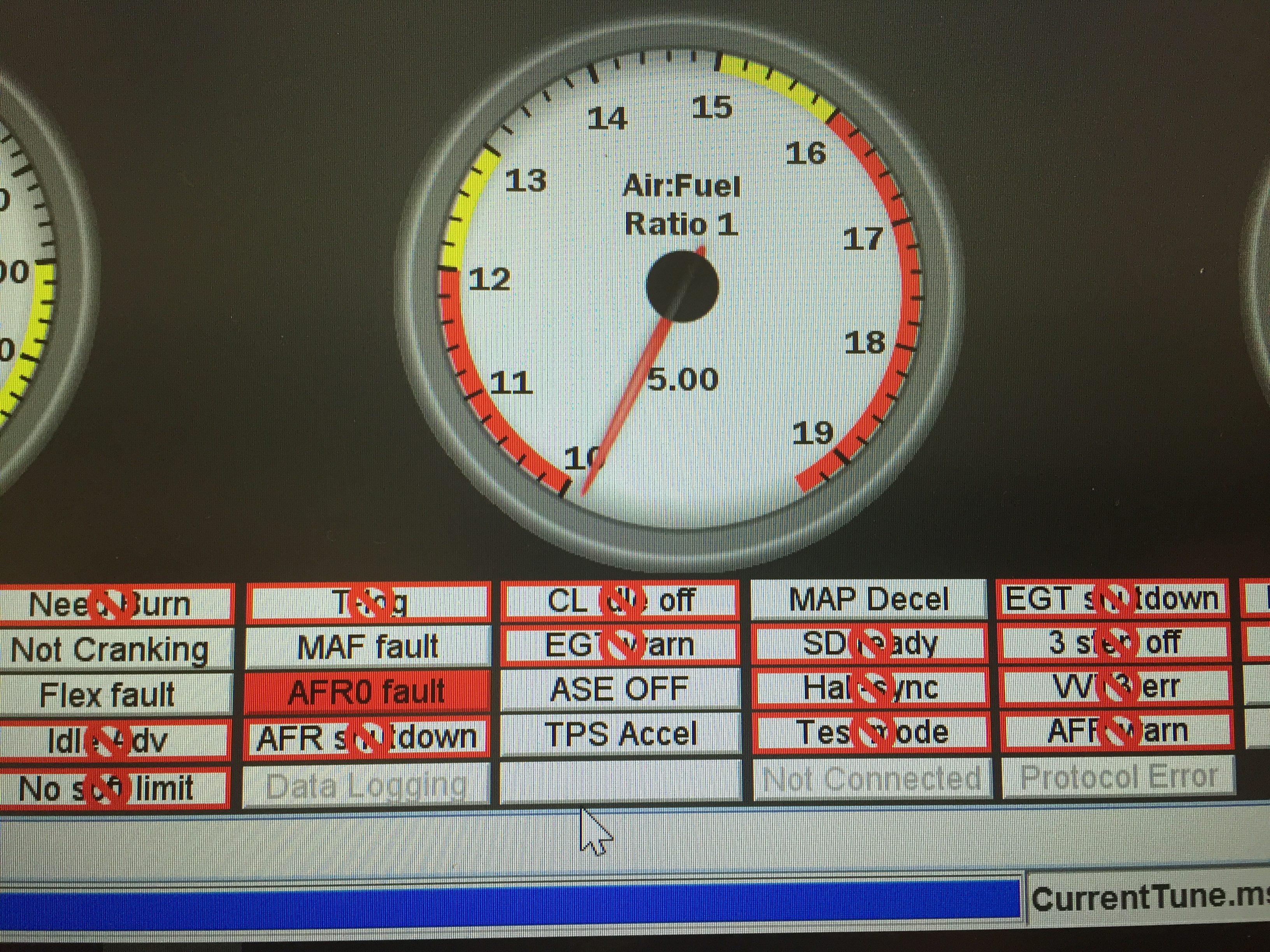

I have a fresh MS3 basic build. Can't seem to get the wideband CAN unit to communicate to the MS3 unit. I keep getting this
Attached Thumbnails
Wideband CAN interface-afr-miata.jpg
k24madness is offline   Reply With Quote
Old 05-06-2017, 01:39 PM   #106
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,290
Total Cats: 57
Default

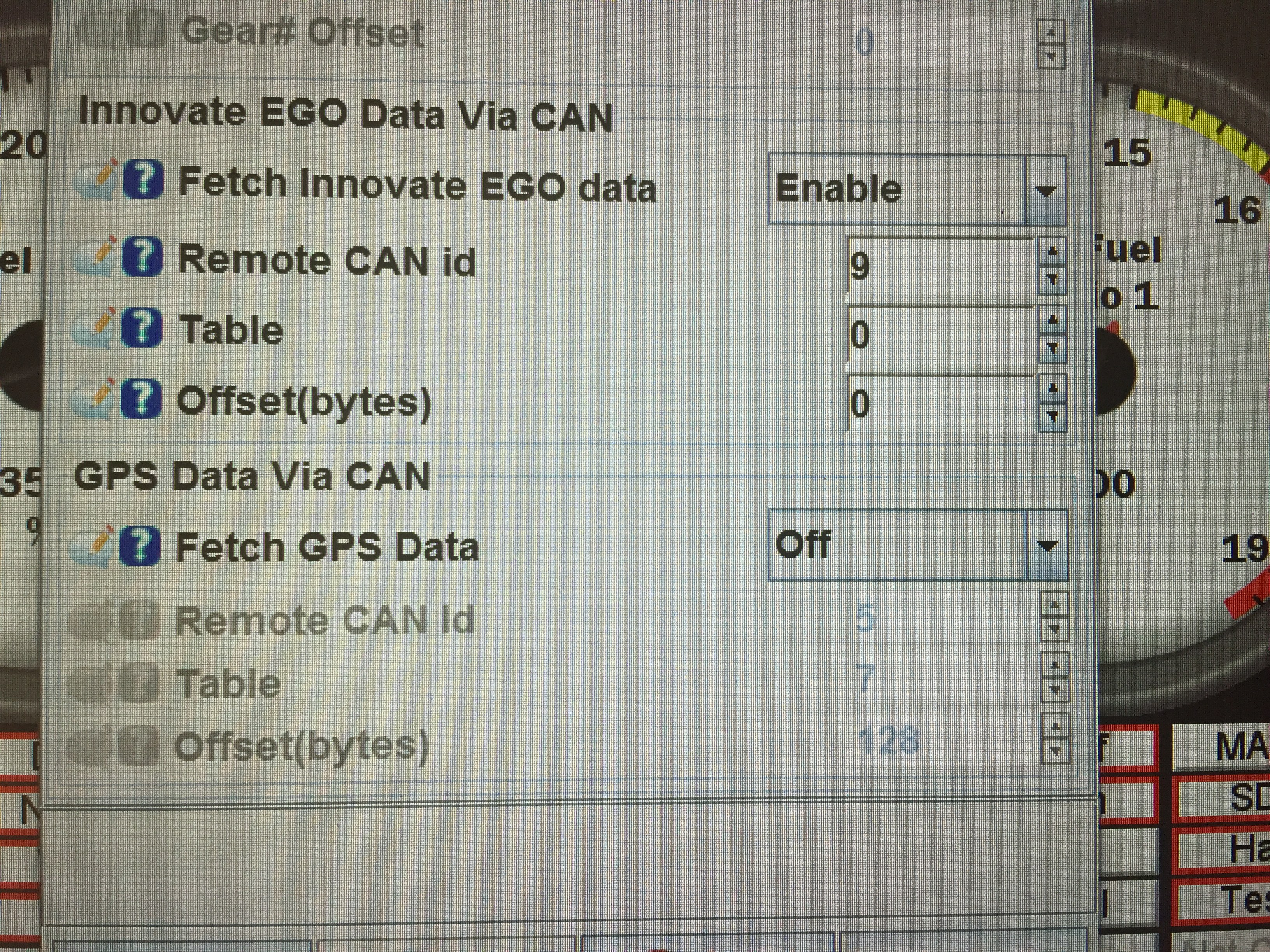

Should I try another "remote CAN id"?
Attached Thumbnails
Wideband CAN interface-afr-miata2.jpg
k24madness is offline   Reply With Quote
Old 05-24-2017, 10:58 AM   #107
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,290
Total Cats: 57
Default

I dumped my LC-1 and upgraded to the LC-2. This solved all my problems.
k24madness is offline   Reply With Quote
Old 06-25-2017, 09:36 PM   #108
Senior Member

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 574
Total Cats: 91
Default

Quote:
Originally Posted by Chiburbian View Post
Ok. Will do when I get off of work. if there were a jumper installed, where would it be?

Next minor question- I see a v102 file on trackspeeds website and a v104 file somewhere else. Are they BOTH for running both AEM and Innovate or is the v102 the only version compatible with AEM? Which should I use?

EDIT: I pulled my laptop out during lunch and checked. Looks like v104 is what I want. One thing I noticed was that under the CAN setup tab when I first installed the .ini file, I was unable to select which CAN ID I wanted that .ini to control. If I close the dialog after creating the CAN device and reopen the properties window and select the CAN devices tab I can then select device ID #9.

How does the device know it is #9? Is it that way from the factory? Theoretically if I wanted to use a second CANegt box, I would need to install one, change the CANegt boxes device number to something other than 9, and then install the next one (which will then be #9?).

I am trying to understand this whole thing.


I am having the issues you had but the stuff you tried is not working. Put it back on analog for now and will re-attack when it is not 1 million degrees outside.
farpolemiddle is offline   Reply With Quote
Old 07-09-2017, 08:37 AM   #109
Junior Member

Join Date: Jan 2007
Posts: 224
Total Cats: 16
Default

Has anyone had any success with this module fetching the wideband oxygen sensor AFR via the obd2 port using a Bluetooth adapter and a smartphone app like DashCommand? I can see rpm and a few other basic items but having trouble accessing AFR via the app. I don't want a scanguage-II.
freedomgli is offline   Reply With Quote
Old 07-12-2017, 11:57 AM   #110
Junior Member

Join Date: Jan 2007
Posts: 224
Total Cats: 16
Default

Bueller? It takes me 10 seconds to connect OBD Fusion to my Volvo to read AFR. But when I connect to my Miata I get nothing, despite the software recognizing the PIDs for oxygen sensor and AFR as valid. When I try achieving the same goal by entering a custom PID manually (Mode 22, PID 0134) I still get no data. I'm sure this is probably just a config/user error on my part. Anybody have any luck?

Here is what I see when I connect to my Volvo. This is what I want to see when I connect to my Wideband/ CAN/ OBD2 module.
https://flic.kr/p/WpAytb

This is what I actually see when I connect to my Wideband/ CAN/ OBD2 module.
https://flic.kr/p/W5gN4Y
freedomgli is offline   Reply With Quote
Old 07-12-2017, 02:38 PM   #111
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,508
Total Cats: 217
Default

I can confirm that Mode 0x01, PID 0x34 are the correct ones to use.
Reverant is online now   Reply With Quote
Old 07-12-2017, 04:29 PM   #112
Junior Member

Join Date: Jan 2007
Posts: 224
Total Cats: 16
Default

Quote:
Originally Posted by Reverant View Post
I can confirm that Mode 0x01, PID 0x34 are the correct ones to use.
Thanks. I'll give it a try.
freedomgli is offline   Reply With Quote
Old 12-27-2017, 01:28 PM   #113
Junior Member

Join Date: Dec 2014
Posts: 108
Total Cats: 1
Default

is the MSLabs wideband CAN interface compatible with mspnp pro?
Neddy is offline   Reply With Quote
Old 12-27-2017, 02:21 PM   #114
Elite Member
iTrader: (1)

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,296
Total Cats: 175
Default

Quote:
Originally Posted by Neddy View Post
is the MSLabs wideband CAN interface compatible with mspnp pro?
yes. I am doing so now (and over the last year or two) myself.
Chiburbian is offline   Reply With Quote
Old 12-27-2017, 11:08 PM   #115
Junior Member

Join Date: Dec 2014
Posts: 108
Total Cats: 1
Default

Quote:
Originally Posted by Chiburbian View Post
yes. I am doing so now (and over the last year or two) myself.
cheers. appreciate that info.
Neddy is offline   Reply With Quote
Old 02-09-2018, 01:20 AM   #116
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 950
Total Cats: 143
Default

How do you calibrate the o2 sensor even using this? I'm using Innovate wideband, and when I follow the calibration instructions (unplug the sensor and power on the car to get an error code) the error code doesn't show up.

Thanks!
nigelt is offline   Reply With Quote
Old 02-09-2018, 05:47 AM   #117
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,508
Total Cats: 217
Default

It does. Follow the instructions and install the ini file for the can module, you will then have an additional gauge cluster which has status/error gauges.
Reverant is online now   Reply With Quote
Old 09-12-2018, 10:16 PM   #118
Senior Member
iTrader: (2)

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 946
Total Cats: 131
Default

I bought one of these earlier this year to use in conjunction with a PNPPRO running pre-1.5 FW (1.4?), and I'm strongly considering replacing my innovate LC-2 with an AEM at the same time just because the innovate seems to destroy sensors really frequently.

I'm wishing to buy a AEM 30-0300 X-Series, but I don't see it in the compatability list. Can you confirm that I should go with a AEM UEGO instead?
wackbards is offline   Reply With Quote
Old 09-13-2018, 07:33 AM   #119
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,508
Total Cats: 217
Default

It is compatible. It also supports the AEM's CAN mode, in which mode it also fetches whether the sensor is ready or warming or has failed, to disable the EGO correction, something that the stock MS3 firmware doesn't support without the module.
Reverant is online now   Reply With Quote
Old 09-23-2018, 08:56 PM   #120
Senior Member
iTrader: (2)

wackbards's Avatar

Join Date: Nov 2015
Location: Seattle
Posts: 946
Total Cats: 131
Default

I've got a DB9 and a DB15 on my module. The instructions say to connect the serial out from the WB controller to pin 2 of the serial port. Is the serial port the DB9, or the DB15? I can't seem to find the answer anywhere.
wackbards is offline   Reply With Quote
