Exclamation 1991 Miata MSPNP2 90-93 & AFR Innovate MTX inaccuracy in TS (Software Glitch?)

*Attached is a JPEG of my "Air.Fuel Ratio" gauge(s)
*I have been having accuracy issues with my INNOVATE MTX wideband. The wideband reads 14.7 and the megasquirt is reading 15.0.
*I researched a lot on the forums; and consensus seems to point to bad grounding of the gauge. So I made sure the wideband was grounded properly on its own circuit.

*NOW FOR THE INTERESTING PART....I set the TS AFR "GAUGE STYLE" to ANALOG GAUGE and Bam! there is an inaccuracy

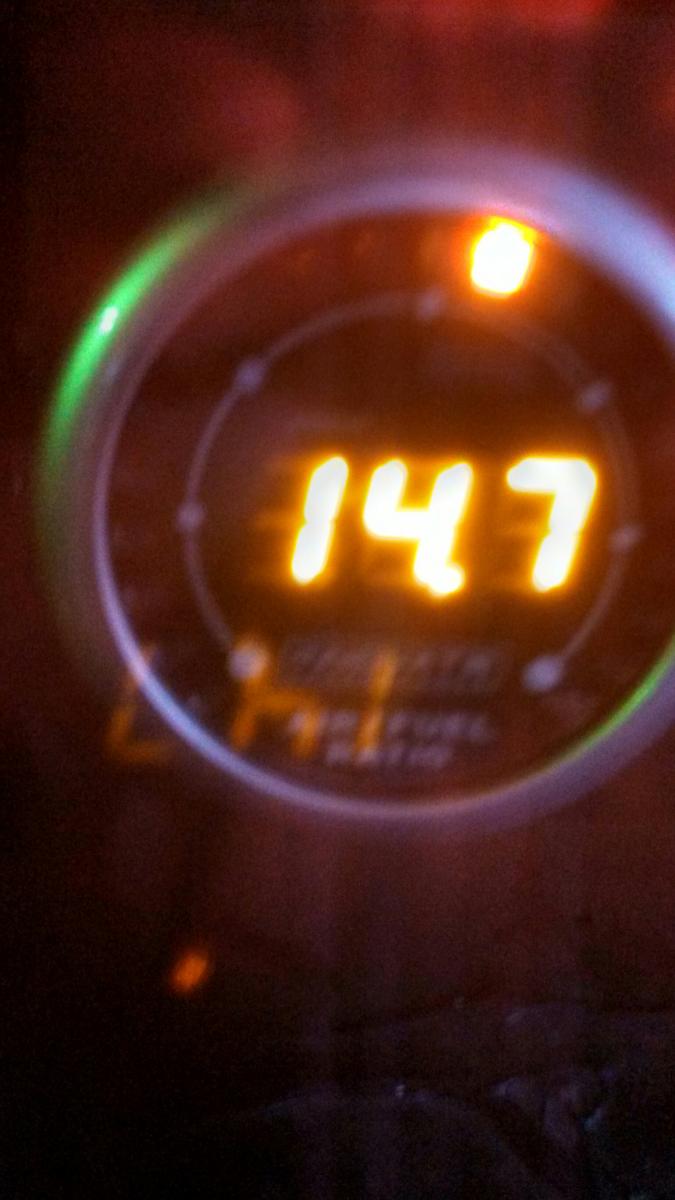

*As you can see in the attached photo, The DIGITAL reading of the gauge is 15.0 and the a ANALOG NEEDLE points to 14.7 (which is the same reading that appears on my MTX guage in the car.) So half the gauge is correct.
* Which value does TunerStudio read when Live Tuning VE tables? The 15.0 or the 14.7?

Please advise. Thanks in advance!
Attached Thumbnails
1991 Miata MSPNP2 90-93 & AFR Innovate MTX inaccuracy in TS (Software Glitch?)-o2.jpg   1991 Miata MSPNP2 90-93 & AFR Innovate MTX inaccuracy in TS (Software Glitch?)-o2-2.jpg
slomiata is offline   Reply With Quote
Old 01-23-2014, 06:32 PM   #2
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Morro Bay, CA
Posts: 53
Total Cats: 0
Default

Wow! Looks like I stumped y'all!
slomiata is offline   Reply With Quote
Old 01-23-2014, 10:24 PM   #3
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,684
Total Cats: 10
Default

I assume that the 15 is coming from the computer, therefore that's the value that MS is reading. I have the same issue with my PLX300. My gauge reads lower that MS. The problem may be in wiring, causing a voltage difference from what your gauge is reading and what is being received by MS. You're gauge is the correct value... at least that's what I've told.
buffon01 is offline   Reply With Quote
Old 01-24-2014, 10:19 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

This sounds like a ground offset. Where exactly is the wideband grounded? It should be grounded to the block or cylinder head.
Matt Cramer is offline   Reply With Quote
Old 01-24-2014, 10:49 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by slomiata View Post
Wow! Looks like I stumped y'all!
no, we just dont respond to things that have been covered in full...
Braineack is offline   Reply With Quote
Old 01-24-2014, 11:09 AM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

It's just latency in the graphical display. Values are averaged over time so our simple human eyes can process the info. If the display showed the actual sampling rate, the data would be jittery and difficult to understand. The gauges average at a slightly different rate. Also, your laptop could be laggy.
Ben is offline   Reply With Quote
Old 01-24-2014, 12:22 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Morro Bay, CA
Posts: 53
Total Cats: 0
Default

BRAINEACK: Thanks for the reply. I searched the threads like a mad man and did find LOTS OF INFO regarding bad/shared wires causing gauge and TS inaccuracies ..............I understand all that.....but I never found the answer to MY QUESTION:

"Why does the gauge in TunerStudio show a 15.0 value, but the analog needle ON THE SAME GAUGE point to 14.7 (which matches my MTX)????" Which value is TS using for VE?

14.7 or 15.0
slomiata is offline   Reply With Quote
Old 01-28-2014, 11:07 AM   #8
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

I will need you to first answer my question before I can answer yours.
Matt Cramer is offline   Reply With Quote
Old 01-28-2014, 12:48 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2007
Location: Morro Bay, CA
Posts: 53
Total Cats: 0
Default

(+) MTX wideband is powered off a relay that powers the autometer gauges.

(-) MTX wideband is grounded to a clean chassis ground that is not shared with anything else

As I read through the other posts, everyone seemed to have a different opinions about ways to get the gauge and MS to be accurate....some said isolate, other said share...some said scale the guage to make them make match.

I understand that the MTX and MS may not be jiving due to wiring issues....but I am confused because the the MS has 2 DIFFERENT READINGS....it doesn't make sense now matter how it is wired. The numerical value should match the analog needle...but it is consistently 0.3v off no matter what the reading

....and the analog needle on the MS matches the MTX...so how do I know if there is a wiring problem...
slomiata is offline   Reply With Quote
Old 01-30-2014, 11:25 AM   #10
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

In my experience, "good chassis ground" tends to be an oxymoron. Your best bet is to ground the MTX-L to the cylinder head or engine block.

The gauge looks like a visualization error of some sort - you may want to email the TunerStudio team directly at [email protected] with a copy of your project folder.
