Hi all, please help I'm going nuts.

Background: 93, 1.6 had a bipes installed with timing advanced to 18.

Installed a MTX-L BW 02 grounded to ECU ground with narrowband output wired to stock ECU wire. Gauge reads expected figures. Diconnected Bipes timing still at 18

Installed MSPNP, found MSPNP on com port 9, connected, installed map with AFM. Started car, ran but cut out below 1300rpm. Could not set timing as it would not idle.

Decided to reinstall stock ECU to set timing at 10. After timing set at 10, installed MSPNP, engine would not start. Put back in stock ECU, engine didn't start for ages, smell of fuel, eventually spluttered to start with blue smoke out exhaust. Engine runs between 10 and 13 AFR on idle.

Now the problems. Cannot connect MSPNP to laptop. tested com port in communications - setting in Megatune. No response.

Questions. Could I have damaged the MS doing above? I removed the St Sig 10A fuse every time I installed the MS. How can I test the MSPNP. I tested the serial to USB on the MTX-L and it works fine. Where can I get the MSPNP tested/repaired (I'm in Ireland)

Thanks in advance
andrew is offline   Reply With Quote
Old 11-20-2011, 10:23 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Why doesn't it run on the stock ECU? I'd sort that out first.
hornetball is offline   Reply With Quote
Old 11-21-2011, 01:47 AM   #3
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Verify the wiring is correct after the Bipes removal
Greg G is offline   Reply With Quote
Old 11-21-2011, 07:34 AM   #4
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
Why doesn't it run on the stock ECU? I'd sort that out first.
Hi, it runs on stock ecu. Idle is not steady so I am going to take out wideband and put back stock o2 sens
andrew is offline   Reply With Quote
Old 11-21-2011, 07:36 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

Quote:
Originally Posted by Greg G View Post
Verify the wiring is correct after the Bipes removal
It is. Bipes was very easy instal and remove. Thanks
andrew is offline   Reply With Quote
Old 11-21-2011, 10:33 AM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

OK. Sorry. Didn't see that you had flooded but eventually coughed back to life on the stocker.

Anyway, the first thing I would sort out here is COMs. Those have to be reliable or you're dead in the water.

After that, I'd revert to step 1. You were actually doing fine. 1300 is plenty good enough for the first step of synchronizing the timing in the MS. When you select a fixed spark advance angle through the software, it no longer changes with RPM.

Once that is done, your idle settings will need a lot of work. They always do. It's also a great intro to the MS. Here's a thread that might help: https://www.miataturbo.net/megasquirt-18/timing-idle-requesting-some-help-57133/
hornetball is offline   Reply With Quote
Old 11-22-2011, 05:43 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

Thanks Hornetball,

I got the AFR sorted, its idling on stock ECU at 14.7 ish.

Any ideas how to get communication with the MSPNP. Can i use tunerstudio instead of megatune
andrew is offline   Reply With Quote
Old 11-22-2011, 10:24 AM   #8
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You can use TunerStudio if you want; you just have to copy the INC files so it will display the right temperature.

I would first see if it responds to Port Check.
Matt Cramer is offline   Reply With Quote
Old 11-22-2011, 04:41 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

thanks, its not responding to port check. When I plug in and power it from the ignition i get the following error message.

the selected comm port (Com11 or Com9) could not be opened.
To fix this click communications - settings and change the port.
then click file - offline to connect to ECU

So I do above and when I click to test the selected port i get 'no response'

I have checked device manager and the USB/serial driver is in Com11 and is working correctly.

Whats my next step - send it to DIYAuto for repair from Ireland?

thanks
andrew is offline   Reply With Quote
Old 11-23-2011, 01:12 PM   #10
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Can you set the USB port to something lower, 10 or less?
Matt Cramer is offline   Reply With Quote
Old 11-23-2011, 04:26 PM   #11
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

I did the port check

COM9 Opened
9600 baud
No connection made.
115200 baud
No connection made.

1 valid port found.

Hit return when done...

Is there any way I could have blown the MS during install, e.g. plugging in, powering up and trying to load the initial map 90-93 with AFM?

Help, I'm going nuts. If I can't get the simple bits what hope have I of tuning this. Really thinking of skipping the whole plan.
andrew is offline   Reply With Quote
Old 11-23-2011, 04:33 PM   #12
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Those should not damage it. I would try reloading the firmware next. If you get an error message, please post a screen shot.
Matt Cramer is offline   Reply With Quote
Old 11-23-2011, 05:15 PM   #13
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

hi Matt,

this is what I got, thanks for your help,

Downloading new Firmware to your MegasquirtPNP

WARNING:
PAY ATTENTION OR YOU WILL BURN UP YOUR IGNITOR and/or COIL PACK.
You must unplug your ignitor before continuing. Failure to do
so will destroy your ignitor. This can be very expensive to
replace!

After reflashing the firmware, reload the base map for your MSPNP
which will reconfigure your MSPNP with settings compatible with
with your ignition system. Then you can plug the ignitor back
in, start your car, and check your base timing.

If you understand this
Press any key to continue . . .



Did you really read that? Because if not, you're probably about
to break your car. If you did read it
Press any key to continue . . .


You did save your current map right? If you've spent any time
tuning, you probably should. This will overwrite it if you continue.

Press any key to continue . . .
Communication ports:
1 - COM1
2 - COM2
3 - COM3
4 - COM4
5 - COM5
6 - COM6
7 - COM7
8 - COM8
9 - COM9
Q - Quit
This version of C:\Program Files (x86)\MegaSquirt\MSPNP MM9093 with AFM\src\CHOI
CE.COM is not compatible with the version of Windows you're running. Check your
computer's system information to see whether you need a x86 (32-bit) or x64 (64-
bit) version of the program, and then contact the software publisher.
Press any key to continue . . .
andrew is offline   Reply With Quote
Old 11-23-2011, 05:36 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

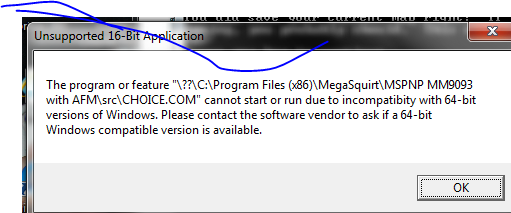

90-93 MSPNP not working-capture.png

trying to upload the screenshot
andrew is offline   Reply With Quote
Old 11-26-2011, 02:01 PM   #15
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

Update, I changed the com port from 9 to 1 in device manager. still no communication.

Anyone else had this problem and solved it?

How do I test the ecu without a PC connection?

thanks
andrew is offline   Reply With Quote
Old 11-26-2011, 02:06 PM   #16
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by andrew View Post
Update, I changed the com port from 9 to 1 in device manager. still no communication.

Anyone else had this problem and solved it?

How do I test the ecu without a PC connection?

thanks
Try changing it to COM2. A lot of times COM1 is used. I had to get a new serial to USB adapter, MS seems to be very particular. I would use the one from diy. There is a certain chipset in the adapter that seems to be required.
miatauser884 is offline   Reply With Quote
Old 11-26-2011, 04:43 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

thanks, i will try another usb adaptor.

when you had problems with yours, did your pc indicate it was not working. My pc says the drivers are installed and working. Also it did work 1st time I plugged it in after telling megatune which com port (9) to look for in 'communications'

thanks
andrew is offline   Reply With Quote
Old 12-03-2011, 10:04 AM   #18
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

1. Turn off Megasquirt
.
.
Press any key to continue . . .
2. Install Boot jumper (or short out boot resistor)
.
tried using another pc with serial port to upgrade firmware.

this is what i got, any suggestions

Press any key to continue . . .
3. Turn on Megasquirt
.
.
Press any key to continue . . .
.
This should count up to 1700+ lines
.
src\download.exe -c1 msns-extra.s19
MS Download 1.10
Download failed:
Expected response "
Boot>",
but received this "".
Press any key to continue . . .
andrew is offline   Reply With Quote
Old 12-03-2011, 10:12 AM   #19
Junior Member
Thread Starter

Join Date: Jan 2011
Posts: 81
Total Cats: 0
Default

i then tried loading the 64 bit firmware and got this

The zipfile has not been extracted correctly - please ensure you
'use folder names' or create sub directories when extracting.
This batch file cannot run without:
CHOICE.COM
ms2dl.exe
.
.
Aborting
Press any key to continue . . .

I unzipped it on 2 different laptops and got same result.

when it says paste it in your project folder i presume this is '90-93 with afm' not the full 'megasquirt' folder with other subfolders?

thanks in advance
andrew is offline   Reply With Quote
