Default Fan output not working anymore

This is a DIYautotune MS2 wherein the fan output (output 1 set to >190 coolant) does not work anymore. It work for two week before today and all of a sudden it does not turn on the fan anymore. I checked the motor with a direct 12v cable and the fan motor is not the problem. Any suggestions? Thanks
buffon01 is offline   Reply With Quote
Old 02-02-2015, 11:46 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Can you enable Port Status in the project properties, then make a data log of when the fan should come up? Then post the log and your MSQ.
Matt Cramer is offline   Reply With Quote
Old 02-03-2015, 10:52 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I went ahead and took a log. I changed the settings in the temp threshold to see if anything happened. All I saw is the On/Off out put goes to 4.0 then 0. I also measured the voltage on the positive cable at the fan while it was supposed to be running and it read very low 0.5 mv or so. Attached is the log
Attached Files
File Type: msl 2015-02-02_14.52.14.msl (689.0 KB, 44 views)
buffon01 is offline   Reply With Quote
Old 02-04-2015, 09:20 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

I would also like to check the MSQ file.
Matt Cramer is offline   Reply With Quote
Old 02-04-2015, 11:38 AM   #5
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Here
Attached Files
File Type: msq 2015-02-04_10.38.26.msq (108.7 KB, 35 views)
buffon01 is offline   Reply With Quote
Old 02-05-2015, 10:45 AM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Ok, looks like the ECU "thinks" it's turning the fan on. Can you check if the fan output is pulled to ground when this happens? If not, the issue is on the MicroSquirt Module; please contact us directly at [email protected] if you would like to set up a repair.
Matt Cramer is offline   Reply With Quote
Old 02-05-2015, 08:22 PM   #7
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

How would I check if the ouput is pulled to ground?
buffon01 is offline   Reply With Quote
Old 02-06-2015, 09:12 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

does the fan run when you jump tfa and gnd?
Braineack is offline   Reply With Quote
Old 02-06-2015, 11:22 AM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by buffon01 View Post
How would I check if the ouput is pulled to ground?
Use a volt meter. You should have 12 volts with the output off and 0 with it on.
Matt Cramer is offline   Reply With Quote
Old 02-08-2015, 06:24 PM   #10
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
does the fan run when you jump tfa and gnd?
I hear a click but the fan does not come on.

Quote:
Originally Posted by Matt Cramer View Post
Use a volt meter. You should have 12 volts with the output off and 0 with it on.
To be more exact is where do I measure this? at the ECU or at the fuse?
buffon01 is offline   Reply With Quote
Old 02-09-2015, 11:43 AM   #11
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

At the ECU output pin. No 12V when off - something's wrong with the wiring. No 0V when on - something's wrong with the ECU.
Matt Cramer is offline   Reply With Quote
Old 02-09-2015, 11:51 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by buffon01 View Post
I hear a click but the fan does not come on.
the click is the fan relay, sounds like the fan itself it dead...
Braineack is offline   Reply With Quote
Old 02-09-2015, 03:27 PM   #13
Junior Member

Join Date: Nov 2013
Location: Atlanta, GA
Posts: 53
Total Cats: 5
Default

Subbed for same problem. But TFA-GND does kick mine on. Didn't OP say that the fan works when given another 12v source?
harrybeachdog is offline   Reply With Quote
Old 03-27-2015, 03:30 PM   #14
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Alright so a little update. I got the car running again and magically the issue went away. Could it be the MS since I tried the jumper on the diagnostic and nothing then it work after when MS did run the fan output?

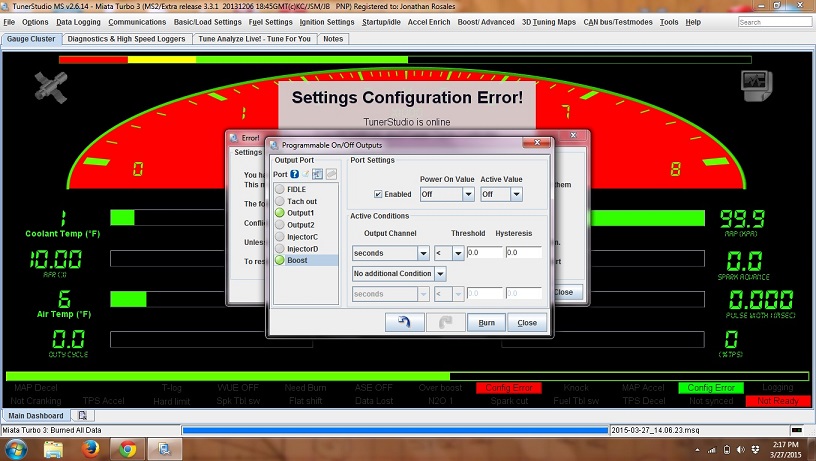

Also Im trying to run the Boost output to my EBC and every time I turn output on I get an error and TS goes crazy, the fan shuts down, etc... Then I turn the Boost output off and everything returns to normal.
Attached Thumbnails
Fan output not working anymore-boost-output-error-.jpg
buffon01 is offline   Reply With Quote
Old 03-28-2015, 09:12 PM   #15
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Aaaaand it's gone again. Now the car loops like crazy even with the idle valve disconnected and the screw at the TB on the lowest setting the car wont come down from 1200 at the lowest. During warm up it loops from ~2k to ~3k and slowly decreases once it warms up. I have no clue what's happening :'((
buffon01 is offline   Reply With Quote
Old 03-29-2015, 05:43 PM   #16
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Any ideas??
buffon01 is offline   Reply With Quote
Old 03-29-2015, 09:19 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

maybe the relay is on the way out.
Braineack is offline   Reply With Quote
Old 03-30-2015, 01:31 PM   #18
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Braineack View Post
maybe the relay is on the way out.
Which relay?
buffon01 is offline   Reply With Quote
Old 03-30-2015, 01:59 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

the fan relay...
Braineack is offline   Reply With Quote
Old 03-30-2015, 07:31 PM   #20
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Thanks Idk what I was thinking...


I thought of making a new thread but rather just keep it here instead. I am having issues with idle, during warm up the rpm oscillates and sometimes goes to about 3k rpm with open loop setting regardless of any input to PWM. During close loop it starts normal then gradually increases and settles at 2k rpm till about 160* F then settles to a normal idle

This is a log I took with the open loop settings and you can see the oscillations. At that time I remember decreasing the WUE and the saw the rpm drops but remains unsteady.


Second I enabled closed loop setting to see what it would do and it does not reach 3k rpm but remains at 2k rpm till about 160*F then settles at ~900-1000 rpm
Attached Thumbnails
Fan output not working anymore-pwm-idle-duty-high-rpm-cold-start.jpg   Fan output not working anymore-pwm-idle-duty-high-rpm-cold-start-open-loop.jpg
Attached Files
File Type: msq 2015-03-30_15.19.03.msq (108.8 KB, 47 views)

Last edited by buffon01; 03-30-2015 at 07:48 PM.
buffon01 is offline   Reply With Quote
