Default Hesitation on Boost

I'm hoping someone can help me here

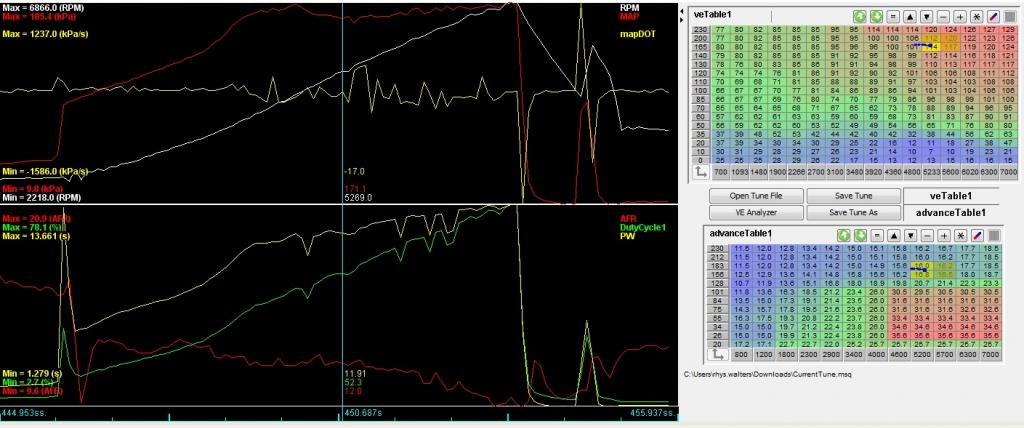

In the above screenshot, note the dips in pulse width and duty cycle.

It seems to happen between 4500 and 6000 rpm.

Car is running a bmw vtps, 2871 churbo, intercooler, MSpnp2 and 460cc rx7 injectors with a 255 walbro. plugs are bkr7e with a .8mm gap.

I've only been having this issue since i put the churbo in the car, either that or i've only noticed it since.

I was running an sr20 T25 for two years previously.

I've tried the following:

Smooth out the fuel map
run veal to fine tune it
Copy these tables into a new msq to eliminate the possibility of an accidental change made elsewhere in the tune file.
run 100% TPS and 100% Map based AE and it happens with both.


I have a feeling it's to do with the Accel Enrichment, as the ''Map AE'' light comes on randomly in the log when at WOT and in boost. I've tried reading on MapDOT and RPMdot and it's slowly digesting but at the moment it may as well be in a different language.

I've reach the limit of my own knowledge with MS so i need someone to have a look at the attached logs and tune file.

One Log is a third gear pull and the other is a 3rd to 4th to 5th gear pull.

Thanks in advance

Rhys
Attached Thumbnails
Hesitation on Boost-ss_zpsbf55d558.jpg
Attached Files
File Type: msl 2014-09-22_15.39.44 thrid gear.msl (327.5 KB, 50 views)
File Type: msl 2014-09-22_15.41.49 3rd 4th 5th.msl (90.2 KB, 58 views)
File Type: msq CurrentTune.msq (85.2 KB, 62 views)
rhysmate is offline   Reply With Quote
Old 09-22-2014, 07:24 PM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Looking at the MapDOT Threshold, is it possible that its set too low and is triggering on boost?
rhysmate is offline   Reply With Quote
Old 09-22-2014, 09:03 PM   #3
Junior Member
iTrader: (5)

Join Date: Jul 2007
Location: South Jersey
Posts: 112
Total Cats: 1
Default

Have you tried blending map dot and tps in AE? Something around 50% split and adjust from there?
bogly is offline   Reply With Quote
Old 09-22-2014, 09:04 PM   #4
Junior Member
iTrader: (5)

Join Date: Jul 2007
Location: South Jersey
Posts: 112
Total Cats: 1
Default

Sorry for dup post from phone
bogly is offline   Reply With Quote
Old 09-22-2014, 09:16 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

I haven't but i certainly will sir.

I've looked at old logs from over a year ago and it appears its been happening all along.

I calculated the PW change and its a 10% drop every time or very close to that. Looked at the AE settings and the Decel amount is set to 90%! Which from my understanding would cause a 10% drop in PW when it activates.

Also, the mapDOT threshold is set to 125 kpa/s, so ill try and set that higher and see if it helps. I'll report back!

Any other thoughts greatly appreciated
rhysmate is offline   Reply With Quote
Old 09-22-2014, 09:52 PM   #6
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by bogly View Post
Sorry for dup post from phone
Not to thread jack Rhys... But bogly where are you located in South Jersey? Haven't seen any turbo miata's around!
BTMiata is offline   Reply With Quote
Old 09-23-2014, 12:46 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

No worries Brian, problem solved anyway
rhysmate is offline   Reply With Quote
Old 09-23-2014, 08:38 AM   #8
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by rhysmate View Post
No worries Brian, problem solved anyway
Glad to hear!
BTMiata is offline   Reply With Quote
Old 09-23-2014, 09:00 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

Quote:
Originally Posted by rhysmate View Post
I haven't but i certainly will sir.

I've looked at old logs from over a year ago and it appears its been happening all along.

I calculated the PW change and its a 10% drop every time or very close to that. Looked at the AE settings and the Decel amount is set to 90%! Which from my understanding would cause a 10% drop in PW when it activates.

Also, the mapDOT threshold is set to 125 kpa/s, so ill try and set that higher and see if it helps. I'll report back!

Any other thoughts greatly appreciated
how about installing a vTPS and stop using mapdot for enrichments!
Braineack is offline   Reply With Quote
Old 09-23-2014, 10:09 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
how about installing a vTPS and stop using mapdot for enrichments!
I have a bmw vtps? Its in my build thread and also in the first post of this thread where i list the mods?

I have it set to 100% tps based ae. I have no idea why mapDOT is still being used by the ecu.
rhysmate is offline   Reply With Quote
Old 09-23-2014, 10:11 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

i dont read.

why are you fussing with mapdot if you have a vtps? should be blessing tpsdot.
Braineack is offline   Reply With Quote
Old 09-23-2014, 10:13 AM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Its set to 100% tps ae. Sorry i edited that last post to include it but you may have replied already.

I have no idea why mapDOT is still a factor. Its the "map de" light that was coming on so im not sure if that's independent of ae?
rhysmate is offline   Reply With Quote
