Default MSPNP2 first start issue...wb whacked reading

Ok. First post in a long time. I have recently converted my car from an emanage blue to a new MSPNP2. I have all my connections in order and the car started fine with the base map. Everything looked good to warm up and set the fixed timing. When I setup the tunerstudio project, it was defaulted to wideband....left that. I have my LC-1 connected to my ECU ground, and I know it was working previously with the emanage. After I started the car, and starting warming it, I set my EOG to the Innovate LC-1. When I did this and hit "write to controller" my a/f ratio guage on tuner studio went whack and is now reading 20! Not sure what I did here. I may just let it warm up and set the timing before I mess around. Any help here would be appreciated as I would like to use VE analyser live to tune.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 10:53 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

First, make sure you have wideband input enabled under Project Properties. If you do, check the LC-1's analog output voltage.
Matt Cramer is offline   Reply With Quote
Old 04-07-2015, 11:06 AM   #3
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Wondering if this has something to do with it. My LC-1 is pretty old. Came in a white box with orange lettering

THIS STEP IS ONLY ON 'older model' LC-1'S as defined above (and below actually)! Use a 470 ohm, 1/4watt resistor in between the analog output of the LC-1, and the o2 input of the MegaSquirt. So you'll wire the analog output from the LC-1 to one side of the resistor, and then you'll wire the MegaSquirt 02 input to the other side of the resistor, forcing the signal to pass through it.

Blue Box or White/Red box LC-1's (started shipping around mid-June '06) have an updated DAC that does not require the 470 ohm resistor when used with MegaSquirt. Another way to identify if you have this updated LC-1 that doesn't need the resistor is the serial number will be LC11188 or above, or the serial number will start with CLC on new models.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 11:12 AM   #4
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

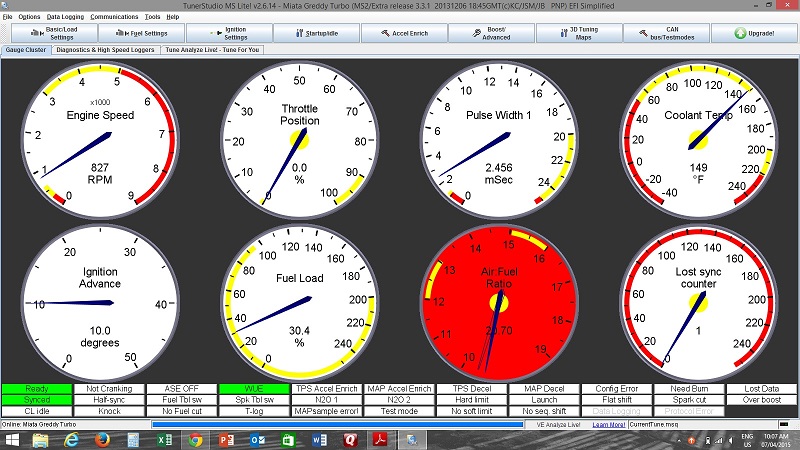

havent checked voltage yet....heres what im seeing though
Attached Thumbnails
MSPNP2 first start issue...wb whacked reading-screenshot.jpg
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 11:17 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

you either configured the AFR calibration incorrectly or you're inputting the NB signal.
Braineack is offline   Reply With Quote
Old 04-07-2015, 11:38 AM   #6
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Wideband was selected when i started a new project, with base map from megasquirts pnp website....MS2E v3.3.1a MSPNP2-MM9093. I then calibrated the AFR with EGO sensor lc-1. I do have a AFR table setup as well.

I configure the req_fuel too for my 310cc injectors. I'm coming from an old emanage blue setup. Req fuel is set at 8.7 for 310cc injectors.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 12:02 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

reading 4.2 volts on lc-1 output to mspnp2. Which suggests im running lean (tunerstudio show 20 as my afr), while my guage which is configure as 0-1v output 2 as narrowband shows im rich.....there is gas coming out of my tail pipe so i'm inclined to believe my guage is correct and the reading from my output on the lc-1 to mspnp2 is incorrect. Were old lc-1's inverted for their voltage?
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 12:40 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

what firmware is your LC1 running?

how you used LM Programmer and determined exactly what your LC1 is outputting? Did you buy it used or something?
Braineack is offline   Reply With Quote
Old 04-07-2015, 01:02 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

well...not sure...haven't updated it for years. I'm not even sure I can find the communication cable for it. I went to custom linear wb and tricked some settings but things are still not right. My Guage is showing rich even after car is warmed up while tunerstudio is showing lean with lc-1 default settings. Leaving lots of gas in my driveway. Got to see if I can find my lc-1 cable.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 01:05 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

it must have a funky output programmed as 4.2v is lean.
Braineack is offline   Reply With Quote
Old 04-07-2015, 01:25 PM   #11
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

If your car is running, there's a fault in something else, because it wouldn't run at 20:1.

So under "tools" and "calibrate afr", you selected LC-1?
curly is online now   Reply With Quote
Old 04-07-2015, 01:46 PM   #12
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Quote:
Originally Posted by curly View Post
If your car is running, there's a fault in something else, because it wouldn't run at 20:1.

So under "tools" and "calibrate afr", you selected LC-1?
Yes. Also checked to make sure it was set to single WB sensor.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 01:46 PM   #13
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Found my lc-1 cable. Gonna check the outputs. Load firmware.
MiataNuTca is offline   Reply With Quote
Old 04-07-2015, 03:22 PM   #14
Junior Member
Thread Starter

Join Date: Oct 2004
Location: Windsor, Canada
Posts: 191
Total Cats: -2
Default

Ok...think I have it figured out. My output on the lc-1 had weird settings.

4.8V= AFR 10
0.0V= AFR 19.99

So i configured the EGO to a Linear WB and input those settings. At least the MSPNP2 knows where I'm at now.

After warm up, it appears that Im still running rich (TS knows that now). I manually input some lower figures into the VE table and was able to bring that down in the idle area rows to more stoich afrs. Isn't TS supposed to target AFR off the AFR table after coolant hits 160 degrees? Wondering why it's not targeting that figure. I think I have to register TS for this feature. Sorry for the noob questions, I've been out of the FI Miata game for a while. Kids are growing up now, and I'm back at it.

P.s.- an old xp laptop saved me here. My windows 8 laptop couldn't communicate with the LM works software.
MiataNuTca is offline   Reply With Quote
Old 05-10-2015, 11:51 AM   #15
Newb

Join Date: Aug 2011
Posts: 43
Total Cats: -2
Default

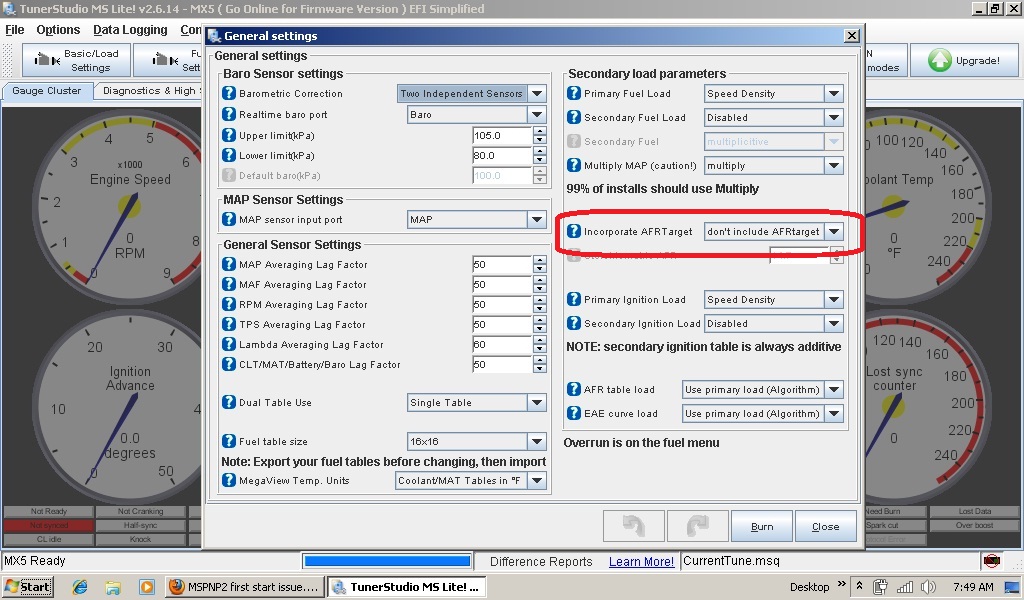

I'm no expert but I think there's a feature in TS to use AFR tables.
Attached Thumbnails
MSPNP2 first start issue...wb whacked reading-untitled.jpg
pikachukiat is offline   Reply With Quote
