did you make any wiring changes when you installed the megasquirt the first time? If you did, tell us exactly what you did. You said it sparks on both A and B above, was it a strong spark? can you get your hands on a tool like this Performance Tool High Energy Ignition Tester, Model# W84600 | Automotive Diagnostics| Northern Tool + Equipment . I would like to see if all spark is equal. If you pull the plugs after attempting to start, do they smell like fuel? is your injection setting sequential or untimed? can you datalog while trying to start and do a composite logger? Dont know if composite logger will help but its easy and good info.
mmmjesse is offline   Reply With Quote
Old 02-18-2016, 08:32 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

get a datalog (datalog > start log) of it cranking as well as a composite log (under diagnostics tab - save to file).

your setup is mainly stock?
Braineack is offline   Reply With Quote
Old 02-22-2016, 11:15 PM   #23
Newb
Thread Starter

Join Date: Feb 2016
Posts: 26
Total Cats: 0
Default

Quote:
Originally Posted by mmmjesse View Post
did you make any wiring changes when you installed the megasquirt the first time? If you did, tell us exactly what you did. You said it sparks on both A and B above, was it a strong spark? can you get your hands on a tool like this Performance Tool High Energy Ignition Tester, Model# W84600 | Automotive Diagnostics| Northern Tool + Equipment . I would like to see if all spark is equal. If you pull the plugs after attempting to start, do they smell like fuel? is your injection setting sequential or untimed? can you datalog while trying to start and do a composite logger? Dont know if composite logger will help but its easy and good info.
Quote:
Originally Posted by Braineack View Post
get a datalog (datalog > start log) of it cranking as well as a composite log (under diagnostics tab - save to file).

your setup is mainly stock?

Tried to be as detailed as possible. Below I put the wiring changes I made as well as my current tune and the data logs you guys suggested. Oh yea, the car is mainly stock besides a few bolt-ons; here are my motor/trans parts
RB intake-JR Headers-Highflow Cat-Borla Catback
Mishimoto Radiator/Hoses
Gates Timing belt and components/water pump
MSPNP2-GM IAT-Innovative Wideband w/Bosh o2-Walbro 190LPH Fuel Pump

Wiring changes

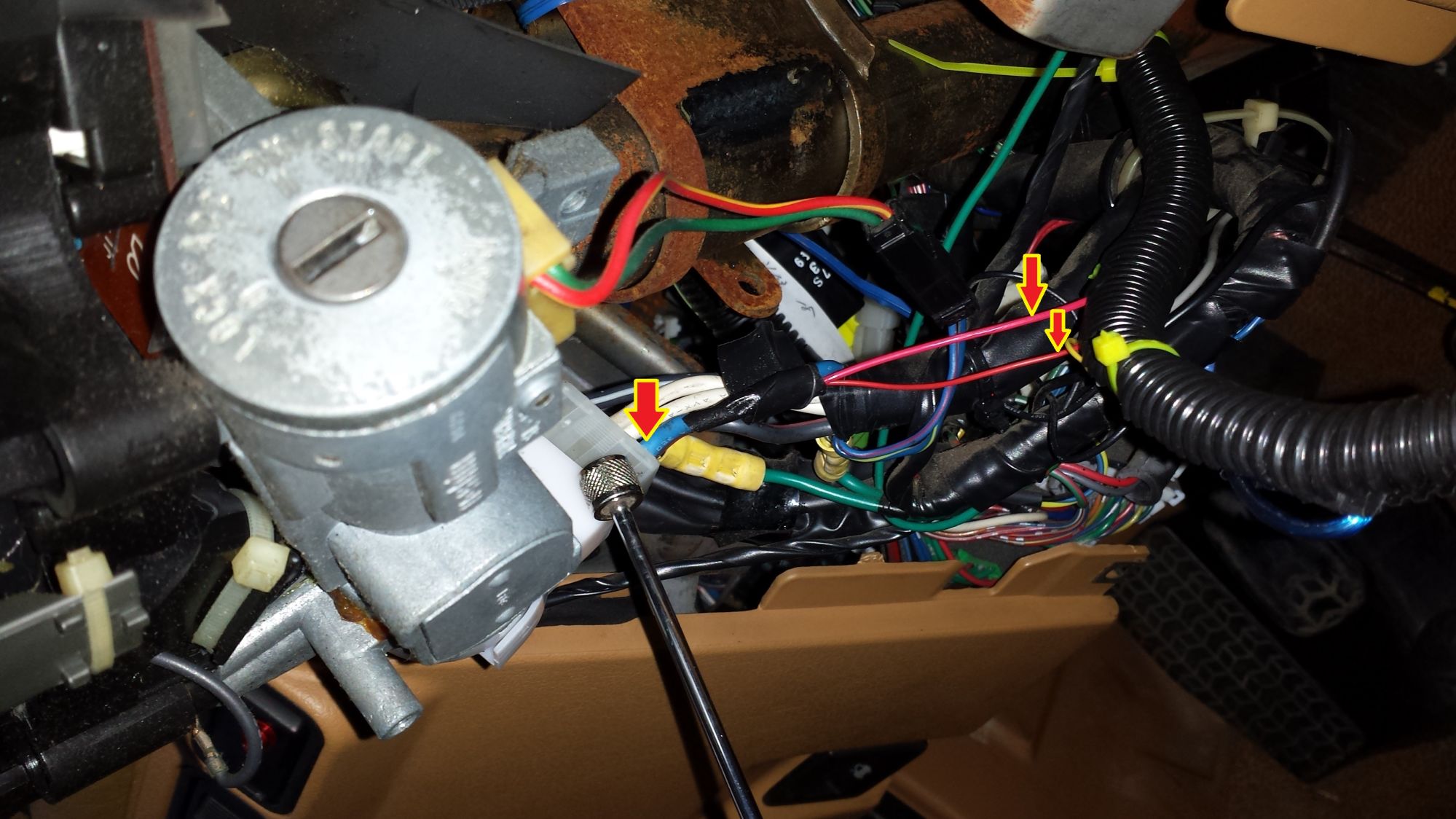

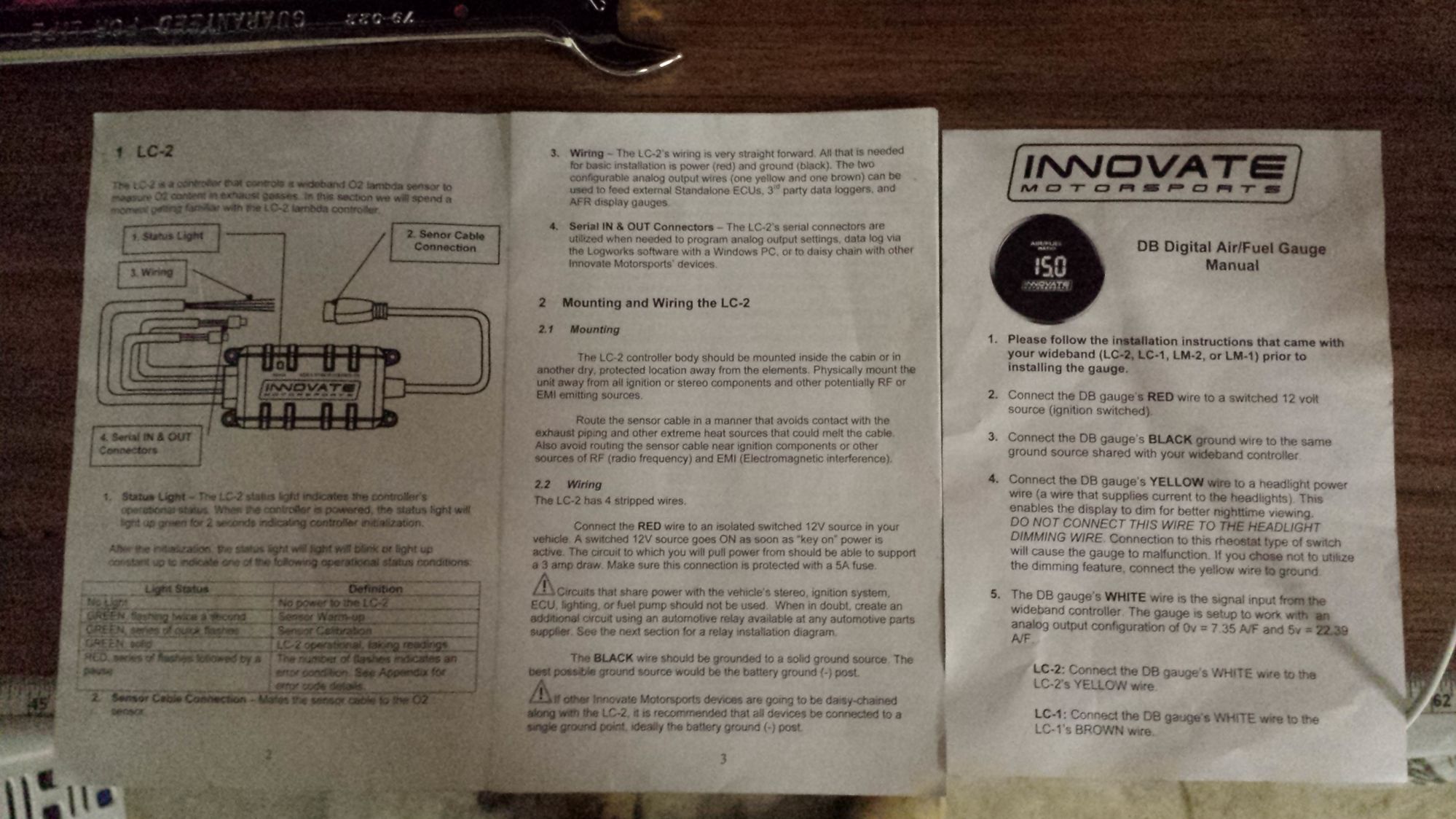

Red wires from gauge and LC-2 to thick blue wire under steering column (12 V source). Didn't cut the blue wire, just stripped a section to tap into

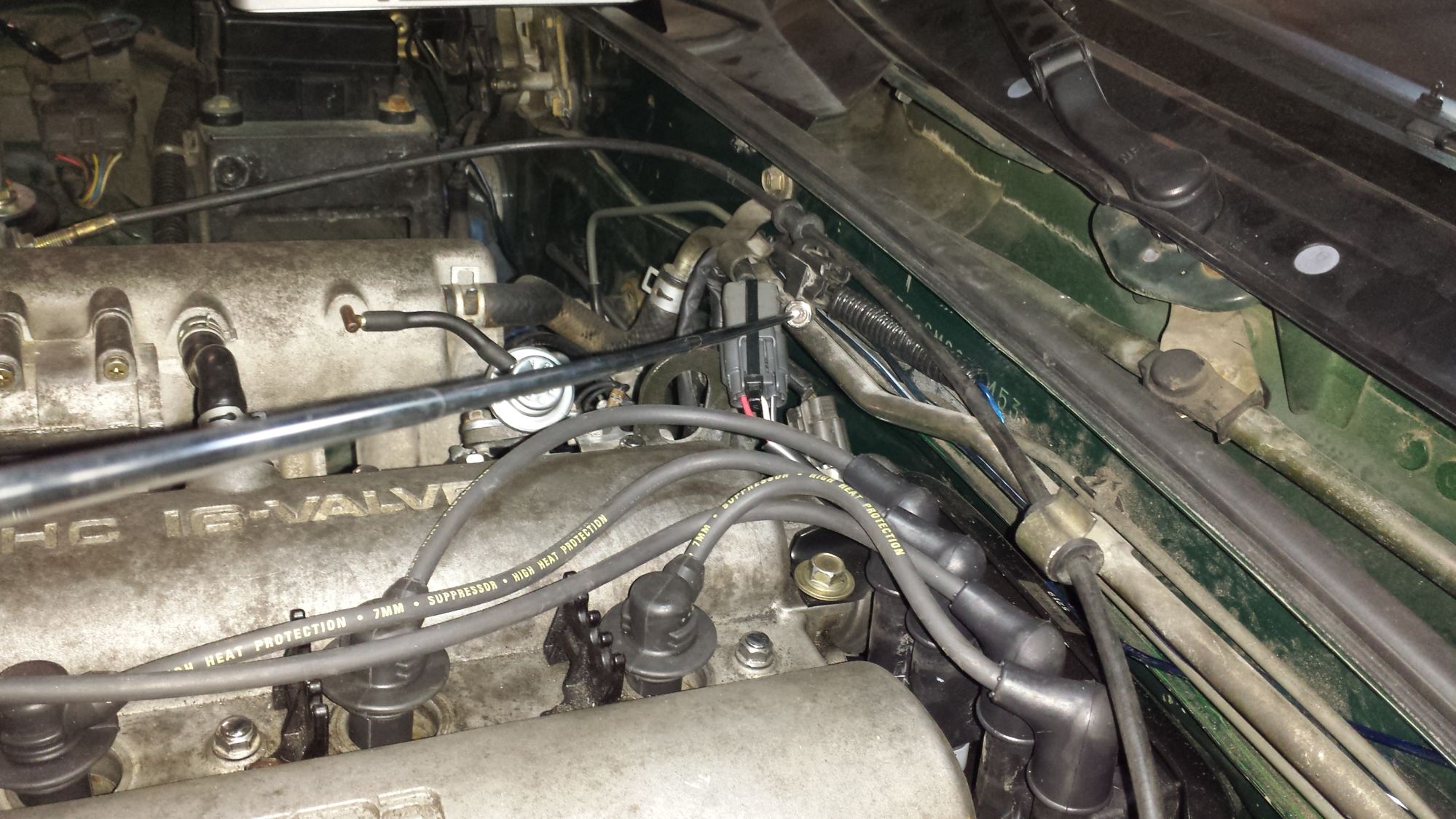

White wire from gauge connected with Yellow wire from LC-2 and ran through fire wall to the stock o2 plug

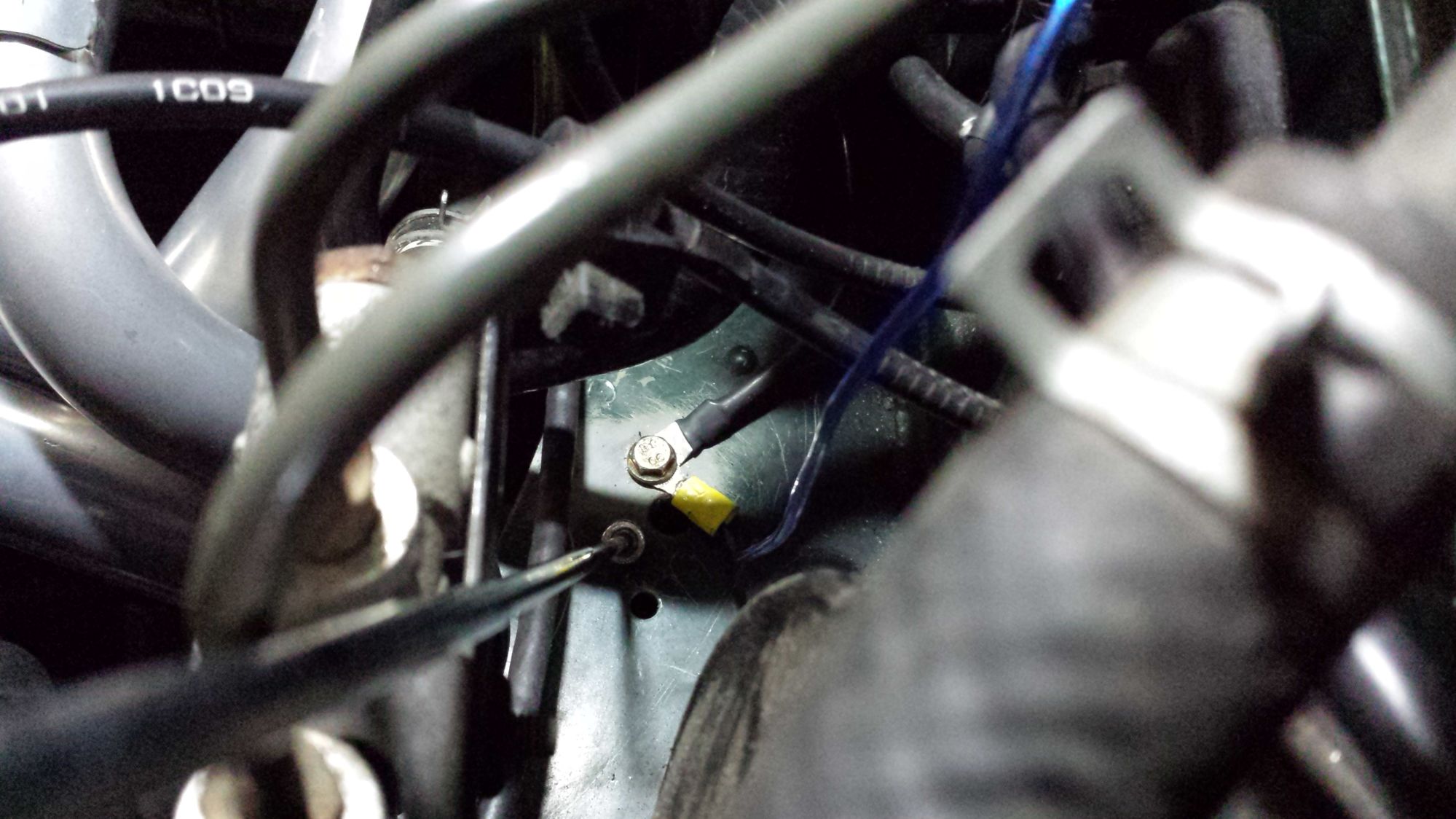

The black wires from the gauge and LC-2 are connected and ran through fire wall and grounded

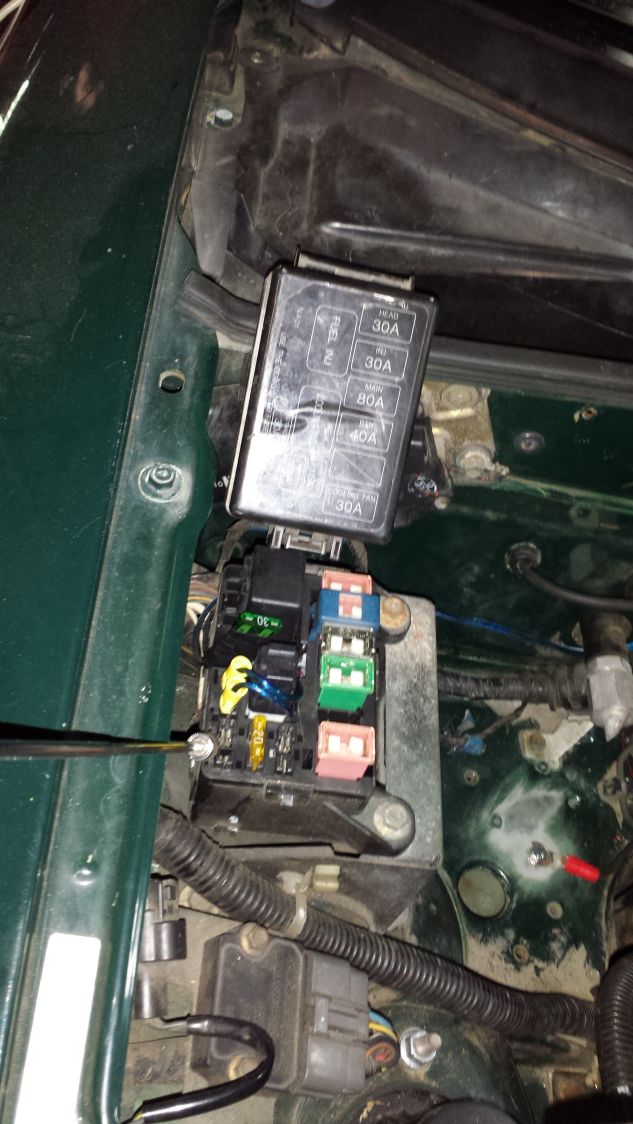

Removed ST Sign fuse

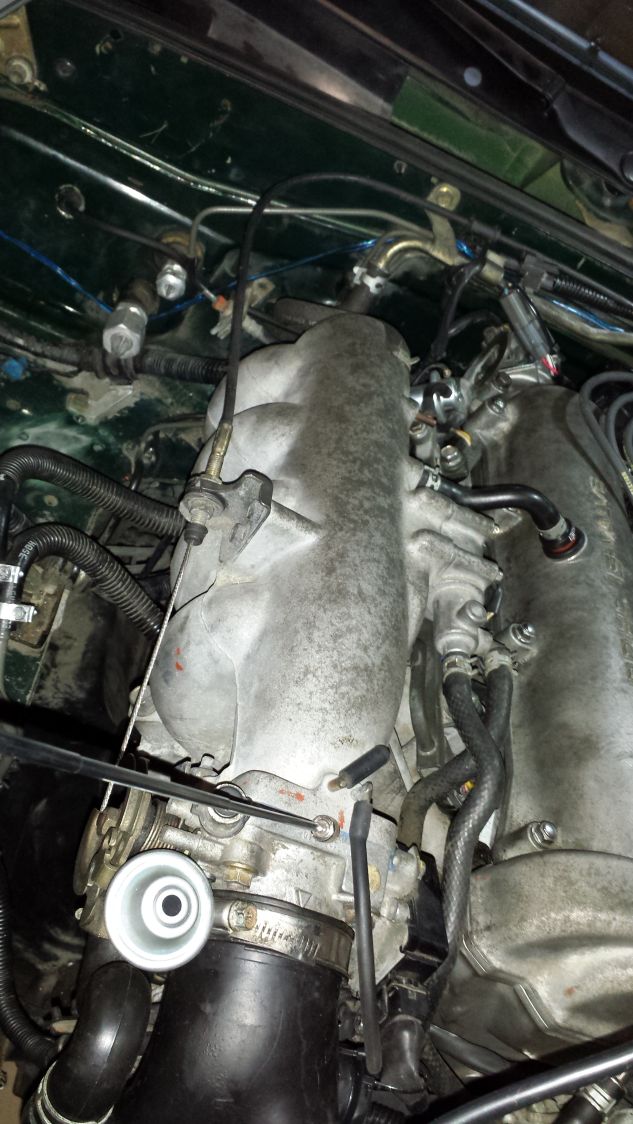

Here is where I connected the MAP sensor hose

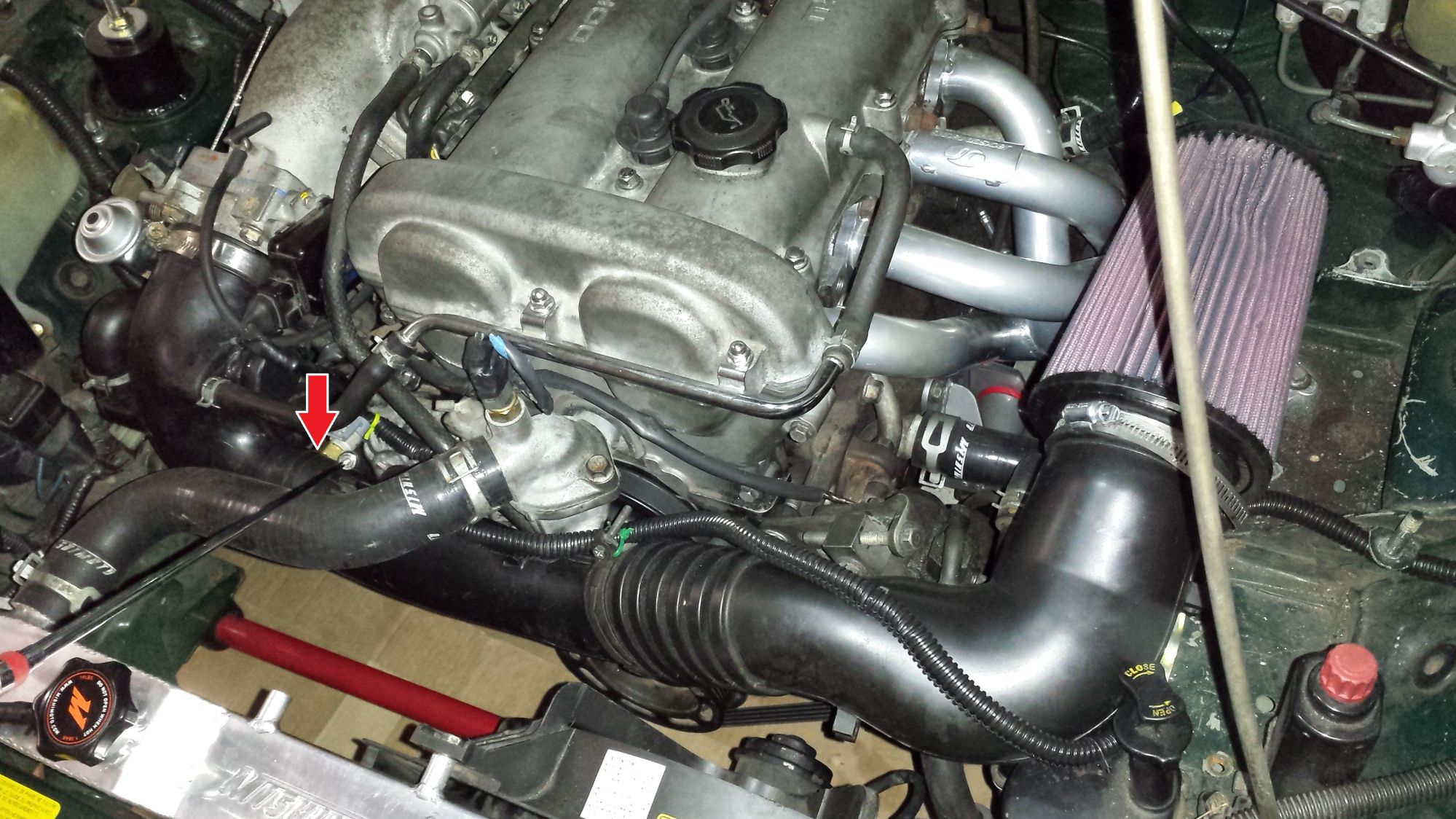

Removed OEM MAF meter thing and put a GM IAT sensor into the back side of the stock cross over tube (right near the intake manifold)


took the 2 wires that came with the kit and connected them to the stock MAF meter plug like below

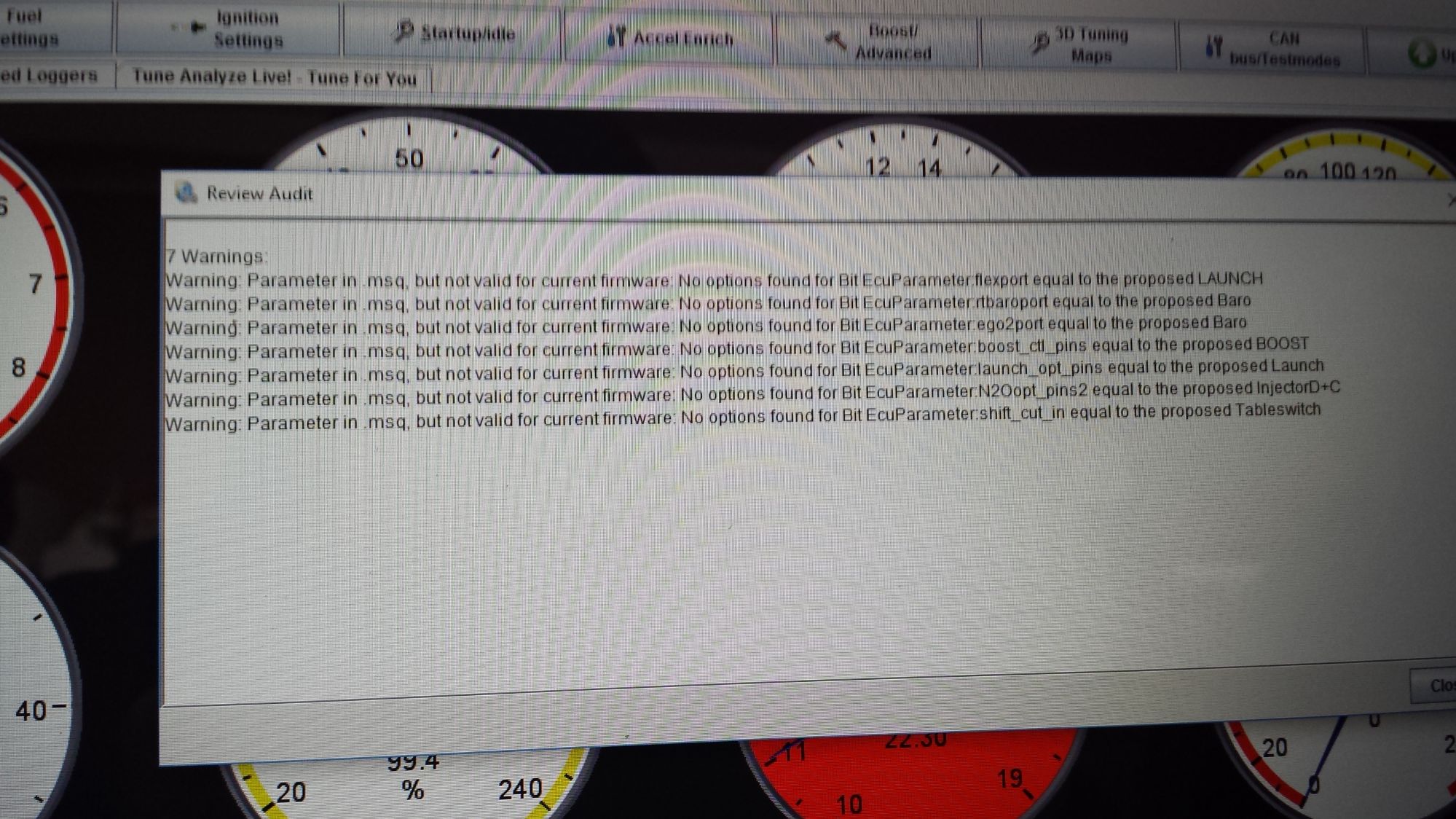

Uploaded the V3 3.1 map into tuner studio - "signatures don't match" - load anyway - received the errors below

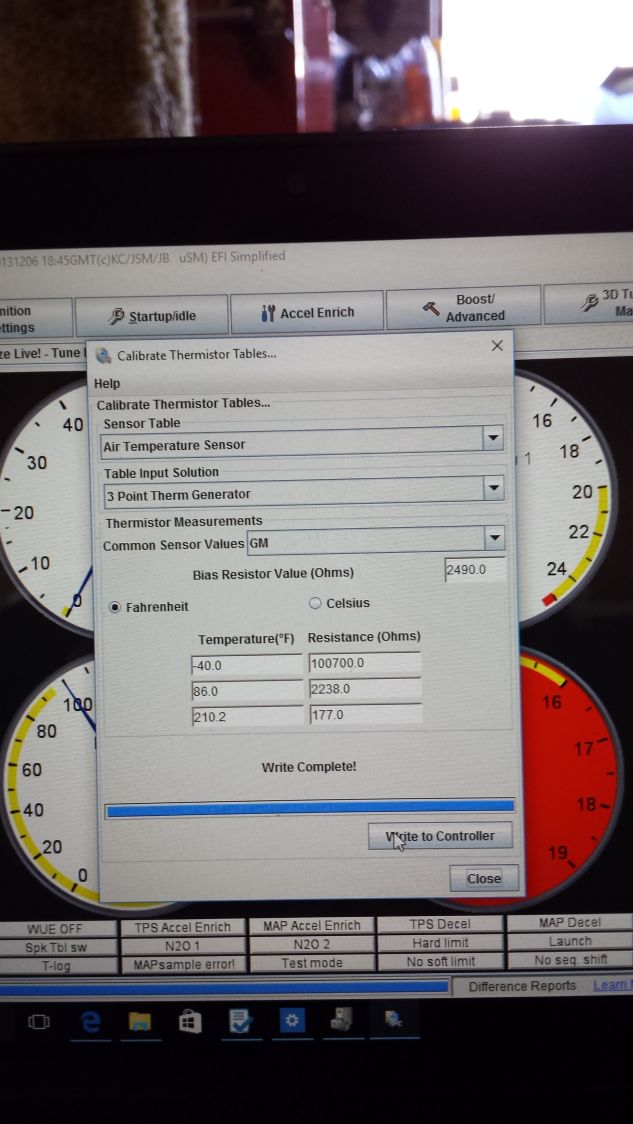

Changed the sensor settings to


Spark Test
Took a video to show you guys the spark test I ran and how strong spark is.
Fuel pump switched off for test
https://www.youtube.com/watch?v=R8pv...ature=youtu.be

Current tune
CurrentTune.msq

DataLog
MSPNP2 Miata 1st Log 2016-02-22_13.19.57.msl

Composite Log
Composite Log 2016-02-22_13.22.03.csv

When I ran the logs I cranked the engine a few times for 4-5 seconds . Let me know if I missed anything
Attached Thumbnails

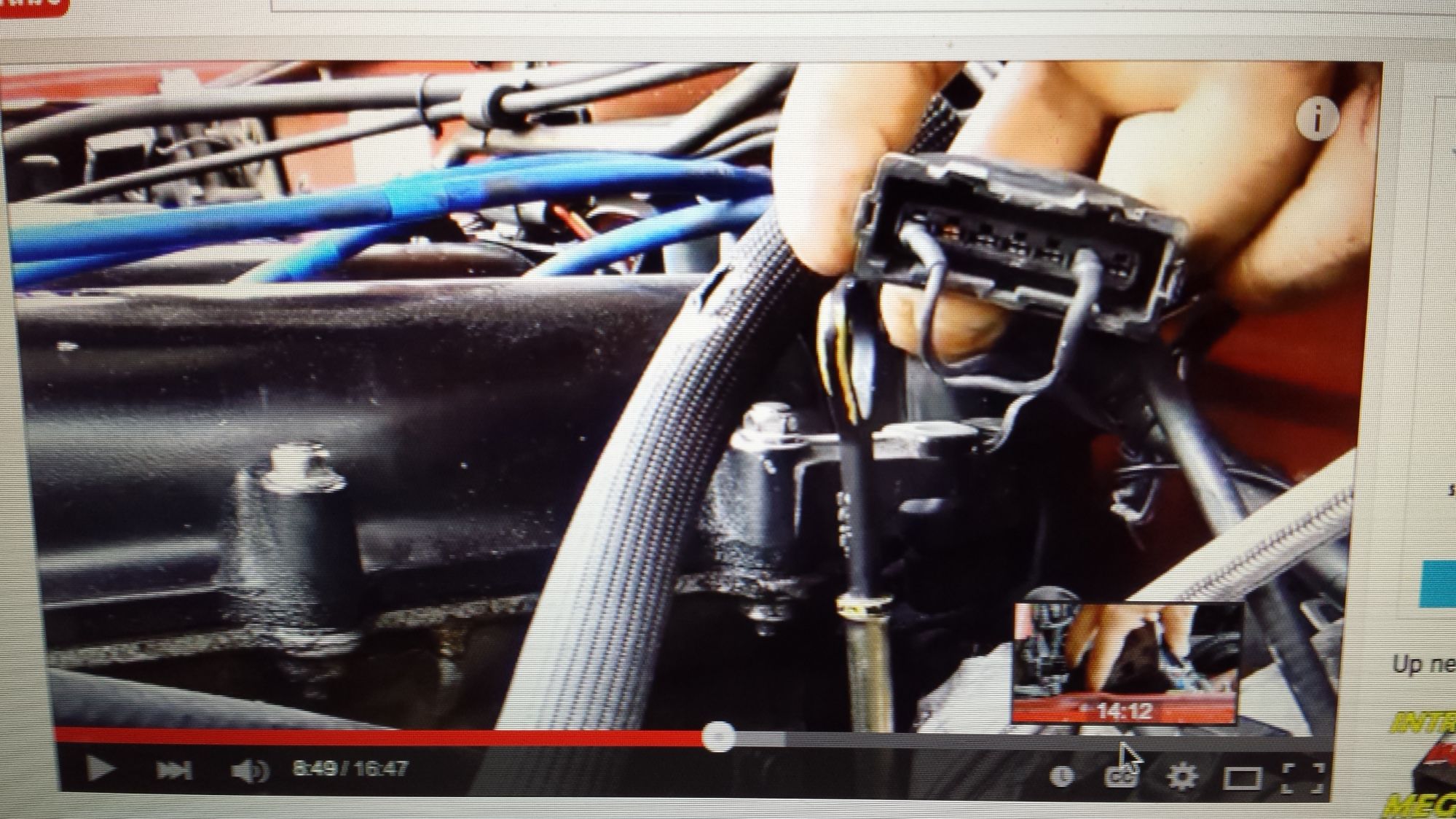

Spark issue after megasquirt?-80-1_1_innovative_direction_584c1ef472043eae74b1d3e9694b320bfe4a9374.jpg   Spark issue after megasquirt?-80-1_2_red_to_blue_b97a1b9f2340f27c908ef3b44c62cb99557f69c3.jpg   Spark issue after megasquirt?-80-1_3_yellow_to_o2_ffa1f54d0d2d734d3b9d151b5dfee7e37115a519.jpg   Spark issue after megasquirt?-80-1_4_black_wires_to_ground_49d68652efea418f33653a651a4c5d8679e8c4ea.jpg   Spark issue after megasquirt?-80-1_5_fuse_d99a51c64dca4d188811f2f01d7464f5bb1a4d81.jpg
