Old 09-18-2015, 12:22 AM   #21
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

You sure you cant pull stock NA fenders to fit the 245s on 10s? I know you can fit the 275s on 9s under pulled to **** fenders.
Leafy is offline   Reply With Quote
Old 09-18-2015, 12:56 AM   #22
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by bbundy View Post
245 hoosiers on 10' is freekin magical.
This. It's not stretched, I wouldn't want any less wheel width with a 245 Hoosier.

Quote:
Originally Posted by Mazdaspeeder View Post
Question for the group. What offset do the 10s have to be in order to fit under the NB fenders with a roll and pull (no cutting). I currently have a 245/40-15x9 +36 6UL all around and it doesn't rub.

Also what wheels? The 10" UL is gone, the 10" Jongbloed is too low offset (IIRC +15) and I can't fnd 10" advantis anywhere
+25mm is the sweet spot. There are no 10" Advantis. The Jongbloed came in two offsets so there are *some* +25mm out there, which is the same as the 6ULs. 6UL is obviously the best/lightest choice. The 15x10 6UL hasn't been available for a couple years now but they are coming back, the famine is almost over.

Quote:
Originally Posted by Leafy View Post
You sure you cant pull stock NA fenders to fit the 245s on 10s? I know you can fit the 275s on 9s under pulled to **** fenders.
I don't think it can be done in the rear. Front fender is single-layer sheet metal so that can be pulled/stretched rather ridiculously, but rear would take massive work to get to fit. I have the slimmer autokonexion flare in the rear only (can't remember if that is called their version 1 or 2 at the moment), and here's how it looks with 15x10 and 245:



Fronts are pulled dramatically, made easier because the fender is cut, but I believe you can still stretch an un-cut front fender to clear, but it's be a lot of work:



Quote:
Originally Posted by d k View Post
So 10" it is.

Now onto the fenders.

Whats my option besides oem?

Autokonexion, what else?

Or best to go w oem fender and flares/pull?
Might try CarbonMiata, they have small flares similar to what I have from autokonexion in the rear of my car, but likely a lot faster turn around from them. Beware "widebody" stuff, most of that stuff is unnecessarily too wide and designed for very low offset show wheels.

If you can't find 10" wheels on the second-hand market right now, my suggestion is get a set of 9's and run 225's for your first few events and wait out the last few months until 15x10 6ULs are back, then rejoice.

-Ryan

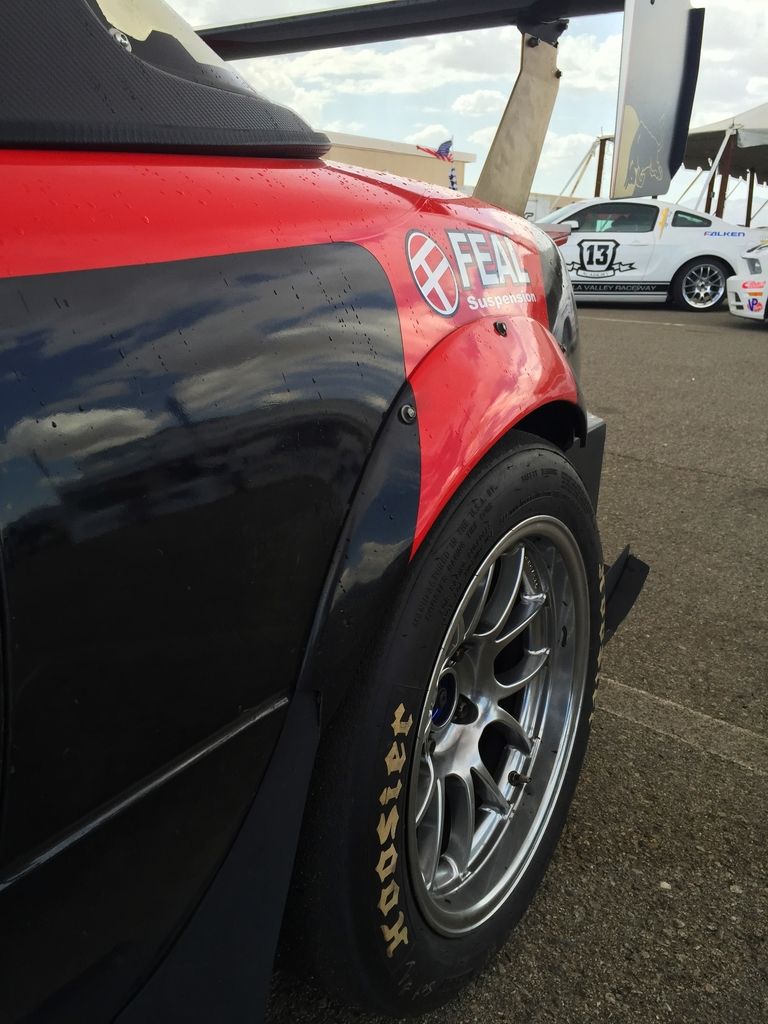

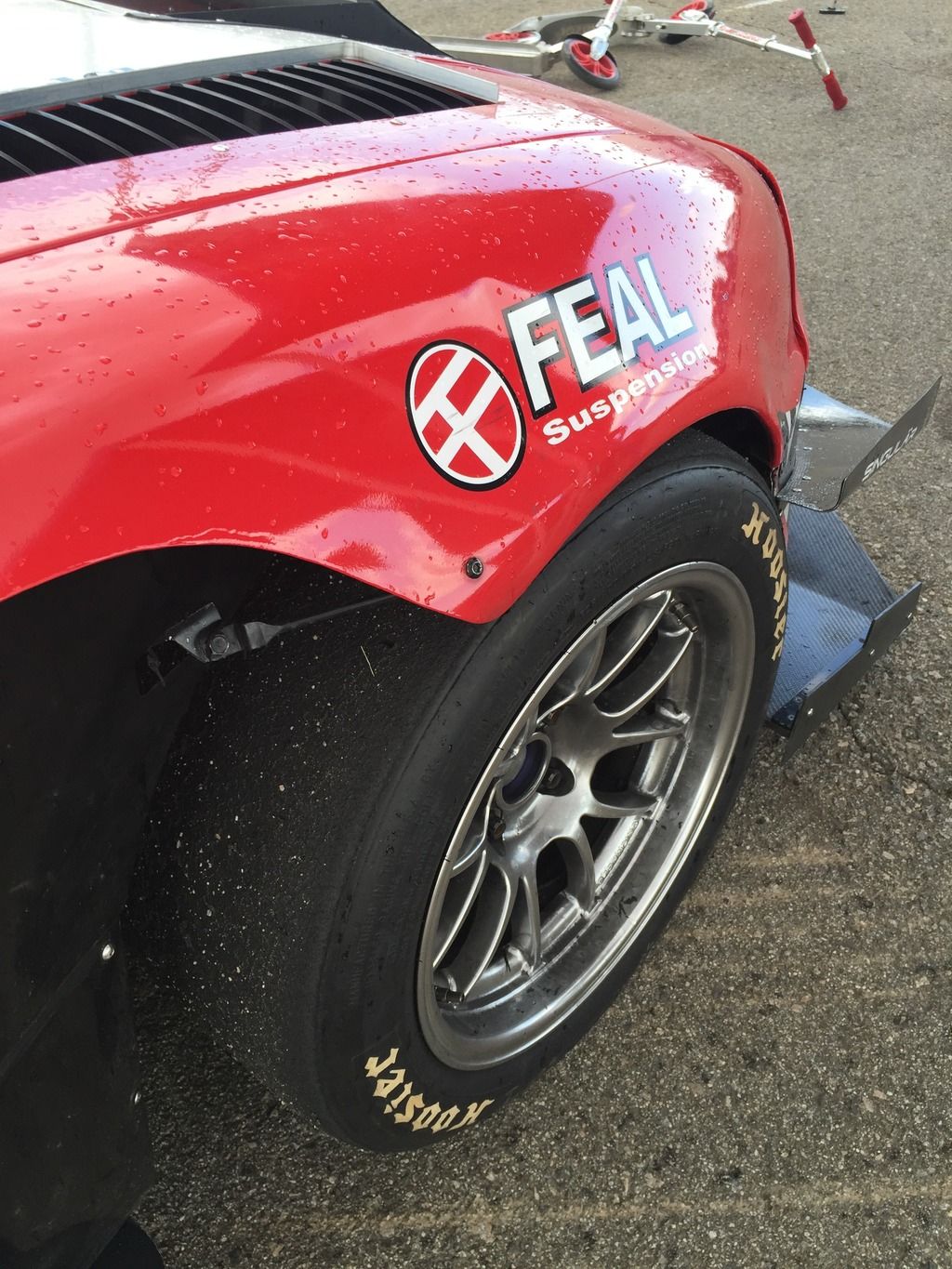

Attached Thumbnails
9" or 9.5" for 245s?-80-0d97914a_b04c_49b0_8e08_1ab513ec8bde_zpso4sit9n5_6e1f26baa8323adf43813092ae0288dcd35ddacb.jpg   9" or 9.5" for 245s?-80-545bf517_f9e8_40ab_a2d8_d57265922725_zpszninszdg_2f44c1003fb6f943286055abd70e459b2372919d.jpg
ThePass is offline   Reply With Quote
Old 09-18-2015, 01:09 AM   #23
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The rear is way easier to pull than the front. Especially if you use the hammer. The fronts flex a lot and spring back, the rears stay.
Leafy is offline   Reply With Quote
Old 09-18-2015, 01:39 AM   #24
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Perhaps enough hammering could do it, I can't say from personal experience as I already had the flares, but if I were doing it again and had the choice, I'd go with the small flare again. Less pain in the ***, cleaner finished appearance (I started caring more once I had sponsors and the car was my business card), will clear a 275 (on appropriate wheel size) if you decide to step it up even more later.
ThePass is offline   Reply With Quote
Old 09-18-2015, 01:57 PM   #25
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

I have the autokonexion small flares. barely clear both front and rear my 275/35/15 on 15X11" et 19.05mm but I think its perfect. They clear the 245/40/15's on 15X10 et 25 with room to spare. I run my 15X10 6UL's with 5mm spacers though to keep the track width the same as my autocross setup. never ran the 245's without flares as I already flared it to run the 275's.

with my camber setting there is no room to go further inboard than that without unusable amounts of rubbing on the front near the shock top or on the rear inside of the fender well.
bbundy is offline   Reply With Quote
Old 09-18-2015, 02:23 PM   #26
d k
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2011
Posts: 257
Total Cats: -1
Default

275's on a 2000 lb car.....


What the **** have I got myself into??
d k is offline   Reply With Quote
Old 09-18-2015, 02:38 PM   #27
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 598
Total Cats: 31
Default

Quote:
Originally Posted by d k View Post
What the **** have I got myself into??
#allofit
SchmoozerJoe is offline   Reply With Quote
Old 09-18-2015, 02:47 PM   #28
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by Leafy View Post
...I know you can fit the 275s on 9s under pulled to **** fenders.
It's worth noting that although this is possible, for it to not rub on the inside, you need monster truck ride height, and then on stock components, you don't have anywhere close to as much camber as you really want. 225s on 9s probably put more rubber to the ground than 275s on 9s, though I haven't specifically measured back to back.
dasting is offline   Reply With Quote
Old 09-20-2015, 09:57 AM   #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by dasting View Post
It's worth noting that although this is possible, for it to not rub on the inside, you need monster truck ride height, and then on stock components, you don't have anywhere close to as much camber as you really want. 225s on 9s probably put more rubber to the ground than 275s on 9s, though I haven't specifically measured back to back.
IDK, I did it with 4" pinchweld heights and 15x9 6uls, 6mm spacer up front required. I didnt do it under the stock front fenders because I couldnt get them to pull that far, they just flexed out 6 inches with the fender roller and snapped back into place. But theres a couple people on miata.net that have and another local that has as well. The rears were pulled to the limit that I could get with the fender roller without knocking the car off the jackstands, but I know you can get more than that with careful application of a sledge hammer. It is a whole bunch easier to just but out the cutoff wheel or plasma cutter and cut the fenders though.
Leafy is offline   Reply With Quote
Old 09-20-2015, 03:36 PM   #30
d k
Junior Member
Thread Starter
iTrader: (4)

Join Date: Feb 2011
Posts: 257
Total Cats: -1
Default

Where is a good source of small flares then?
d k is offline   Reply With Quote
Old 09-20-2015, 08:30 PM   #31
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Quote:
Where is a good source of small flares then?
The million dollar question!
mx5-kiwi is offline   Reply With Quote
Old 09-20-2015, 08:52 PM   #32
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by Leafy View Post
IDK, I did it with 4" pinchweld heights and 15x9 6uls, 6mm spacer up front required. I didnt do it under the stock front fenders because I couldnt get them to pull that far, they just flexed out 6 inches with the fender roller and snapped back into place. But theres a couple people on miata.net that have and another local that has as well. The rears were pulled to the limit that I could get with the fender roller without knocking the car off the jackstands, but I know you can get more than that with careful application of a sledge hammer. It is a whole bunch easier to just but out the cutoff wheel or plasma cutter and cut the fenders though.
6ULs, 6mm front spacer, sledgehammer.. check. I couldn't ever get it how I wanted. The most front camber I ever got was -2.2* I think. Tore up the shoulders. Maybe I could have gone a bit lower with stiffer springs (had 675/350), but I never got to that point. I just stuck with 225s. Well, 205s now with road racing, so stopped caring.
dasting is offline   Reply With Quote
Old 09-21-2015, 09:57 PM   #33
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by dasting View Post
6ULs, 6mm front spacer, sledgehammer.. check. I couldn't ever get it how I wanted. The most front camber I ever got was -2.2* I think. Tore up the shoulders. Maybe I could have gone a bit lower with stiffer springs (had 675/350), but I never got to that point. I just stuck with 225s. Well, 205s now with road racing, so stopped caring.
I tore up the front shoulders on my first few sets of 275s when I was trying to solider along with stock rubber bushings. Poly solved that for the most part. 2.8 of camber still isnt enough.
Leafy is offline   Reply With Quote
Old 09-21-2015, 11:48 PM   #34
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by Leafy View Post
I tore up the front shoulders on my first few sets of 275s when I was trying to solider along with stock rubber bushings. Poly solved that for the most part. 2.8 of camber still isnt enough.
Sounds about right. I run 3.3 ish now and I'm happy. Skinny 205s though. Still on 9s
dasting is offline   Reply With Quote
Old 02-25-2016, 02:30 PM   #35
Junior Member

Join Date: Nov 2014
Location: OC
Posts: 70
Total Cats: -5
Default Data to add

<4" pinch weld height and 3.3-3.5 front camber and rolled fenders. Neither front or rear is pulled like crazy, but we spent decent time rolling and yanking.

I run:
245 Rc1 on 15x10 +25 6ULs that rub just a touch (in the rear) at the top under heavy compression (I.e. Bottom of the corkscrew), but otherwise fine.

245 Hoho on 15x10 +25 Jongbloeds that rub like mad in the front. They rub the front spring as well as the on the top. I added a 10mm spacer and now rub the fender to all hell. 3-5mm may be the sweet spot.

Hoho 225s on 9.5s may be equally as good for my application, but I only see light 9 and 10, no 9.5...

Last edited by 1999NB; 03-05-2016 at 07:44 PM.
1999NB is offline   Reply With Quote
Old 02-25-2016, 04:37 PM   #36
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by Leafy View Post
You sure you cant pull stock NA fenders to fit the 245s on 10s? I know you can fit the 275s on 9s under pulled to **** fenders.
You can. 245 on 10s is easy.

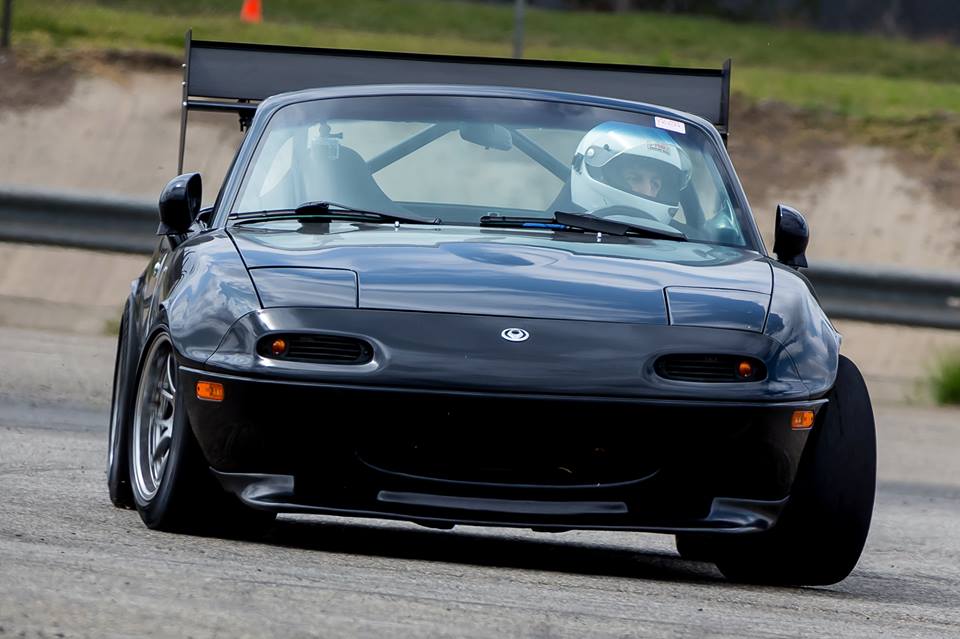

With a good pull NA even fits 275 A7 on 10s with only minor rubbing (pictures attached)
Attached Thumbnails
9&quot; or 9.5&quot; for 245s?-11058790_10153396207784889_1961846765583004934_n.jpg   9&quot; or 9.5&quot; for 245s?-552208_10151222575859889_1582275478_n.jpg   9&quot; or 9.5&quot; for 245s?-283409_10151221257299889_1996906105_n.jpg
j_man is offline   Reply With Quote
Old 02-25-2016, 04:41 PM   #37
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

so a middle of the road roll and pull would fit 245 maxxis on 9's?
mx5-kiwi is offline   Reply With Quote
Old 02-25-2016, 07:36 PM   #38
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by j_man View Post
You can. 245 on 10s is easy.
With a good pull NA even fits 275 A7 on 10s with only minor rubbing (pictures attached)
It depends on the car. There was no way I was fitting them on my car without cutting. Rear fenders didnt want to move more with the eastwood roller or the 10lb sledge, front fenders just flexed around with the eastwood and sprung back.
Leafy is offline   Reply With Quote
Old 02-25-2016, 10:14 PM   #39
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by Leafy View Post
It depends on the car. There was no way I was fitting them on my car without cutting. Rear fenders didnt want to move more with the eastwood roller or the 10lb sledge, front fenders just flexed around with the eastwood and sprung back.
The trick on the rear is grinding and cutting the little horizontal metal. Once I did that it all started to move. It's that little piece near the rear bumper and somewhere in the front half or the arc. Then I was able to put tension on it with the eastwood roller and pound up on each side with the mini sledge. It's the inner wheel well that's holding the rear back. Work it up slowly back and forth on each side of the fender roller tool and it will go.

The front is a floppy noodle that I could never get anywhere with. I think a new approach is needed. Maybe english wheel off the car or using a double/tripple fender rollers at the same time?
k24madness is offline   Reply With Quote
Old 03-05-2016, 07:45 PM   #40
Junior Member

Join Date: Nov 2014
Location: OC
Posts: 70
Total Cats: -5
Default

Quote:
Originally Posted by 1999NB View Post
<4" pinch weld height and 3.3-3.5 front camber and rolled fenders. Neither front or rear is pulled like crazy, but we spent decent time rolling and yanking.

I run:
245 Rc1 on 15x10 +25 6ULs that rub just a touch (in the rear) at the top under heavy compression (I.e. Bottom of the corkscrew), but otherwise fine.

245 Hoho on 15x10 +25 Jongbloeds that rub like mad in the front. They rub the front spring as well as the on the top. I added a 10mm spacer and now rub the fender to all hell. 3-5mm may be the sweet spot.

Hoho 225s on 9.5s may be equally as good for my application, but I only see light 9 and 10, no 9.5...
Following up to my post:
225 Hoho on 10s?

205 Hoho section width is 8.5" and the masses say to put it on a 9" wheel
245 Hoho section width is 10" and the masses say to put it on a 10" wheel
225 Hoho section width is 9.3" and the masses say to put it on a 9" wheel

Is the 0.2" delta of the 'stretch' of the 225 on 10 compared to 205 on 9 that much of a . . . 'stretch' for use? I assume a 9.5 would be 'ideal', but given the absence of a 9.5, why is a 9" (0.3" 'undersized') better than the 10" given the data above?
1999NB is offline   Reply With Quote
