Default Best brakes to run under 13'' wheels?

What is the best option for brakes for someone who is running a 13'' wheel? I basically got some panasports given to me, and want to run them. But I will be tracking my car and need some kind of proper brakes. AFAIK the willwoods with the corrado rotor have no chance of working. Is my best bet the 1.8L brakes (don't even know if these will fit!)?
falcon is offline   Reply With Quote
Old 02-24-2010, 07:44 PM   #2
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

1.8L brakes fit under most 13" wheels, but I've heard (and read) that the Panasports are an exception.

Second hand knowledge ftl.
gospeed81 is offline   Reply With Quote
Old 02-24-2010, 08:05 PM   #3
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Great... what about something like Aero's or Diamonds? I got tires with them to and don't want them to go to waste. The guy I bought all my turbo **** from ran a Miata at our track and found he was quicker on his 13's than the 15's.

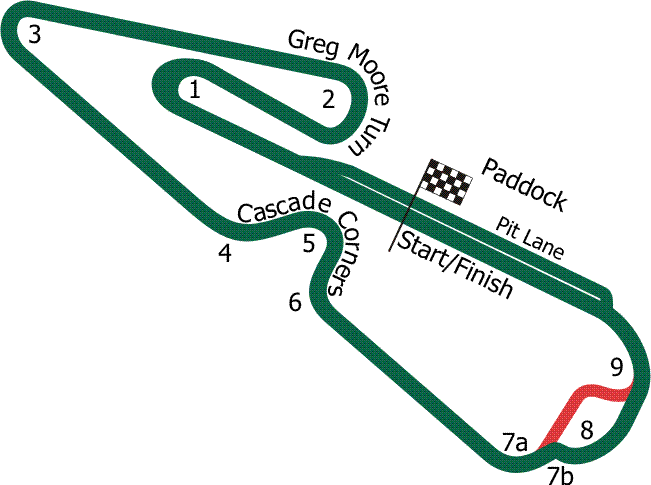

This is our gay track BTW.



1.4 Mi
falcon is offline   Reply With Quote
Old 02-25-2010, 07:26 AM   #4
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

I had a set of 13" panas (old school magnesium ones, don't remember the offset unfortunately) anyway, they fit over 1.8 brakes BUT....the wheels wouldn't turn, it was really weird, so I popped them back off and took an angle grinder to each caliper for about 5 minutes just shaved enough off so everything had enough clearance and sprayed them with some black high-temp paint. Hardest part about 13's is finding decent street tires.

Good luck.
KPLAFIN is offline   Reply With Quote
Old 02-25-2010, 09:20 AM   #5
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: Rochester, MI
Posts: 137
Total Cats: 0
Default

PM me, I've got a set of 13x9 Hoosier slicks sitting around that I'm not going to be using anymore, I'll sell them pretty cheap.
Tim Broughton is offline   Reply With Quote
Old 02-25-2010, 10:56 AM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Just throw a set of carbotech xp10 on the front xp8s on the rear with the 1.6 stuff, some 255 hoosiers all away around and go to town.
miatamania is offline   Reply With Quote
Old 02-25-2010, 01:12 PM   #7
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

You think my 1.6 stuff will be enough? It's not a super fast track and other than running competitively here I will also do hill climb where brake fade isn't as much of an issue. But I do plan to do some HPDE stuff down in Portland and Seattle and need something that will hold up.

Keep in mind, I am also going to be t-charged with a *hopeful* 220-230whp.
falcon is offline   Reply With Quote
Old 02-25-2010, 01:23 PM   #8
I'm Miserable!
iTrader: (1)

Join Date: Sep 2009
Posts: 370
Total Cats: -13
Default

With the right pads and fluids it could do the job but no promises here.
spd579 is offline   Reply With Quote
Old 02-25-2010, 01:24 PM   #9
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Well I guess I'll give it a go. No reason to spend money on big brakes until I feel I need them.
falcon is offline   Reply With Quote
Old 02-25-2010, 01:26 PM   #10
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Good-win dose't have them... where can I buy these for a good price?
falcon is offline   Reply With Quote
Old 02-27-2010, 01:05 AM   #11
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: Rochester, MI
Posts: 137
Total Cats: 0
Default

Emilio sells Carbotech pads.
Tim Broughton is offline   Reply With Quote
Old 02-27-2010, 01:37 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

If you know you're going to be upgrading the wheels and eventually brakes, buy the Porterfields that Goodwin does sell, still a great pad for $64 less last time I checked. Planet miata has Hawk blues for $23 less than the Goodwin's Porterfields, but you need to call them, and I always assumed that price hadn't been updated lately. And they eat rotors.
curly is offline   Reply With Quote
Old 02-27-2010, 07:07 PM   #13
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

i run 13x8 diamonds. only had to shave the excess casting from the calipers on my '95. so 1.8 (non-sport) brakes with carbotechs/race fluid/s.s. lines would be best under 13's. it literally took about 20 sec. with a flapper disc on a grinder to "fix" the fitment.
spoolin2bars is offline   Reply With Quote
Old 02-28-2010, 02:07 PM   #14
Junior Member

Join Date: Sep 2008
Location: Davie, Florida
Posts: 66
Total Cats: 3
Default

I autocrossed a set of Panasport 13x8.5 with 5" backspacing, and they fit fine on top of the 1.8 liter brakes I had on my car.
CoralDoc is offline   Reply With Quote
Old 02-28-2010, 05:16 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,339
Default

If you are serious about track, dump the 13" wheels. Stock brakes will let you down eventually, no matter what pad/fluid you use.
Savington is offline   Reply With Quote
Old 02-28-2010, 05:37 PM   #16
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I've been thinking about that. I may go with some 15's and run the wilwood setup.

Considering this is a track only car, it seems like the right choice.
falcon is offline   Reply With Quote
Old 06-14-2011, 07:59 PM   #17
Junior Member

Join Date: Jun 2008
Posts: 82
Total Cats: 1
Default

sorry to resurect an old thread but ive also found my car to be tremendously faster with the 13x8's im running rota RB (wantanabe knockoffs) and im debating on doing the 1.8 brake swap.. i figure the 1.8 brakes with hawk dtc60's front, hawk dtc40's rear and brand new oil + lines will suffice

i just need to see if they clear.
miata39 is offline   Reply With Quote
Old 06-14-2011, 08:49 PM   #18
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I am having some wilwood brackets made right now.
falcon is offline   Reply With Quote
Old 06-15-2011, 04:25 AM   #19
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,866
Total Cats: 495
Default

Quote:
Originally Posted by miata39 View Post
sorry to resurect an old thread but ive also found my car to be tremendously faster with the 13x8's im running rota RB (wantanabe knockoffs) and im debating on doing the 1.8 brake swap.. i figure the 1.8 brakes with hawk dtc60's front, hawk dtc40's rear and brand new oil + lines will suffice

i just need to see if they clear.
I have a set of 13x8 Rota RBs that I use for autocross, so I can tell you they DO fit over the 1.8 brake caliper. It's close - you can't have any wheel weights on the inside of the wheel or they will contact the caliper, but I just took them off.
ThePass is offline   Reply With Quote
Old 06-15-2011, 11:01 AM   #20
Newb

Join Date: Jun 2008
Location: Omaha, NE
Posts: 24
Total Cats: 0
Default

In my backwards autocross brake world, I managed to fit a 10.5" rotor under 13" wheels by using a custom rotor hat and caliper brackets with Wilwood Powerlite calipers. They're not track tested, but are definately worry free at the autocross.
Attached Thumbnails
Best brakes to run under 13'' wheels?-wilwood-powerlite.jpg
