Old 10-29-2011, 02:30 PM   #21
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

ordered and paid
rlogan is offline   Reply With Quote
Old 10-29-2011, 03:55 PM   #22
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

Quote:
Originally Posted by codrus View Post
Any idea if they fit with Goodwin brakes? Looks like they ought to, but...

thanks,
--Ian
They should fit, yes.
Savington is online now   Reply With Quote
Old 10-29-2011, 04:02 PM   #23
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Prawns...

Attached Thumbnails
brake duct prawns-aa9ye.jpg
Faeflora is offline   Reply With Quote
Old 10-29-2011, 07:40 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Any pics of this **** installed?
hustler is offline   Reply With Quote
Old 10-29-2011, 10:14 PM   #25
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Wow good job, those look awesome.
jacob300zx is offline   Reply With Quote
Old 10-29-2011, 10:53 PM   #26
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

Quote:
Originally Posted by hustler View Post
Any pics of this **** installed?
Buy a pair and take some, powerbottom.





We'll have a few pics up early this week.
Savington is online now   Reply With Quote
Old 10-30-2011, 02:30 AM   #27
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

ordering a set.........
paid.
bellwilliam is offline   Reply With Quote
Old 10-31-2011, 05:14 PM   #28
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 115
Default

Quote:
Originally Posted by curly View Post
I need pics of 15x10 6ul, 11.75" BBK, 245 tires, and these ducts. Assuming you can get all those pieces in one shot.
They look real similar to what I made. And I have an 11.75” BBK.
What I’m missing is the 15X10 6UL’s
“Why aren't a set of those in my hands now? Someone Please fix this problem.”

Bob
bbundy is online now   Reply With Quote
Old 10-31-2011, 09:33 PM   #29
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by Savington View Post
We'll have a few pics up early this week.

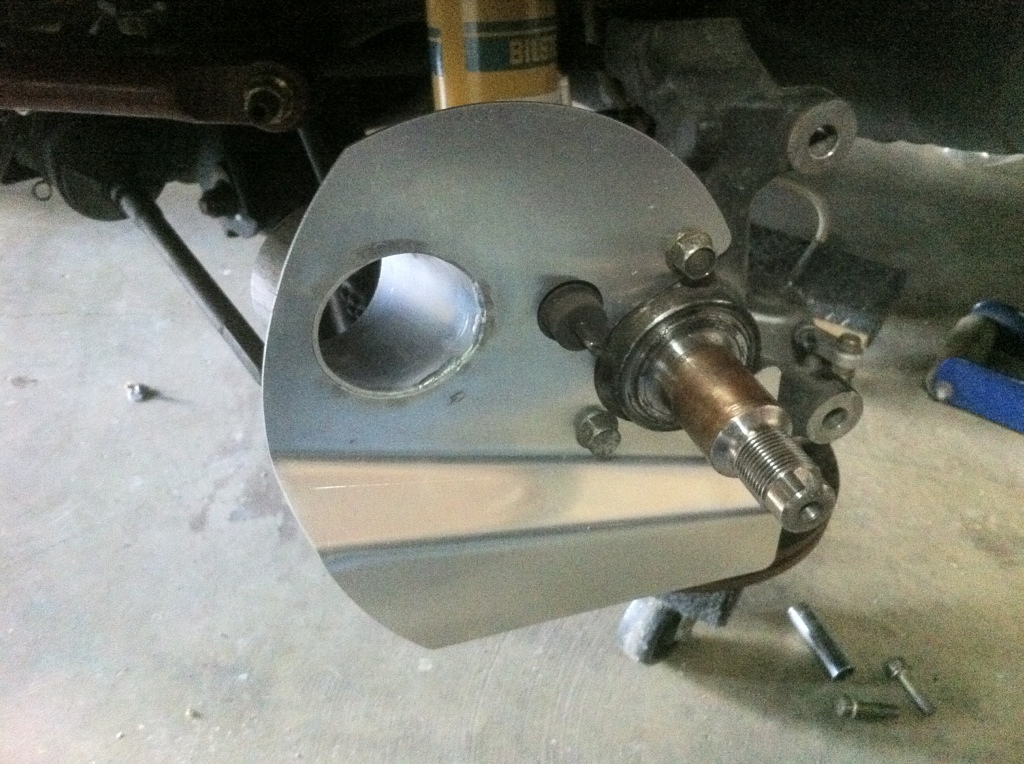

During installation with hub removed.

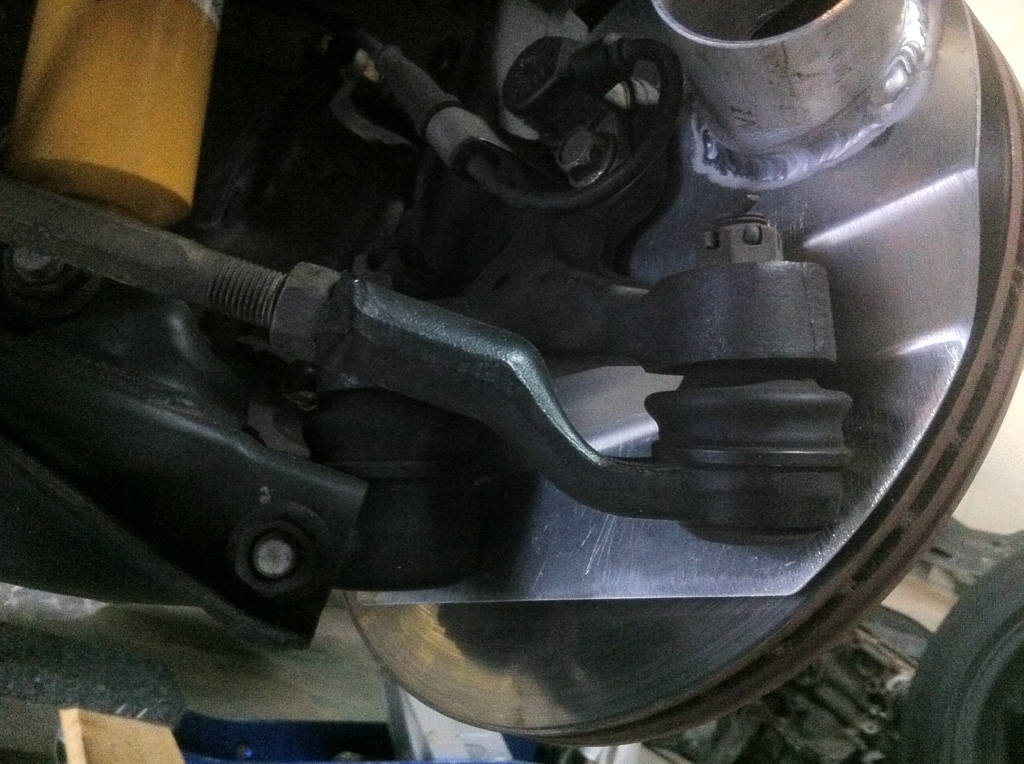

Dust boot heat shield.

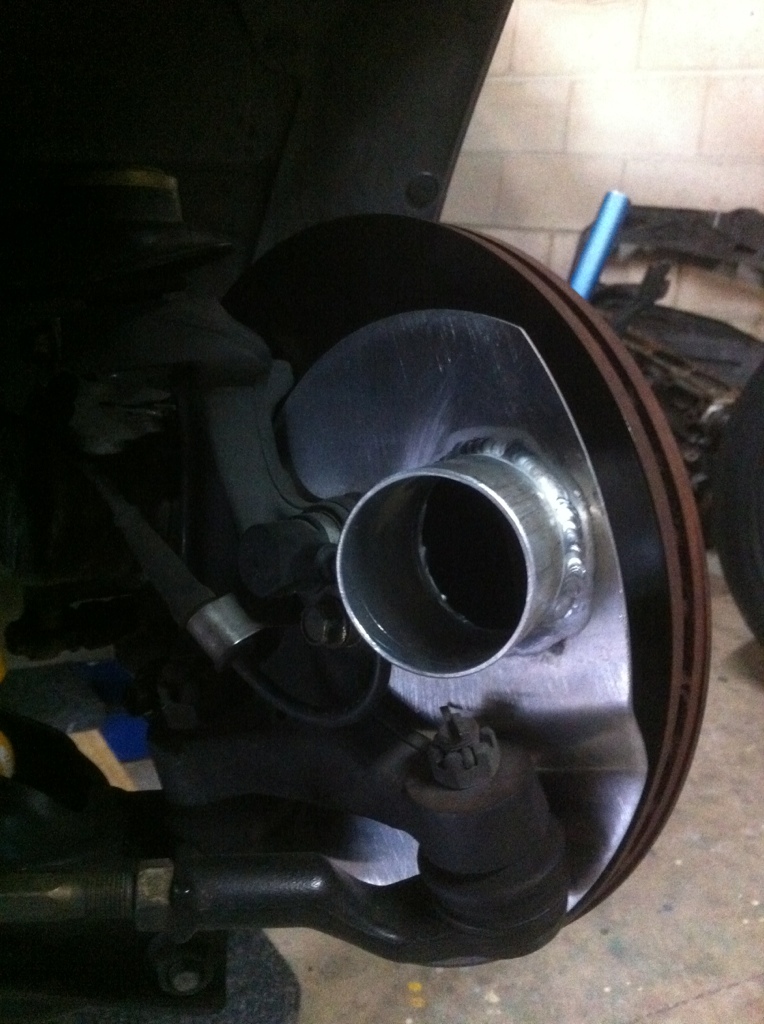

Backside.
Attached Thumbnails
brake duct prawns-000120_rkbml_9.jpg   brake duct prawns-000122_yipmp_9.jpg   brake duct prawns-000123_jxmph_9.jpg
crashnscar is offline   Reply With Quote
Old 10-31-2011, 10:58 PM   #30
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Looks like it matches your rotor size almost exactly. Which rotor is that, just for reference?
curly is offline   Reply With Quote
Old 10-31-2011, 11:58 PM   #31
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

That is a 10.6" sport rotor.
Savington is online now   Reply With Quote
Old 11-01-2011, 12:15 AM   #32
I'm Miserable!

Join Date: Jul 2011
Location: Orange County
Posts: 32
Total Cats: -2
Default

it looks like that dumps air onto the rotor, is that correct? was there not enough room to make it dump inside the rotor hat?
hnguyen037 is offline   Reply With Quote
Old 11-01-2011, 01:47 AM   #33
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

Quote:
Originally Posted by hnguyen037 View Post
it looks like that dumps air onto the rotor, is that correct? was there not enough room to make it dump inside the rotor hat?
Correct on both counts.
Savington is online now   Reply With Quote
Old 11-01-2011, 02:00 AM   #34
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Quote:
Originally Posted by hnguyen037 View Post
it looks like that dumps air onto the rotor, is that correct? was there not enough room to make it dump inside the rotor hat?
Goes both inside the rotor and some on the rotor surface. To be compatible with everything, you can't get a full 2" of pipe to go all inside the rotor and we opted for leaving the space open instead of simply closing it off. Bigger rotors, like our 11.75" kit, have less air on the rotor surface.
crashnscar is offline   Reply With Quote
Old 11-01-2011, 03:57 AM   #35
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 115
Default

Quote:
Originally Posted by Savington View Post
Correct on both counts.
Ditch the ABS then you can move the dump closer to the center.

Bob
bbundy is online now   Reply With Quote
Old 11-01-2011, 04:18 AM   #36
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

Quote:
Originally Posted by bbundy View Post
Ditch the ABS then you can move the dump closer to the center.

Bob
...I know.

It goes beyond ditching the ABS, though. Anyone with a 94+ chassis would be required to hack up their spindle in order to move the duct closer to the center. Even cars without ABS have that spindle nub from '94 on. In our opinion, that is a totally unacceptable solution.

That's why we came up with these - we wanted a plate that would fit all 90-05 spindles without modification, fit ABS-equipped cars without modification, and protect the two balljoint boots that are highly prone to heat damage from the brakes.

There are other plates available that don't fit 94-05 spindles or ABS, don't provide any heat shielding to the balljoint boots, and are more expensive to boot - if all of that strikes your fancy.
Savington is online now   Reply With Quote
Old 11-01-2011, 08:47 AM   #37
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

A more complex formed duct could dump air on either side of the ABS sensor to get more air in the center. But who would pay for it, if it doesn't make a noticeable difference, especially with bigger floating disks.

The biggest difference is to get some hose securely attached in there (going from nothing), the ones I have on the bench in my garage doesn't do a thing.
When I get these delivered I have one excuse less (there will at least be something secure to zip-tie the hose to).
NiklasFalk is offline   Reply With Quote
Old 11-01-2011, 08:55 AM   #38
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

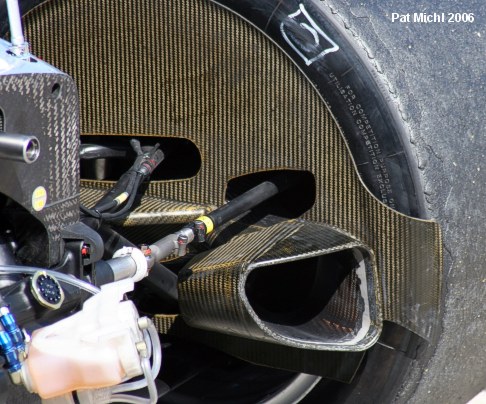

Attached Thumbnails
brake duct prawns-audir10-pm7.jpg
hustler is offline   Reply With Quote
Old 11-01-2011, 10:51 AM   #39
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

I can't really tell from the pictures. Is there a lip or bead on the duct that accepts the hose?
Scrappy Jack is offline   Reply With Quote
Old 11-01-2011, 11:20 AM   #40
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Scrappy Jack View Post
I can't really tell from the pictures. Is there a lip or bead on the duct that accepts the hose?
In 3 years, even at 150+mph, I've never had a hose come off without a bead.
hustler is offline   Reply With Quote
