Cool Bumper Coast-Down Test Results

Tailpipe fell off and took out the bumper. So I did some coast-down testing before re-installing the spare.

I did two pairs of runs in each direction. The one direction has an extra run as the run in the opposing direction in that pair was interrupted by traffic. This was done on a public road that was fairly flat and straight. Clearly it was not as flat as I hoped since I slowed more in one direction than the other in approximately the same distance.

Test ending in '002' (green lines) was without any bumper. Test ending in '003' (blue [and purple] lines) was with stock uncut bumper. You can note the starting or ending speeds, respectively, in the legend or whatever..

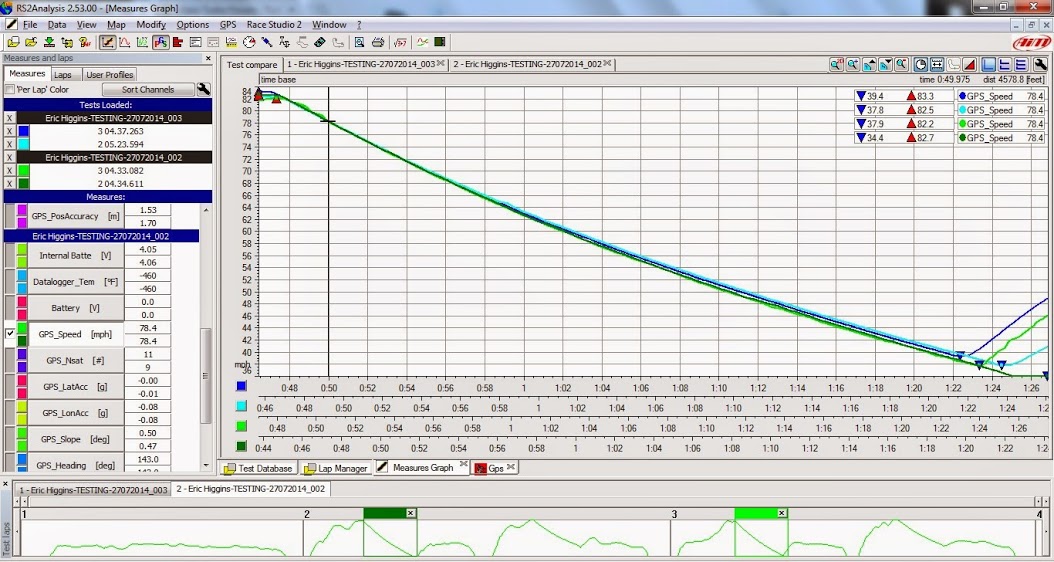

Direction 1 Start:

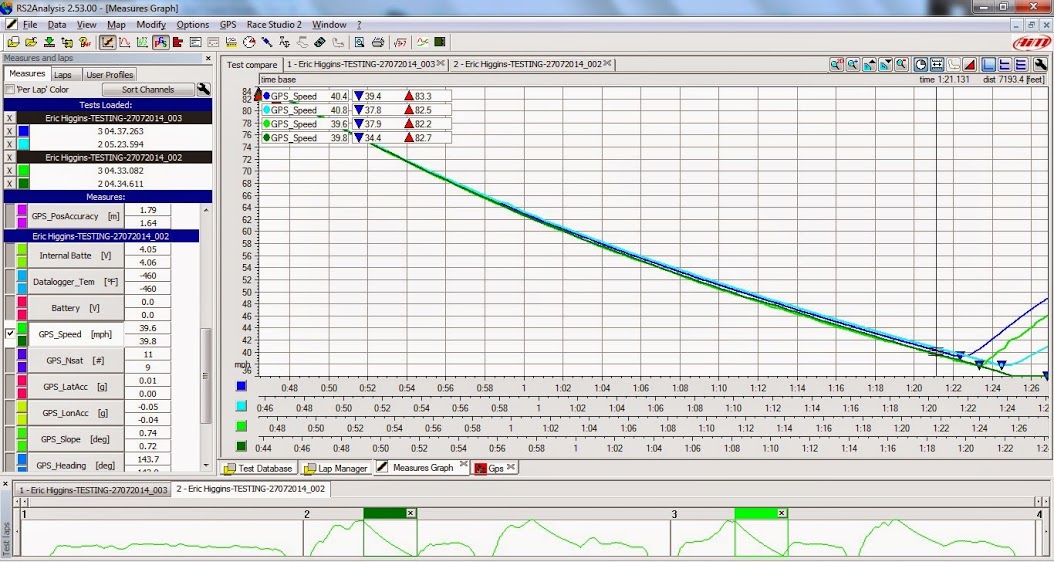

Direction 1 Finish:

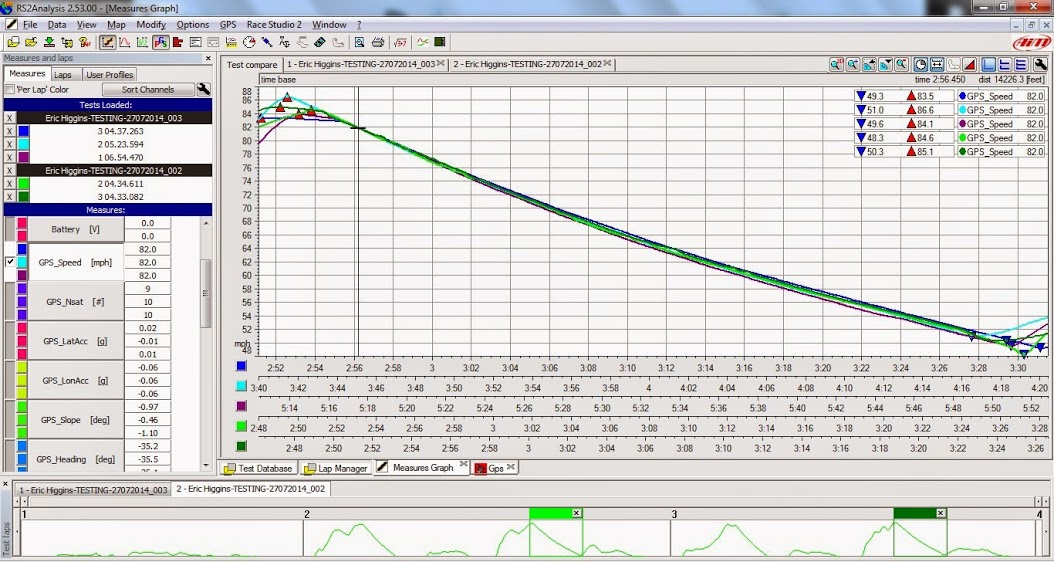

Direction 2 Start:

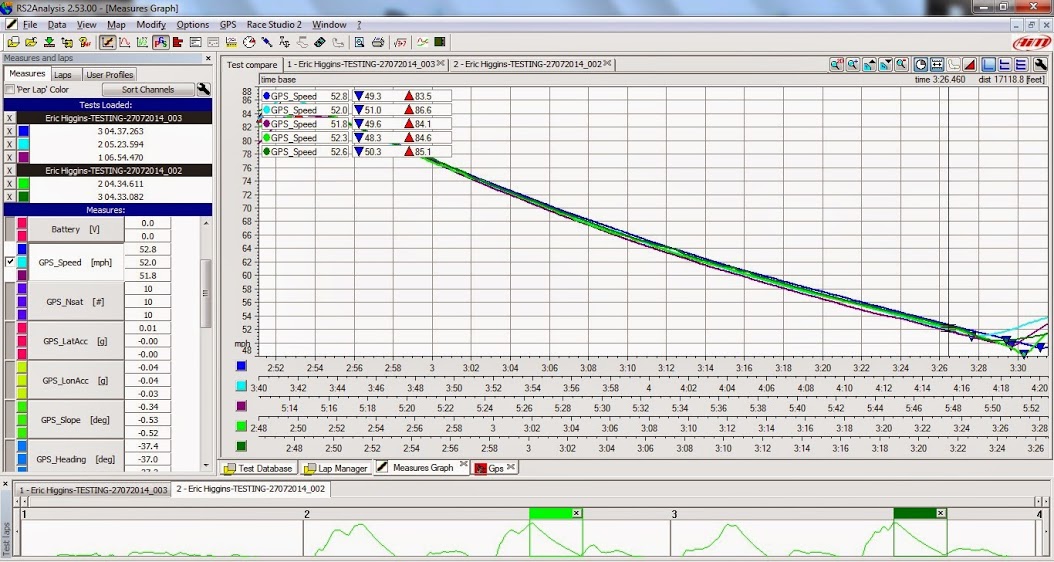

Direction 2 Finish:

Attached Thumbnails
Bumper Coast-Down Test Results-1_start.jpg   Bumper Coast-Down Test Results-1_finish.jpg   Bumper Coast-Down Test Results-2_start.jpg   Bumper Coast-Down Test Results-2_finish.jpg
ericwh is offline   Reply With Quote
Old 07-27-2014, 12:35 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

This is cool. Summerize the results for us?

Looks like, as we knew, no bumper is fastest, but on a ~83mph-35mph coast, what's the time difference?
curly is offline   Reply With Quote
Old 07-27-2014, 12:59 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Coasting down from 78.4 mph in Direction 1, for the given time interval, having no bumper resulted in a .9 mph slower final speed, on average.

Coasting down from 82.0 mph in direction 2, for the given tie interval, having no bumper resulted in a .25 mph faster final speed, on average.

Interpret that how you wish. My opinion is that the presence or cut of the bumper has little to no effect.
