Default Coolant Reroute for Race car

Admittedly my miata is just a miata engine.
I have no heater core. Would not miss the throttle body getting bypassed (unless there is something I dont know?)

Going to add a megasquirt and blower soon but my real reason is I need the space on the front and hotside of my engine bay!

Does anyone have a diagram that eliminates the heater core and gets the engine bay cleaned up ?

I have no problem getting to the back of my motor.

Thanks
~J
YeboGoGo is offline   Reply With Quote
Old 03-24-2015, 03:34 PM   #2
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 743
Total Cats: 46
Default

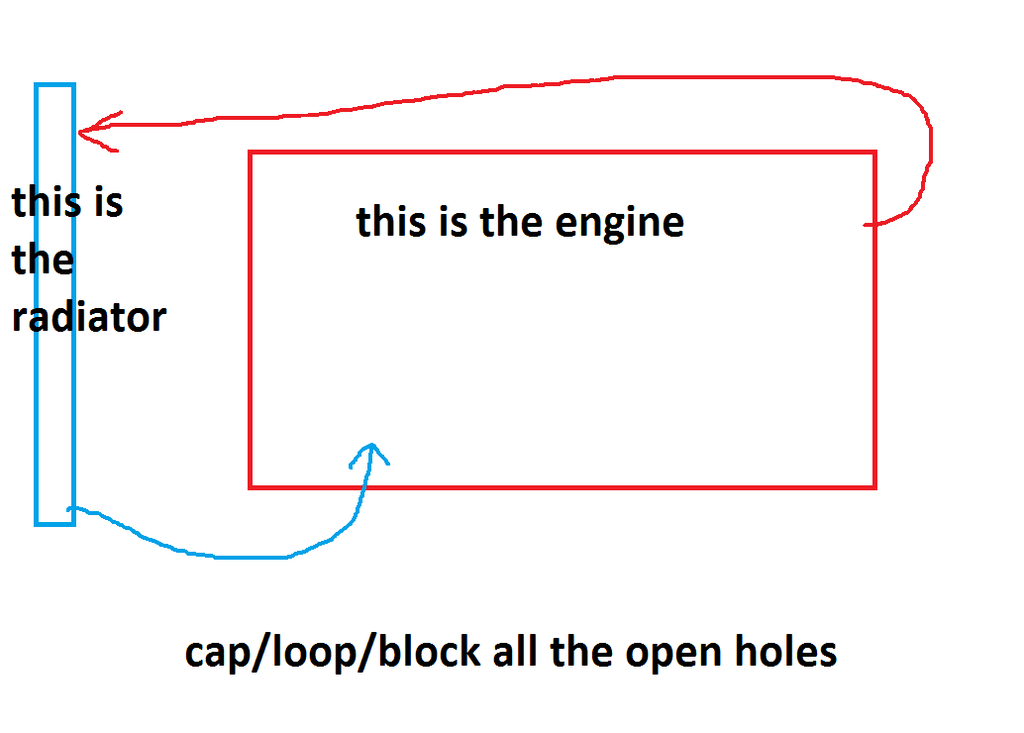

I'm no expert, but this should get you started:



You should be reading THIS STICKY:
https://www.miataturbo.net/race-prep...-thread-79930/
Attached Thumbnails
Coolant Reroute for Race car-miata%2520cooling.png
dcamp2 is offline   Reply With Quote
Old 03-24-2015, 03:53 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by dcamp2 View Post
I'm no expert, but this should get you started:


You should be reading THIS STICKY:
https://www.miataturbo.net/race-prep...-thread-79930/
I took a look at that.
Few things I didnt see:
1. no heater core option
2. no throttle body coolant delete.
Are there any issues with deleting #2?
YeboGoGo is offline   Reply With Quote
Old 03-24-2015, 04:00 PM   #4
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 743
Total Cats: 46
Default

You didn't read very well.

POST #21 of STICKY THREAD ON COOLING:

Quote:
Originally Posted by hornetball View Post
No issues with deleting the coolant lines to the TB. Those lines are meant to heat the idle control valve to prevent ice formation under certain high-humidity conditions. Has no impact at all on engine cooling. I run without them on both cars and have never had an issue -- so the icing phenomena is rare.
dcamp2 is offline   Reply With Quote
Old 03-24-2015, 04:03 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by dcamp2 View Post
You didn't read very well.

POST #21 of STICKY THREAD ON COOLING:
Yep.
Was just reading thru and noticed that. Was planning to come back after and edit that.. Busted

Didnt see heater core (yet..) and wondering about the oil filter part too.
YeboGoGo is offline   Reply With Quote
Old 03-24-2015, 04:04 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 781
Default

The answer to your heater core question is at the bottom of his diagram.
concealer404 is offline   Reply With Quote
Old 03-24-2015, 04:39 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You'll wanna loop the Heater core lines, not cap them. So you have water flow until the thermostat opens.
curly is online now   Reply With Quote
Old 03-24-2015, 05:22 PM   #8
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 743
Total Cats: 46
Default

Quote:
Originally Posted by curly View Post
You'll wanna loop the Heater core lines, not cap them. So you have water flow until the thermostat opens.
Doesn't the thermostat have a small flow opening even when it's closed? Maybe that could be drilled out a little to compensate for a lack of heater line passageway? (If the OP wanted to completely delete the heater lines)
dcamp2 is offline   Reply With Quote
Old 03-24-2015, 05:25 PM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by curly View Post
You'll wanna loop the Heater core lines, not cap them. So you have water flow until the thermostat opens.
Would water flow through turbo lines be enough?
shuiend is offline   Reply With Quote
Old 03-24-2015, 08:19 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yes to both, although if youre eliminating the heater core, you might as well just loop them. Otherwise the "proper" way would be to weld the mixing manifold and rear cover, both are kind of a pain
curly is online now   Reply With Quote
Old 03-24-2015, 10:50 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by curly View Post
Yes to both, although if youre eliminating the heater core, you might as well just loop them. Otherwise the "proper" way would be to weld the mixing manifold and rear cover, both are kind of a pain
Do you have a picture or reference of that? My main driver is getting rid of hoses and freeing up space under the hood
YeboGoGo is offline   Reply With Quote
Old 03-24-2015, 11:09 PM   #12
Junior Member
iTrader: (3)

Join Date: Apr 2011
Location: Bay Area- East Bay
Posts: 290
Total Cats: 1
Default

Man, just look at your heater hoses, disconnect the ends opposite of the heater/firewall.
-Then disconnect the ends attached to the heater tubes.
-Buy a 12" piece of 5/8" heater/coolant hose, connect one end to the connection at the rear of the head, the other end connects to the long metal tube that you disconnected from under the exhaust manifold.
-Cut hose to length and connect
-Now go remove your heater core and crap.
brainzata is offline   Reply With Quote
Old 03-24-2015, 11:21 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

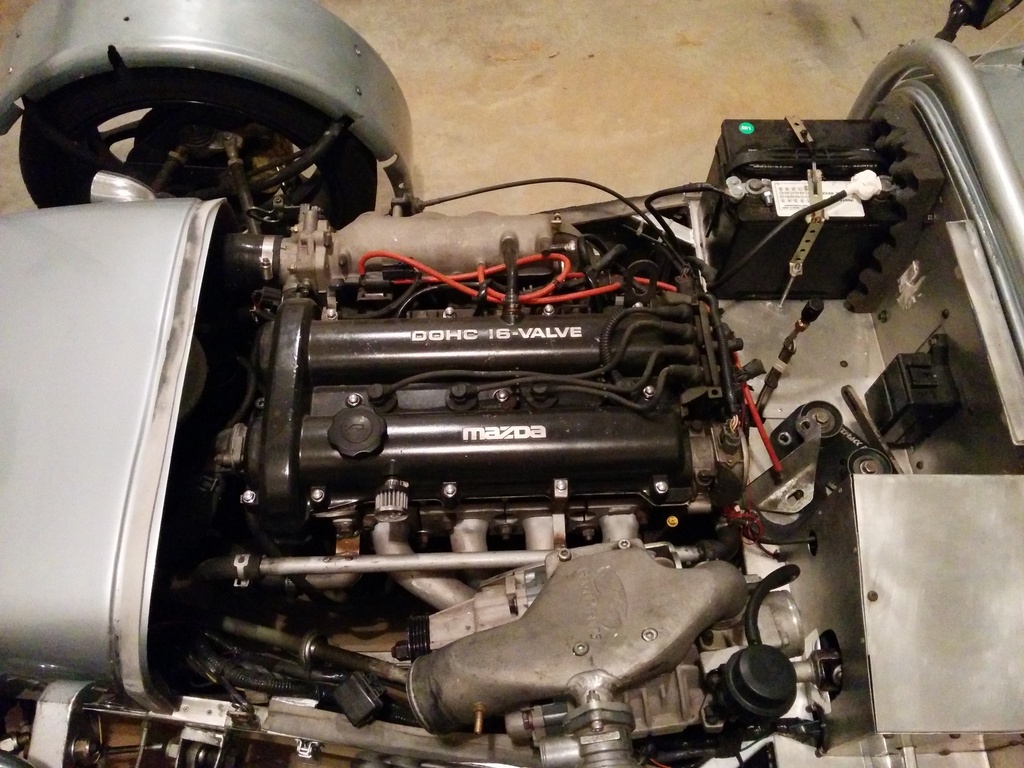

Im a bit list on half the comments. Part of me thinks it's attitude and the other half thinks it's me doing a bad job of explaining. Here is my current setup


So what I need is less coolant hoses so I can get that supercharger to mount under the hood . Think the $16 reroute thread may be the ticket!!
Attached Thumbnails
Coolant Reroute for Race car-img_20150324_221709_zps50ofaxyd.jpg
YeboGoGo is offline   Reply With Quote
Old 03-25-2015, 01:16 AM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

What's the long line over the header? If that's the old heater core return line, you'll wanna loop that to behind the head, which is looks like you already have? I can't tell.
curly is online now   Reply With Quote
Old 03-25-2015, 07:09 AM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Quote:
Originally Posted by curly View Post
What's the long line over the header? If that's the old heater core return line, you'll wanna loop that to behind the head, which is looks like you already have? I can't tell.
Correct. And that's that's primarily what needs to move
YeboGoGo is offline   Reply With Quote
Old 03-26-2015, 09:21 AM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Anyone know of an alternate to the lower coolant neck?
I am looking for one that goes the other direction

Thanks
~J
YeboGoGo is offline   Reply With Quote
Old 03-26-2015, 09:43 AM   #17
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

plug the hole and flip if around if you aren't running AC i believe.
Preluding is offline   Reply With Quote
Old 03-26-2015, 12:14 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yeah it's common to flip them. But it almost looks like it is in your pic. Can you light up the lower part of the engine and actually take a picture that shows us something? Take the stupidcharger out of the picture too.
curly is online now   Reply With Quote
Old 03-26-2015, 12:25 PM   #19
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by dcamp2 View Post
Doesn't the thermostat have a small flow opening even when it's closed? Maybe that could be drilled out a little to compensate for a lack of heater line passageway? (If the OP wanted to completely delete the heater lines)
Yep, I drilled mine out to 1/4", no alternate water pathways for recirculation before Tstat opens other than that small hole. Works great, On a street car I would probably even step down to 3/16".

-Ryan
ThePass is offline   Reply With Quote
Old 03-26-2015, 07:28 PM   #20
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 354
Total Cats: -2
Default

I drilled a hole in my thermostat as well. Also ran my heater core inlet directly to the water pump inlet but put a reducer inline to simulate the pressure drop through the heater core. Don't know if the second part is really needed but was simple and seemed to work.
comradefks is offline   Reply With Quote
