So I have been searching but haven't found what I am looking for.

I am planning a roll cage install and am trying to find pictures of doors that are cut. This car is a daily driver and while I do want the safety of a cage on the track I dont want it in the way during my weekly commute. The cage will be custom built based off of the tall cage design by DGE Motorsports. I will loose the soft top but plan to keep a factory hardtop.

I have looked at some photos of a single diagonal bars but they are too close to the seat and block the access to the seat. Also, i already have a problem of my hand hitting my knee when driving and i would like the extra room. Here is the list of some of the ideas that I am thinking of.

1. Keep the window and track intact
2. Keep the upper door panel intact
3. Have a lower door panel made to cover the internals
4. Use 2" webbing to raise and hold the widow closed
5. Small NASCAR bars

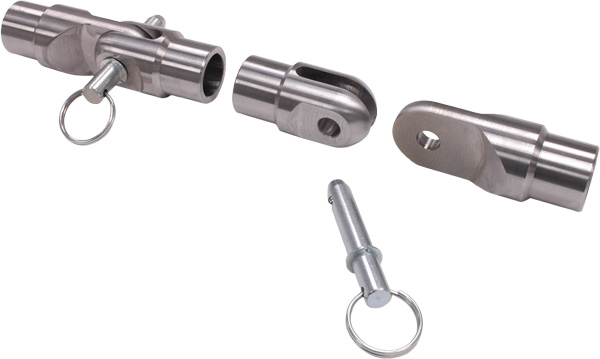

6. Have the upper bar removable using something like this
Cutting doors-7036.jpg

So why a rollcage at all?

1. The speeds I am getting to on the track are higher than what I feel safe with the Hard Dog.
2. I also want to stiffen up the car.
3. My helmet dosen't have the 2" I need below the bar. (that is a whole other issue with seats and harnesses)
4.
DOHCPanther is offline   Reply With Quote
Old 10-26-2010, 06:15 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Make sure you'll be able to roll the window down and be sure to keep space around the dead-pedal. I'm in the same boat as you but still resisting the cage.
hustler is offline   Reply With Quote
Old 10-26-2010, 06:31 PM   #3
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

The hand hitting the knee problem is easily solved by moving the steering wheel closer to the driver. Get an aftermarket wheel and use a spacer or get one with a deep dish to move it 2 to 4 inches back. Not only will the knee/thigh to hands on steering wheel interfearnce problem go away you will also gain much more precise control of the steering wheel by not having to reach so far.

FWIW I have a Canadian non air bag column and the steering wheel is 1” closer to the driver than the air bag version due to the column by itself.

Bob
bbundy is offline   Reply With Quote
Old 10-27-2010, 10:33 AM   #4
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

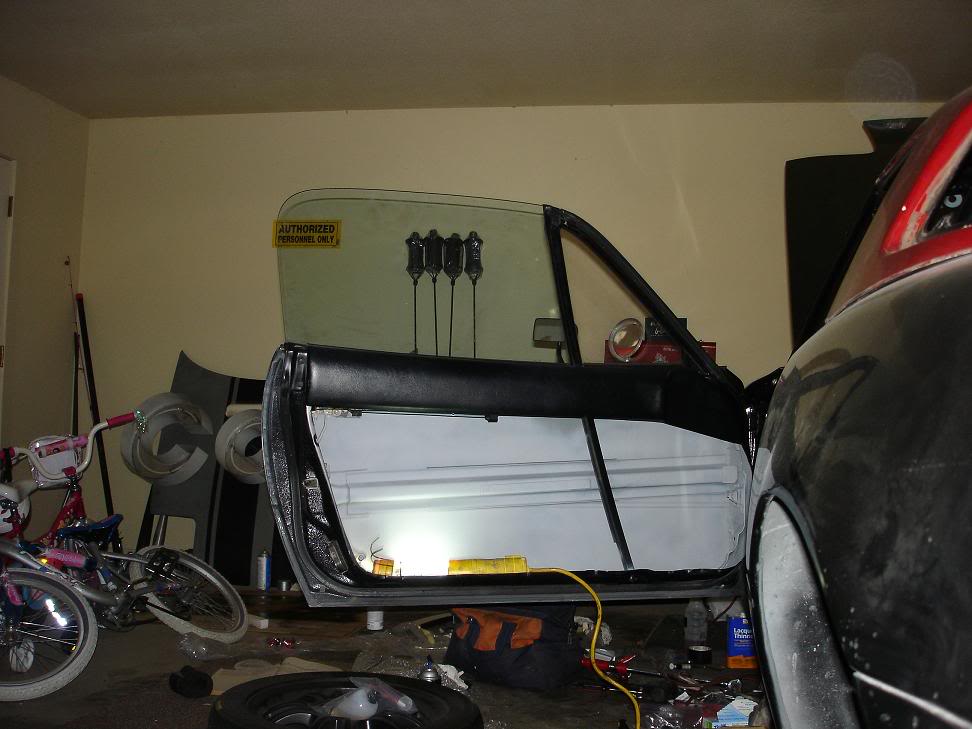

You can run a window without channels or mechanisms. Two clips are all that is needed. Here's an example I had in mine at one point...
doorwithgl--------

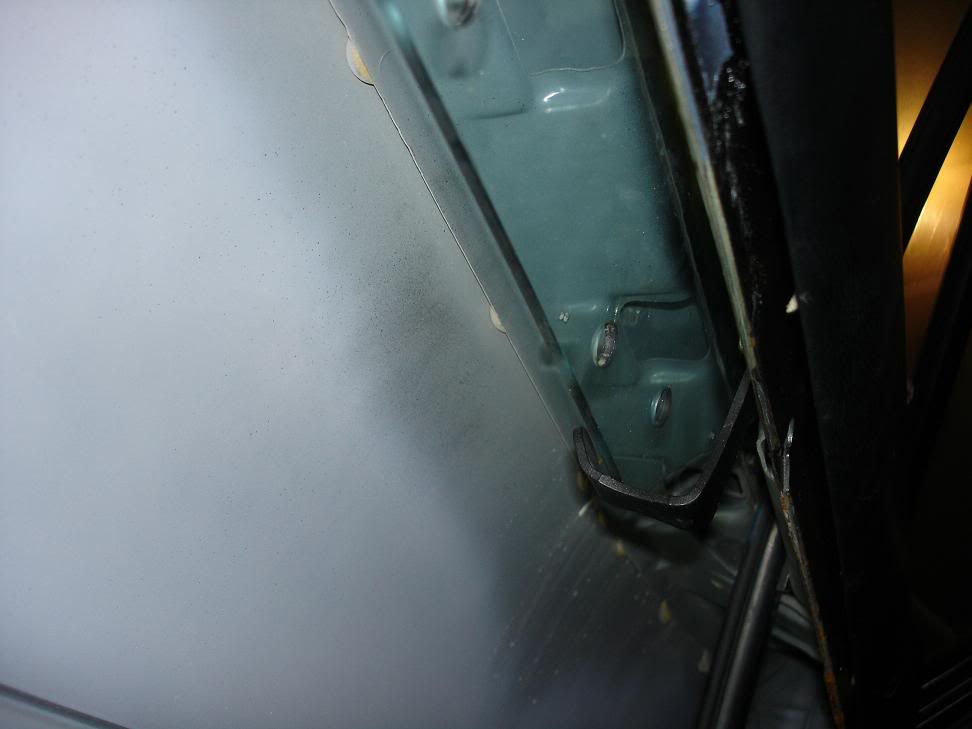

And how its held in place
Name:  windowinclip.jpg
Views: 26
Size:  39.5 KB
Machismo is offline   Reply With Quote
Old 10-27-2010, 10:48 AM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

^So simple, so perfect.
m2cupcar is offline   Reply With Quote
Old 10-27-2010, 10:49 AM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Machismo comes through with glory again.
hustler is offline   Reply With Quote
Old 10-27-2010, 11:06 AM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

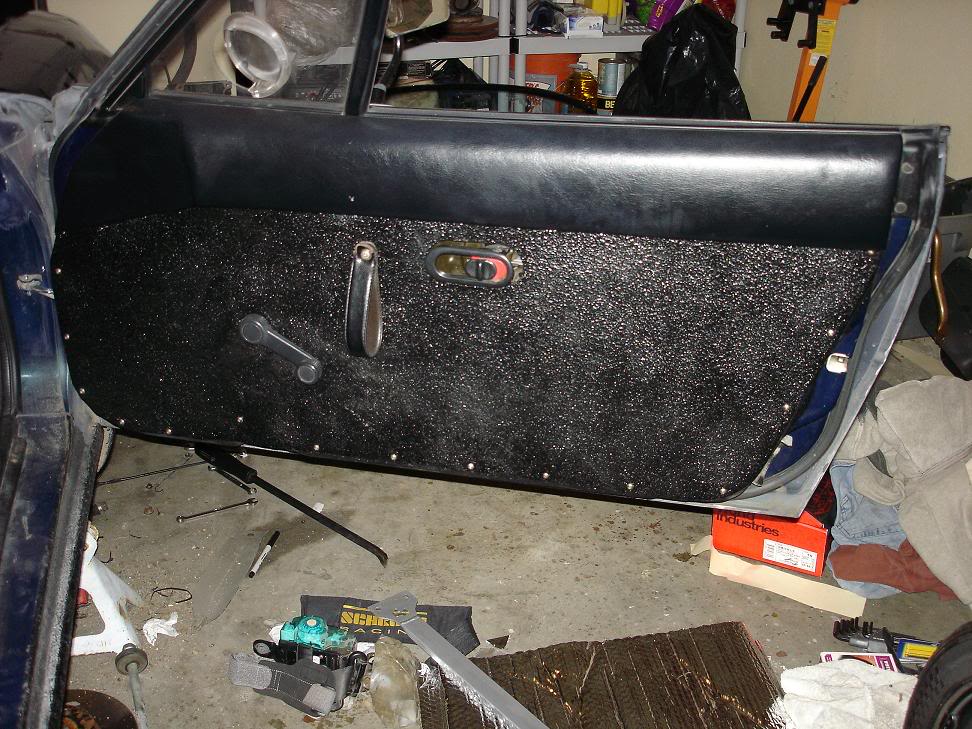

I see DOHCPanther also wanted panels to cover lower portion...
Name:  doorcard.jpg
Views: 41
Size:  160.1 KB

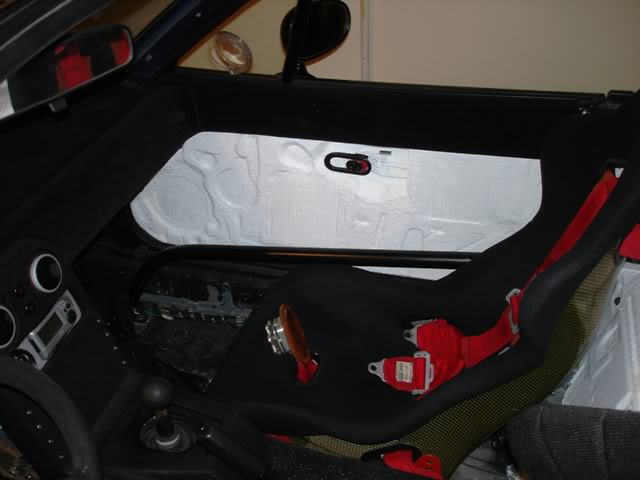

But taking a step further to still look like stock metal...
Name:  DSC00704.jpg
Views: 26
Size:  34.5 KB
Machismo is offline   Reply With Quote
Old 10-27-2010, 11:39 AM   #8
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Machismo View Post
You can run a window without channels or mechanisms. Two clips are all that is needed. Here's an example I had in mine at one point...
So it just rests in there for driving... then lift the glass out for track time?
Splitime is offline   Reply With Quote
Old 10-27-2010, 11:43 AM   #9
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Yessir. Compression fit when the door is closed and doesn't go anywhere. Great for security and inclement weather. Lifts right out and goes back in seconds.
Machismo is offline   Reply With Quote
Old 10-27-2010, 11:45 AM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by Machismo View Post
Yessir. Compression fit when the door is closed and doesn't go anywhere. Great for security and inclement weather. Lifts right out and goes back in seconds.
Interesting, this might push me over the top on deciding to gut the doors. Nice to know the lower and front seal keeps it secured enough for normal driving.
Splitime is offline   Reply With Quote
Old 10-27-2010, 12:26 PM   #11
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Spoolin2bars is running that setup as well. Remember to vacuum line all if the sharp edges. Run nascar bars, they are way easier to get in and out of the car than a normal double straight bar.
jacob300zx is offline   Reply With Quote
Old 10-27-2010, 12:32 PM   #12
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by jacob300zx View Post
Spoolin2bars is running that setup as well. Remember to vacuum line all if the sharp edges. Run nascar bars, they are way easier to get in and out of the car than a normal double straight bar.
That was the plan. Will just be running a mini pillar up front to attach them to also... I have no desire for a full cage... as I drive to and from events.
Splitime is offline   Reply With Quote
Old 10-27-2010, 01:37 PM   #13
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by Machismo View Post
Yessir. Compression fit when the door is closed and doesn't go anywhere. Great for security and inclement weather. Lifts right out and goes back in seconds.
I actually shipped a race car from ATL to Colorado on an open trailer with the same principal... using masonite for windows. Buyer said it worked excellent- car was bone dry on the inside.
m2cupcar is offline   Reply With Quote
Old 10-27-2010, 02:58 PM   #14
Junior Member
Thread Starter

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

Quote:
Originally Posted by Machismo View Post
You can run a window without channels or mechanisms. Two clips are all that is needed. Here's an example I had in mine at one point...


And how its held in place

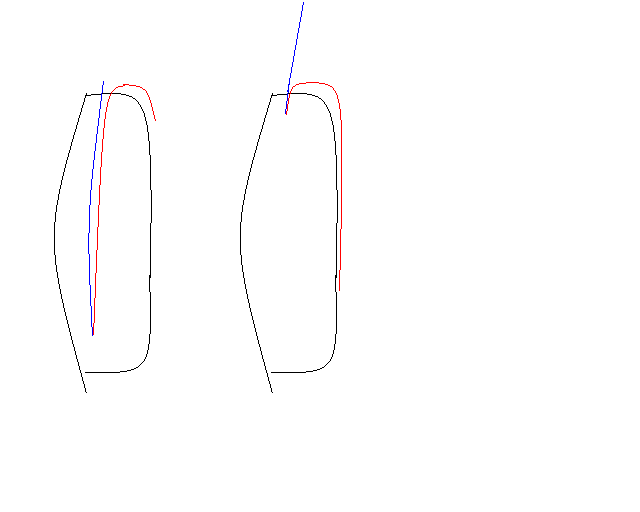

If I didnt have the bracket to hold the window up would it slide down into the door and be secure? I cant see the rear track in your picture and I dont know if the third guide is needed to keep the window on track to raise and lower it. My thought is with small NASCAR bars I could close the door and the bars would clear the glass in the door. Then raise the window with 2" webbing. Sort of like this.

Name:  window.bmp
Views: 854
Size:  960.1 KB

This would solve the problem of where to put the glass when the window is open and it would let me close and open the window from the seat.

That upper panel is nice. Exactly like I planned.
DOHCPanther is offline   Reply With Quote
Old 10-27-2010, 03:23 PM   #15
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

DOHCP - I have two brackets per door. Only one is visible in the pic, but two are needed. Yes, without these - the glass will just slide right on down. These basically hold the window in its stock "UP" position.
Your idea to use webbing is fine - but is more than is really needed. Just my opinion.
I'm always eager to see solutions to problems out there. There really is no "only way" to do something in this game. That's why I keep playin'.
I have some old T-top sleeves that I just put the windows in when not in use. They can be stored in the trunk, left at paddock w/ gear, or just left at home all together.
Keep us posted with what you come up with.
Machismo is offline   Reply With Quote
Old 10-27-2010, 03:24 PM   #16
Junior Member
Thread Starter

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

Here is another pic of what I am thinking.

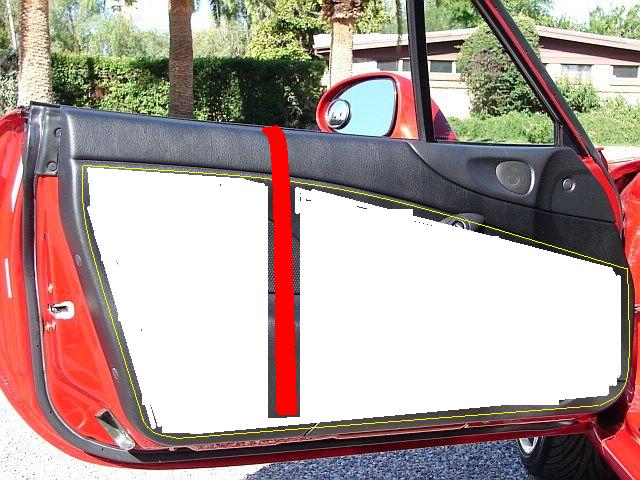

Cut along these lines and add the strap here.
Cutting doors-cut-door.jpg

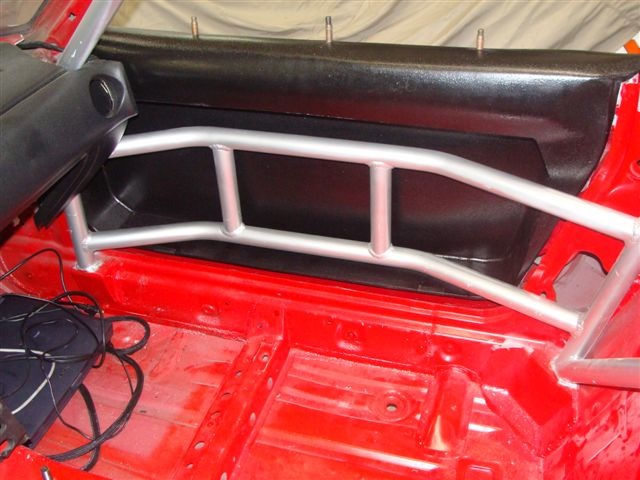

Then make a panel like this to seal it up.
Cutting doors-0000-07-5800-1.jpg

I just dont know if the window will stay on track or if there will be enough room.
DOHCPanther is offline   Reply With Quote
Old 10-27-2010, 03:30 PM   #17
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Gotcha... just make the webbing like a belt with a hole for a stop at the highest point for raised window. Snaps or caribeaner type setup. It will need some resistance to keep the window from falling back down.
***Edit - and with some NASCAR style door bars, the window isn't going to want be down anyways when door is shut. Depends on how much intrusion into the door they have. Just a thought.
Machismo is offline   Reply With Quote
Old 10-27-2010, 03:32 PM   #18
Junior Member
Thread Starter

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

Wow quick reply, cool then I think I can make this work. It is important to be able to function the window daily. I have to come in the main gate at post so opening the door is a pain. Also I would like to be able to raise and lower it in case of rain or for the drive thru windows.
DOHCPanther is offline   Reply With Quote
Old 10-27-2010, 03:34 PM   #19
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Yep - I don't have that luxury. All or nothing
Machismo is offline   Reply With Quote
Old 10-27-2010, 03:47 PM   #20
Junior Member
Thread Starter

Join Date: Nov 2008
Posts: 145
Total Cats: -1
Default

Yes the strap will be secured with either some industrial snaps like used on a tonneu cover or 2" military style velcro.

The bars would be more like these. They should give me room to work.

https://www.miataturbo.net/showpost....1&postcount=37

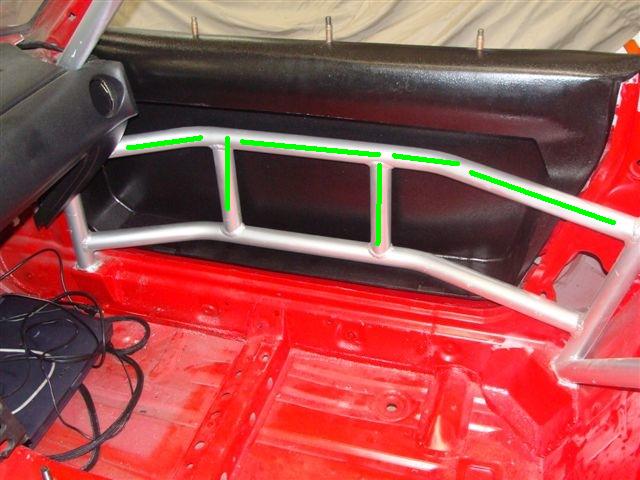

But I am think about having this area removable.

Cutting doors-remove-bars.jpg

Anyone have any better ideas?
