Old 05-02-2012, 07:22 PM   #41
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Well, since this ain't going further, if OP was to panel the bottom of the car at the rails for win, what material would you use and how to cope with exhaust temps should you 'box' it in?
GeneSplicer is offline   Reply With Quote
Old 05-02-2012, 07:30 PM   #42
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by GeneSplicer View Post
Well, since this ain't going further, if OP was to panel the bottom of the car at the rails for win, what material would you use and how to cope with exhaust temps should you 'box' it in?
Wrap the exhaust from turbo to tip, use aluminum or CF with a skeletal structure, trans+diff coolers would be 100% required, and you would need to figure out a way to duct cool air to the inner CV boots.
Savington is offline   Reply With Quote
Old 05-02-2012, 08:07 PM   #43
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 406
Total Cats: 19
Default

C'mon guys he mounted it exactly how the manufacturer wants it mounted on an Elise. What could possibly be different between an Elise and a Miata?



Oh, right.
Attached Thumbnails
Difflow Lotus Diffuser Installed-p7izy.jpg
FatKao is offline   Reply With Quote
Old 05-02-2012, 08:58 PM   #44
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

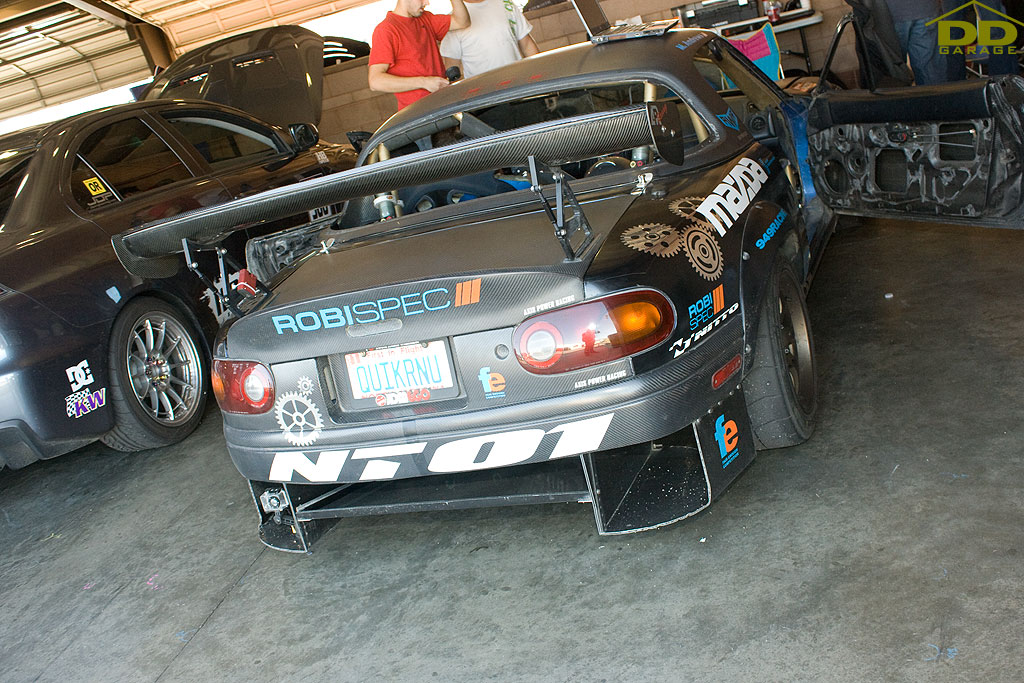

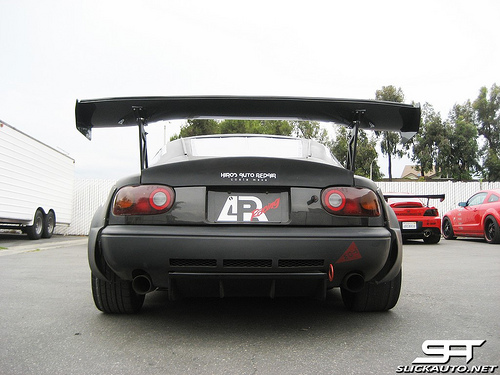

The OP isn't really that far off of where he should be with the diffuser though is he? I mean, his is only a couple inches lower than these cars:



It seemed like everyone was talking like he should be hacking the bumper until it looked like this:
http://www.awrracing.com/blog/wp-con...7/DSC04771.jpg

(just bought a used Exige diffuser so this discussion interests me )
Attached Thumbnails
Difflow Lotus Diffuser Installed-3632143337_17c97bac75.jpg   Difflow Lotus Diffuser Installed-img_5389.jpg
njn63 is offline   Reply With Quote
Old 05-02-2012, 09:15 PM   #45
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Yeah, only 8-12 inches off where the 2nd cars is at. What other goodies are sitting under those two cars?
chpmnsws6 is offline   Reply With Quote
Old 05-02-2012, 09:28 PM   #46
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by chpmnsws6 View Post
Yeah, only 8-12 inches off where the 2nd cars is at.
1. The diffuser isn't where the bumper is cut.
2. ~9 inches from the bottom of the bumper is where the crease is. No idea if that's the factory location on Matt's car but it looks close so I doubt his bumper is cut even 8".
Quote:
Originally Posted by chpmnsws6 View Post
What other goodies are sitting under those two cars?
I'm aware. That's a completely separate discussion though.
njn63 is offline   Reply With Quote
Old 05-02-2012, 11:23 PM   #47
Junior Member

Join Date: Dec 2010
Location: Phoenix
Posts: 146
Total Cats: 3
Default

Well, the stopwatch don't lie. Looks like the diffuser is easy enough to remove from the brackets, and if you can get 60 laps in a day at your local track, then you should be able to get some back-to-back tests in. Take some times and post 'em up. "Butt dyno" readings don't count either.

The bottom line is even the high-dollar F1 teams have a hard time correlating theoretical and CFD results with on-track performance, so this is all just armchair quarterbacking until you get some hard data.
Nate99 is offline   Reply With Quote
Old 05-03-2012, 03:19 AM   #48
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

I dont think you will convince anyone here that it has value with some numbers. in the rear defusers ive seen they dont mount flat they slat up at a significant angle and that leading edge is higher then the lowest point so the car is channeled and control. but Im sure you know this.

also when you do unconventional mods and post pics you gotta be prepared for criticisms. I go all kinds of ---- from people for spraying windshield fluid into my motor 10 years ago. didnt mater what i said right or wrong. now everyone is doing it and you can buy like 10 different kits all the new hotness. I should made a kit and proved it worked but whatever. so if you want to prove us wrong do it. casual talk is not going to do much. just sayin, I dont really care because doing something like that is way off in the distant future. I made a sick tray and diffuser for my RC car and it looks bad ***, no idea if it does anything....anyone want to buy a kyosho GT2
psreynol is offline   Reply With Quote
Old 05-04-2012, 12:19 PM   #49
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

Quote:
Originally Posted by njn63 View Post
1. The diffuser isn't where the bumper is cut.
2. ~9 inches from the bottom of the bumper is where the crease is. No idea if that's the factory location on Matt's car but it looks close so I doubt his bumper is cut even 8".

I'm aware. That's a completely separate discussion though.
It is not a separate discussion. Diffusers don't work well without a flat undertray in the first place. Aero pieces should be thought of as a package, because they adding pieces to the front will affect the rear, and vice versa.
motormechanic is offline   Reply With Quote
Old 05-04-2012, 12:56 PM   #50
Newb
Thread Starter

Join Date: Mar 2012
Posts: 12
Total Cats: 1
Default

Quote:
Originally Posted by njn63 View Post
Quote:
Originally Posted by motormechanic View Post
It is not a separate discussion. Diffusers don't work well without a flat undertray in the first place. Aero pieces should be thought of as a package, because they adding pieces to the front will affect the rear, and vice versa.


Quote:
Originally Posted by interwebz
Link

Future plans for the Miata include what Andrews says will be the last major issue involving aerodynamics. He tells us that AWR is planning on developing a custom flat bottom and rear diffuser package to provide a better drag coefficient, plus a few other things he couldn’t tell us.
Guess even "real" racers don't go everything at once....
FTNguyen is offline   Reply With Quote
Old 05-04-2012, 02:30 PM   #51
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

My turn at armchair aero…


If you're adding a flat bottom later, as you say you are, then I see nothing wrong with the position of that diffuser, assuming the flat bottom will join to the front of the diffuser. Your ground clearance isn't helped much, but if it's a track car then that doesn't matter, and if it's a road car and you're prepared to live with it, then fair play.
I do think you'd still need to cut the bumper out a little more above the diffuser with a flat, sealed bottom, to help suck some air out from the space between the flat bottom and the underside of the car, just to help keep things cool. Assuming, that is, that air can be drawn in to that space from somewhere.
owenwilliams is offline   Reply With Quote
Old 05-04-2012, 02:47 PM   #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

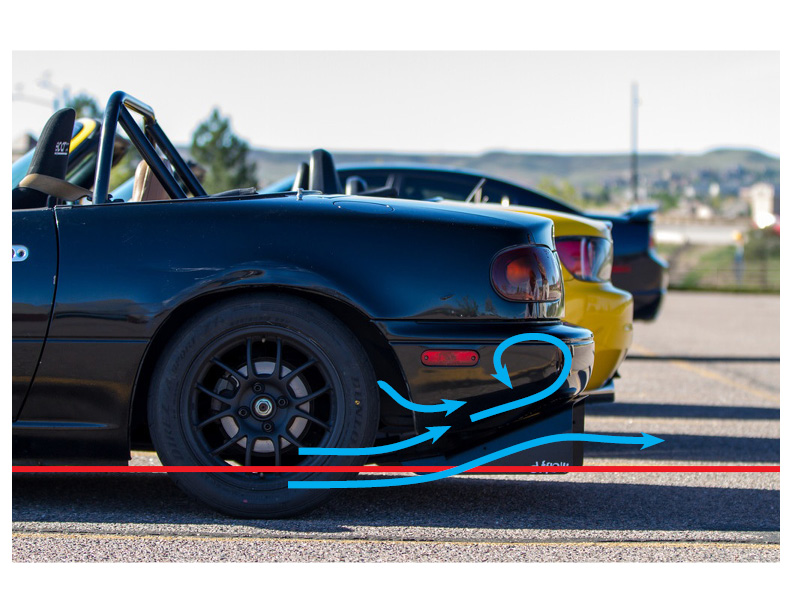

Quote:
Originally Posted by GT42R View Post
I understand higher is better if the purpose of the diffuser is to replace the parachute effect of the rear bumper, but then you may as well not run a rear bumper at all/cut lower half of bumper off.
exactly.

Attached Thumbnails
Difflow Lotus Diffuser Installed-parachute.jpg
Braineack is offline   Reply With Quote
Old 05-04-2012, 08:22 PM   #53
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by motormechanic View Post
It is not a separate discussion. Diffusers don't work well without a flat undertray in the first place. Aero pieces should be thought of as a package, because they adding pieces to the front will affect the rear, and vice versa.
I was only discussing the height of the diffuser at the time, which is why I said it's a "separate discussion"

Of course aero stuff only works well as a package but I was ignoring that in that reply because a lot of people were criticizing something that wasn't even that far off. The Miata doesn't have that much rear overhang so a 15 degree line from the rear differential area doesn't end up that high on the rear bumper.
Quote:
Originally Posted by FTNguyen View Post
Guess even "real" racers don't go everything at once....
Interesting find. Didn't realize Matt didn't have a flat bottom on that car. I assume that "diffuser" was designed differently than one would be for a proper setup then because Andrew Brilliant did the design IIRC.
njn63 is offline   Reply With Quote
Old 05-08-2012, 07:29 PM   #54
Junior Member
iTrader: (-1)

Join Date: Jun 2010
Posts: 218
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
exactly.

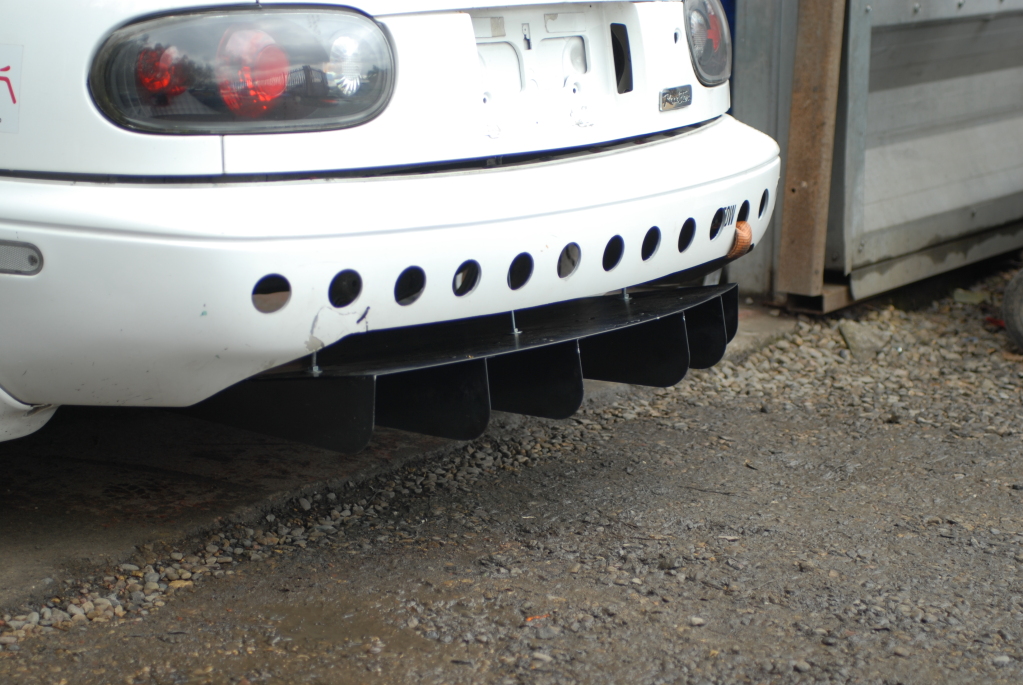

if the bottom of the bumper was cut do air could travel over the top and the diffuser was left as is how well do you think this would work? would the air doing over the diffuser also help create downforce whilst not creating drag??

like this elise s1 diffuser

Attached Thumbnails
Difflow Lotus Diffuser Installed-dsc_00023.jpg

Last edited by mr2daj; 05-09-2012 at 03:47 AM.
mr2daj is offline   Reply With Quote
Old 05-08-2012, 08:21 PM   #55
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

The purpose of the diffuser is to smooth out the remaining airflow, this "remaining" airflow is what's left after a FULL F*CKING FLAT BOTTOM.....like the lotus pictured above, or any supercar photo....

if you have turbulent air on the front 80% of the car, the diffuser is basically nothing else but an aero drag. As now you have introduced another element In which the air flowing underneath the car has two different paths to take.

Yes, cutting holes in the parachute area will help, but think of all the videos of the failed skydivers with their cut/tangled lines. The tangled / cut parachute still slows them down, but not as well as a fully working one.

I.e. moral of the f*ching story here...... Retarded add on of a diffuser on an otherwise stock car will not net any usable..(read worth the effort) difference without supporting mods.


Or another way of thinkin. Would any of you, aside from fae, crank up the boost without adding fuel, or addressing timing? No, because you wouldn't do one without doing the rest.
glade is offline   Reply With Quote
Old 05-08-2012, 09:11 PM   #56
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by mr2daj View Post
would the air doing over the diffuser also help create downforce whilst not creating drag??
There is no free lunch. You very rarely create downforce without creating drag (unless you're starting with a very poor design).

That being said, I'd do it. Even after you build a flat bottom I don't see that hurting as it's dead space.

I know that picture wasn't your car, but it's hilarious to see someone put in all that work to put a diffuser on the car and then leave mudflaps on the car. That is the first thing I removed on my car.
njn63 is offline   Reply With Quote
Old 05-08-2012, 09:18 PM   #57
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

How has aero suddenly become freakin black and white to some overly angry people on here?

Of course, ideally, a flat bottom would be of benefit to the whole package but some attempt at smoothing the the airflow and air transition at the back of the car CAN help in some small way...

You guys rave on about a package, well a package has to start somewhere....who is to say to you "experts" that a flat tray is the sum total of the package. To an aerodynamicist saying a flat bottom and a diffuser is "the package" is probably as ridiculous to them as this is to you, so where does a package start and stop?

Once again I say good on the OP for the effort and good luck with building the car as it comes along, ignore the haters and keep the rest of us informed.

Hopefully you haven't been scared off by the very angry, opinionated few....
mx5-kiwi is offline   Reply With Quote
Old 05-08-2012, 09:44 PM   #58
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

I dont think anyone was angry, something gets lost in translation on the web sometimes. I would like to see some data, perhaps it works perhaps it doesn't. I'm interested and hope it works for its intended purpose.
psreynol is offline   Reply With Quote
Old 05-08-2012, 11:38 PM   #59
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

my definition of a package is this: splitter, undertray, diffuser, wing. One affects the other. Adding only one thing may have adverse affects (i.e. adding a splitter may add rear lift).
motormechanic is offline   Reply With Quote
Old 05-09-2012, 03:54 AM   #60
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Nooo, nothing angry here....

Quote:
this "remaining" airflow is what's left after a FULL F*CKING FLAT BOTTOM.....like the lotus pictured above, or any supercar photo....
Quote:
I.e. moral of the f*ching story here...... Retarded add on of a diffuser on an otherwise stock car will not net any usable..(
must be the web translation ....
mx5-kiwi is offline   Reply With Quote
