Default Epic ducting courtesy of Hustler

Went out to Hustlers place yesterday and he put in my radiator and ducting the **** out of it. Sadly the TSE rad routing wont work with a FM kit without a reroute so we didnt get the car all wrapped up. I needed the reroute anyhow. We also struck out on the oil cooler because the fittings were the wrong type for my sandwich plate. My massive setrab cooler is also too large so ive got to get a smaller one from BAT Inc to get the car wrapped up. Thanks Trey! I'll get better pics later, the wife loaned my DSLR to a friend of hers. These are crappy cell pics.







Attached Thumbnails

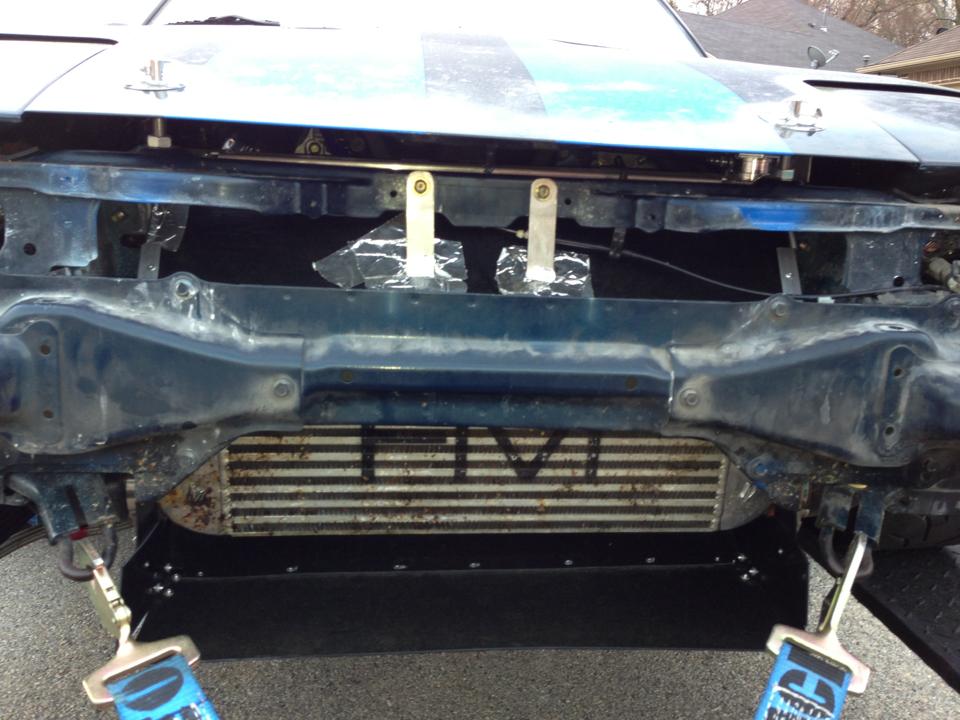

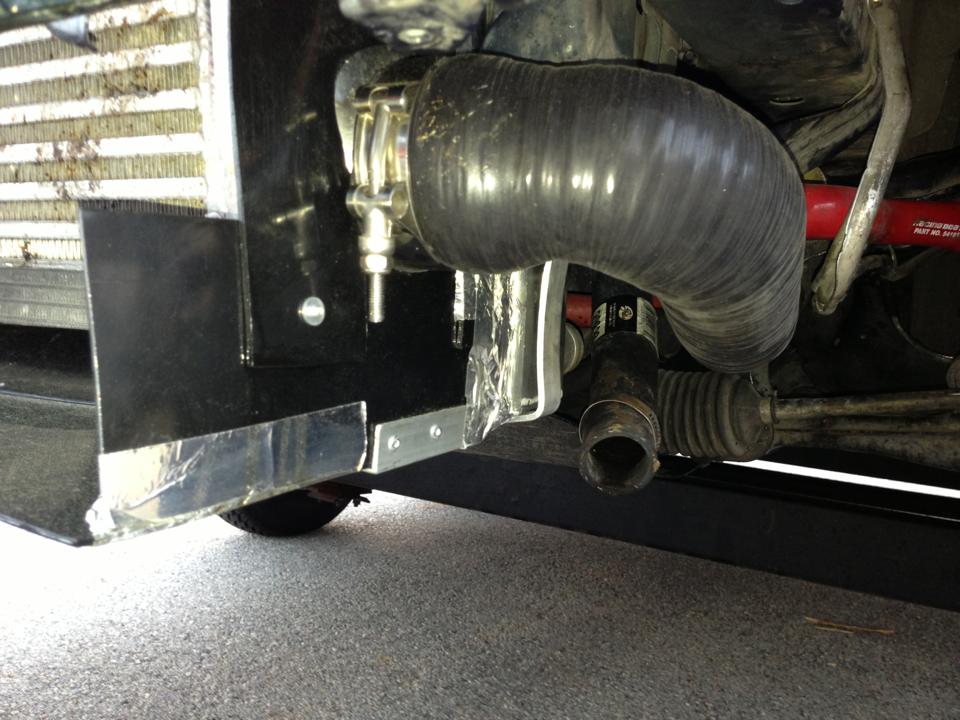

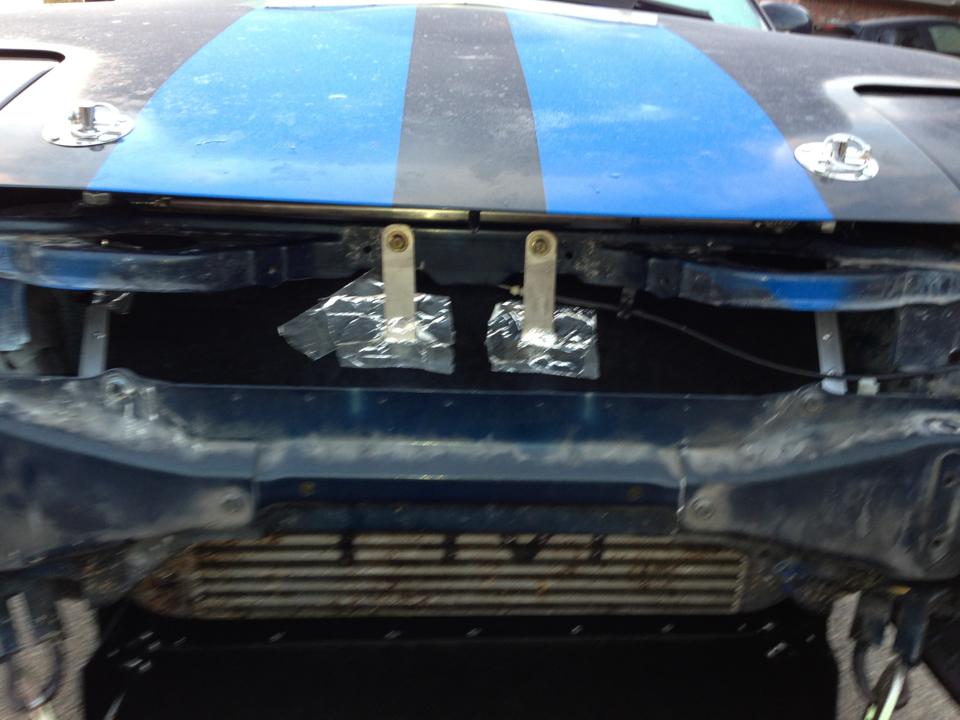

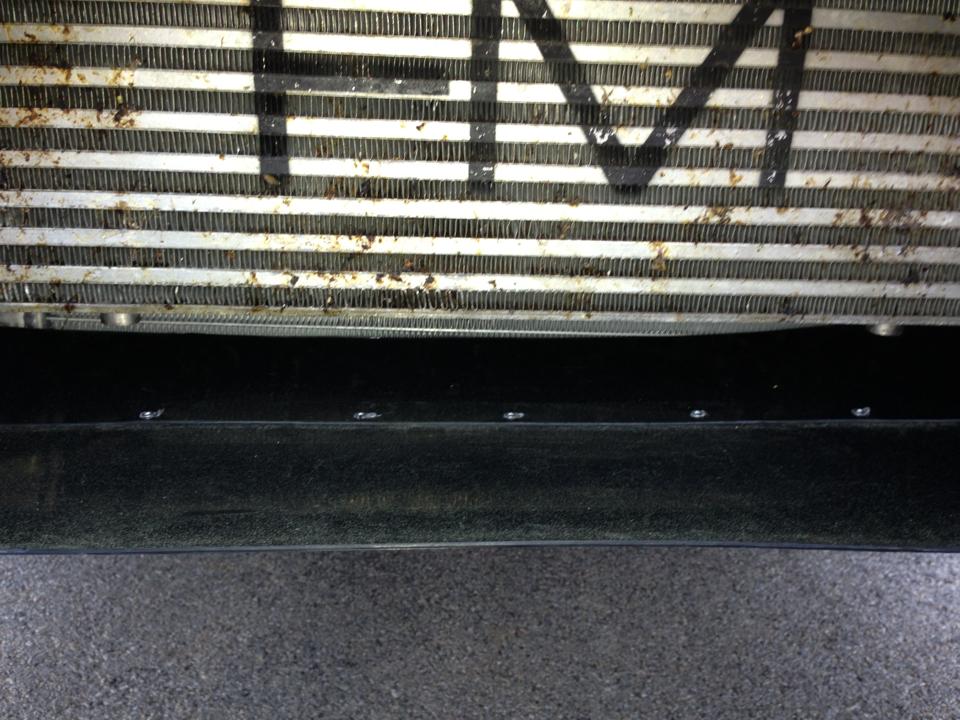

Epic ducting courtesy of Hustler-duct-5_zps87774220.jpg   Epic ducting courtesy of Hustler-duct-4_zps24072b96.jpg   Epic ducting courtesy of Hustler-duct-3_zps5060a978.jpg   Epic ducting courtesy of Hustler-duct-2_zpsb59f1c96.jpg
shanem is offline   Reply With Quote
Old 03-16-2013, 07:46 PM   #2
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

What silver tape you use? Every kind I seems to find sucks, doesn't stick well, or comes apart.
TorqueZombie is offline   Reply With Quote
Old 03-16-2013, 07:52 PM   #3
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

I use the foil stuff from home depot motorsports with the paper backing you peel right before application. Very sticky and handles heat great. Only downside is it will tear easily if met with something sharp.
mr_hyde is offline   Reply With Quote
Old 03-16-2013, 08:02 PM   #4
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

It tears easily no matter what. At the joints because of the vibration it will rip up in no time. There is thicker stuff of the same stuff. Works much better but u gotta buy it online.
triple88a is offline   Reply With Quote
Old 03-16-2013, 08:47 PM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

More pics of the top of the intercooler to the top of the rad?

How is the top of the radiator ducted? I need to do this stuff in the spring.
240_to_miata is offline   Reply With Quote
Old 03-17-2013, 01:08 AM   #6
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Very cool, Thanks for sharing. What stuff did masta Hustler use for the ducting? (the black stuff)
Seefo is offline   Reply With Quote
Old 03-17-2013, 02:44 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

the black stuff is plastic i bought from day motorsports here in tyler.

Day Motor Sports - ROLL PLASTIC - PL-24

I'll get better pics when i get my decent camera back. hustler bent the plastic to slip under the aluminum header at the top of that TSE radiator so it sort of secures itself with help from the slots where the intercooler bracket comes through. i don't know what tape hustler used. probably the home depot stuff. if you worry about it ripping, day has some incredibly sticky duct tape ive used that is completely unaffected by heat and vibration. sort of like racer tape, ive used it to block off the intakes on my car and it held up to turbo temps where that black plastic was starting to melt.
shanem is offline   Reply With Quote
Old 04-02-2013, 04:11 PM   #8
Junior Member

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

Any more pics? This will be one of the first projects on the list.
Fathom55 is offline   Reply With Quote
Old 04-02-2013, 07:25 PM   #9
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

yeah that tape sucks, i did my vmount ducting with it, both the rad and intercooler are mounted rigid on the fame frame and just from vibration it ripped
ctdrftna is offline   Reply With Quote
Old 04-03-2013, 10:58 AM   #10
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 449
Total Cats: 14
Default

Yours is an NA, mine is an NB and the FM11 stuff was fine with TSE rad., no problems. Wonder what the diff. is?
jmann is offline   Reply With Quote
Old 04-03-2013, 11:03 AM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

Quote:
Originally Posted by jmann View Post
Yours is an NA, mine is an NB and the FM11 stuff was fine with TSE rad., no problems. Wonder what the diff. is?
if you have a reroute, that is the difference. My reroute is here, but Hustler says i need to wear a helmet when turning the wrenches and I'm scared.
shanem is offline   Reply With Quote
Old 04-03-2013, 11:08 AM   #12
Junior Member

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

Quote:
Originally Posted by shanem View Post
but Hustler says i need to wear a helmet when turning the wrenches and I'm scared.
...so many questions....
Fathom55 is offline   Reply With Quote
Old 04-03-2013, 11:26 AM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by jmann View Post
Yours is an NA, mine is an NB and the FM11 stuff was fine with TSE rad., no problems. Wonder what the diff. is?
105*f summers, a cooling system full of oil, and he's never run the TSE radiator. It's foolish to waste the tow-rig fuel getting to the track another day if the heat exchangers aren't ducted...are we really going to debate this **** again? If we do, I'll commence with the power banning. Consequences will never be the same.
Quote:
Originally Posted by Fathom55 View Post
...so many questions....
Walking helmet. I don't want him to fall and hit his soft-spot.
hustler is offline   Reply With Quote
Old 04-03-2013, 11:39 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This is my 3rd attempt, I'm getting better. I need to do the daily soon, I lack the energy to redo it on my track car.
hustler is offline   Reply With Quote
Old 04-03-2013, 11:41 AM   #15
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
105*f summers, a cooling system full of oil, and he's never run the TSE radiator. It's foolish to waste the tow-rig fuel getting to the track another day if the heat exchangers aren't ducted...are we really going to debate this **** again? If we do, I'll commence with the power banning. Consequences will never be the same.

Walking helmet. I don't want him to fall and hit his soft-spot.
Attached Thumbnails
Epic ducting courtesy of Hustler-reroute_zps7b6c7dfe.jpg
shanem is offline   Reply With Quote
Old 04-03-2013, 01:02 PM   #16
Junior Member

Join Date: Mar 2013
Location: Houston
Posts: 113
Total Cats: -3
Default

So wrong.
Fathom55 is offline   Reply With Quote
Old 04-03-2013, 02:47 PM   #17
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Like a bauce.

triple88a is offline   Reply With Quote
