Old 07-11-2010, 07:22 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
The line length does not matter so much. The amount of oil that will move back and forth is only determined by the displacement of the accusump.
I know, but with 10' of #10 hose I bet there is at least half a quart in the hose alone and the accumulator will push that oil in addition to the oil in the can.
hustler is offline   Reply With Quote
Old 07-11-2010, 08:03 PM   #22
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by hustler View Post
I know, but with 10' of #10 hose I bet there is at least half a quart in the hose alone and the accumulator will push that oil in addition to the oil in the can.
Doesn't work that way... if you push a quart of oil into the hose, a quart will come out (assuming the hose is already full, if not you may get less).

The other thing to remember if you're using the Accusump as a hydraulic accumulator it's only going to push oil for the amount of time the Accusump has more pressure than the engine... may not be long enough to get that quart into the engine.
Rennkafer is offline   Reply With Quote
Old 07-11-2010, 08:31 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Rennkafer View Post
Doesn't work that way... if you push a quart of oil into the hose, a quart will come out (assuming the hose is already full, if not you may get less).

The other thing to remember if you're using the Accusump as a hydraulic accumulator it's only going to push oil for the amount of time the Accusump has more pressure than the engine... may not be long enough to get that quart into the engine.
Reread...that's exactly what I explained. Do we need more than 1qt for the period of time we're on the brake from say 120mph down to 20mph?
hustler is offline   Reply With Quote
Old 07-11-2010, 08:53 PM   #24
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Sorry, looked as though you were thinking that you would get a quart and a half into the engine because of the hose.

Is a 1 QT enough... depends on several things: viscosity of the oil, flow capacity of the hoses/valves, time the engine is low on pressure. These things all change from car to car, different ambient temps, different tracks.

If you're worried about it get the 2 Qt, if you're really worried convert to a dry sump.
Rennkafer is offline   Reply With Quote
Old 07-11-2010, 09:02 PM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Rennkafer View Post
If you're worried about it get the 2 Qt, if you're really worried convert to a dry sump.
If for budget DIY dry-sump kit.
hustler is offline   Reply With Quote
Old 07-12-2010, 12:17 PM   #26
Newb

Join Date: Mar 2007
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
How much hose did you use? I'm desperately trying to move weight to the rear of my car too. Will a 1qt accusump cut the mustard...especially considering the amount of oil in the extra-long line?
Just enough to reach. Maybe 10 feet. I got zero skilz so work was done by Shane Benson at AIM Tuning. Size? The higher pressure you want it to provide, the less time it will last. With my 2qt set for 20psi with cold oil, pressure drops from 20 psi to 10 psi over about 20 seconds. With hot oil, it only gives me about 10psi dropping down to 5 psi over about 10 seconds. I think 1 quart would be good for pre-oiling, but dicey as insurance against oil starvation.

Quote:
Originally Posted by hustler View Post
Is the 1-way valve required? My oil system goes: pump-plate-cooler-filter-engine, so I'm not sure if I need it or not. Also, can I stack a Mocal plate and one of these? That would make install too easy.
Not smart enough to answer this, but I'm sure others are.

One other idea: Put a low pressure alarm on the pressure side of the Accusump; it will buzz you *before* you actually lose all oil pressure.
MeOughtta is offline   Reply With Quote
Old 07-14-2010, 01:07 PM   #27
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,475
Total Cats: 114
Default

Quote:
Originally Posted by Rennkafer View Post
Sorry, looked as though you were thinking that you would get a quart and a half into the engine because of the hose.

Is a 1 QT enough... depends on several things: viscosity of the oil, flow capacity of the hoses/valves, time the engine is low on pressure. These things all change from car to car, different ambient temps, different tracks.

If you're worried about it get the 2 Qt, if you're really worried convert to a dry sump.
Did you use an electronic valve or manual?

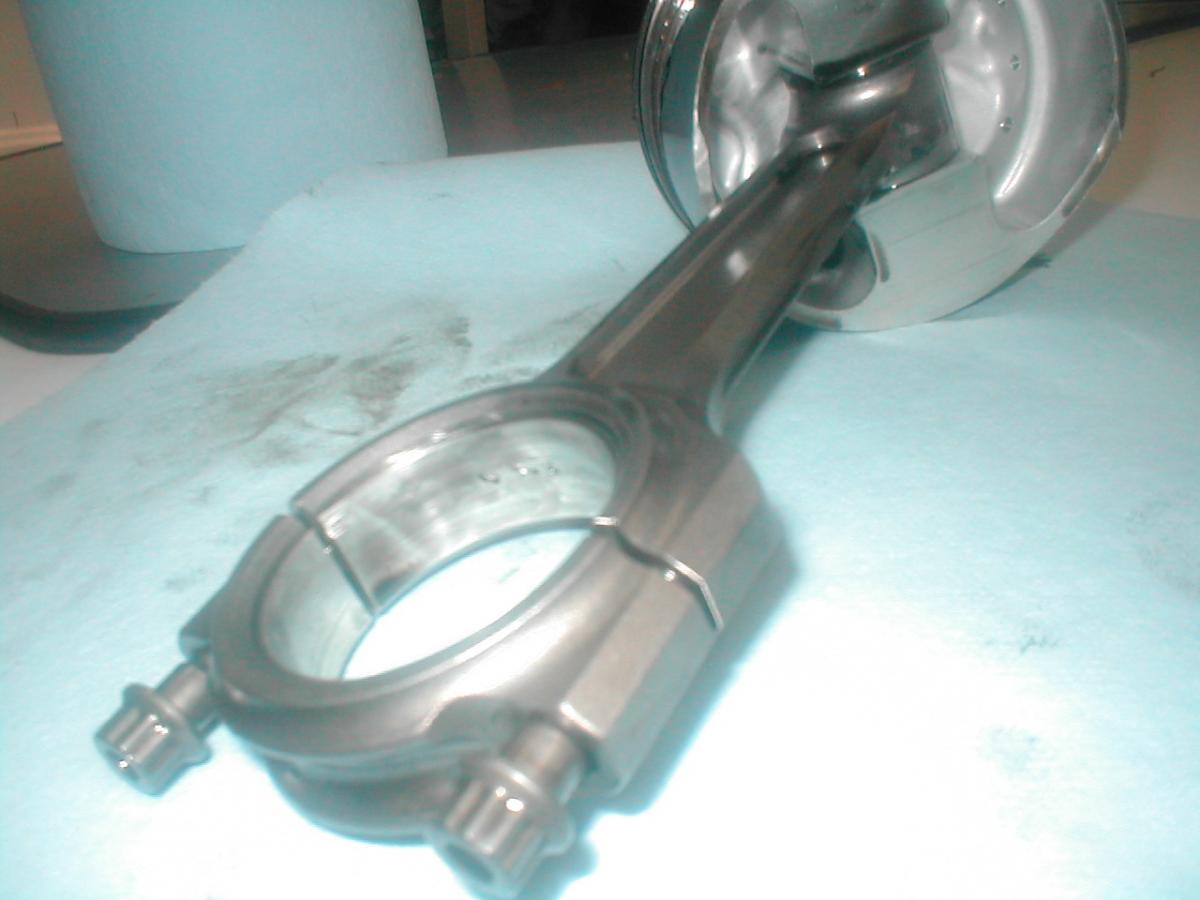

I decided when my rebuild goes in accusump will also be installed. Pictures of odd damage to a rod bearing attached.

Bob
Attached Thumbnails
Extra baffling for the oil pan.-p1010034.jpg
bbundy is offline   Reply With Quote
Old 07-14-2010, 03:46 PM   #28
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

Quote:
Originally Posted by MeOughtta View Post
One other idea: Put a low pressure alarm on the pressure side of the Accusump; it will buzz you *before* you actually lose all oil pressure.
That right there, is a great idea!
wildo is offline   Reply With Quote
Old 07-14-2010, 04:02 PM   #29
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by MeOughtta View Post
Put a low pressure alarm on the pressure side of the Accusump; it will buzz you *before* you actually lose all oil pressure.

I'm doing this to prevent another built motor paperweight adventure.
dc2696 is offline   Reply With Quote
Old 07-14-2010, 06:15 PM   #30
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by wildo View Post
That right there, is a great idea!

I used pressure sensor S367 from O'Reilly auto in my remote mount filter, and then have it wired up to an LED in my pillar next to oil temp. It cost around 10 dollars total for the low pressure light which is rather annoying when the car is not on but the ign is in the run position (so you know you'll see it!)
chpmnsws6 is offline   Reply With Quote
Old 07-14-2010, 06:26 PM   #31
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

As we say here at mt.n this thread is full of win.
ZX-Tex is offline   Reply With Quote
Old 07-14-2010, 08:38 PM   #32
Newb

Join Date: Mar 2007
Posts: 31
Total Cats: 0
Default

Quote:
Originally Posted by bbundy View Post
Did you use an electronic valve or manual?
I have the electric valve, but if I had it to do over again, I'd probably go with a manual valve mounted in a very convenient location.

For a track-only car, I would not consider anything but the manual valve.
MeOughtta is offline   Reply With Quote
Old 07-14-2010, 09:40 PM   #33
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Why?
ZX-Tex is offline   Reply With Quote
Old 07-15-2010, 10:02 AM   #34
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by hustler View Post
If for budget DIY dry-sump kit.
+1. Our setups could really benefit.
thymer is offline   Reply With Quote
Old 07-15-2010, 10:15 AM   #35
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
Why?
I believe the electronic valves flow less.

I'm going to put mine in the trunk with the long cabled valve. Savington is going to get one for me, we're in love.
hustler is offline   Reply With Quote
Old 07-15-2010, 11:23 AM   #36
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Get a room...

Well it would be a lot cheaper without the pressure triggered electric valve setup so I am not going to argue too much for that.
ZX-Tex is offline   Reply With Quote
Old 07-15-2010, 12:24 PM   #37
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

Other than cost, what is the down-side of the electric valve? Seems that the set pressure points of the EPC valve are a nice feature. 20-25 PSI, 35-40 PSI, and 55-60 PSI versions are available.

Description of the 35-40 PSI valve from Canton Racing's Accsump website:
"This Electric Pressure Control Valve Kit is for a discharge/refill of 35-40 PSI. These valves have the convenience of an electric valve for remote mounted units and the rapid refill rate of a manual valve as required in racing. The E.P.C. valving will only allow the Accusump to discharge oil when the engine’s oil pressure drops below a predetermined level and only refill when the pressure rises above that level. Comes with the regulator, electric valve, a pipe nipple, a toggle switch, wire, terminals and instructions."

The #1 reason I like the idea of the EPC valve, is that I'm an idiot. With my luck the one time I REALLY NEED the Accsump to work would be the one time that I forgot to open the valve.
wildo is offline   Reply With Quote
Old 07-15-2010, 12:52 PM   #38
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by wildo View Post
The #1 reason I like the idea of the EPC valve, is that I'm an idiot. With my luck the one time I REALLY NEED the Accsump to work would be the one time that I forgot to open the valve.
Word. I have considered this as well. In fact I already know how I am going to die. It will be because I am going to forget to do something, and the consequence will be fatal.

The peace of mind is worth $150. I need to make up my mind...
ZX-Tex is offline   Reply With Quote
Old 07-15-2010, 01:07 PM   #39
Elite Member
Thread Starter

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,475
Total Cats: 114
Default

Quote:
Originally Posted by wildo View Post
Other than cost, what is the down-side of the electric valve? Seems that the set pressure points of the EPC valve are a nice feature. 20-25 PSI, 35-40 PSI, and 55-60 PSI versions are available.

Description of the 35-40 PSI valve from Canton Racing's Accsump website:
"This Electric Pressure Control Valve Kit is for a discharge/refill of 35-40 PSI. These valves have the convenience of an electric valve for remote mounted units and the rapid refill rate of a manual valve as required in racing. The E.P.C. valving will only allow the Accusump to discharge oil when the engine’s oil pressure drops below a predetermined level and only refill when the pressure rises above that level. Comes with the regulator, electric valve, a pipe nipple, a toggle switch, wire, terminals and instructions."

The #1 reason I like the idea of the EPC valve, is that I'm an idiot. With my luck the one time I REALLY NEED the Accsump to work would be the one time that I forgot to open the valve.
Yea it seems the standard electric valve is really only good for pre-oiling and doesn’t react well enough for good surge control. Doesn’t seem like a good option for what I want.

The Manual valve seems bullet proof as long as you remember the proper sequence of flipping the valve and can place it where you have access.

The EPC Electric valve seems like with the pressure discharge/refill window and the rapid flow capability would be the functionally the best. Question is will it operate as flaky as so many other electronic control devices I have fiddled with or will it actually consistently and reliably work as advertised?

Also with the EPC valve which of the available discharge/refill pressure options would be best for a miata engine, 20-25, 35-40, or 55-60?

Bob

Last edited by bbundy; 07-15-2010 at 01:21 PM.
bbundy is offline   Reply With Quote
Old 07-15-2010, 01:20 PM   #40
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

With the amount of money spent on an accusump (3-400$) you could probably get a decent dry sump kit started.

Finding a pump for cheap is the only real problem, everything else can be made diy style.

Then you wouldn't have to worry about the accusump actually working properly, but it will cost abit more upfront.

Cost of Accusump + another rebuild when it ***** up > Dry sump diy system
dc2696 is offline   Reply With Quote
