Default Extreme Seat Room

Hello All,

I'm looking to see if anyone has taken the leg room mods to the extreme. I'm 6'4", and while I can fit, it could still be improved. I tried the classic foam-ectomy on the stock seats, moved quickly to a real race seat (Sparco Sprint V). Then I worked with a friend to make some brackets to bolt it straight to the floor to get rid of the slider height.

Here are my three ideas, advice or experience would be fantastic.

1. Basically create a lower floor that the seat fits into, I would then sit more upright, and not worry about headroom as much, allowing my legs to have more room.

2. Two part foam seat, giving me slightly more room because of the way the rear bulkhead reclines, (This wouldn't give me much, but it is probably the cheapest)

3. Massaging the rear bulkhead to allow me to slide the seat back even farther. Would most likely look into combining with the foam to give the most room.

(I've also gone from my normal NB door cards to a flat piece having nothing but the door lock and opener to give me the extra left knee room.)
PatrickG is offline   Reply With Quote
Old 01-12-2013, 01:29 PM   #2
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

You can pull the "humps" out of the floor, thus mounting a bit lower.

I'm not sure you can massage the rear bulkhead much without hurting over all structure. Not sure though.

I've seen someone here move the e-brake to the other side of the tunnel for a smidge of space.

Do you have a smaller after market wheel? That helps too.

Has anyone changed the peddle positions? I mean cut them and make them just a bit shorter, not enough to change where they bottom out.
Miater is offline   Reply With Quote
Old 01-12-2013, 01:32 PM   #3
Newb
Thread Starter

Join Date: Mar 2010
Location: Springfield, MA
Posts: 10
Total Cats: 0
Default

I had assumed that was true about the bulkhead, was just hoping it wasn't the case. I do have a slightly smaller wheel, and it does help considerably (my biggest problem is knee room, followed by leg length room.)
PatrickG is offline   Reply With Quote
Old 01-12-2013, 02:06 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I'm 6'3".I have an OMP HTE seat, which may be extreme for the street, but its by far, the most comfortable bucket seat I've been in. I've done 4 hours of driving on this seat, and enjoyed every minute of it.

I welded mounts on the floor and back to support it. It literally sits 0.1 above the floor, and I have room so that I don't feel cramped anymore, my kneed don't hit the steering and I have tons of headroom.
Reverant is offline   Reply With Quote
Old 01-12-2013, 02:33 PM   #5
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

This is extreme!

IMG_0100_zps6c22ecd5.jpg?t=1358015291

Malcolm seat Photos by alta_racer | Photobucket

Malcolm on mx5 nutz forum, amazing build.
Alta_Racer is offline   Reply With Quote
Old 01-12-2013, 05:24 PM   #6
Junior Member

Join Date: Jan 2009
Posts: 121
Total Cats: 3
Default

I had a lowered floor in my last one (6.4") and will have one in the current one as soon as I find the funds to have the cage shop weld one in. Its the only way to get to a safe height at 6+ inches. The rest is just a lot of wishfull thinking and serious slumping.
damir130 is offline   Reply With Quote
Old 01-12-2013, 06:02 PM   #7
Asx
Junior Member
iTrader: (1)

Join Date: Nov 2007
Location: Huntsville, AL
Posts: 78
Total Cats: 3
Default

Oooooooorrrrrr you could quit dicking around with stock and fiberglass seats and get an aluminum seat (Ultrashield, Kirkey, etc.). Bolt it directly to the floor.

I'm 6'2" and can pass the yardstick rule with a helmet on.
Asx is offline   Reply With Quote
Old 01-13-2013, 06:17 AM   #8
Junior Member

Join Date: Jan 2009
Posts: 121
Total Cats: 3
Default

I couldn't pass the yardstick rule even when sitting directly on the floor. 2 inches in the right place are a big difference ;-)
damir130 is offline   Reply With Quote
Old 01-13-2013, 11:42 AM   #9
Newb

Join Date: Apr 2010
Location: Columbus, Ohio
Posts: 32
Total Cats: 0
Default

I'm 6'4" 260 pounds and I fit fine. We removed the humps from the floor and pounded the floor down a little and directly mounted an ultrashield seat to the floor with no sliders. To clear the steering wheel get a deep dish wheel that come back to the driver to clear your knees. This was my biggest issue but the wheel that comes closer to the driver solved that.
Buzz is offline   Reply With Quote
Old 01-13-2013, 02:03 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I'm only 6'1" but with the rear of the Kirkeys bolted directly to the floor (with the rear risers removed) I have PLENTY of headroom and actually had to move the seat further forward than I anticipated to be able to do heel-toe braking with the pedals properly on the track. Way back when I had the stock seats my hair would annoyingly brush the underside of the soft top constantly, and my hair doesn't really stand up much. And I cound never get the stock seat pushed back far enough to be comfortable. Now I can wear a helmet and put it on while sitting in the car without touching the ceiling.

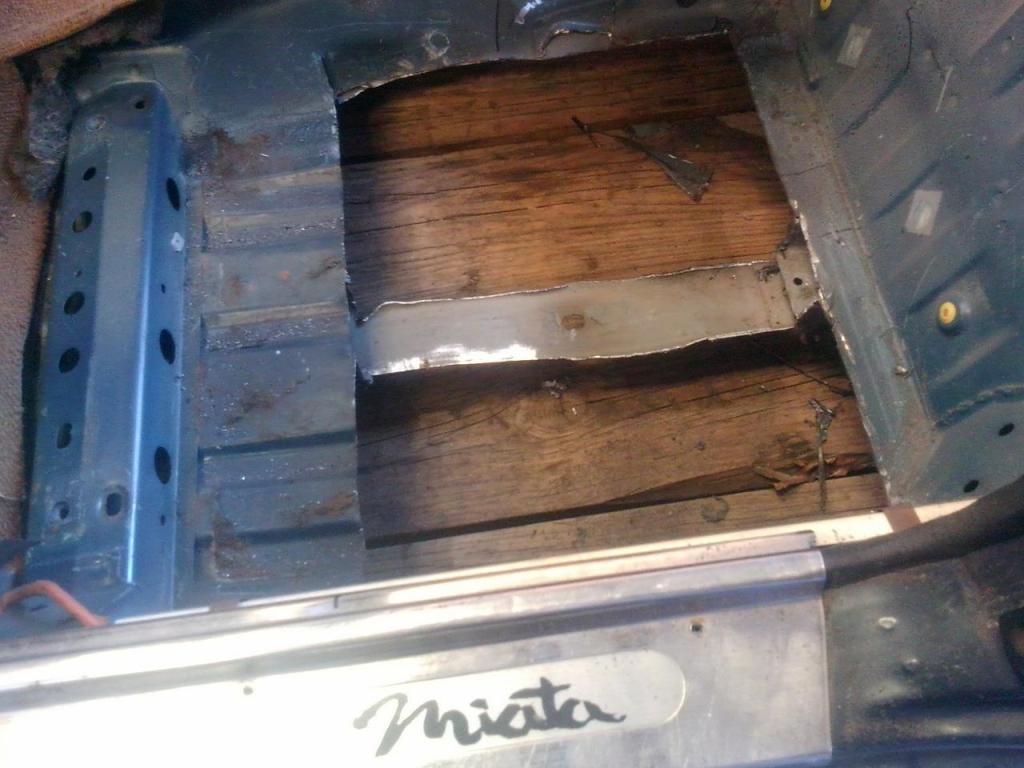

A buddy of mine is 6'3" and a has a lower rollbar than mine, so he notched the floor to drop his seat some more. He fabricates and builds hot rods so he is adept at sheet metal fabrication. I don't have any pictures of the final product.



Attached Thumbnails
Extreme Seat Room-jamiefloormodone_zps78b231aa.jpg   Extreme Seat Room-jamiefloormod_zps2910f721.jpg
sixshooter is offline   Reply With Quote
Old 01-13-2013, 05:10 PM   #11
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I have my Ultrashield bolted to the floor but because it's a 10 degree seat the front is a bit higher than optimal. It works and is safe but a 20 degree seat is probably better for tall people.
wannafbody is offline   Reply With Quote
Old 01-13-2013, 05:35 PM   #12
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

Interesting solutions. I'm a foot shorter than the OP, but even then it's difficult to get the seat properly reclined for my gangsta-lean. So maybe an ultrashield with the right bolsters cut out. My track days will then have to consist only of reverse ovals.
czubaka is offline   Reply With Quote
Old 01-13-2013, 09:54 PM   #13
Newb

Join Date: Nov 2010
Posts: 28
Total Cats: 1
Default

Someone else who has performed some radical surgery on their Miata floor pan. I'm still unsure how you would reinforce this to maintain rigidity after cutting up the frame rail.

MX-5 Miata Forum - View Single Post - Tall Person Miata track car

Thomas
exST165 is offline   Reply With Quote
Old 01-14-2013, 04:07 AM   #14
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Don't forget that you can gain an inch by adjusting the pedals a little (especially the clutch height), but that's obvious use of OEM adjustment of course.
NiklasFalk is offline   Reply With Quote
Old 01-14-2013, 10:25 AM   #15
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by exST165 View Post
Someone else who has performed some radical surgery on their Miata floor pan. I'm still unsure how you would reinforce this to maintain rigidity after cutting up the frame rail.

MX-5 Miata Forum - View Single Post - Tall Person Miata track car

Thomas
Probably the best way to mount a seat with a drop down pan is to use square tubing at the front for reinforcement and weld that tubing into either the side frame or even better into the cage mounting pads. I doubt that a drop down pad (providing the right gauge steel is used) is any less rigid than the stock floor pan after welding it in.
wannafbody is offline   Reply With Quote
Old 01-14-2013, 04:31 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

did you guys ever think about trying not to be so tall?
Braineack is offline   Reply With Quote
Old 01-14-2013, 04:40 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Seriously. Be 5'10" like the rest of the average american males. Loosers.
curly is online now   Reply With Quote
Old 01-14-2013, 10:31 PM   #18
Newb

Join Date: Nov 2010
Posts: 28
Total Cats: 1
Default

Quote:
Originally Posted by curly View Post
Seriously. Be 5'10" like the rest of the average american males. Loosers.

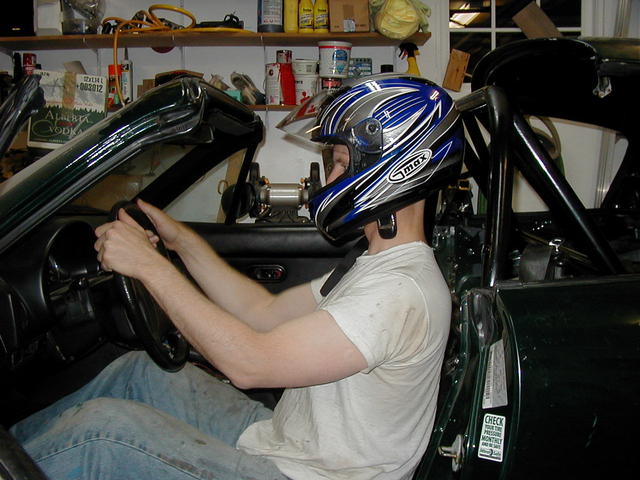

Damn, why didn't I think of that! So this is me sittingon the floor pan of my miata. And it has been pointed out that I must have an extra neck vertibrae.

Attached Thumbnails
Extreme Seat Room-p1010108.jpg
exST165 is offline   Reply With Quote
Old 01-17-2013, 01:00 AM   #19
Asx
Junior Member
iTrader: (1)

Join Date: Nov 2007
Location: Huntsville, AL
Posts: 78
Total Cats: 3
Default

you need steering hub spacers and a gangster lean. serious face.
Asx is offline   Reply With Quote
Old 01-17-2013, 02:39 AM   #20
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Quote:
Originally Posted by Asx View Post
you need steering hub spacers and a gangster lean. serious face.
Agree. That extra neck vertebrae requires some gangsta compensation.
Mobius is offline   Reply With Quote
