Default Fire Extinguisher Placement

I ordered a hand held fire extinguisher with mounting bracket to qualify for the half point deduction in MC. I know some of you have full systems with multiple nozzles, etc. but for those who have a little handheld one mounted somewhere, where did you put it?

I read that you want it to be within reach while seated and strapped in, but my reach to the passenger side is pretty limited once strapped into the Sparco Circuit with its high sides, and the only location I can really think of within reach is the driver's footwell right in front of the seat, basically under the knees (and I'm not even sure I can reach there while in the harness)

Link to the extinguisher:
http://www.ioportracing.com/Merchant...ory_Code=FE-HH
-Ryan
ThePass is offline   Reply With Quote
Old 04-12-2011, 03:58 AM   #2
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

How about the PS side, but just on the other side of the trans tunnel (angled up to put the handle closer to you)? I'm thinking it should be about the same reach-wise as the shifter.

Or you could be rice-tastic. Chrome its body and stick it on the PS A-pillar like the Willippinos did at my high school.

Last edited by kotomile; 04-12-2011 at 04:37 AM.
kotomile is offline   Reply With Quote
Old 04-12-2011, 04:26 AM   #3
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

i bought a piece of thick aluminum strapping from a home depot type store and bent and bolted it to the frt. left bolt of the pass. seat. i can flip the lever and pull it off the mount it came with while strapped in. (oh, obviously i bolted the mount the extinguisher came with to the piece of alum.)
spoolin2bars is offline   Reply With Quote
Old 04-12-2011, 04:38 AM   #4
Junior Member

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Mounted mine like you were originally talking about except on the passenger side (under the knee). I can't get to it without a quick cam buckle turn but if I can't do that much I won't be worried about reaching for the ex.
Underway is offline   Reply With Quote
Old 04-12-2011, 06:37 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Mines bolted to the harness bar, right between the seats. I have to disconnect my harness to swivel around, but you should be doing that anyways if you're on fire.
curly is offline   Reply With Quote
Old 04-12-2011, 06:41 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

+1 to the harness bar or rollbar diagonal. Someplace you can get to it from the driver's seat.
Savington is offline   Reply With Quote
Old 04-12-2011, 10:05 AM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

I had one bolted to where the center console was for a bit. Wasn't bad for interference while shifting, but there are better locations. Tough to decide, because reach depends on when you are harnessed in.
Machismo is offline   Reply With Quote
Old 04-12-2011, 10:08 AM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I considered that, but it didn't seem like I could get my elbow past the seat to grab it. Currently I have to in clip my harness and reach around with my left hand to open the trunk.
curly is offline   Reply With Quote
Old 04-12-2011, 12:58 PM   #9
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by Underway View Post
I can't get to it without a quick cam buckle turn but if I can't do that much I won't be worried about reaching for the ex.
That thought had crossed my mind, and my options open up if I consider locations I can reach once I twist the camlock.

Thanks for the input guys, it arrives tomorrow so I'll be seeing what can be done.

-Ryan
ThePass is offline   Reply With Quote
Old 04-12-2011, 02:58 PM   #10
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

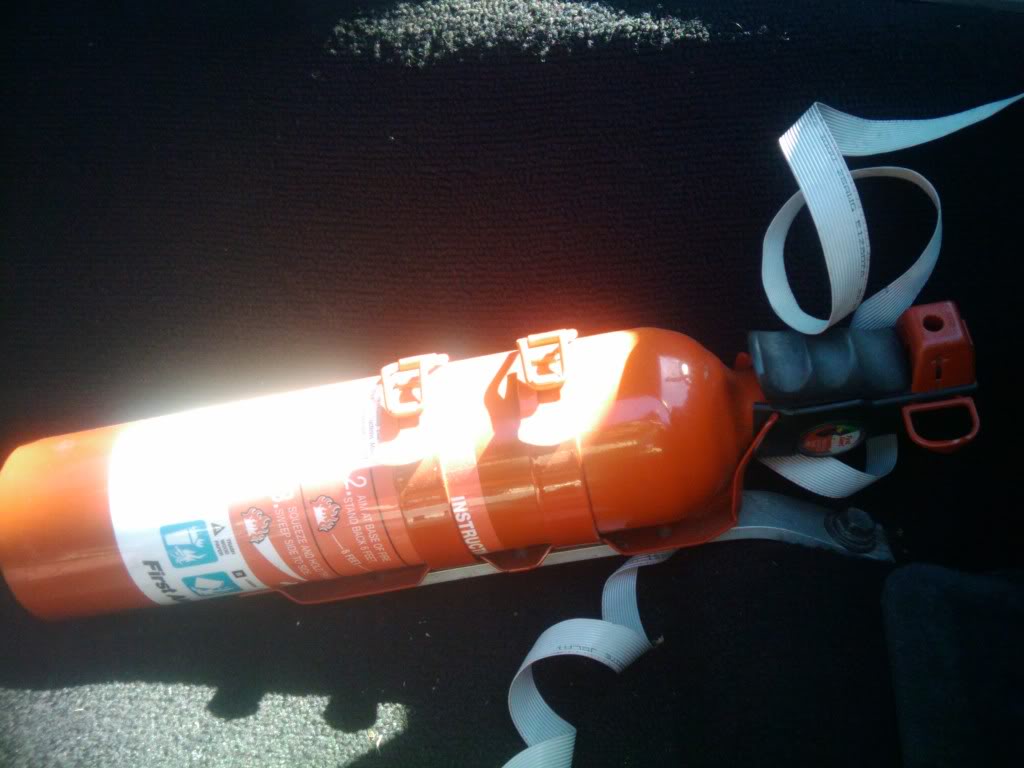

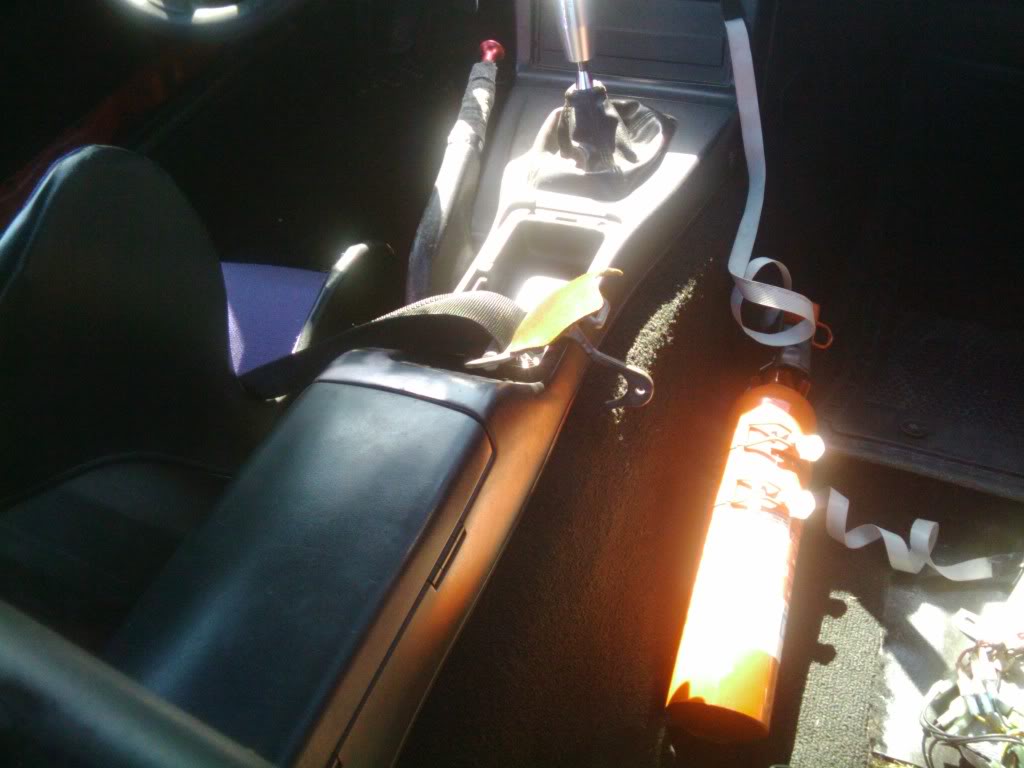

i don't have a pass. seat, but i'm sure you could bolt the extinguisher mount up higher on the trans. tunnel. Or like i was saying, make an aluminum mount for it. mine is on the floor and i can reach it easily while still strapped in.

Name:  IMG_20110412_111006.jpg
Views: 11
Size:  74.2 KB

Name:  IMG_20110412_110855.jpg
Views: 10
Size:  72.4 KB
spoolin2bars is offline   Reply With Quote
Old 04-12-2011, 03:10 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I put mine up my ***. It's a 45lb bottle.
hustler is offline   Reply With Quote
Old 04-12-2011, 08:18 PM   #12
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

keistered it!
spoolin2bars is offline   Reply With Quote
Old 04-13-2011, 10:07 AM   #13
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

With the amount of gas he produces... Good place for it!
Machismo is offline   Reply With Quote
Old 04-13-2011, 04:15 PM   #14
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

I never put too much weight on the "while strapped in" criteria.

I'm pretty sure that my order of operation would be:
1. Stop car.
2. Release harness.
3. Either go for the extinguisher or GTFO.

I wouldn't mount the extinguisher near where I'd expect to be aiming it, like under the dash or deep into the footwell. Reaching into the fire to grab the extinguisher ain't going to happen.

Top of transmission tunnel, side of transmission tunnel, and in front of passenger seat have all worked OK for me.

The lower in the car, the better. I think it is much more common to have an extinguisher come loose, than it is to actually need one.
wildo is offline   Reply With Quote
Old 04-13-2011, 04:29 PM   #15
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

i think the idea is if you're unable to get out and you see fire, it would be nice to grab a fire extinguisher instead of waiting for safety peeps.
spoolin2bars is offline   Reply With Quote
Old 04-13-2011, 06:28 PM   #16
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I had one in front of the passenger seat in the NB. Now I have one in place of the console on the NA track car; the console is removed so I'm not sure if console removal is an option for you. The nozzle is a couple of inches behind the back edge of the e-brake lever. It has not been in the way at all and is easy to reach even belted in.

Hustler you should shove that 45 lb extinguisher up your passenger's *** for better weight distribution.
ZX-Tex is offline   Reply With Quote
Old 04-13-2011, 09:24 PM   #17
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

What about between the seats batmobile style?
Golferluke is offline   Reply With Quote
Old 04-15-2011, 11:48 AM   #18
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

I'm trying my hardest to resist removing the center console - I've not always had it in the past, but every other cubby, pocket, the glove box, etc. has been removed and I needed somewhere to stash registration and insurance cards plus any little things as this is a street car still.

The bottle got delayed for a day due to hazmat, but I'm picking it up this morning so I'll report back!
ThePass is offline   Reply With Quote
Old 04-16-2011, 04:14 AM   #19
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

So I sat in my seat, harness undone, and reached around to see where the bottle would be accessible in a hurry, and the seat is crazy restrictive - can barely reach the passenger side of the transmission tunnel, and definitely couldn't turn and reach anywhere between/behind the two seats.
The one place I could reach quite easily was under my knees just in front of my seat, and I realized I never bring my knees up high enough to put my feet in that area, so that was unused space anyways. Mounted the bottle there, with the latch facing up and right where my left hand would come down to meet it.

Thanks for the tips and suggestions.
-Ryan
ThePass is offline   Reply With Quote
Old 04-16-2011, 10:56 AM   #20
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Not to be difficult but I do not think that is a good idea. If the bottle latches come loose then it could easily interfere with or jam the pedals. Even though they are more expensive I would probably go to a remote mount bottle before I did that. Maybe you could put something vertically oriented, like a plate of aluminum attached to the floor, just in front of the bottle to keep it from rolling forward.

I agree about the back wall mount. With the race seats and harnesses I did not put it there for the same reason you did not. It is too hard to reach.

Last edited by ZX-Tex; 04-16-2011 at 11:09 AM.
