Default Front undertray, is this worth the effort?

Did a search, found lots of undertrays that include a splitter and/or extend rearward of the axle. Thats not what Im looking for.

NASA TT rules state that:
Quote:
6.4 G 5) Add or fabricate flat bottom/belly tray (rearward of the centerline of the front axle) +5
And

Quote:
6.4 I g 1) Undertray/ belly pan forward of the centerline of the front axle
My plastic undertray is a little worse for wear, not to mention a PITA to get off. Along with doing a radiator shroud to help with cooling, is it worth my time to bother with an undertray? I cant have a splitter nor canards to cut airflow in front of the wheels. So, my question becomes, is it worth the effort?

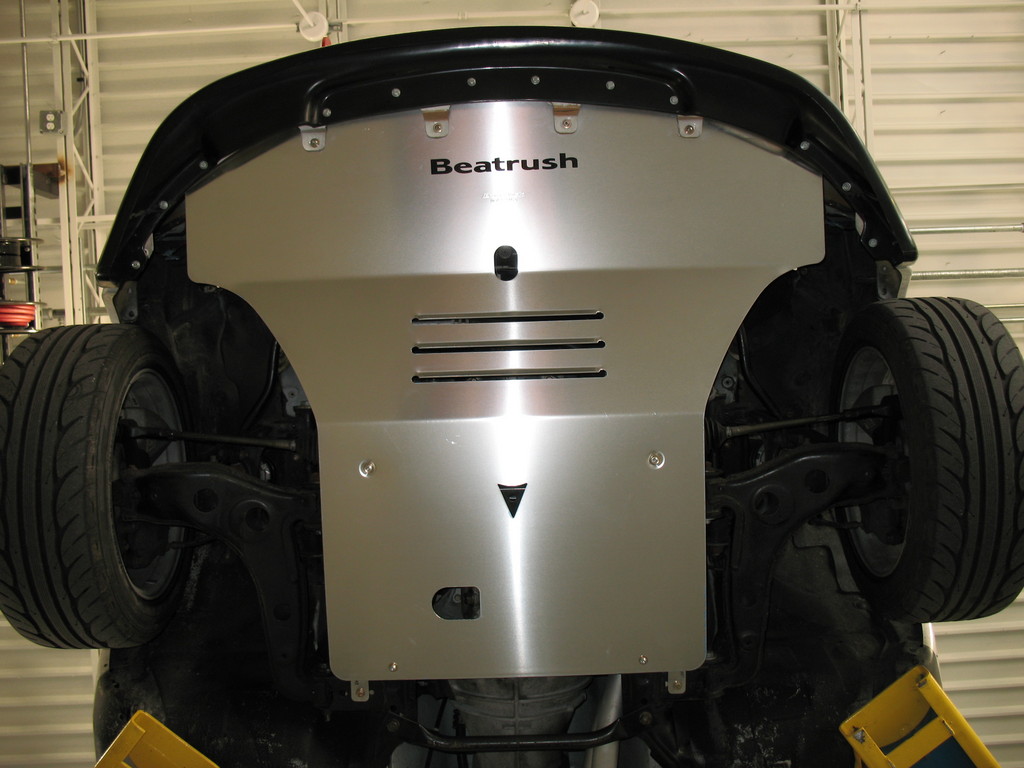

For reference, here is the Beatrush panel:


According to NASA rules, Id have to stop approximately where the first line of bolts are, just aft of that actually. A well thought out design could easily come under the control arms too I guess, right?
Attached Thumbnails
Front undertray, is this worth the effort?-1332780497_large.jpg
cucamelsmd15 is offline   Reply With Quote
Old 04-01-2012, 07:45 PM   #2
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Mine stops right behind the first line of bolts and covers more of the wheel wells... but its also part of a splitter, so I have no idea how much effect the under tray would have by itself.
Handy Man is offline   Reply With Quote
Old 04-10-2012, 05:16 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Bump, anyone? I picked up a big sheet of aluminum this weekend when I finished the cage, I just dont know if its worth the time spent fabricating the undertray...
cucamelsmd15 is offline   Reply With Quote
Old 04-10-2012, 07:54 PM   #4
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I do not know how much downforce that one will generate compared to an all-out plywood splitter. I am guessing less, maybe a lot less. It should help with cooling (radiator flow).
ZX-Tex is offline   Reply With Quote
Old 04-10-2012, 08:08 PM   #5
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

I bought some aluminum from Lowes and made one almost identical to the Beatrush except it stops at the first two rear bolts. I made one in cardboard first, then cut the aluminum off the carboard template. Definitely made fitting it a lot easier.
pdexta is offline   Reply With Quote
Old 04-11-2012, 12:08 AM   #6
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 8
Default

i made mine similar to the beatrush and i feel the difference. i also know there is a positive effect as my mpg went up and my steering feels planted at 65mph+. i doubt you will feel a difference if its a foot shorter. its just not as ideal.
Twibs415 is offline   Reply With Quote
Old 04-11-2012, 12:21 AM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

That one looks pretty good but I'm cheap and I'd make my own.
hustler is offline   Reply With Quote
Old 04-11-2012, 01:25 AM   #8
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Does the one in the OP replace the plastic belly pan? Does it come with shrouding for the sides as well?
dgmorr is offline   Reply With Quote
Old 04-11-2012, 03:30 AM   #9
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

Quote:
Originally Posted by Twibs415 View Post
i made mine similar to the beatrush and i feel the difference. i also know there is a positive effect as my mpg went up and my steering feels planted at 65mph+. i doubt you will feel a difference if its a foot shorter. its just not as ideal.
Really. Adding this to my list of things to do then.
stinkycheezmonky is offline   Reply With Quote
Old 04-11-2012, 01:16 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by ZX-Tex View Post
I do not know how much downforce that one will generate compared to an all-out plywood splitter. I am guessing less, maybe a lot less. It should help with cooling (radiator flow).
Yes, the cooling is one reason I want at least something under there. Now granted, Im not running a turbo setup, but even so, Ill take any benefit I can get.

Quote:
Originally Posted by dgmorr View Post
Does the one in the OP replace the plastic belly pan? Does it come with shrouding for the sides as well?
Yes. As far as shrouding, to what are you referring? Shrouding along the control arms? If so, yes, I would probably do something like that. My plastic undertray is pretty much shot.

Edit: This is getting pretty close, minus the splitter portion.
http://forum.miata.net/vb/showpost.p...&postcount=496

Last edited by cucamelsmd15; 04-11-2012 at 01:36 PM.
cucamelsmd15 is offline   Reply With Quote
Old 04-11-2012, 02:42 PM   #11
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Subbing for win and fabrication pics when you get this going.
Quote:
Originally Posted by dgmorr View Post
Does the one in the OP replace the plastic belly pan? Does it come with shrouding for the sides as well?
I think gdmorr is asking about the vertical portions of the belly pan, the parts we get to drill big *** holes in for IC tube. My guess is no on the Beatrush, I see no where for it to attach.

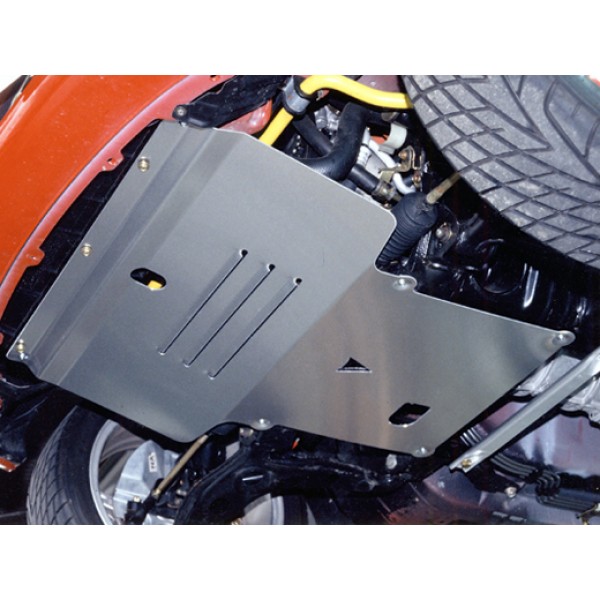

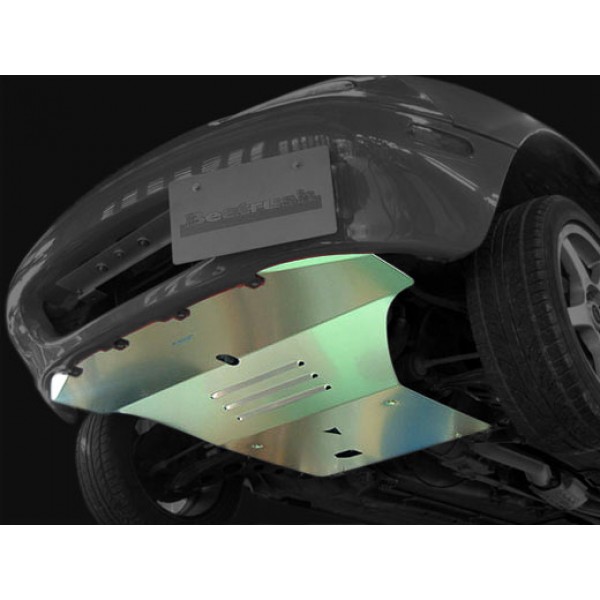

Rev9 sells this thing, check it out:
http://rev9autosport.com/nb/engine/b...nderpanel.html



Yeah, I see no sides. They would be pretty easy to build though
Attached Thumbnails
Front undertray, is this worth the effort?-img32809232.jpg   Front undertray, is this worth the effort?-img32808986.jpg
EO2K is offline   Reply With Quote
Old 04-11-2012, 02:45 PM   #12
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Are the sides actually necessary?

I'm tempted to just go buy a large sheet of aluminum, and copy their general design with tweaks to support my build (I'd just buy it from them direct if I could, but it's not possible with my IC setup)
blaen99 is offline   Reply With Quote
Old 04-11-2012, 02:55 PM   #13
Junior Member
Thread Starter

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

---- it, Im gonna do it. Ill put it on my to-do list after I shake the car down in May. Next track day would be June, so I should be able to compare then.
cucamelsmd15 is offline   Reply With Quote
Old 04-11-2012, 03:16 PM   #14
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

This thread has inspired me. I'm waiting for election season to get into full swing so I can steal some coroplast
EO2K is offline   Reply With Quote
Old 04-13-2012, 12:11 AM   #15
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

I've got an idea for potential splitter material-buy an office chair poly mat and cut to size-it's thin and somewhat flexible and not very expensive.
wannafbody is offline   Reply With Quote
Old 04-13-2012, 12:30 AM   #16
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by wannafbody View Post
I've got an idea for potential splitter material-buy an office chair poly mat and cut to size-it's thin and somewhat flexible and not very expensive.
"somewhat flexible" is the exact opposite of what you want a splitter to be.
Savington is online now   Reply With Quote
Old 04-13-2012, 01:17 AM   #17
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Thanks, I wasn't aware of that.
wannafbody is offline   Reply With Quote
Old 04-13-2012, 01:23 AM   #18
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by EO2K View Post
I think gdmorr is asking about the vertical portions of the belly pan, the parts we get to drill big *** holes in for IC tube. My guess is no on the Beatrush, I see no where for it to attach.
Yeah, I am referring to the sides that the IC piping would usually go through. I would think they are as beneficial as having the bottom.

Reason I ask is I want to know if I can use just my splitter and not worry about the "thermal suicide" by not having the oem piece in - which has sides.
dgmorr is offline   Reply With Quote
Old 04-13-2012, 01:24 AM   #19
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by wannafbody View Post
I've got an idea for potential splitter material-buy an office chair poly mat and cut to size-it's thin and somewhat flexible and not very expensive.
It might be bad for a splitter, but would it be alright for a undertray? If Im thinking of the same stuff its also pretty heavy. What would be a better material. Al or plywood?
Vilko is offline   Reply With Quote
Old 04-13-2012, 02:07 AM   #20
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

For an undertray? Aluminum.

For a splitter? Plywood as it will be much stiffer than a thin sheet of aluminum. For example, I am 170 lbs and can stand on my wood splitter no problem.
crashnscar is offline   Reply With Quote
