Default Has anyone done this before? (seat rails inside)

I'm trying to get rid of some height and weight. I previously had my old bottom mount MOMO Start seat bolted to some stock rails.

Has anyone chopped up a stock rail and used it to make some rails?

I've got the top part off, I just have to grind off the rivets, cut a piece to length, and bolt it to the old rivet holes.

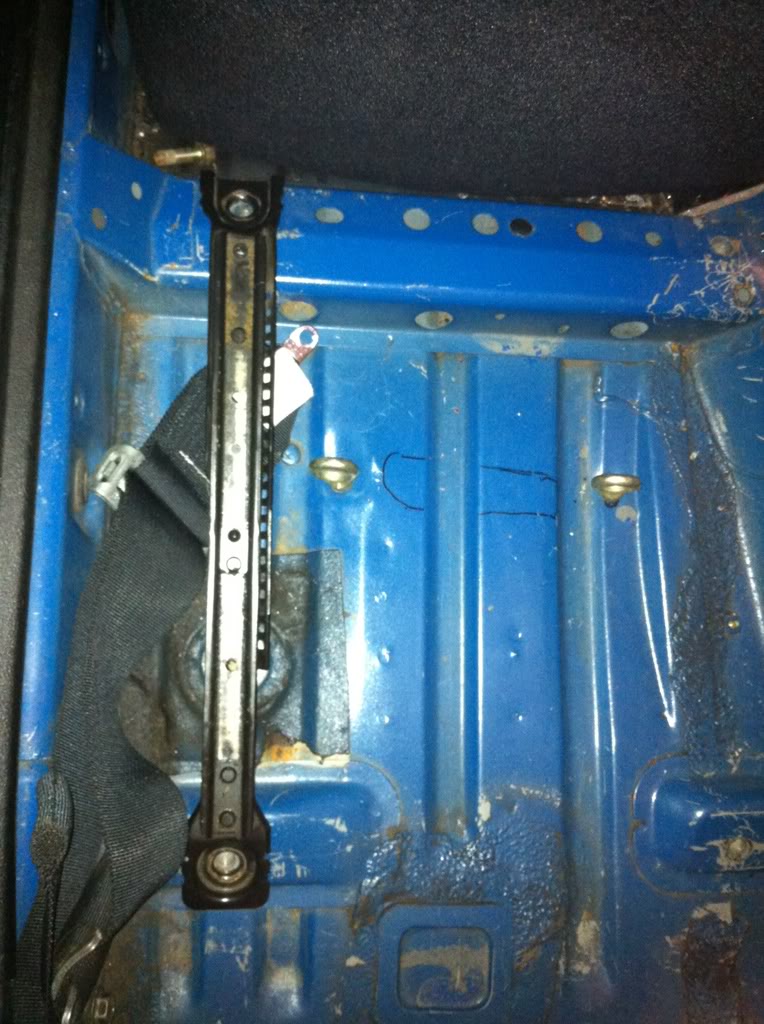

Name:  765561a2.jpg
Views: 5
Size:  131.4 KB

Bad idea? Just make it new out of the same steel strips?

Bad picture, I know, but it's of the bottom half of a stock rail. I'll be cutting bits off to only leave the front and rear pieces. Hoping it'll save me about an 1" of height, letting me pass the broomstick test without chopping up the floor.
curly is offline   Reply With Quote
Old 04-29-2011, 02:00 AM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

For the amount of work it is to make a solid mount out of flat steel I wouldnt bother with the stock one. And it won't get you very low
falcon is offline   Reply With Quote
Old 04-29-2011, 02:02 AM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Btw I pass the broomstick test with helmet with 2" to spare and I'm 6' tall. That's with my custom mount that was designed to have the seat as low as possible without cutting the humps. The rear part of the shell on my seat touches the floor.
falcon is offline   Reply With Quote
Old 04-29-2011, 02:08 AM   #4
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Glad to hear it can be done without cutting the humps. It's still street legal, I wouldn't mind throwing a stock seat in there for a summer or spring for some DD comfort. Of course now I need new rails.
curly is offline   Reply With Quote
Old 05-02-2011, 01:53 AM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Just in case anyone is reading this in the future, y'all were right. It's much easier and more beneficial to just use two strips of metal.

I used the front and rear brackets from the stock rails, and although it took away about .75" of height, it still wasn't enough, and I couldn't access the rear bolts to tighten them. Waste of $4.89.

$9.78 later, I had two more strips of metal, and drilled some holes about 4" further back from the stock rear holes, so I could bolt it up behind the seat. They're lighter, lower, and easier to make. Lesson learned.

Now to sign up for a track day so I can actually use my new broom stick test passable car.
curly is offline   Reply With Quote
Old 05-02-2011, 02:16 AM   #6
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Pics of your fab work?
kotomile is offline   Reply With Quote
Old 05-02-2011, 02:40 AM   #7
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I'll take a few, they won't be great though. It's a pain reaching under the car for the two back bolts. I was planning on painting them, probably won't because of that. I'll snap what I can.
curly is offline   Reply With Quote
Old 05-02-2011, 07:19 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Haha.. yeah it takes a while to get my seat bolted in. I have a shorty 14mm spanner. And threading the bolts is annoying.
falcon is offline   Reply With Quote
Old 05-02-2011, 07:25 PM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by curly View Post
Glad to hear it can be done without cutting the humps. It's still street legal, I wouldn't mind throwing a stock seat in there for a summer or spring for some DD comfort. Of course now I need new rails.
I got some spare rails in my garage if you really want them. Shoot me a pm.
shuiend is online now   Reply With Quote
Old 05-04-2011, 12:08 AM   #10
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Sort of off topic, but what thickness of steel are you guys using for the seat mounts? I need to mount mine soon.
njn63 is offline   Reply With Quote
Old 05-04-2011, 12:33 AM   #11
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I used 1/8", for the short length that's required it seems strong. If I did it again, since I'm now using a slightly longer length, I might have gone with 3/16" or 1/4". Would've been a bitch to bend though.
curly is offline   Reply With Quote
Old 05-06-2011, 12:15 PM   #12
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 409
Total Cats: 19
Default

I used 3/16, bent it with propane no problem. Threw it in the vice heated up the joints and pushed where I needed it. Would have been even easier with MAPP gas. I'm a tiny ****** too.
FatKao is offline   Reply With Quote
Old 11-30-2011, 05:24 PM   #13
Junior Member
iTrader: (3)

Join Date: Sep 2010
Location: Austin
Posts: 208
Total Cats: -2
Default

so you made two new rear holes? did you get any pics?
xcoldricex is offline   Reply With Quote
Old 11-30-2011, 08:51 PM   #14
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Its not terribly interesting. Rails had to extend behind the seat since there's no way a wrench was getting under it to the stock rear holes.
curly is offline   Reply With Quote
Old 11-30-2011, 11:22 PM   #15
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by FatKao View Post
I used 3/16, bent it with propane no problem. Threw it in the vice heated up the joints and pushed where I needed it. Would have been even easier with MAPP gas. I'm a tiny ****** too.
I just used a hammer/bench vice.
njn63 is offline   Reply With Quote
Old 12-01-2011, 12:17 AM   #16
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

I'm also struggling to picture this, if anyone has pictures of the brackets mounted, would be appreciated.
mx5-kiwi is offline   Reply With Quote
Old 12-01-2011, 10:05 AM   #17
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

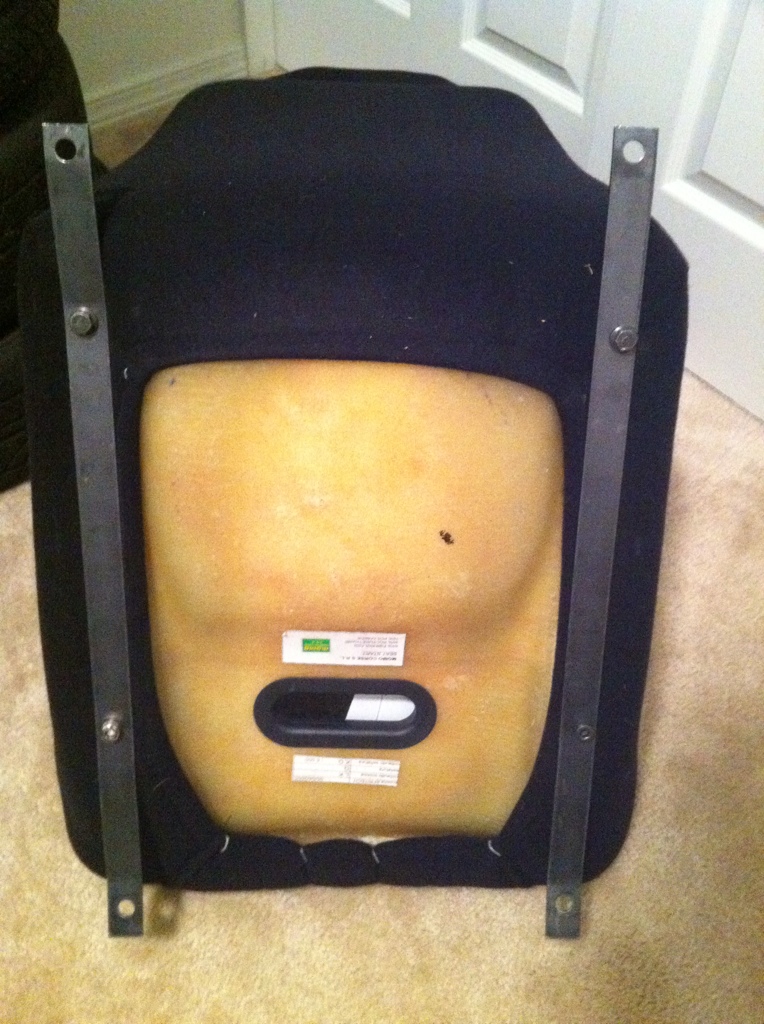

Seats out of the car, so this is the best I can do.
Endless tire pile:

Attached Thumbnails
Has anyone done this before? (seat rails inside)-76618484.jpg   Has anyone done this before? (seat rails inside)-78804541.jpg
curly is offline   Reply With Quote
Old 12-01-2011, 04:42 PM   #18
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Aha, thats great, thank you. That doesn't seem so hard.
mx5-kiwi is offline   Reply With Quote
Old 12-01-2011, 05:00 PM   #19
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

i made the same but was able to bolt to factory locations. i have an aluminum seat though, so i used hardened steel washers and bolts to attach the seat to the rails. theres enough room to reach under the seat to bolt them on. i just have to bolt the rails down first, then attach the seat. beacuse i have an aluminum seat, i also made a bracket for the seat back that connects it to the roll bar and makes it rock solid.
spoolin2bars is offline   Reply With Quote
Old 12-01-2011, 05:07 PM   #20
Senior Member

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Those home made brackets would work well/better with side mount seats. I presume you could then mount the seat in afterwards.... giving beter access to the seat mount to chassis bolts ..............?
