Old 07-24-2014, 02:51 PM   #101
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

cjsafski is offline   Reply With Quote
Old 07-25-2014, 08:39 PM   #102
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by hornetball View Post
Might want to check that the temp gauge has a good ground path to the engine block. This kind of randomness sounds like a ground loop.

+1 on AFR calibration. That was a pain. And first time I did it, it didn't work anyway because of a software issue.
As it turns out, you were correct. After an off at Hallett the gauge started acting wonky pretty much all the time, very rarely was it reading correctly. I have two gauges mounted in the A pillar, both grounds T into a quick connect and a single wire runs to under the dash where it meets the (other gauge's) boost sensor and LC-1 heater ground. These all share an 18g wire to the IM ground bolt. LC-1 heater now has a dedicated wire and a second was run for the gauges and boost sensor. Both wires are soldered and crimped to a single ring connector.

Either the LC-1 heater ground was causing havoc or there was a bad solder joint under the dash. Either way it's working much better now.
midpack is offline   Reply With Quote
Old 07-25-2014, 08:44 PM   #103
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

Heater ground carries a lot of current. It can definitely cause a voltage bias if it doesn't have its own path to the block.
hornetball is offline   Reply With Quote
Old 07-25-2014, 10:12 PM   #104
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,689
Total Cats: 15
Default

Voltage not hit block?
Stealth97 is offline   Reply With Quote
Old 07-27-2014, 01:02 PM   #105
Senior Member

Join Date: May 2011
Posts: 530
Total Cats: 55
Default

I want to add a water pressure warning light instead of a gauge. I've looked up a few options and need some opinions on what would be best. I guess the first question is what PSI would be best for low threshold for a warning light.

Longacre sells a warning light kit... It comes on at 3 psi. I'm thinking that 3psi is pretty low for a warning light.
Gagelites Water Pressure Warning Light Kit

Jegs sells one that has the light that comes on at 6psi
JEGS Performance Products 41370 JEGS Warning Light Kits - Free Shipping on All Orders @ JEGS

This long acre fuel pressure warning light is adjustable 2-7psi
Longacre Warning Light Kit, Adjust Fuel Press 1/8" - Circle Track and Oval Track Parts For Sprint Cars, Late Models, Hobby Stocks, Street Stocks, and Mini Stocks

This adjustable fuel pressure warning light is adjustable .5-24psi
JEGS Performance Products 41373 JEGS Warning Light Kits - Free Shipping on All Orders @ JEGS

I'm really thinking a water pressure warning light is the answer for me. I don't want to get into the trap of staring at gauges on the track and I just need something simple that says... shutterdown!

Thoughts?
EErockMiata is offline   Reply With Quote
Old 07-27-2014, 09:46 PM   #106
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

Quote:
Originally Posted by EErockMiata View Post
I want to add a water pressure warning light instead of a gauge. I've looked up a few options and need some opinions on what would be best. I guess the first question is what PSI would be best for low threshold for a warning light.

Longacre sells a warning light kit... It comes on at 3 psi. I'm thinking that 3psi is pretty low for a warning light.
Gagelites Water Pressure Warning Light Kit

Jegs sells one that has the light that comes on at 6psi
JEGS Performance Products 41370 JEGS Warning Light Kits - Free Shipping on All Orders @ JEGS

This long acre fuel pressure warning light is adjustable 2-7psi
Longacre Warning Light Kit, Adjust Fuel Press 1/8" - Circle Track and Oval Track Parts For Sprint Cars, Late Models, Hobby Stocks, Street Stocks, and Mini Stocks

This adjustable fuel pressure warning light is adjustable .5-24psi
JEGS Performance Products 41373 JEGS Warning Light Kits - Free Shipping on All Orders @ JEGS

I'm really thinking a water pressure warning light is the answer for me. I don't want to get into the trap of staring at gauges on the track and I just need something simple that says... shutterdown!

Thoughts?
What does your water pressure gauge read now? And where do you want it? And what are you looking for? Water pump fail or open system fail?
Leafy is offline   Reply With Quote
Old 07-27-2014, 10:49 PM   #107
Senior Member

Join Date: May 2011
Posts: 530
Total Cats: 55
Default

Quote:
Originally Posted by Leafy View Post
What does your water pressure gauge read now? And where do you want it? And what are you looking for? Water pump fail or open system fail?
I do not have a water pressure gauge which is why i'd like to add a warning light. I'm going to be upgrading my coolant system with a re-route and a supermiata cross flow radiator. My concern with a cooling system like this is that it will mask a leak and it will cause a raise in temps that hits so hard I won't be able to slow it down in time.

The impetus of the warning light vs a gauge is that I can monitor the situation without having another gauge to look at. I'd like to mount this near my line of site down the track.
EErockMiata is offline   Reply With Quote
Old 07-28-2014, 01:52 PM   #108
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

For the leak case any where in the upper rad hose or post thermostat works. Only need a couple PSI, too close to your rad cap pressure and it'll just be on all the time.
Leafy is offline   Reply With Quote
Old 08-11-2014, 02:29 PM   #109
Junior Member

Join Date: Oct 2013
Location: Portugal
Posts: 109
Total Cats: 24
Default

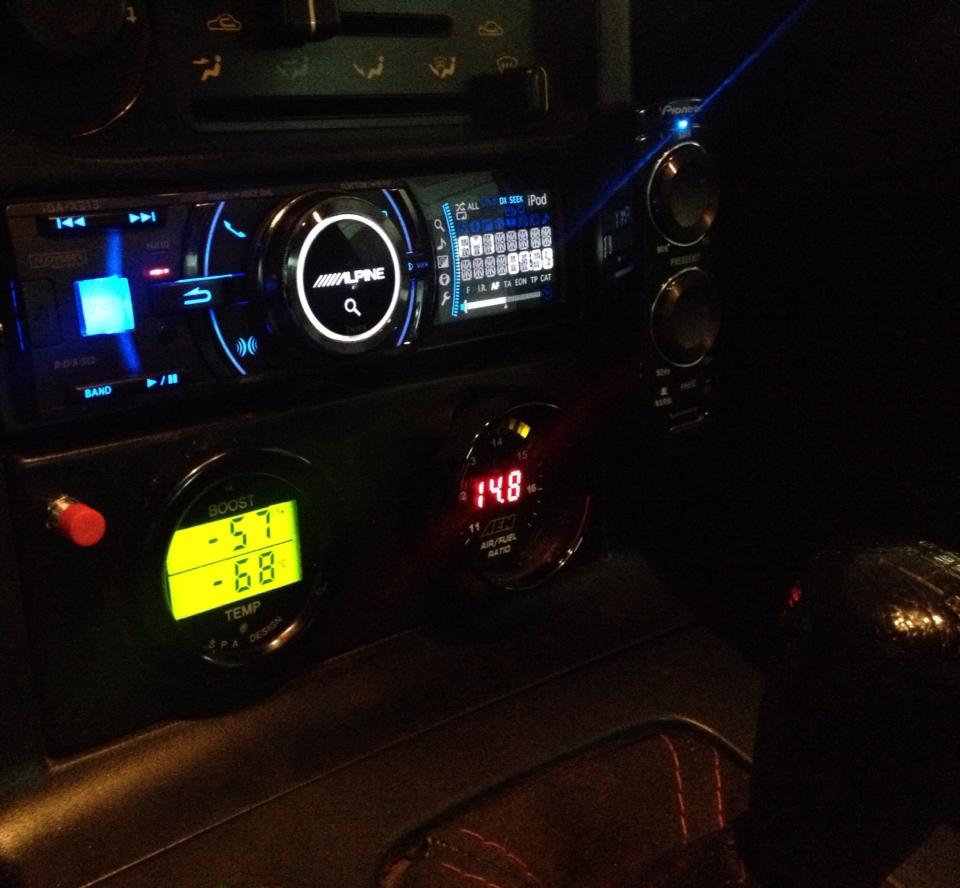

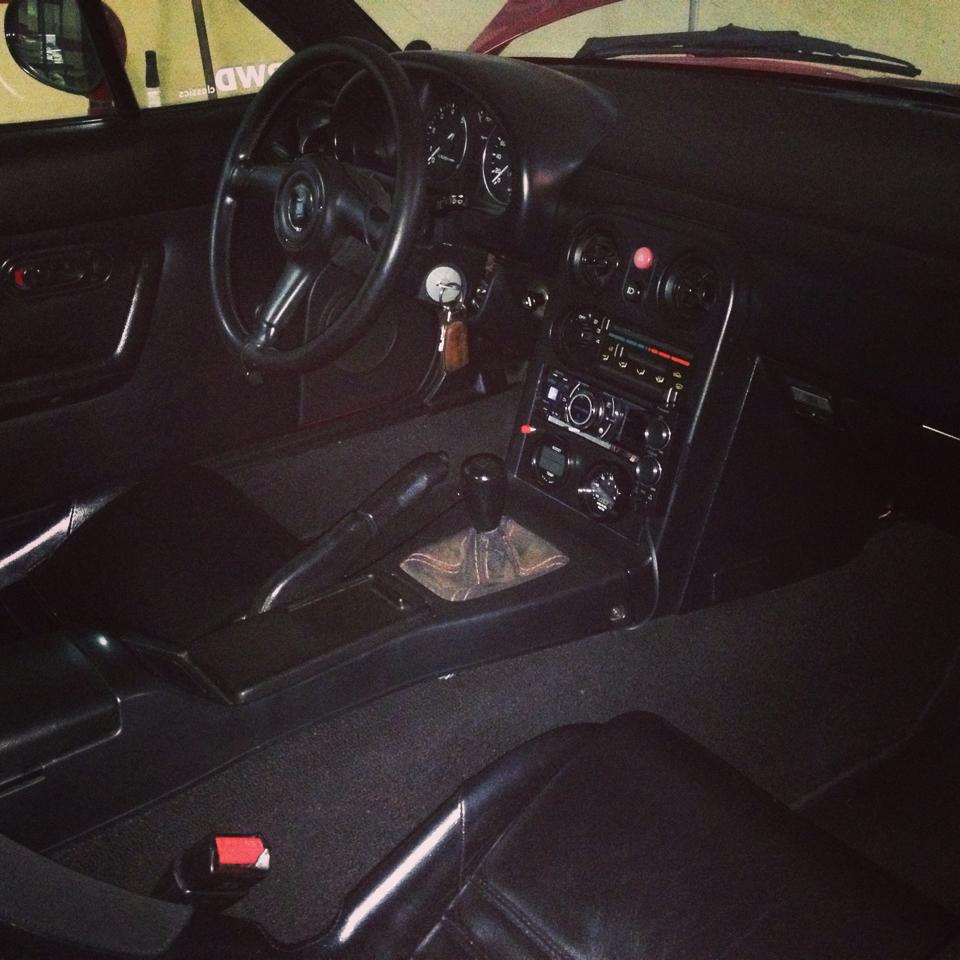

Finished installing my Spa gauge. Boost and oil Temperature. Beware that the Spa Pressure sensor is 1/8 BSP.

The red button comes with the spa unit and lets you choose the different values for the color/sound alarms. Also lets you check the maximum temperatures (or boost) reached. Great quality
Attached Thumbnails
ITT We discuss high quality gauges-10568941_837639719582140_1539252478588472925_n_zps3d7e20a8.jpg   ITT We discuss high quality gauges-10423851_837639752915470_9186712383360071522_n_zps8486a8eb.jpg
Filipe Dias is offline   Reply With Quote
Old 08-11-2014, 03:12 PM   #110
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

OGRacing is offline   Reply With Quote
Old 08-11-2014, 03:15 PM   #111
Senior Member

Join Date: May 2011
Posts: 530
Total Cats: 55
Default

Quote:
Originally Posted by OGRacing View Post
cool new gauges from longacre.
Attached Thumbnails
ITT We discuss high quality gauges-fry-can-t-tell-meme-generator-can-t-tell-if-serious-trolling-1e309e.jpg
EErockMiata is offline   Reply With Quote
Old 08-12-2014, 01:17 AM   #112
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,806
Total Cats: 423
Default

ThePass is offline   Reply With Quote
Old 08-14-2014, 11:54 AM   #113
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by EErockMiata View Post
hahah I dig em'. Not badly priced for led gauge with built in alarm.
OGRacing is offline   Reply With Quote
Old 08-14-2014, 12:08 PM   #114
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,239
Total Cats: 741
Default

Quote:
Originally Posted by OGRacing View Post
hahah I dig em'. Not badly priced for led gauge with built in alarm.


concealer404 is offline   Reply With Quote
Old 08-14-2014, 12:56 PM   #115
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Fine fine fine i'll quit doing the pushy buy my stuff thing...
OGRacing is offline   Reply With Quote
Old 08-14-2014, 01:01 PM   #116
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,239
Total Cats: 741
Default

Quote:
Originally Posted by OGRacing View Post
Fine fine fine i'll quit doing the pushy buy my stuff thing...
Oh you WERE serious.


We're laughing because those very gauges were the subject of a very large chunk of this thread, and what the OP ended up buying and reviewing in this very thread.

Everything about those was hashed out before you showed up.

The funny part was "Cool new gauges by Longacre," months after the thread ran its course.
concealer404 is offline   Reply With Quote
Old 08-14-2014, 02:02 PM   #117
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,746
Total Cats: 50
Default

Quote:
Originally Posted by concealer404 View Post
Oh you WERE serious.


We're laughing because those very gauges were the subject of a very large chunk of this thread, and what the OP ended up buying and reviewing in this very thread.

Everything about those was hashed out before you showed up.

The funny part was "Cool new gauges by Longacre," months after the thread ran its course.
I try to read everything i really do. but sometimes, some posts, really hurt my head. I bash it against my keyboard to try and erase my memory. My point is I do try to read everything, but i can't get there sometimes.
OGRacing is offline   Reply With Quote
Old 08-14-2014, 06:32 PM   #118
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,239
Total Cats: 741
Default

Quote:
Originally Posted by OGRacing View Post
I try to read everything i really do. but sometimes, some posts, really hurt my head. I bash it against my keyboard to try and erase my memory. My point is I do try to read everything, but i can't get there sometimes.


A little mental bulemia sometimes is good.
concealer404 is offline   Reply With Quote
Old 07-13-2015, 11:29 PM   #119
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,239
Total Cats: 741
Default

Will three of these Accutechs fit in a 1DIN panel? I just now realized that these aren't 52mm.
concealer404 is offline   Reply With Quote
Old 07-13-2015, 11:40 PM   #120
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,806
Total Cats: 423
Default

Quote:
Originally Posted by concealer404 View Post
Will three of these Accutechs fit in a 1DIN panel? I just now realized that these aren't 52mm.
Won't fit, sorry.

Even 3 x 52mm gauges is a tiiiight squeeze, with some not fitting depending on bezel dimensions.

We've added the Accutech SMI gauges to our catalog now as I've had nothing but great experiences with them.

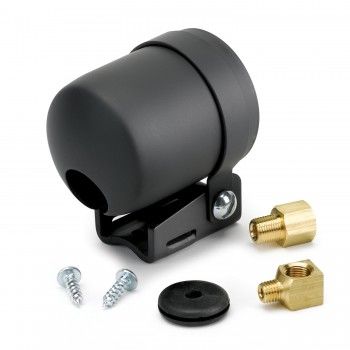

My preferred mounting method are these Autometer gauge cups.




-Ryan
Attached Thumbnails
ITT We discuss high quality gauges-80-gauge_pod_2204_ac9a3a38f3b2daaea63dabb5292e95f5409025ad.jpg

Last edited by ThePass; 07-13-2015 at 11:55 PM.
ThePass is offline   Reply With Quote
