Old 10-29-2012, 04:36 PM   #41
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by gtred View Post
Be sure to vent all possible leaks clear of the pan, consider a bulkhead/drainage for the fuel bladder should it rupture in a crash, and be sure to put in access panels to clean/ wipe down seepage should it occur around the trans/diff and cooling lines.
The exhaust also needs attention in it's own right, try to avoid cracks, flanges opening etc.
A small stream of exhaust can make havoc when it has nowhere to go. Heating the tank from below is not a good idea.
V-bands and some flex units could never hurt I guess. Routine inspections are more difficult but also more important...

My friend (who's aero I've posted pictures of somewhere) managed to ignite one of the exh hangers due to flange bolts getting loose.
A small fire just below the tank is not a nice thing.
His face turned a bit pale when I made him feel the temp of the tank (20 minutes after the fire was put out)...
NiklasFalk is offline   Reply With Quote
Old 10-29-2012, 05:34 PM   #42
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

For what it's worth (and that's approximately what you have paid me for it), we were constantly having to repair or replace Dzus fasteners when I was an assistant crew member with the old spec Barber Dodge formula team. Granted, the body work came off a lot more frequently than an undertray might.
Scrappy Jack is offline   Reply With Quote
Old 10-29-2012, 11:48 PM   #43
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

gtred - why did you trans and diff overflow??
ThePass is offline   Reply With Quote
Old 10-30-2012, 09:20 AM   #44
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

^ Of course, extra fluid will have to be added to make up for the coolers and line sets. Were your cooler feeds in the upright position? When I assemble mine, the feed fittings will be upright to help prevent that. I would *think* the pump would do a good job of acting like a check valve from it all flowing back in the units, causing your over-filled situation. Close?
GeneSplicer is offline   Reply With Quote
Old 10-30-2012, 02:42 PM   #45
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

It had to do with where I aimed the discharge line. I don't remember now if I had the oil stream landing right on the gearset, which caused misting; or if it was some other issue. Tech support at Jerico helped me sort this out; apparently, there is a "preferred" placement for the incoming oil line.
gtred is offline   Reply With Quote
Old 10-30-2012, 08:49 PM   #46
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by ThePass View Post
Does anyone have any ideas what kind of temps the diff is seeing in general? I'm looking at how much it might cost to put together a pump/cooler/lines for the diff. The Mocal pump I found is good up to 300 degrees but that sounds low to me..?

-Ryan
I've been trying to find this out for a while, but never found it... I went ahead and covered them up anyway. My undercarriage is similar to the GTRs where there is s huge gap in the middle-- I only sealed off the rear part, so air doesn't stagnate around the rear subframe area. I experimentally added 2'x3' piece of coroplast under the tranny, couldn't get IR temps from it, and the coroplast only melted where it was in direct contact wth the OEM header before the cat. It lasted 2-3 track days before getting snagged on some railroad tracks.

On the rear, I cutout the coroplast around the midpipe, less than 1/2" between, and it showed no signs of being close to melting-- this was for over a year of DD and a few track days. It's still on the car as we speak.

I got an IR reading of the differential from a 30 minute daily drive, it was about 170 degrees... I was sure it was the diff casing because if the IR beam hits the exhaust pipe, it was much hotter (obv)-- but my IR reader reads to 220~230 degrees and on exhaust pipe it just reads "HOT."

I never remember to check diff casing temps after a session, let alone tire and brake times.
greeenteeee is offline   Reply With Quote
Old 10-30-2012, 10:35 PM   #47
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

Now I'm wondering if it's worth wrapping the downpipe and catback up to the muffler to control exhaust/diff temps.. how much wrap are we looking at if this is done on the average setup though?
Der_Idiot is offline   Reply With Quote
Old 10-31-2012, 12:33 AM   #48
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default Goodwin's undertray

I talked to Brian Goodwin today at SEMA about his MX-5 flat bottom and cooling, and he said he's got venting to the transmission and the differential, and he's had no apparent heat problems with either. He has revers NACA's (if I recall correctly), and runs hoses that direct air at the pumpkin.
cordycord is offline   Reply With Quote
Old 10-31-2012, 09:41 AM   #49
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

I was thinking of starting the same project after I get back from Afghanistan

Subscribed
1993ka24det is offline   Reply With Quote
Old 10-31-2012, 01:12 PM   #50
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

Quote:
Originally Posted by Der_Idiot View Post
Now I'm wondering if it's worth wrapping the downpipe and catback up to the muffler to control exhaust/diff temps.. how much wrap are we looking at if this is done on the average setup though?
Heat wrap is not a good idea in a race car. Not only will it cause metal pitting and cracking, it serves as a sponge to soak up flammable material like oil, gas and brake fluid. I've has this happen to me twice. I'll try to post a videoclip of my Z-28 explosion. The engine failed on the backstraight and sprayed oil onto heat wrap that I had on my fuel rail. The oil soaked heat wrap wicked the fire rearward and exploded the gas tank before I was able to come to a stop. My Video | Facebook

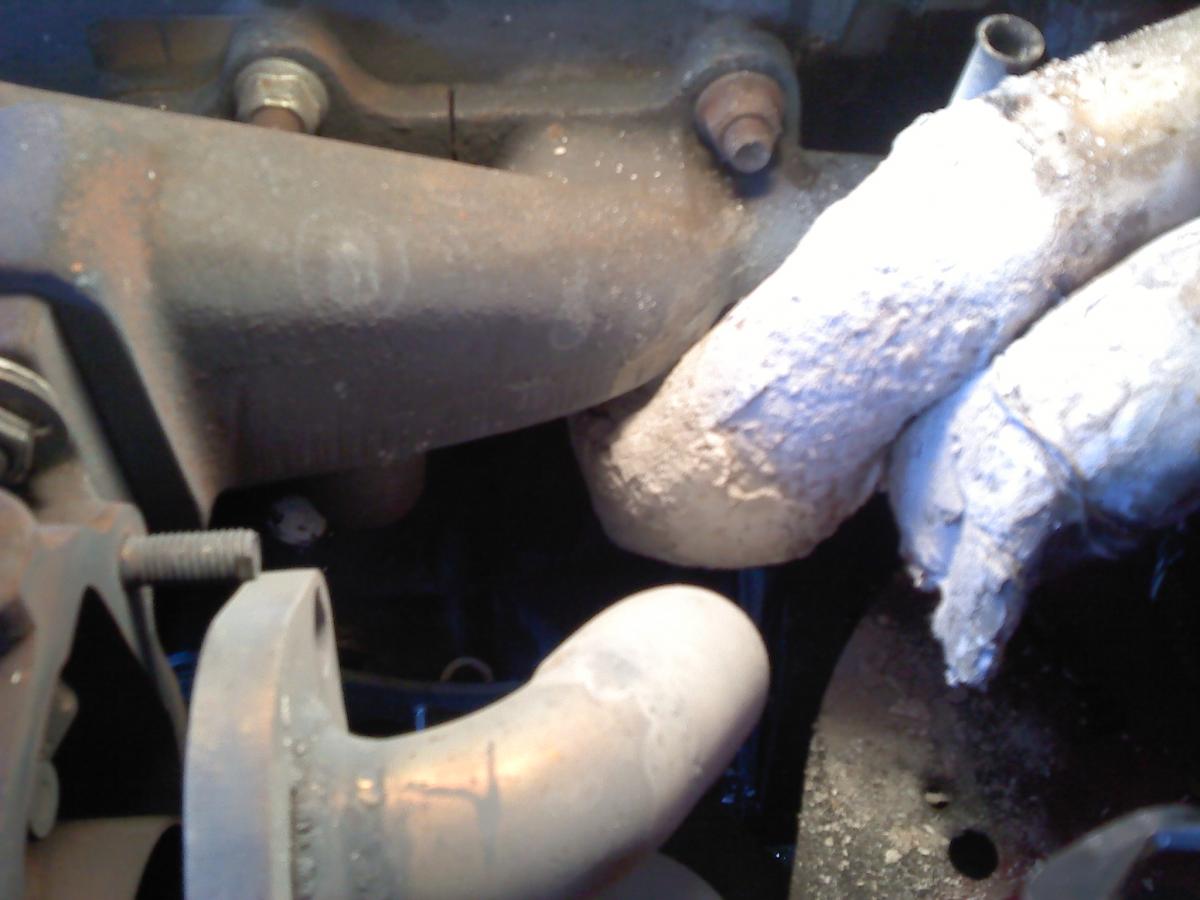

This also happened recently in my miata. The downpipe came loose and melted my dipstick pull-handle off. The resultant oil spray collected on my heat-shield wrap for my water lines and caused a small fire. I've learned my lessons: Metal shielding only in a race car!
Attached Thumbnails
Managing heat with a flat underbody-gtred-20323-albums-04-msm-track-day-car-463-picture-did-those-manifold-crimp-nuts-really-rattle-.jpg

Last edited by gtred; 10-31-2012 at 02:43 PM.
gtred is offline   Reply With Quote
Old 11-02-2012, 03:47 AM   #51
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

Quote:
Originally Posted by cordycord View Post
I talked to Brian Goodwin today at SEMA about his MX-5 flat bottom and cooling, and he said he's got venting to the transmission and the differential, and he's had no apparent heat problems with either. He has revers NACA's (if I recall correctly), and runs hoses that direct air at the pumpkin.
That's very promising to hear that Brian is doing OK without adding pumps and coolers. It at least makes me feel more at ease with my current plan which is to NACA duct some air up to the diff to cool it and run it that way at Auto Club Speedway this month and see how it goes.

-Ryan
ThePass is offline   Reply With Quote
Old 11-07-2012, 06:51 PM   #52
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

Well, just finished fabricating the flat underbody and new diffuser. I'm going to put a NACA duct in to feed air to the differential before Auto Club Speedway in a week and a half and we will see how it goes!



-Ryan
Attached Thumbnails
Managing heat with a flat underbody-finishedbare5.jpg
ThePass is offline   Reply With Quote
Old 11-07-2012, 07:47 PM   #53
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Looks good. Nice work!
ZX-Tex is offline   Reply With Quote
Old 11-07-2012, 07:52 PM   #54
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

Quote:
Originally Posted by ThePass View Post
Well, just finished fabricating the flat underbody and new diffuser. I'm going to put a NACA duct in to feed air to the differential before Auto Club Speedway in a week and a half and we will see how it goes!



-Ryan
So beautiful... So very beautiful.
sixshooter is online now   Reply With Quote
Old 11-07-2012, 11:00 PM   #55
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

careful of some off the shelf NACA ducts, make sure they're correctly designed!
motormechanic is offline   Reply With Quote
Old 11-08-2012, 02:22 AM   #56
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by ThePass View Post
Well, just finished fabricating the flat underbody and new diffuser. I'm going to put a NACA duct in to feed air to the differential before Auto Club Speedway in a week and a half and we will see how it goes!

[IMG]https://www.miataturbo.net/attachment.php?attachmentid=59318&dateline=1352328 703

-Ryan
Ohhh ACS! I've seen first hand what speed a stock powered (no aero) Miata will reach (and what it can reach when drafting). I haven't ran it, but I'm so anxious to test with and w/o aero there. Did you happen to see anything like that? I kind of doubt it with your turbo but it would be interesting to see!
greeenteeee is offline   Reply With Quote
Old 11-08-2012, 02:28 AM   #57
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

Sorry I'm not following the question.. Have I seen what?
ThePass is offline   Reply With Quote
Old 11-08-2012, 03:16 AM   #58
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

The airflow to the diff - where will it exit?
Mobius is offline   Reply With Quote
Old 11-08-2012, 03:34 AM   #59
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by Mobius View Post
The airflow to the diff - where will it exit?
I believe the area above the diffuser is open where the bumper was which would pull the hot stuff out. Can we get a few more pic and angles on that ThePass?
mr_hyde is offline   Reply With Quote
Old 11-08-2012, 06:38 AM   #60
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by ThePass View Post
Sorry I'm not following the question.. Have I seen what?
Sorry--If your car is drag limited or not. I think it was a NB1 engine in an NA, but it was getting stuck at 130s on the banking... only til drafting a Del Sol did it reach 140s. I know you've a turbo so it might be moot.
Quote:
Originally Posted by mr_hyde View Post
I believe the area above the diffuser is open where the bumper was which would pull the hot stuff out. Can we get a few more pic and angles on that ThePass?
You'd be surprised at what you might see tufts doing at the gap between the bumper and diffuser.
greeenteeee is offline   Reply With Quote
