Default Miata Track Hubs: Custom design

Let's talk Miata front hubs: For me, I clean and repack my old style OEM ones every ~30hours and every weekend in the rain on street tires. I know others do this more often to avoid a failure. I am working with Hoosier Performance Engineering (HPE) to come up with an acceptable bearing design (likely tapered roller) to get away from the failure when you laterally load the OEM ball bearing design. Options on the market today include "Blueprinted" hubs but they don't address the Achilles heal of the bearing design. HPE has a successful F-body hub on the market today and they are trying to gauge interest in a Miata hub that would be designed for an infinite life cycle under track conditions. Who would be interested and would you be willing to pay as much as $350 per hub for something like this? What is your application?





For reference, Flyin Miata charges $212 + s/h for each of their blueprinted hubs with ARP studs https://www.flyinmiata.com/na-nb-blu...ront-hubs.html
Attached Thumbnails

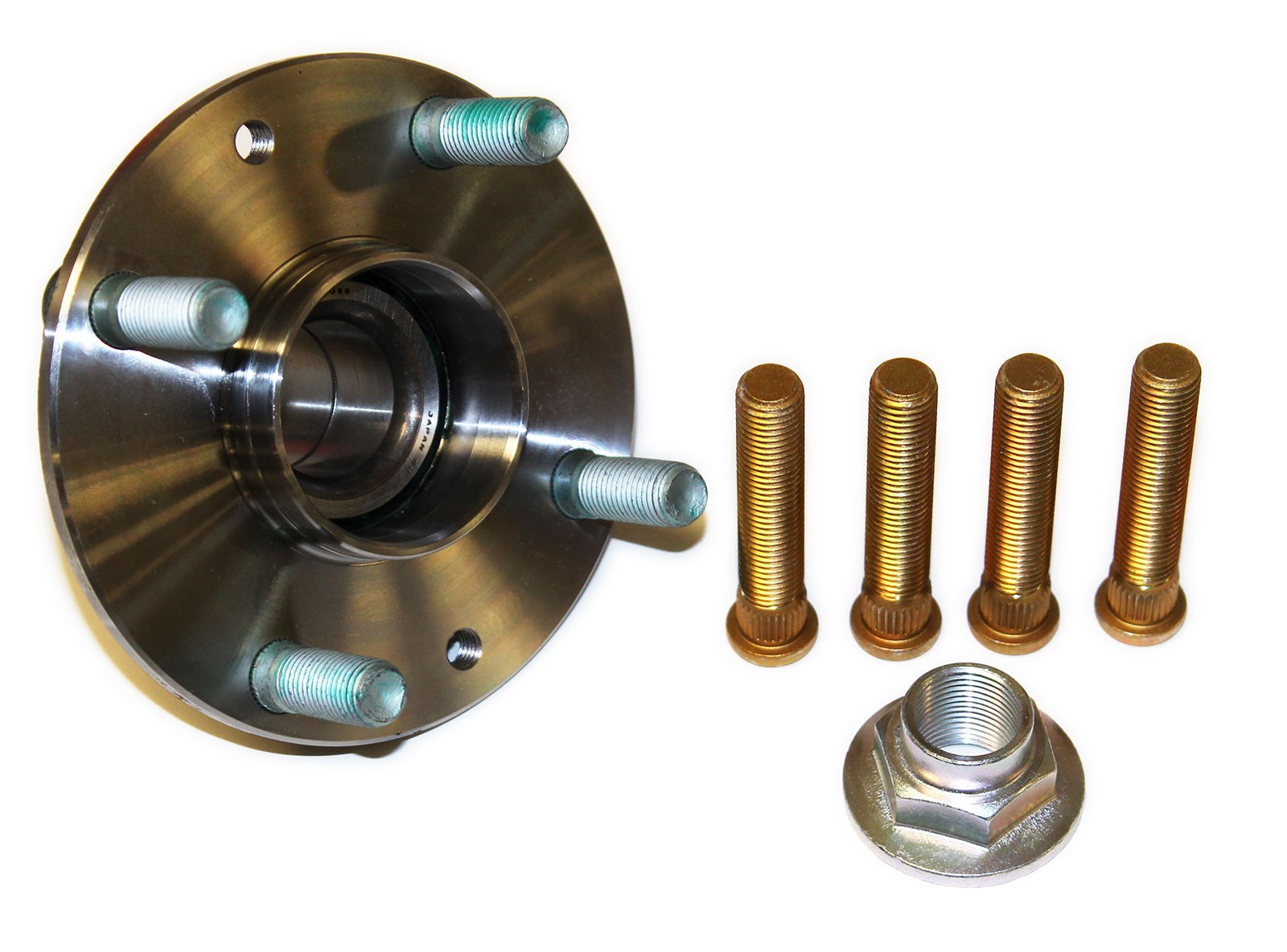

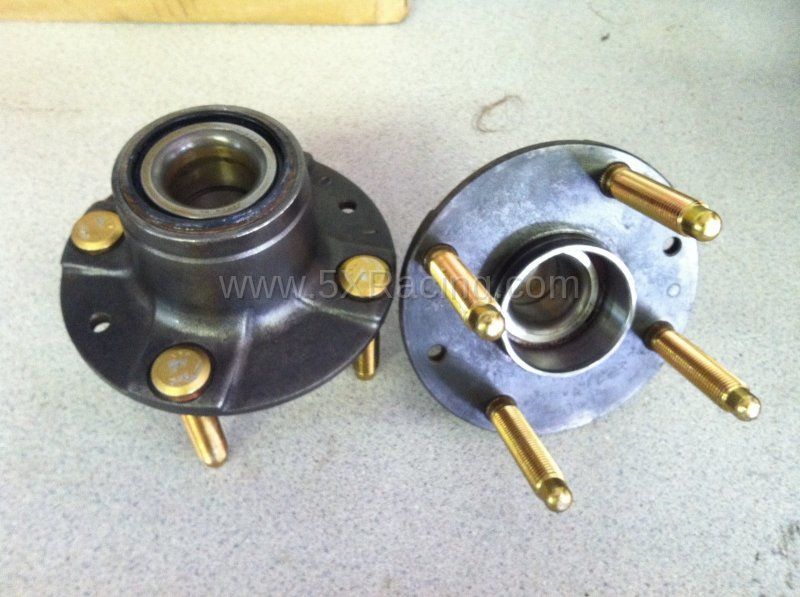

Miata Track Hubs: Custom design-80-f26156797_6462057db9a0ec89791d1155647fb202200507fe.jpg   Miata Track Hubs: Custom design-img_3630.jpg

Last edited by slammed200; 02-25-2016 at 10:46 AM.
slammed200 is offline   Reply With Quote
Old 02-25-2016, 10:38 AM   #2
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

interested.
EErockMiata is offline   Reply With Quote
Old 02-25-2016, 10:46 AM   #3
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Erock what would you application be and what have your experiences been with trying to run the stock hub design so far?
slammed200 is offline   Reply With Quote
Old 02-25-2016, 10:50 AM   #4
Senior Member
iTrader: (4)

Join Date: Nov 2012
Location: Colorado
Posts: 745
Total Cats: 46
Default

interested. I just blew up a front hub (first time ever) and had to be towed home.

Hub was original afaik with 110k miles and 25 track days.
dcamp2 is offline   Reply With Quote
Old 02-25-2016, 10:53 AM   #5
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

Supermiata. Currently my car is a street driven hpde car, but it is being converted atm. my oe hubs lasted 115k and about 60-70 hours on track. I have some replacement timkens that only lasted about 25 hours.

FWIW i always repack my oe hubs with the amsoil smelly stuff.
EErockMiata is offline   Reply With Quote
Old 02-25-2016, 02:00 PM   #6
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

We are one of those teams that repack the hubs between each race weekend (so every 14 hours or so). Talk with Jeremy, I know he's done a lot of research on bearings and different types, he maybe able to help you out some. If you need his contact, shoot me a message.
Midtenn is offline   Reply With Quote
Old 02-25-2016, 10:31 PM   #7
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

hmmm
psyber_0ptix is offline   Reply With Quote
Old 02-25-2016, 11:20 PM   #8
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,602
Total Cats: 28
Default

I would buy these just because. All four corners. I just like the sound of reliability.
thumpetto007 is online now   Reply With Quote
Old 02-26-2016, 04:28 AM   #9
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

I am interested. Usage will be ~10 autox events on hoosiers, and ~10 track days on probably 245 RC1's.
Mobius is offline   Reply With Quote
Old 02-26-2016, 08:41 AM   #10
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

I'd be interested in a set eventually. Still need to do a lot of cutting to figure out how to fit the 15x11 6ULs that showed up yesterday. If you could offer something that was bombproof and never needed attention, I'm sure you'd have some market for it.
stoves is offline   Reply With Quote
Old 02-26-2016, 09:15 AM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'd be more interested at like $350-400 an axle.
aidandj is offline   Reply With Quote
Old 02-26-2016, 09:27 AM   #12
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Question: Who cares about retaining ABS? The bearing package they are trying to put in there means that we most likely will not be able to retain the tone ring for the sensor. You might be able to move the sensor or do some thing else but that's not in scope here.

Likely not a problem since the 01+ and Mazdaspeed are the only NA/NB with ABS worth anything anyhow.

Last edited by slammed200; 02-26-2016 at 10:20 AM.
slammed200 is offline   Reply With Quote
Old 02-26-2016, 10:03 AM   #13
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by slammed200 View Post
Question: Who cares about retaining ABS? The bearing package they are trying to put in there means that we most likely will not be able to retain the tone ring for the sensor. You might be able to move the sensor or do some thing else but that's not in scope here.

Likely not a problem since the Mazdaspeed is the only NA/NB with ABS worth anything anyhow.
I want to keep abs. I didn't spend nearly a grand in used parts and ~10hrs to add it to an non abs car for no reason. And for Autox with big fat sticky Hoosiers (and a **** ton of money in the tires) no one wants square tires. TNTUBA and Leafy would agree.
stoves is offline   Reply With Quote
Old 02-26-2016, 10:12 AM   #14
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Not sure what you mean about msm', but any 01+ car with ABS, or anything swapped is worth it.
aidandj is offline   Reply With Quote
Old 02-26-2016, 10:31 AM   #15
Junior Member
iTrader: (1)

Join Date: Sep 2009
Location: Colorado
Posts: 166
Total Cats: 5
Default

Quote:
Originally Posted by slammed200 View Post
Likely not a problem since the 01+ and Mazdaspeed are the only NA/NB with ABS worth anything anyhow.
The rings are the same across all model years, I'm using '04 abs brick in a '94 chassis.
GraemeD is offline   Reply With Quote
Old 02-26-2016, 10:34 AM   #16
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

I wasn't anticipating the love for ABS, it's not used on the track since the early ABS system wasn't the greatest plus it's not a common option on the early cars. What other markets besides Auto-X use ABS and wouldn't appreciate us removing the tone ring?
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:00 PM   #17
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

ABS ring, yes. If not included on it, at least a way to press on the tone ring from a standard Miata hub on. The tone ring can be pressed off the OEM hubs. We do it all the time because we use a front ABS sensor to feed our AIM dash.
Midtenn is offline   Reply With Quote
Old 02-26-2016, 02:02 PM   #18
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

As long as it stays the same size you can just put a tone ring on.
aidandj is offline   Reply With Quote
Old 02-26-2016, 02:34 PM   #19
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

That's the issue here, the small OEM housing is restricting what they can do in terms of offering an alternative bearing package. If it has to be ABS capable it makes things really tough, more to come
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:38 PM   #20
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

If you can just machine the teeth into the housing you get a little wiggle room. Especially if the sensor can be spaced out.
aidandj is offline   Reply With Quote
