If someone knew more about electronics and we could use an alternative sensor that packaged well would be another option.
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:40 PM   #22
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

For reference, here is their X-Tracker hub they developed with SKF

C6 Corvette SKF HD (X-tracker) Racing Hubs w/Active (Bosch) ABS Sensor
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:42 PM   #23
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

An alternative sensor wouldn't help, it has to mount in the same place.

The rear tone rings are on the axles, so no issues there.

All you need is a tone ring that fits in the original front location, and has the same teeth per revolution. Thats not super hard to find.

Then just space the sensor out the correct distance.

I would be happy to test all of the above in exchange for a beta set of hubs
aidandj is offline   Reply With Quote
Old 02-26-2016, 02:42 PM   #24
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Since they are going with a clean design, we can try to source a more cost effective (higher volume) stud and offer those as well. Trying to maintain the OEM 12mm x 1.5 thread so you don't have something different front to back though
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:43 PM   #25
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by slammed200 View Post
For reference, here is their X-Tracker hub they developed with SKF

C6 Corvette SKF HD (X-tracker) Racing Hubs w/Active (Bosch) ABS Sensor
I would have to see the output of the sensor to compare to the Miata output. But with the correct number of teeth and the correct output signal its possible.
aidandj is offline   Reply With Quote
Old 02-26-2016, 02:45 PM   #26
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Quote:
Originally Posted by aidandj View Post
An alternative sensor wouldn't help, it has to mount in the same place.

The rear tone rings are on the axles, so no issues there.

All you need is a tone ring that fits in the original front location, and has the same teeth per revolution. Thats not super hard to find.

Then just space the sensor out the correct distance.

I would be happy to test all of the above in exchange for a beta set of hubs
My thought was to replace the tone ring and pick, moving to something integrated that could potentially package better. The small diameter of the tone ring is the issue, and without moving the pickup I don't see anything easing that
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:46 PM   #27
Junior Member
Thread Starter
iTrader: (8)

Join Date: Jun 2012
Location: Indianapolis, IN
Posts: 421
Total Cats: 9
Default

Quote:
Originally Posted by aidandj View Post
I would have to see the output of the sensor to compare to the Miata output. But with the correct number of teeth and the correct output signal its possible.
Exactly, that's what I'm after
slammed200 is offline   Reply With Quote
Old 02-26-2016, 02:46 PM   #28
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by slammed200 View Post
My thought was to replace the tone ring and pick, moving to something integrated that could potentially package better. The small diameter of the tone ring is the issue, and without moving the pickup I don't see anything easing that
As long as you match the teeth per revolution and the vr signal output you should be fine.

Send me a prototype and I'll test it
aidandj is offline   Reply With Quote
Old 02-26-2016, 06:29 PM   #29
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by GraemeD View Post
The rings are the same across all model years, I'm using '04 abs brick in a '94 chassis.
No. Mazda changed/upgraded the front ones (IIRC sometime in '04). Thus the late NB have different front rings and sensors.


j_man is offline   Reply With Quote
Old 02-26-2016, 06:39 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I believe the sensors are still interchangeable. I just setup an NA ABS hub with an MSM front sensor.
aidandj is offline   Reply With Quote
Old 02-26-2016, 08:26 PM   #31
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by aidandj View Post
I believe the sensors are still interchangeable. I just setup an NA ABS hub with an MSM front sensor.
The newer sensor part number doesn't supersede the old one, so I would keep each sensor type to their corresponding trigger ring type (especially for such critical thing as the ABS system).
Not all MSM use the new type front sensors/rings. The change happened somewhere in the middle in their life cycle and is not MSM specific but affects all NB cars.
j_man is offline   Reply With Quote
Old 02-26-2016, 08:29 PM   #32
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Interesting. I have 8 sensors at home, and a few look different. I will take pictures and compare when I get my spindles back from powdercoating.
aidandj is offline   Reply With Quote
Old 02-26-2016, 08:54 PM   #33
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by aidandj View Post
Then just space the sensor out the correct distance.

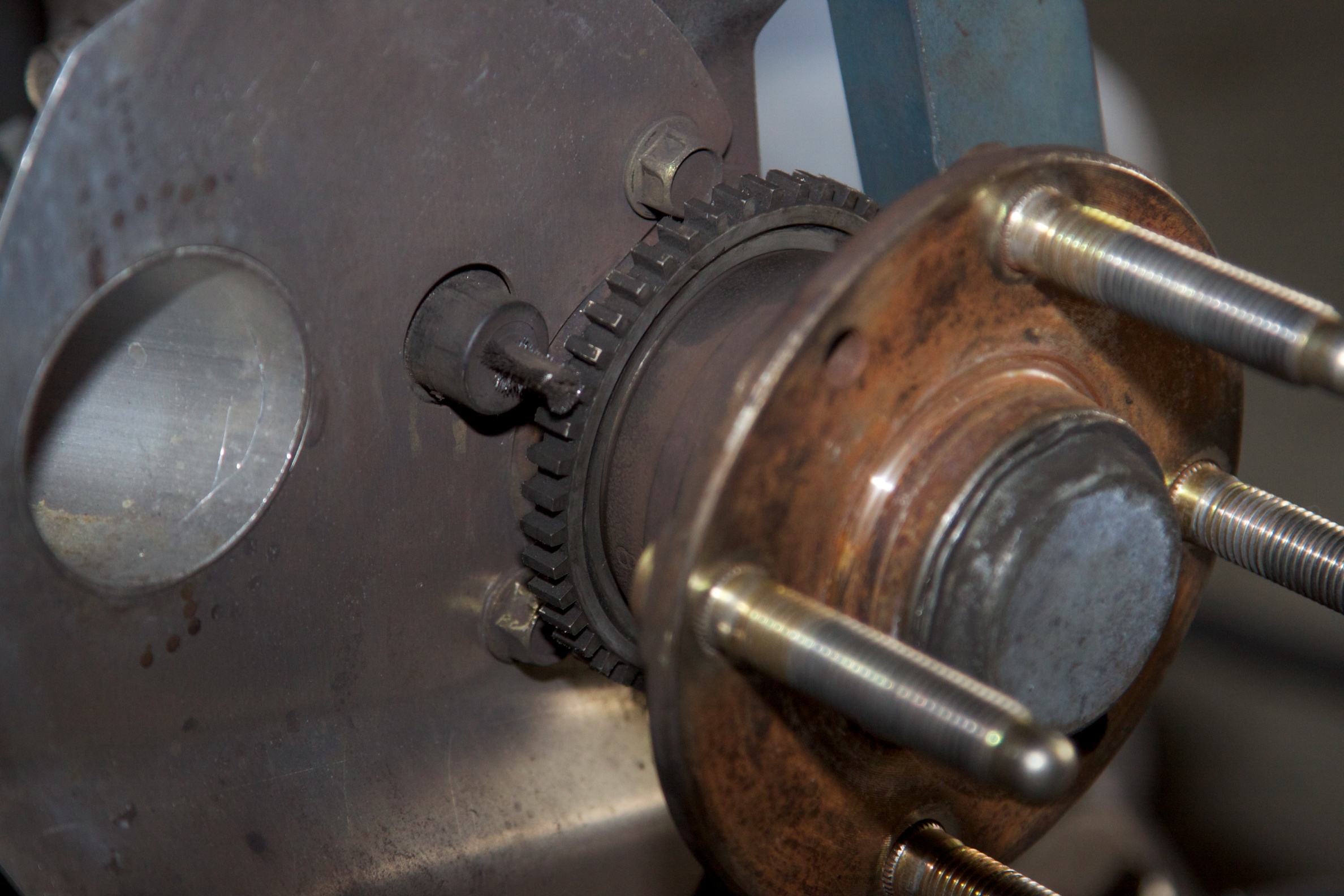

How are you going to space out the front sensor when it mounts through the upright? You'd need to drill a new hole.



--Ian
Attached Thumbnails
Miata Track Hubs: Custom design-abs23.jpg
codrus is offline   Reply With Quote
Old 02-26-2016, 08:55 PM   #34
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Very true, I was thinking about the rear.

The integrated sensors look boss
aidandj is offline   Reply With Quote
Old 02-27-2016, 01:37 AM   #35
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Not to hijack, but I'm FEA testing front and rear hubs now. Samples will then be tested by Keith Tanner and others. Soon. Price = competitive with Mazda, and will include 70mm studs pre-installed.

The big difference? Tapered bearings.
cordycord is offline   Reply With Quote
Old 02-27-2016, 12:42 PM   #36
Senior Member

Join Date: May 2011
Posts: 549
Total Cats: 56
Default

Quote:
Originally Posted by cordycord View Post
Not to hijack, but I'm FEA testing front and rear hubs now. Samples will then be tested by Keith Tanner and others. Soon. Price = competitive with Mazda, and will include 70mm studs pre-installed.

The big difference? Tapered bearings.
yuusssss
EErockMiata is offline   Reply With Quote
Old 02-27-2016, 10:27 PM   #37
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

No abs would be a non-starter for me as well. I won't give up ABS.
Mobius is offline   Reply With Quote
Old 02-27-2016, 10:59 PM   #38
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by cordycord View Post
Not to hijack, but I'm FEA testing front and rear hubs now. Samples will then be tested by Keith Tanner and others. Soon. Price = competitive with Mazda, and will include 70mm studs pre-installed.

The big difference? Tapered bearings.
Attached Thumbnails
Miata Track Hubs: Custom design-80-boom_goes_the_dynamite_geeksandcleats_2aa0807dc7f21663cb0c90b38b3ed3554e438500.jpg
hi_im_sean is offline   Reply With Quote
Old 02-28-2016, 12:47 AM   #39
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

Quote:
Originally Posted by cordycord View Post
Not to hijack, but I'm FEA testing front and rear hubs now. Samples will then be tested by Keith Tanner and others. Soon. Price = competitive with Mazda, and will include 70mm studs pre-installed.

The big difference? Tapered bearings.
Holy crap that's great news!!!
k24madness is offline   Reply With Quote
Old 03-01-2016, 03:38 PM   #40
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I've gone through 3 front hubs in 2 years of tracking the Red car. 2 were bearings. But 1 was cracking of the hub itself, which was pretty nasty although I didn't lose a wheel and was able to limp it in.

I've lost 2 rear hubs, both cracked although I caught those cracks with inspections.

So, tapered bearings is only a partial solution for me if we're building "lifetime" hubs. And, yes, $3-400 for a lifetime hub seems like money well-spent.
hornetball is offline   Reply With Quote
