Old 11-16-2012, 05:12 PM   #121
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

The Miata has a dual circuit master cylinder, as required by federal law in case of individual line failure.
sixshooter is offline   Reply With Quote
Old 11-16-2012, 08:54 PM   #122
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

...and it also has seatbelts, as has been required by DOT/NTSB since 1967.

I guess my point was its pretty hard to loose both circuits of a braking system. The only way I could see it happening is it something catastrophically failed at the master cylinder, and then you be fucked monkey. Manual transmission gives you a fighting chance, mechanical parking break as a backup will increase the odds.
EO2K is offline   Reply With Quote
Old 11-18-2012, 11:20 PM   #123
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Just before one of the first dates with my wife I was working on my 91 replacing a damaged wheel stud. In the process it began to rain and I smacked everything back together real quick. Later than night we leave the house and as I come to the t-junction at the end of my street I go for the brakes and the peddle went all the way to the floor as the caliper piston just moved out and pushed against thin air where it was sitting on my A-arm instead of on the rotor!!! I about crapped my pants as we rolled past the stop sign into the intersection, snapped on parking brake and stopped. Now every time I go anywhere near the suspension, my wife yells into the garage "make sure the calipers go back on".

Last edited by Rallas; 11-20-2012 at 11:56 AM.
Rallas is offline   Reply With Quote
Old 11-25-2012, 12:04 PM   #124
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I finally did the first test drive and everything worked great. No binding or interference issues! Now I just need to get the rears upgraded to match and some cash for a track day soon so I can test these babies out for real. They look real good in there too! I wish I did this two years ago.
Rallas is offline   Reply With Quote
Old 11-25-2012, 01:30 PM   #125
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Pics or ban, lol.
sixshooter is offline   Reply With Quote
Old 11-26-2012, 12:11 PM   #126
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

How hard was it making the brackets? I know you have access to some machinery most of the guys around here wouldn't, but are they fairly simple from a design stand-point?
Efini~FC3S is offline   Reply With Quote
Old 11-26-2012, 06:08 PM   #127
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Quote:
Originally Posted by Efini~FC3S View Post
How hard was it making the brackets? I know you have access to some machinery most of the guys around here wouldn't, but are they fairly simple from a design stand-point?
I might make a few extra brackets if there is enough interest. Its not increadibly hard, just time consuming to macine the brackets at this time.
Rallas is offline   Reply With Quote
Old 11-29-2012, 06:16 AM   #128
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Sorry for the delay in picture upload. We just got back from the hospital with our first baby boy!

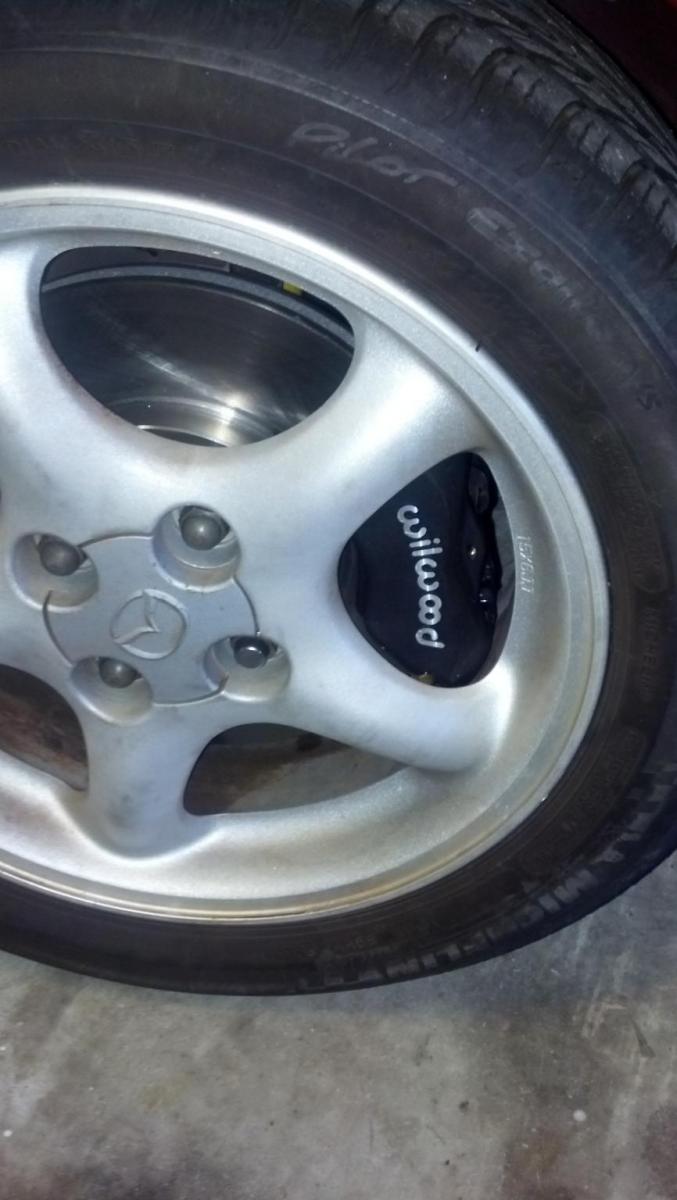

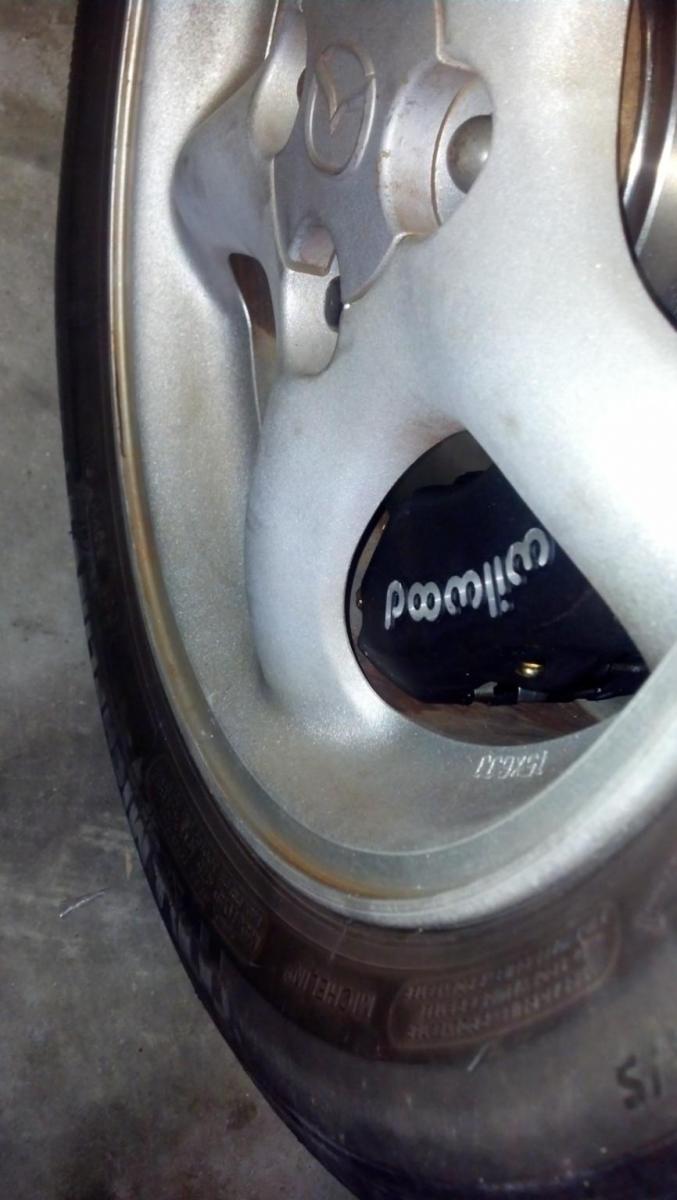

The picture doesn't show anything new, just the final installation on the car after the first test drive to confirm that there are no interference issues.
Attached Thumbnails
MINI 11" rotor instead of Corrado-securedownload2.jpg   MINI 11" rotor instead of Corrado-securedownload-sm.jpg
Rallas is offline   Reply With Quote
Old 01-25-2013, 09:50 AM   #129
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I have been driving for a few weeks now with the new Wilwood calipers on the 11” Mini rotors (no rear upgrades yet). Everything is working great! I love how the pedal feel has changed. The pedal is significantly firmer and it feels like I have more consistent control compared to the factory caliper on 1.8 rotors. It will be very interesting to see how it does on track with a little heat in the system along with track pads. I think it has a lot of potential for its intended goal!

I was worried that the Wilwood pads with no backing shims would be loud on the street, but I haven’t had as much as a squeak come from the brakes (on BP-10 pads). I wanted to upgrade the Master cylinder and booster to a 02 Sport Master/Booster, but am really happy with the way the pedal feels and don’t see any immediate need for more assistance at this time.
Rallas is offline   Reply With Quote
Old 01-25-2013, 06:16 PM   #130
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

If you don't like the Wilwood pads Cobalts might be an option.
wannafbody is offline   Reply With Quote
Old 01-25-2013, 06:37 PM   #131
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Damn near everyone makes pads for these calipers. Hawk, Cobalt, Carbotech, Porterfield, EBC, Ferodo, Performance Friction... hell I've even seen a Raybestos part number out there on the web for a 7112 caliper.
EO2K is offline   Reply With Quote
Old 01-26-2013, 08:49 AM   #132
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Oh I am sure there are much better street pads to use. $40 price tag had me sold since they would be used on my first attempt and if it didn't fit or works $40 hurts a lot less than other options.
As far as i understand the BP-10 is not a grippy pad at all at street temps, but even with a relatively low coefficient of friction the new Wilwood setup feels great.
Rallas is offline   Reply With Quote
Old 03-25-2013, 03:16 PM   #133
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Bumping this for updates.

Tried any other pads beyond the BP-10 yet? I've heard good things about the HP+ with the 7112. I also know you have been busy with other stuff
EO2K is offline   Reply With Quote
Old 03-26-2013, 02:38 PM   #134
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I have not had a track day yet and the $$$ does not seem to be avaliable for one any time soon, so all I have been using is BP-10 on the street and am very happy so far. I will admit that it doesn't have the highest initial bite, but works great and meets all my needs for the street. I will be getting DTC-60's for track so I am not looking for dual purpose pads.

I have heard good things about HP+ on the street, but I tried HP+ on my Jetta a few years ago and had the worst squeel ever, even worse than XP-8/10 on the street. I have just not been able to convince myself to try HP+ again. I have been running HPS on the street for 2 of the 3 Miatae in the family and am very happy so far. Too bad they do not make a HPS pad in 7112 size.

EO2K your 2000 has a ton more vacuum assist than my 91 (I think twice, don't quote me though. I remember something about it involving a double diaphram, but biger master diameter), if you care to know search Keith's threads on m.net, he had good write-up. The BP-10's should have a nice bite with more assist on the your car. Then again HP+ would have even stickier initial bite. It's all up to personal preferance I guess.

It's been nuts at work and newborn at the house so no car mods here lately. I did procure some additional 1" plate to make the prototype rear brackets and brackets to fit the 11" or 11.5" rotors to my wife's 97 with stock calipers. One day!!!
Rallas is offline   Reply With Quote
Old 12-22-2013, 02:39 AM   #135
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

Bumping this!

Cudos to the OP for going through with this - any further updates? Considering this, though TBH the 949 Wilwood kit probably makes more sense for me.
zossy1 is offline   Reply With Quote
Old 01-10-2014, 10:51 PM   #136
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Thanks for the cudos. I still have not made it to the track but have been very happy with street performance. No updates really. EO2K has been running a set of my brackets for a while too. He will probably be on track before me.

If you can fit the 11.75" kits under your wheels it is the best option out there. The biggest reason for my setup is to fit under factory 15" wheels.
Rallas is offline   Reply With Quote
Old 01-11-2014, 04:17 AM   #137
Junior Member
iTrader: (2)

Join Date: Nov 2013
Posts: 90
Total Cats: 5
Default

Wow props for you for going against the grain and trying out this setup! How thick is the aluminum for your brackets?
Raisin is offline   Reply With Quote
Old 03-17-2014, 02:28 PM   #138
Senior Member
Thread Starter
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

The first brackets were made out of 3/4" stock, but I later stepped up to 1" stock. I have to machine some off the 1" stock to prevent interference with the rotor, 7/8" thick stock would be perfect, but I have not been able to find it nearly as cheap as 1".
Rallas is offline   Reply With Quote
Old 03-17-2014, 02:38 PM   #139
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I've noticed no clearance issues? But damn they are close to the spokes on the stock rims. Not an issue on both x8 and x9 6ULs though.
EO2K is offline   Reply With Quote
Old 08-04-2014, 03:39 PM   #140
Newb

Join Date: Dec 2013
Location: Greenville, SC
Posts: 38
Total Cats: 1
Default

Great work! I'm thinking this brake upgrade makes far more monetary sense for me, as a college student with limited funds who happens to have mills and lathes available to him.

Are these the correct calipers? WIL-120-6806

How wide does the stock need to be? 5"?

This place seems to have decent prices.

Am I looking at about $350 total cost for the calipers, pads, and brackets?

Thanks for your time. Any updates, EO2K?
Wowbagger the I.P. is offline   Reply With Quote
