Old 03-26-2010, 05:24 PM   #21
Junior Member
iTrader: (2)

Join Date: Feb 2010
Location: Minnesota suburbs
Posts: 48
Total Cats: 0
Default

Hopefully seat is not going to come off or bend with a hard cornering
Looks pretty good though.
94miatared is offline   Reply With Quote
Old 03-26-2010, 05:40 PM   #22
Senior Member
Thread Starter
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

I would not worry about the hard cornering as much as an accident. I was thinking about doing something like that but decided against that. I want to sit as low as I can as well but not at the risk of my safety. Its a trade off.

+1 on reinforcing it.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 03-26-2010, 06:31 PM   #23
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Mine is pretty much the same as that. How would you go about making it safer? I used 3/8" steel bolted to the stock boss.
dgmorr is offline   Reply With Quote
Old 03-26-2010, 06:53 PM   #24
Senior Member
Thread Starter
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

I think the lateral support is what it needs to prevent it from twisting during a high lateral G load hit. The belts a designed to keep the ocupant in the seat not the seat and ocupant in the car.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 03-26-2010, 07:51 PM   #25
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Quote:
Originally Posted by Jfornachon View Post
I think the lateral support is what it needs to prevent it from twisting during a high lateral G load hit. The belts a designed to keep the ocupant in the seat not the seat and ocupant in the car.

Have a great day,
Jared
Just bars connecting the seat bolts or triangulate it?
AutoFreak57 is offline   Reply With Quote
Old 03-26-2010, 08:06 PM   #26
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Like the first 2 pictures on page 1.
turotufas is offline   Reply With Quote
Old 03-26-2010, 08:17 PM   #27
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Quote:
Originally Posted by turotufas View Post
Like the first 2 pictures on page 1.
Ah, so just back and forth. Short term memory, forgot about those pictures already
AutoFreak57 is offline   Reply With Quote
Old 03-26-2010, 08:33 PM   #28
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Any idea if the cross pieces have to pass through the seat bolt, or can it be bolted to the longitudinal bars?
dgmorr is offline   Reply With Quote
Old 03-26-2010, 09:33 PM   #29
Senior Member
Thread Starter
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Quote:
Originally Posted by dgmorr View Post
Any idea if the cross pieces have to pass through the seat bolt, or can it be bolted to the longitudinal bars?
Look at either of the two links that I posted. That should give you a great idea of how to go.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 03-26-2010, 10:14 PM   #30
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Thanks, I missed that!
dgmorr is offline   Reply With Quote
Old 03-27-2010, 02:32 AM   #31
Newb

Join Date: Mar 2009
Location: Arlington, WA
Posts: 12
Total Cats: 0
Default

+1 on reinforcing it.

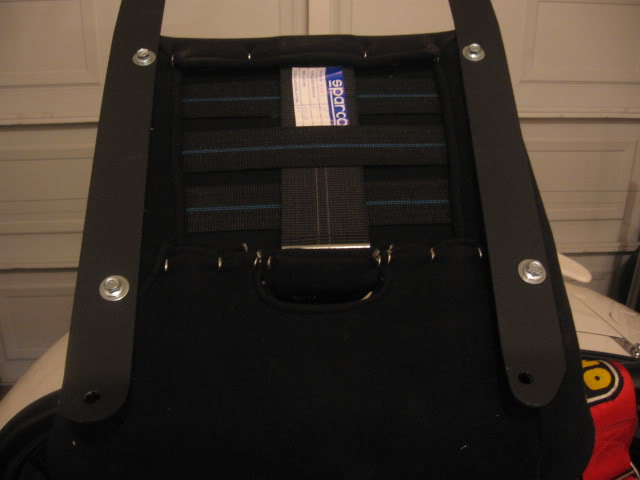

Thanks for the input guys. I always thought it was strong enough, the seat does not budge when you pull hard on it from the top in any direction but you guys have convinced me to honestly reevaluate the strength of this mount. What I think I'm going to do is weld in an X brace so its a box with an X, that should take care of any twisting or lateral flex.

Name:  IMG_2578.jpg
Views: 56
Size:  26.2 KB
ak4two is offline   Reply With Quote
Old 03-27-2010, 03:58 AM   #32
Junior Member
iTrader: (3)

Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 310
Total Cats: 14
Default

If you're bolting to the factory humps, that will be strong enough. Otherwise, reinforce below the floor.
Some rails would work very nicely.

Reinforcing on top of the floor will do absolutely squat to prevent the seat ripping itself out of the thin sheet metal that is Miata's floor.
alik is offline   Reply With Quote
Old 03-27-2010, 04:36 AM   #33
Senior Member
Thread Starter
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Quote:
Originally Posted by Corky Bell View Post
Perhaps the single biggest safety factor in a crash is staying tightly bound in a seat that is well anchored to the chassis.

Two factors are of great concern: The seat and mounts need to be worthy of about 30 G's. 2nd, the harness and belts need to anchored both equally well and at the proper angles.

Loads measured in Indy car and F1 crashes have often exceeded 100 G's with the driver walking (stumbling) away. That does not include overweight drivers.

The last thing you want to do is die in a light weight crash. If you gotta go, make it a good one.

Corky
crashworthy design engineer in a previous life, but still very close to my heart.
This is what make me think you need to reinforce those seat brackets. I don't know about you but I am willing to add a little wieght down low so that I may have a better chance of comming out alive and relatively unharmed.

If you want to throw out someones experiance then please go right ahead and do so at your own risk. Just don't come crying if you get hurt. I honestly would rather have a full weld in cage but I can't rationalize it on a DD. This is not the place to be cheap. There are plenty of other places you can do that.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 03-27-2010, 10:31 AM   #34
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Quote:
Originally Posted by dgmorr View Post
The older NAs also had place to bolt it to the tranny tunnel. The NBs do not have this.

I'll get pics of mine, but I copied a guy's idea from cardomain. I'll take a look for the page. I used to 1.5" strips of 3/16" steel bolted to the stock holes, and the seat bolts to the strips. I used grade 8 zinc plated bolts to fasten everything, and used a 9/16" bolt for the seat belt receiver with 1/2"x4"x4" steel backing plate.


EDIT:
I copied this guy's, but I didn't use 4 pieces of metal. I was able to bolt just the two to the floor and the seats to them. I also contoured the brackets to drop below the OEM seat humps and follow the floor. I lowered the steering wheel with a 1/4" spacer as well.

Here is the link
http://www.cardomain.com/ride/158355/4

holy s#$% thats my car lol, well at least with its previous owner. I was thinking about getting in touch with him about mounting that same model seat back in
Pitlab77 is offline   Reply With Quote
Old 03-27-2010, 11:58 PM   #35
Newb

Join Date: Mar 2009
Location: Arlington, WA
Posts: 12
Total Cats: 0
Default

Quote:
Originally Posted by Jfornachon View Post
This is what make me think you need to reinforce those seat brackets. I don't know about you but I am willing to add a little wieght down low so that I may have a better chance of comming out alive and relatively unharmed.

If you want to throw out someones experiance then please go right ahead and do so at your own risk. Just don't come crying if you get hurt. I honestly would rather have a full weld in cage but I can't rationalize it on a DD. This is not the place to be cheap. There are plenty of other places you can do that.

Have a great day,
Jared
Are you talking to me? If so I'm pretty sure I just said I am taking the advise of a few on here and I am going to reinforce my seat mount.
ak4two is offline   Reply With Quote
Old 03-28-2010, 12:11 AM   #36
Newb

Join Date: Mar 2009
Location: Arlington, WA
Posts: 12
Total Cats: 0
Default

Quote:
Originally Posted by alik View Post
If you're bolting to the factory humps, that will be strong enough. Otherwise, reinforce below the floor.
Some rails would work very nicely.

Reinforcing on top of the floor will do absolutely squat to prevent the seat ripping itself out of the thin sheet metal that is Miata's floor.
The front humps are still in place, for the rear I have 4" x 4" backing plates and large washers. Nothing will be pulling thru the floor. What exactly do you mean by “some rails would work very nicely”? Are you referring to sliders?
ak4two is offline   Reply With Quote
Old 03-28-2010, 01:12 AM   #37
Senior Member
Thread Starter
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

My last post was not intended towards you it was just a general statement. No that I have reread it it reads like it was intended towards you. Sorry.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 03-28-2010, 03:59 AM   #38
Newb

Join Date: Mar 2009
Location: Arlington, WA
Posts: 12
Total Cats: 0
Default

No worries, its cool.
ak4two is offline   Reply With Quote
Old 03-30-2010, 10:54 AM   #39
Junior Member
iTrader: (3)

Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 310
Total Cats: 14
Default

Quote:
Originally Posted by ak4two View Post
What exactly do you mean by “some rails would work very nicely”? Are you referring to sliders?
Sorry. I tend to swallow my vowels when I speak, and words when I write.
I meant to say "steel rails", or "pieces of flat iron". But, seems like you've done what's necessary.

I've seen some seats bolted with only large washers securing the seat to the floor, and, personally, it feels iffy.

Safety is not something to skimp on. Having been in a rather nasty off on a bike (while wearing full gear, and still having suffered a concussion), I am not looking forward to regretting not spending enough on safety, and always try to fully address it.
alik is offline   Reply With Quote
Old 03-31-2010, 03:34 AM   #40
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Finally bought some flat steel. I'll be posting a picture of my results soon.
