performancebox data, c5z vs turbo miata at laguna seca

Race Prep Miata race-only chat.
Sponsored by:
Sponsored by:

performancebox data, c5z vs turbo miata at laguna seca

Old 02-22-2010, 08:34 PM
  #1
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 550
Total Cats: 19
Default performancebox data, c5z vs turbo miata at laguna seca

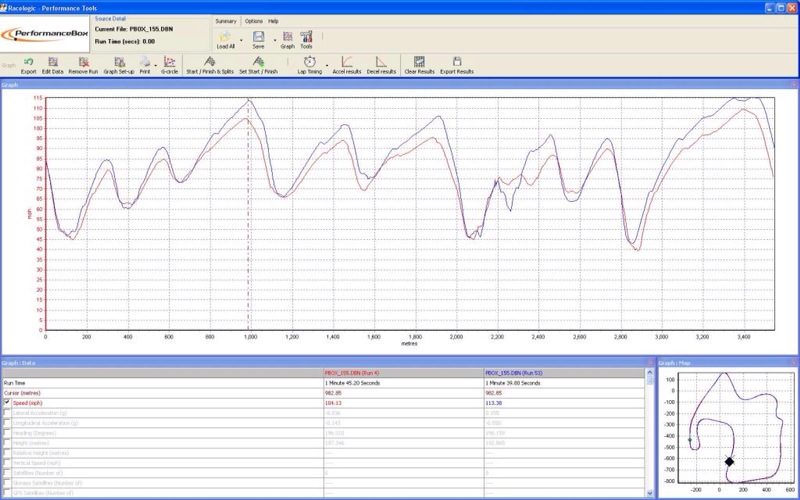

My friend with a c5z was at LS with his performancebox on the same day as me and I thought it would be interesting to compare speed vs distance on our best laps.

His setup (blue line):
c5z
Long tubes with tune.
Crazy wide CCW wheels with hoosier slicks
Coilovers
Driver mod. He's definitely a better driver than me.

My setup (red line):
97 2554r on stock 1.8L with busted studs.
The car was setup to do 14-15psi, but I was only seeing 11 in this session. ~190-200 whp.
FCM Bilsteins 500/325
15x9 6ULs w/ nt01s

I had to pick a common start/finish point so I picked the one that favored him. If you move the point back to turn 1 his time goes up to 1:40.X and I'm doing a 1:44.9. It was hard for both of us to get a clean lap. From watching his videos I can see he is doing a better job of using the whole track.

- His acceleration is significantly better than mine. No surprise there.
- He's getting on the gas a lot sooner in a few of the turn exits.
- I'm a complete wimp in 6.
- Something is funny with his data in 9. He didn't slow down that much after the corkscrew.

Anyways, I thought it was a fun comparison and shows me what areas to improve the next time I go to the track. There's also acceleration data that I can graph if anyone is interested.

Attached Thumbnails performancebox data, c5z vs turbo miata at laguna seca-photo.jpg
orion4096 is offline
Old 02-22-2010, 08:55 PM
  #2
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,644
Total Cats: 36
Default

I see what you mean in 6, but thats pretty good on your part IMHO. Thats not really a heavy car by normal standards (probably about 3400 with an average guy and the big hoosiers on it) and you had very similar apex speeds.

Circa 380WHP is a wonderful thing If you had another 30-40 it would have helped a lot (thanks captain obvious I know).
Sparetire is offline
Old 02-22-2010, 10:16 PM
  #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,503
Total Cats: 599
Default

I wonder if the G forces generated in the corkscrewed up your data logger momentarily. Wouldn't surprise me.

Can we see the derivative of that graph please?
curly is offline
Old 02-22-2010, 10:32 PM
  #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,085
Total Cats: 367
Default

i may have to buy a performance box. Its the most attractive of all the dataloggers the more i consider it.
hustler is offline
Old 02-22-2010, 10:37 PM
  #5
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,012
Total Cats: 1,820
Default

Mike, want to see something really scary?



Listen to the exhaust note through turn 6.

Fast SMs are getting through 6 at ~88mph.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 02-22-2010, 11:01 PM
  #6
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 550
Total Cats: 19
Default

Originally Posted by Savington View Post
Fast SMs are getting through 6 at ~88mph.
Oh crap. That's humbling. Next time I'll keep the pedal down and see where I end up. I'm only 20mph slower. I was passing people like they were standing still in 6. It would be cool to see the data from a SM at LS. Maybe I can convince someone to suction cup my performancebox to their windshield along with a battery pack.

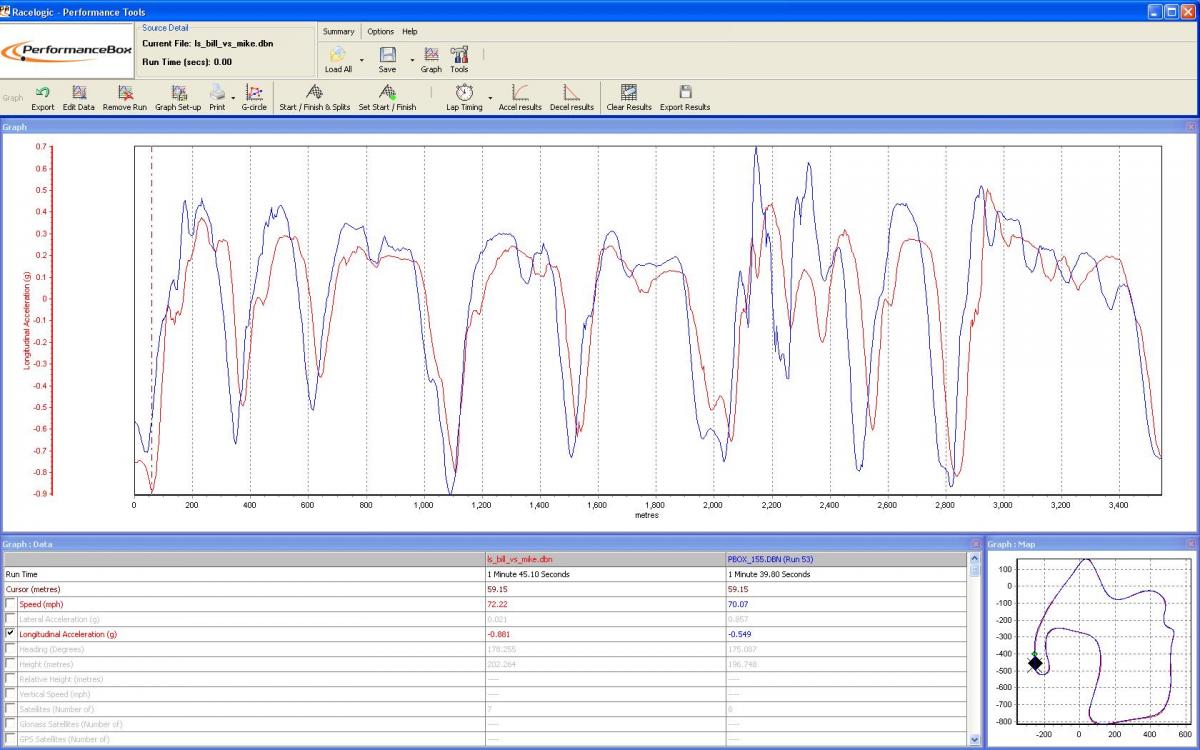

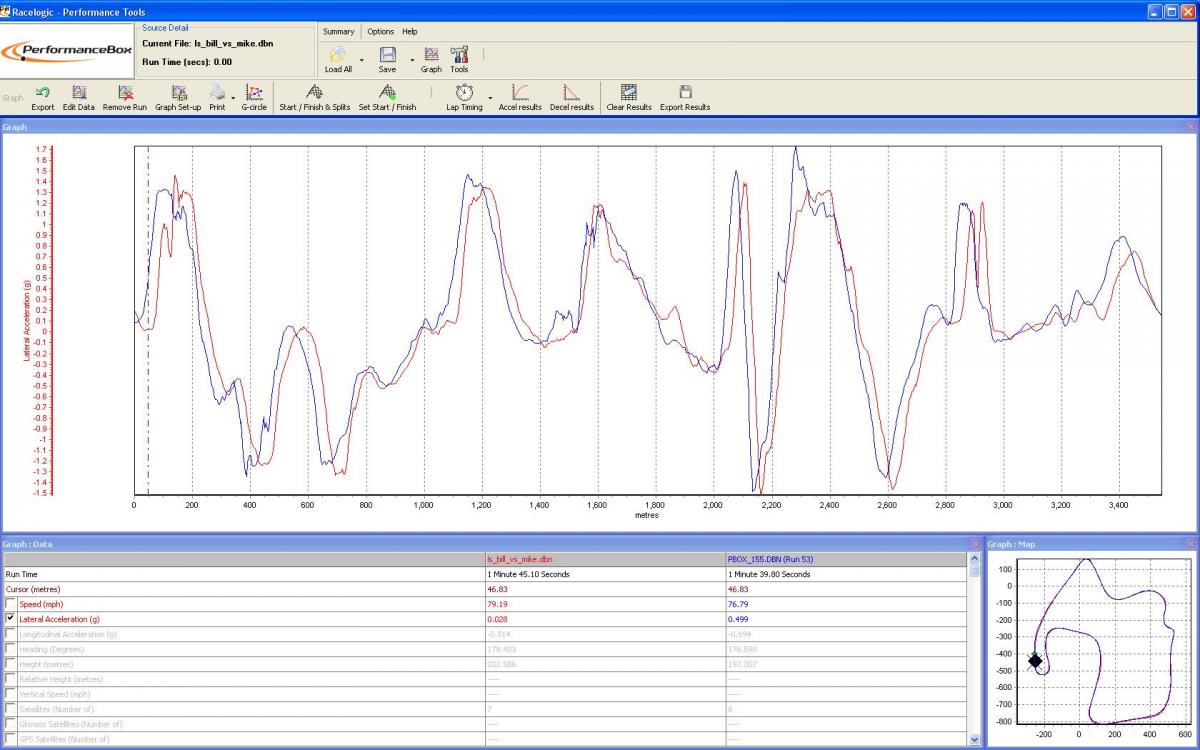

Here's acceleration and lateral acceleration. It's a lot easier to mess around with this stuff in the software. I attached my last session in dbn format. The software can be downloaded here: PerformanceBox and DriftBox from VBOX USA



Attached Thumbnails performancebox data, c5z vs turbo miata at laguna seca-acceleration.jpg   performancebox data, c5z vs turbo miata at laguna seca-lateral_acceleration.jpg
Attached Files
File Type: zip
PBOX_155.zip (223.8 KB, 37 views)
orion4096 is offline
Old 02-23-2010, 07:46 PM
  #7
Junior Member

Join Date: Feb 2007
Posts: 77
Total Cats: 1
Default

Mike,

If I attend the Miata's at Laguna Seca thingy, you can put the box in my car for a session if you want to. I don't know exact apex speeds of turn 6, but it is a slight lift, back to flat before turn in, you hit 88-89 on a good run at the exit curbing. Both Yepez and I had the same professional coach, so we run a nearly identical line at Laguna.

Sav,

Don't ever again post a video glorifying Ypz! ;-)
Carthusiast is offline
