Default Picture request - LHD cars only


I've got a customer who's asking if one of my turbo kits will fit a LHD chassis - I'm not sure so wondered if anyone has any decent photo's of a LHD engine bay that shows the location/angle of the column.

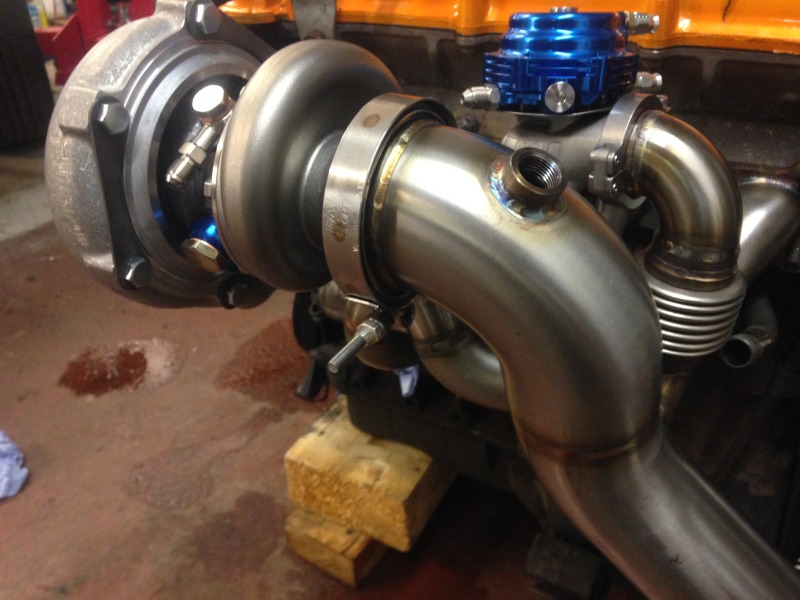

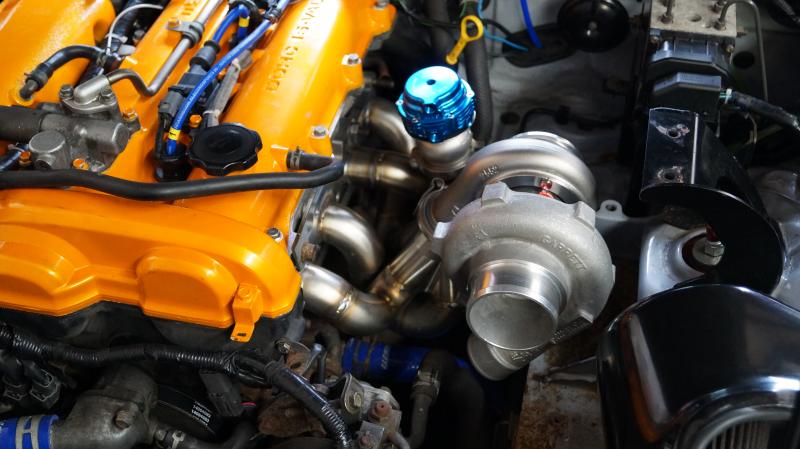

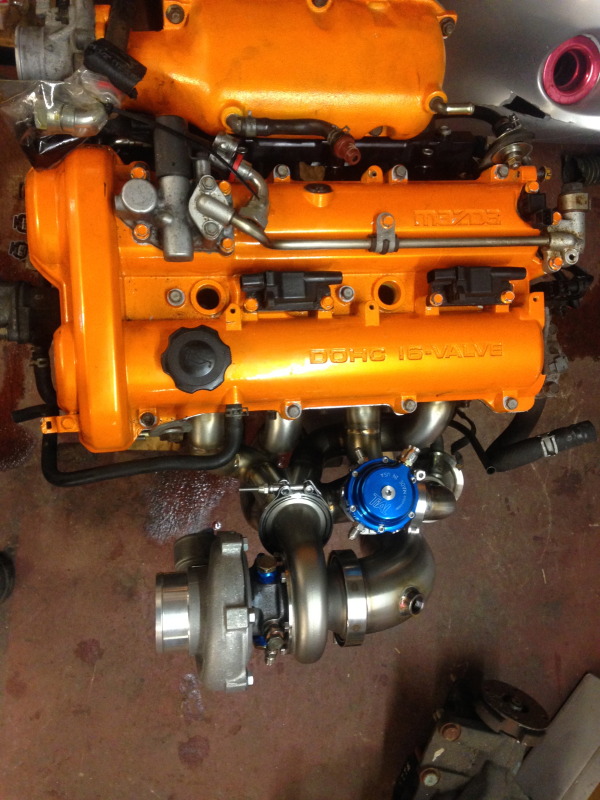

Here's a couple of photo's of the setup going onto a RHD car.

Any help would be appreciated - maybe a photo of a naked LHD engine bay so I can see where the column comes through?

Thanks again,

Attached Thumbnails
Picture request - LHD cars only-dsc01271copy_zpsc76ed4f4.jpg   Picture request - LHD cars only-file_zps4ec7d5de.jpg   Picture request - LHD cars only-file_zps07b3b87c.jpg
ardler_dan is offline   Reply With Quote
Old 08-10-2014, 06:30 PM   #2
Junior Member
iTrader: (4)
Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10

Wow, nice work, someone's an artist with a TIG.

But those pics are useless. The column in an LHD car is far below the manifold, especially a high mount. What you need to show is the intercooler pipe work and the dump pipe mounted in the bay.

Even then it won't be more than a guess.
