Old 05-04-2012, 09:45 PM   #21
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

on my next track car, I've planned to use Wilwood 11" BBK front and standard 1.8 rear. I find when I use sport rear, I get too much rear bias (when I run same pads front and rear). make sense ?
bellwilliam is offline   Reply With Quote
Old 05-09-2012, 06:32 PM   #22
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

just for clarification, on an ABS miata how many channels is the brake system? some cars have 4 channel independent brake system so you would either need to re pipe the system or perhaps use 2 bias control values, one for each rear wheel. on a 2 or three channel system with 2 front one rear, or one front one rear then one bias control would be fine.

perhaps someone with a more in depth knowledge of the ABS system can chime in. I don't have abs
psreynol is offline   Reply With Quote
Old 05-09-2012, 07:00 PM   #23
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

01+ is three channel ABS
crashnscar is offline   Reply With Quote
Old 05-09-2012, 07:28 PM   #24
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

great, well that makes is simple for the abs guy. I think the late NC cars are four channel but I might be wrong on that.
psreynol is offline   Reply With Quote
Old 05-09-2012, 09:19 PM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

+1 on the sport master, it makes life worth living.
hustler is offline   Reply With Quote
Old 05-09-2012, 11:49 PM   #26
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

cant wait till my car gets to the point where I need to tweak the brake setup further! so far I hardly use the brakes and have yet to even light up the lowest temp range on the caliper temp strip. Im sure a track with hard braking zones will yield different results but so far, these are the best brakes Ive ever had on a track car and I'm not even running aggressive pads.

For those who are somewhat new, I would not worry about changing masters or rear calipers until you experience issues first hand. with the bbk and medium track pads I think you will be fine on most tracks. that said, I was focusing on other aspects of the car, so i'm sure my brake zones were somewhat lazy compared to the guys turning good times an a equivalent car. still a little paranoid about flat spotting tires after my last car, awful brake lock issues and I was running the "right" parts, user error I guess.
psreynol is offline   Reply With Quote
Old 05-10-2012, 03:01 PM   #27
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by crashnscar View Post
01+ is three channel ABS
Aren't they all?
Laur3ns is offline   Reply With Quote
Old 05-10-2012, 03:14 PM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by Spookyfish View Post
Aren't they all?
IIRC the early cars are 2-channel.
Savington is offline   Reply With Quote
Old 05-10-2012, 03:52 PM   #29
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by Savington View Post
IIRC the early cars are 2-channel.
I don't think so. 2-channel systems typically run diagonal corners on different circuits, which requires two hydraulic lines going to the back of the car. The Mazda parts diagram for ABS on a 91 only shows one, still with the junction block near the passenger rear wheel.

--Ian
codrus is offline   Reply With Quote
Old 05-10-2012, 04:02 PM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Savington View Post
IIRC the early cars are 2-channel.

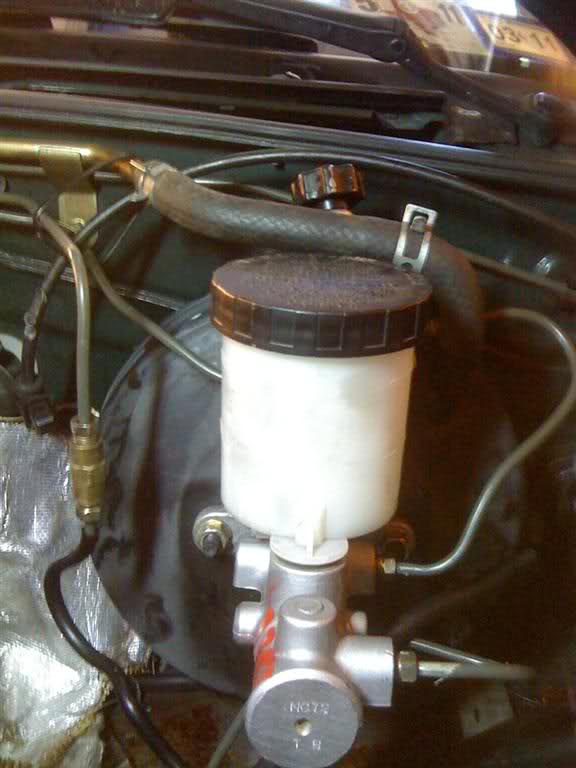

My 1.6 car with the Sport master has a front line on the bottom, a front line on the side, a rear line on the side of the master.
Attached Thumbnails
question on proportioning valve with big brakes-70vsxi.jpg
hustler is offline   Reply With Quote
Old 05-10-2012, 09:22 PM   #31
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 201
Total Cats: 12
Default

My '93 1.6 had a 3-channel ABS system.
wildo is offline   Reply With Quote
Old 05-11-2012, 12:35 AM   #32
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

I think the +05 abs cars are 4 channel but I could be way off on that.
psreynol is offline   Reply With Quote
Old 05-11-2012, 01:16 AM   #33
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Quote:
Originally Posted by psreynol View Post
I think the +05 abs cars are 4 channel but I could be way off on that.
The NC (2006 and up) has traction and stability control, which require 4 independent channels.

The 2005 is still an NB and has the same single line going to the rear.

--Ian
codrus is offline   Reply With Quote
Old 05-11-2012, 11:21 AM   #34
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

thanks for clearing that up.
