Thumbs up Radiator Hood Vent

I have been looking at different designs for this on other cars on the web, but haven't seen much in the line of Miata's. If anyone else have seen good designs, please post them up. I want a open discussion and ideas on the subject.

So after doing some measurements this is what I came up with for the front half of the duct. I will be going turbo eventually, so this design will be changing down the road.

If you have specific build questions on the car and not on the subject, please don't post them on here. Go to my build https://www.miataturbo.net/build-thr...2/#post1088581

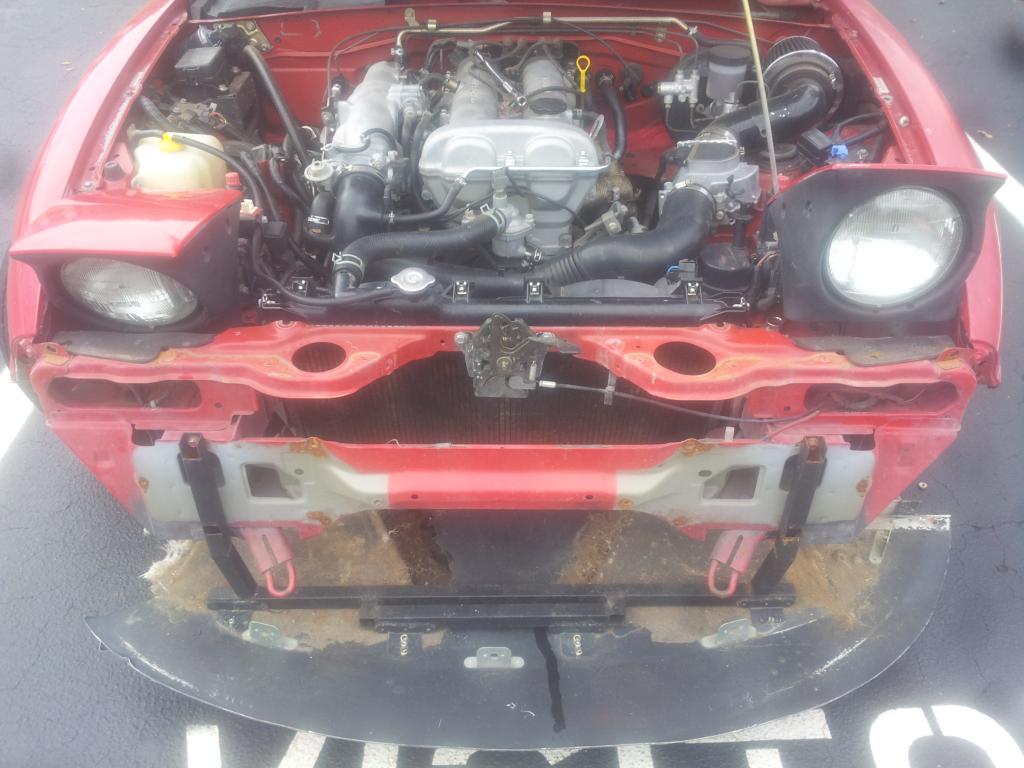

I cut the steel bumper, toe hooks and top radiator support to lean the radiator from a 7 deg angle to a 13 deg angle.

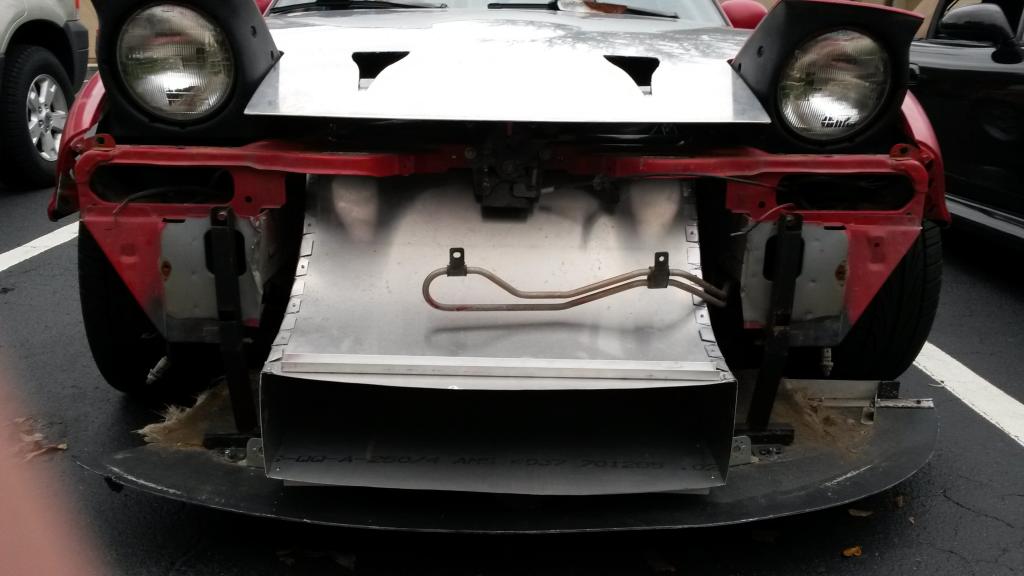

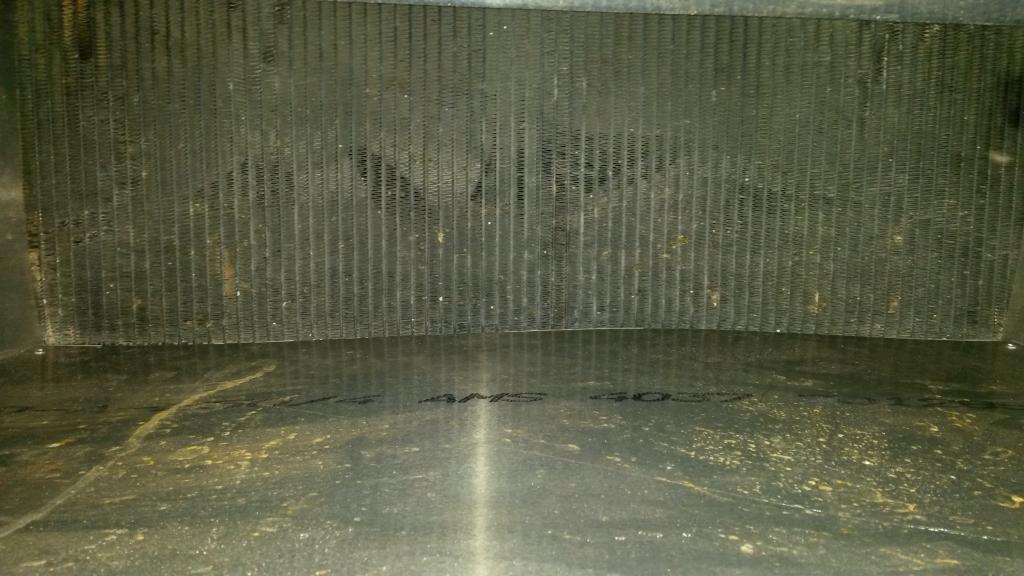

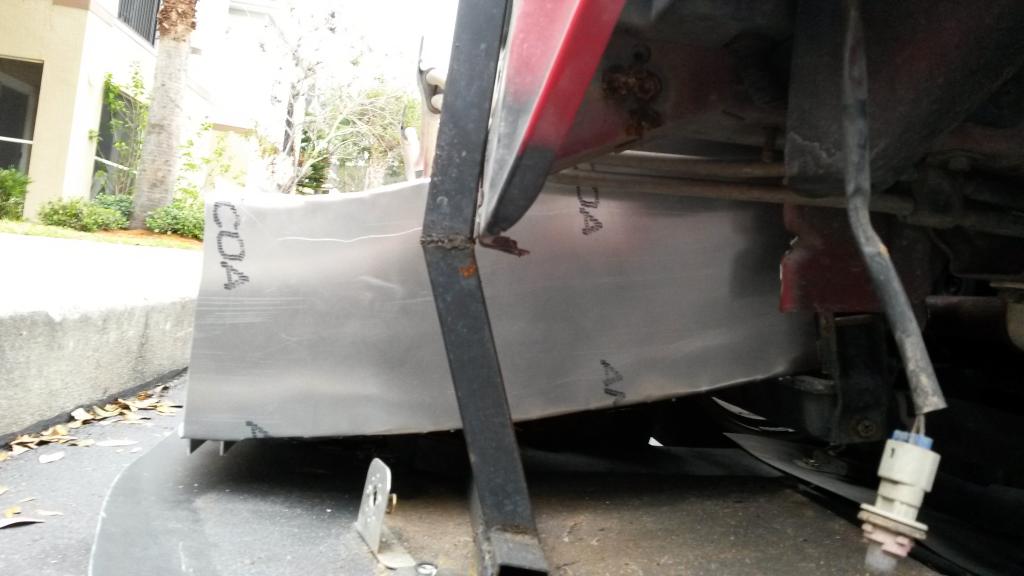

After some test fitting

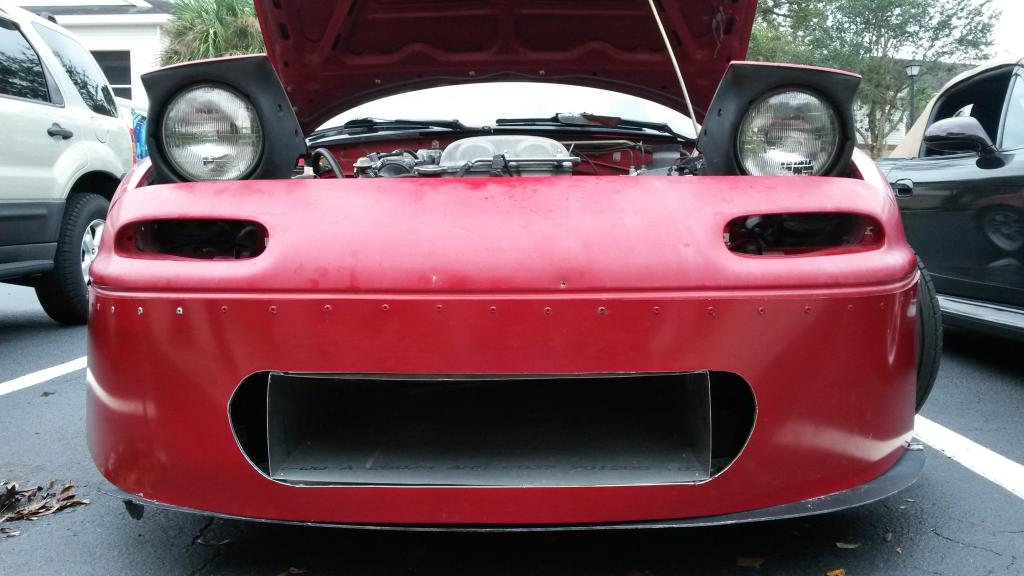

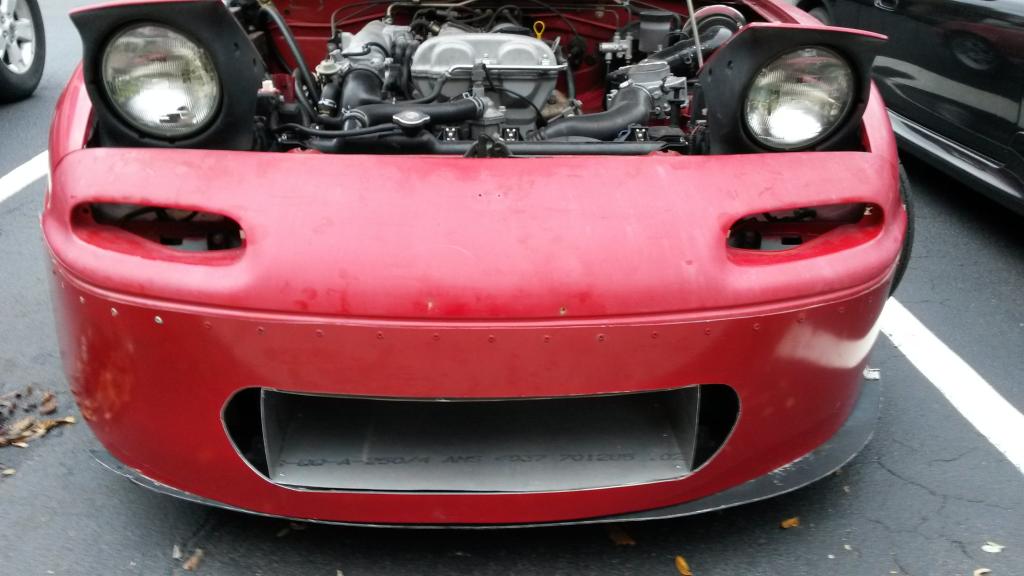

I'm not done mounting but you get what it looks like





More pics to come on part 2 I hope this help some other people with their race cars, I hope to see some more.
Attached Thumbnails
Radiator Hood Vent-20131230_133415_zpsf61e9d18.jpg   Radiator Hood Vent-20140104_162918_zpsb19fd47f.jpg   Radiator Hood Vent-20140104_163023_zpsca7cd3f7.jpg   Radiator Hood Vent-20140104_163049_zpsb845da14.jpg   Radiator Hood Vent-20140104_164829_zps9a3cf7d3.jpg

Radiator Hood Vent-20140104_165130_zps292f8d2a.jpg

Last edited by 1993ka24det; 01-05-2014 at 12:54 AM.
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 12:46 AM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

that seems so much easier without an intercooler in the way
fooger03 is offline   Reply With Quote
Old 01-05-2014, 12:48 AM   #3
Junior Member

Join Date: Jul 2013
Location: SanDiego
Posts: 53
Total Cats: 5
Default

Ducting looks great. Im a bit curious what you are going to do with the naca ducts already in the hood if you are going to put a vent behind it.
ThunderKunt is offline   Reply With Quote
Old 01-05-2014, 12:57 AM   #4
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

The hood will be changed soon. This one is more or less a test cut hood. (NACA is from a previous project that didn't work)
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 03:13 AM   #5
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

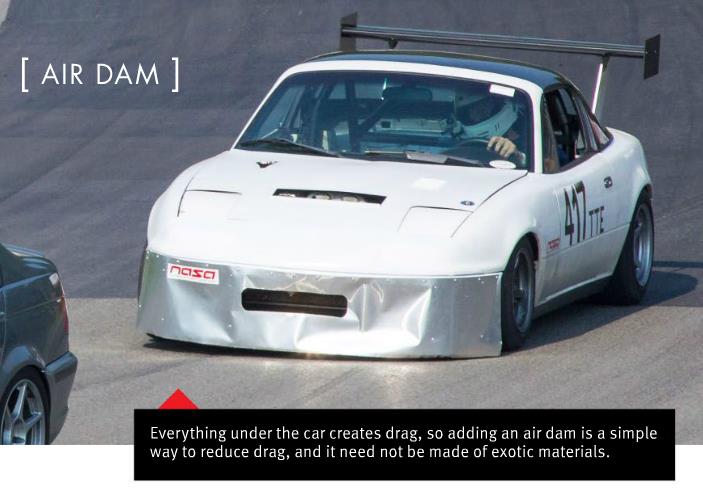

This is the only picture I can find of my old hood. I just cut a rectangle the width of the radiator that stretched from the radiator to the valve cover, and then bolted a piece of 1/8" aluminum angle to the front edge to create a simple louver. It dropped IATs significantly and worked great on track, but I was still street driving the car at the time and it was terrible when it rained because the rain just dumped onto the alternator belt and it would slip like crazy at cruising RPMs. I should have just cut the front edge and the side edges and bent the cutout down into a nice radius, then riveted on some side panels. Whatever you do, just make sure the belts and any electrical connectors are covered.

Attached Thumbnails
Radiator Hood Vent-945899_10100197395609917_1240742982_n.jpg
jpreston is offline   Reply With Quote
Old 01-05-2014, 03:53 AM   #6
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default





nniiiiiiiicccccccccccccccccccccccccccccccccccccccc eeeeee !!
Attached Thumbnails
Radiator Hood Vent-24_1044_134.jpg
joyrider is offline   Reply With Quote
Old 01-05-2014, 10:39 AM   #7
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by joyrider View Post




nniiiiiiiicccccccccccccccccccccccccccccccccccccccc eeeeee !!
What kind of car is that?
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 10:54 AM   #8
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

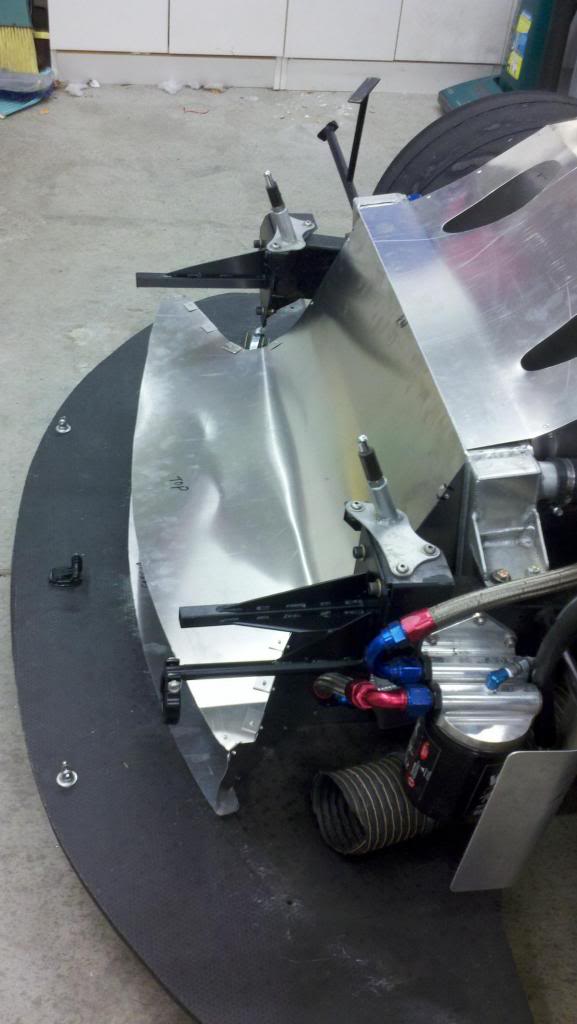

Here are some designs that I had on my computer from my research with links

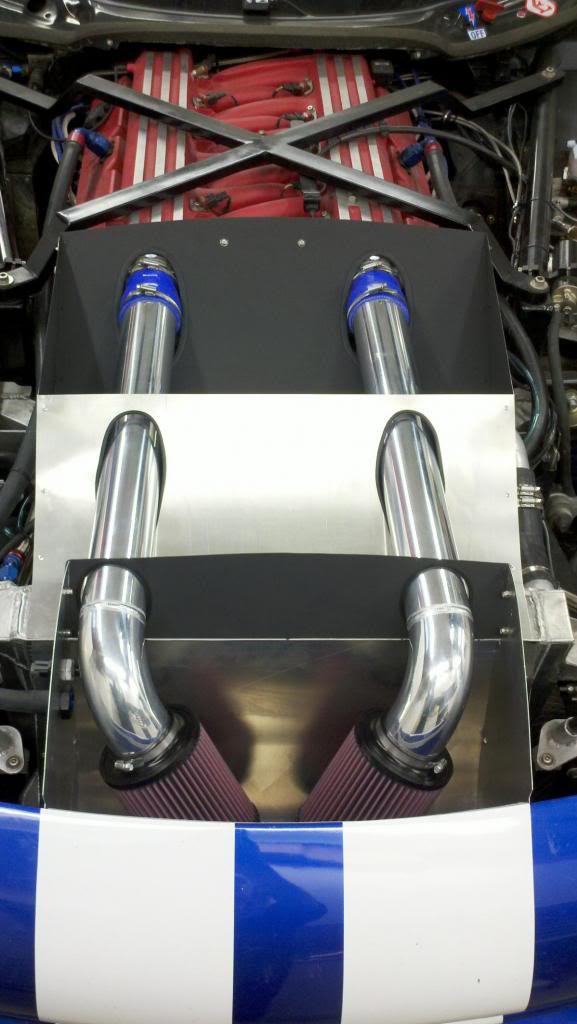

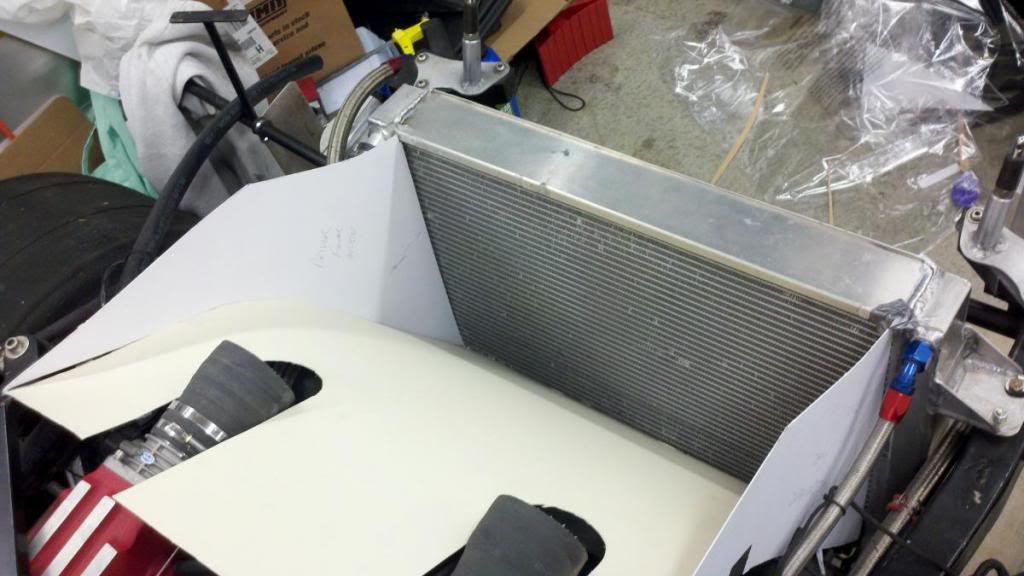

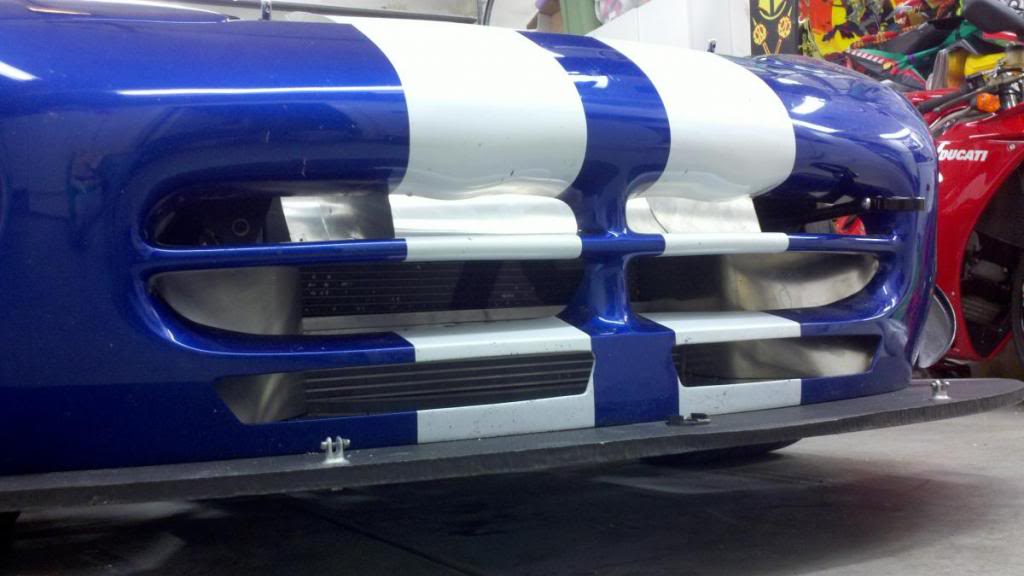

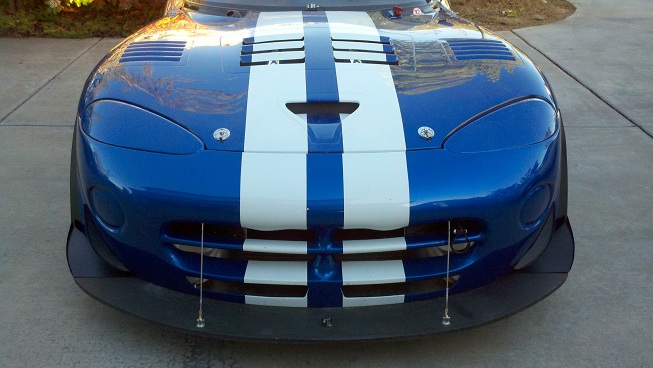

Viper

http://www.timeattackforums.com/foru...louvers-3.html

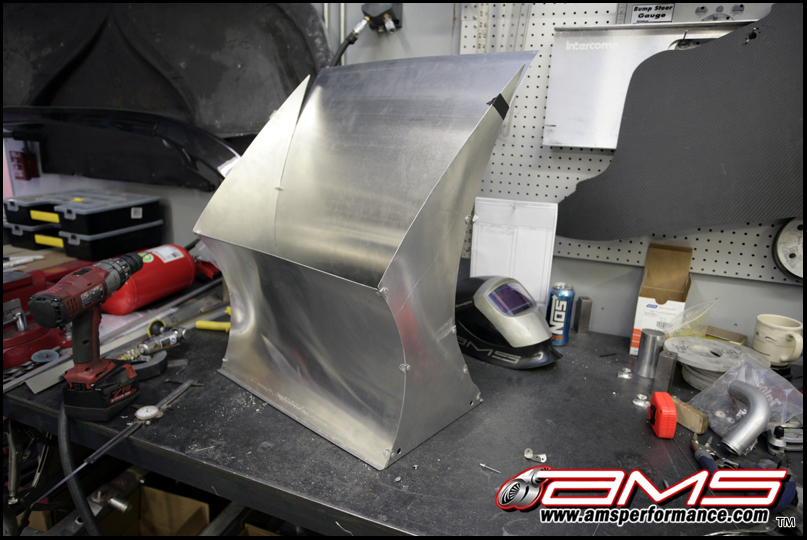

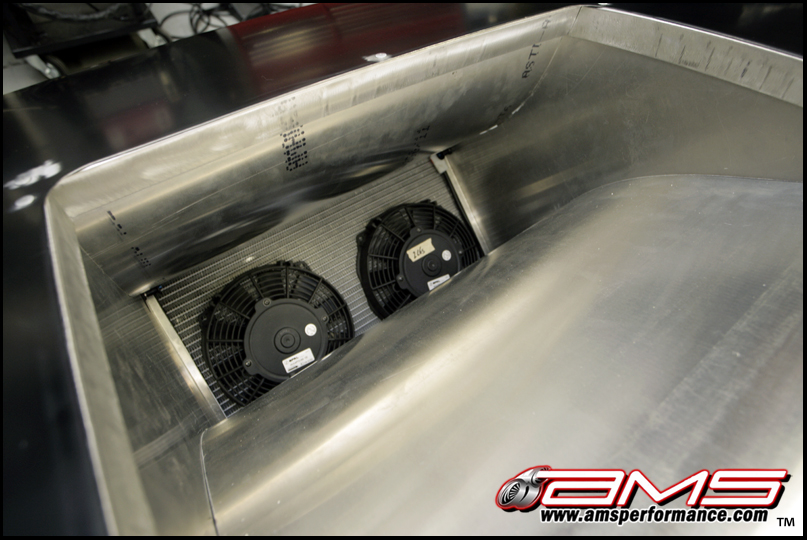

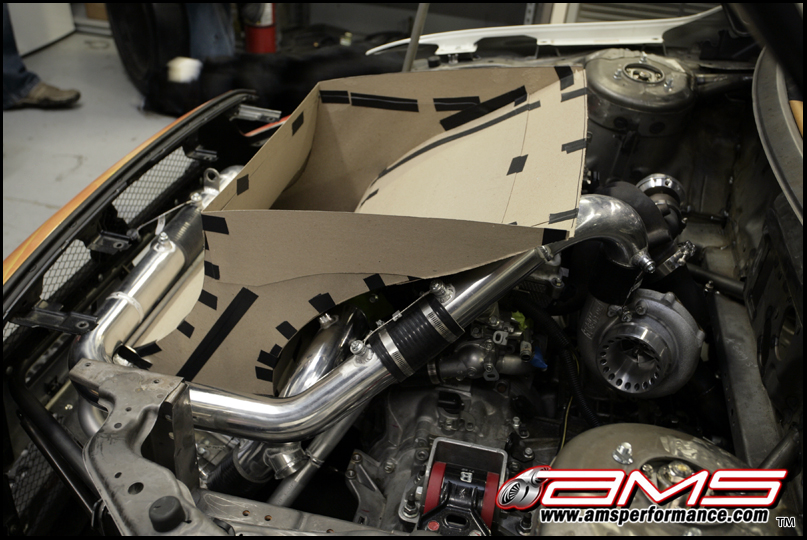

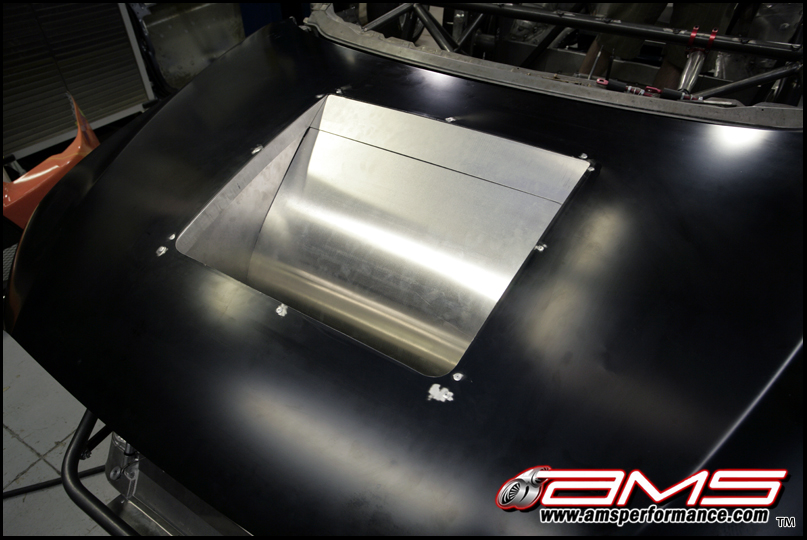

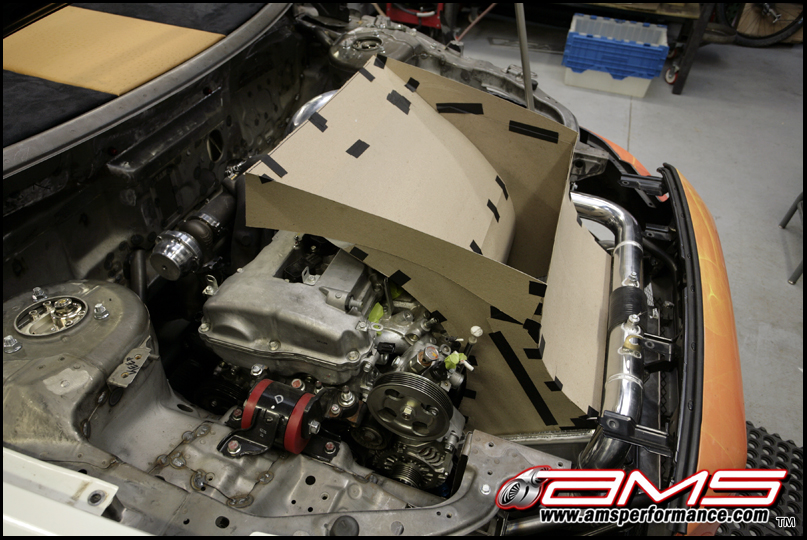

AMS Evo X Time Attack

http://www.timeattackforums.com/foru...x-build-3.html











GTX Eclipse



Name:  img31441_zps2099ad9b.jpg
Views: 315
Size:  193.3 KB

Name:  img314511_zps69da78e8.jpg
Views: 307
Size:  147.9 KB

Name:  img31451_zpsf0ebf0bc.jpg
Views: 559
Size:  147.9 KB

Name:  img31501_zps9d8c685e.jpg
Views: 432
Size:  186.7 KB

Name:  img31582bd_zps97fbb9c1.jpg
Views: 351
Size:  223.3 KB
Attached Thumbnails
Radiator Hood Vent-2013-02-01_06-48-51_262_zpsac2dec81.jpg   Radiator Hood Vent-2013-04-08_22-20-00_961_zps80bc4dd3.jpg   Radiator Hood Vent-2013-03-19_06-43-05_946_zps970bf585.jpg   Radiator Hood Vent-2013-04-01_22-28-29_303_zpse0048d7c.jpg   Radiator Hood Vent-2013-04-09_18-36-28_255_zps8b558c49.jpg

Radiator Hood Vent-amsperformance-timeattackevoxbuild-042409006_zpsf4010c99.jpg   Radiator Hood Vent-amsperformance-timeattackevoxbuild-042409008_zps34954c9c.jpg   Radiator Hood Vent-amsperformance-timeattackevoxbuild-042409013_zps5ac0a51c.jpg   Radiator Hood Vent-amsperformance-timeattackevoxbuild-042409012_zps5bca97d3.jpg   Radiator Hood Vent-amsperformance-timeattackevoxbuild-042409010_zps0dcd313d.jpg


Last edited by 1993ka24det; 01-07-2014 at 01:13 PM.
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 11:29 AM   #9
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 233
Total Cats: 14
Default

My new setup will look a lot like #2, but will seal to the hood more like #3.
Supe is offline   Reply With Quote
Old 01-05-2014, 05:27 PM   #10
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Quote:
Originally Posted by 1993ka24det View Post
What kind of car is that?
180sx
Builds>> Drifting Not Enough? Add Some Time Attack | Speedhunters
joyrider is offline   Reply With Quote
Old 01-05-2014, 06:08 PM   #11
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Any concerns about rigidity after cutting that much of the cross bracing out?
njn63 is offline   Reply With Quote
Old 01-05-2014, 06:40 PM   #12
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

No, due to its in front of the front suspension. The stuff in front of the front suspension and in rear of the rear suspension doesn't have much to do with the stiffness of the chassis.
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 09:18 PM   #13
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

Very good work. The only thing i would say is that the opening is way to big for a N/A miata. iirc measure the radiator and divide by 3 this should roughly be the size of your opening.
Twibs415 is offline   Reply With Quote
Old 01-05-2014, 09:37 PM   #14
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by Twibs415 View Post
Very good work. The only thing i would say is that the opening is way to big for a N/A miata. iirc measure the radiator and divide by 3 this should roughly be the size of your opening.
The Radiator is 12.5" x 25", my opening is 5" x 24" so it is 2.6 times smaller
1993ka24det is offline   Reply With Quote
Old 01-05-2014, 09:48 PM   #15
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

hmm, still looks way big though. look at the 949racing cars and jprestons pic. iirc my car is a 18x6 or so and i could close it up more.

Last edited by Twibs415; 01-06-2014 at 03:30 AM.
Twibs415 is offline   Reply With Quote
Old 01-06-2014, 01:30 AM   #16
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

Quote:
Originally Posted by Twibs415 View Post
Very good work. The only thing i would say is that the opening is way to big for a N/A miata. iirc measure the radiator and divide by 3 this should roughly be the size of your opening.
Yep, I somehow just noticed the last 2 pics in the first post and was about to say the same thing. Reducing the size of the radiator inlet is a big part of the drag reduction from an EP airdam. I just went out and measured my cutout- it's 4x18" with no mesh or ducting behind it, and my temp gauge stays pegged at 180 deg thermostat temp (I know, I need a 195... lack of research up front + begi spacer + lazy) while on track. The cutouts on the 949 cars appear to be around the same size or even smaller, plus they use different types of mesh to cut down airflow further based on track temp. With ducting, I wouldn't be surprised if 50 sq. in. or less were plenty.

Last edited by jpreston; 01-06-2014 at 01:40 AM.
jpreston is offline   Reply With Quote
Old 01-06-2014, 03:36 AM   #17
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

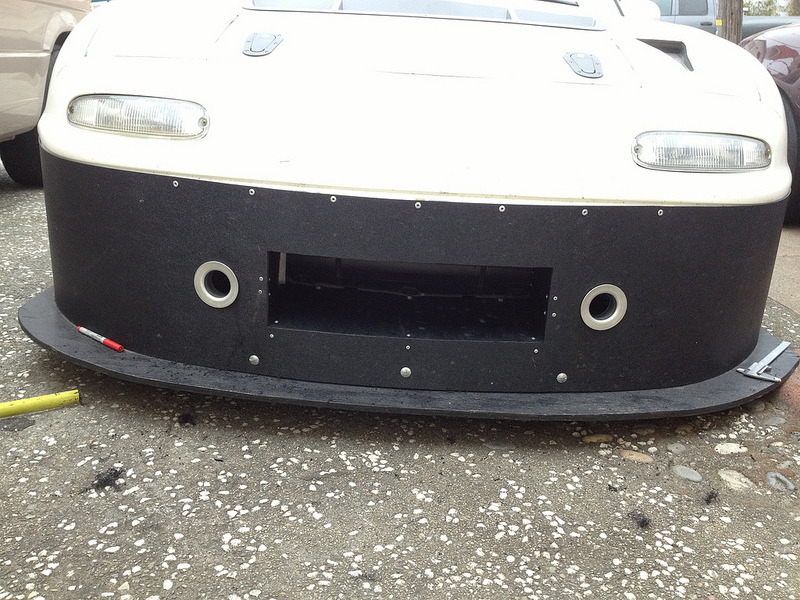

I am going to be redoing my air dam and i think i can make it a bunch smaller by having the mouth radiused into the ducting. The radiused edge will be more aero than a 90 degree lip and should force more air in for that particular size.

how it currently sits.
Attached Thumbnails
Radiator Hood Vent-9372566883_ce6abe6ef2_c.jpg
Twibs415 is offline   Reply With Quote
Old 01-06-2014, 11:32 AM   #18
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by Twibs415 View Post
I am going to be redoing my air dam and i think i can make it a bunch smaller by having the mouth radiused into the ducting. The radiused edge will be more aero than a 90 degree lip and should force more air in for that particular size.

how it currently sits.
Now how did you mount the duct? I like pics.
1993ka24det is offline   Reply With Quote
Old 01-06-2014, 11:40 AM   #19
Senior Member
Thread Starter

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by jpreston View Post
Yep, I somehow just noticed the last 2 pics in the first post and was about to say the same thing. Reducing the size of the radiator inlet is a big part of the drag reduction from an EP airdam. I just went out and measured my cutout- it's 4x18" with no mesh or ducting behind it, and my temp gauge stays pegged at 180 deg thermostat temp (I know, I need a 195... lack of research up front + begi spacer + lazy) while on track. The cutouts on the 949 cars appear to be around the same size or even smaller, plus they use different types of mesh to cut down airflow further based on track temp. With ducting, I wouldn't be surprised if 50 sq. in. or less were plenty.
At 180 deg, is with stock power or turbo and whats the HP. At stock hp a CRX radiator could be used.
1993ka24det is offline   Reply With Quote
Old 01-06-2014, 12:31 PM   #20
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

130hp. Factory internals, factory radiator, coolant reroute.
