Old 01-06-2014, 10:39 PM   #21
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 233
Total Cats: 14
Default

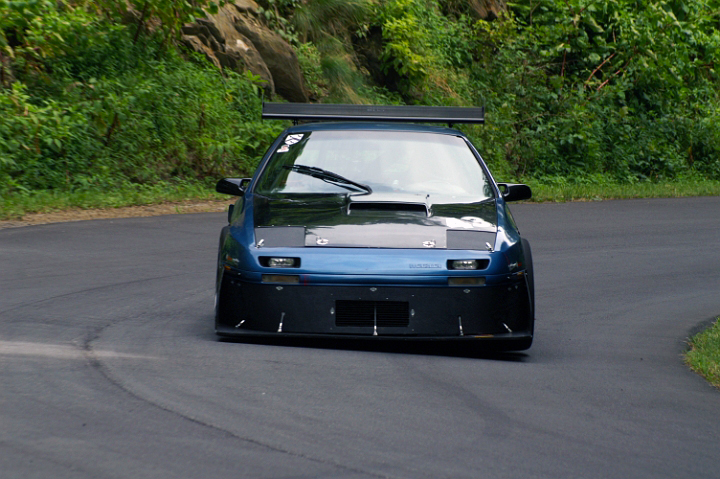

Just for reference, here's a frontal pic of my RX7. I was worried I'd be too small on ducted inlet size. It has a typical rabbit mesh covering the opening. With a 383 cu. in V8 in the engine bay, I couldn't get the car over the other side of 180F after making repeated 7200 RPM pulls uphill. Inlet opening is right at 1/3 of the radiator surface area, and had no outlet ducting.

Attached Thumbnails
Radiator Hood Vent-tireup_zpsc2a9f338.jpg
Supe is offline   Reply With Quote
Old 04-18-2014, 05:29 PM   #22
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

Quote:
Originally Posted by Supe View Post
Just for reference, here's a frontal pic of my RX7. I was worried I'd be too small on ducted inlet size. It has a typical rabbit mesh covering the opening. With a 383 cu. in V8 in the engine bay, I couldn't get the car over the other side of 180F after making repeated 7200 RPM pulls uphill. Inlet opening is right at 1/3 of the radiator surface area, and had no outlet ducting.
^^This makes me feel better about taking my turbo 1.6 for its first track event. Hopefully good ducting from the stock bumper will keep the thing cool
ecc3189 is offline   Reply With Quote
Old 04-18-2014, 06:12 PM   #23
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

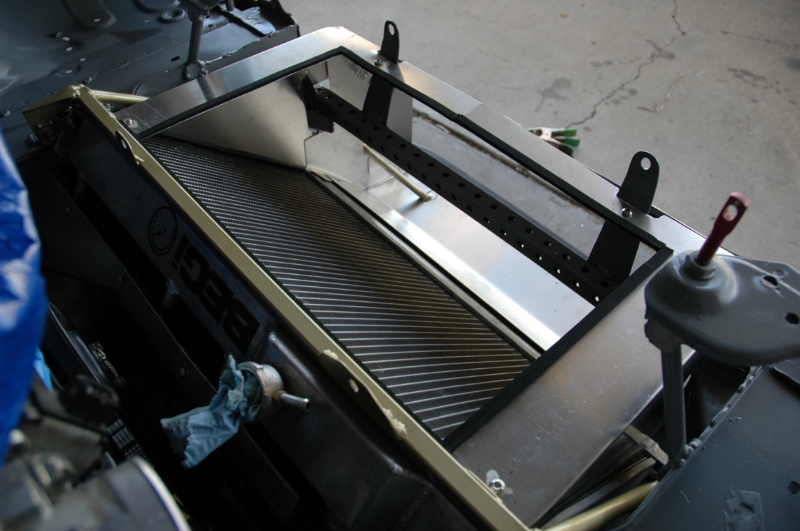

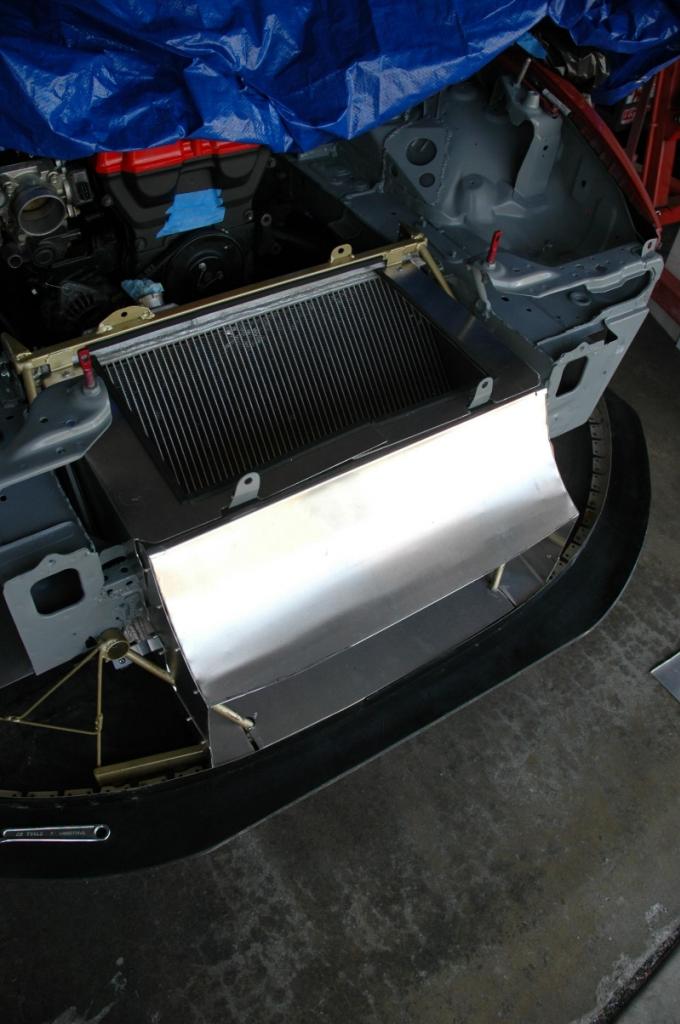

Just finished the inlet ducting for my new radiator/intercooler positions. Ducting is designed in pieces with quick track-side service/access to surrounding things in mind. Everywhere two pieces meet and where the ducting meets a heat exchanger is tightly sealed with adhesive-backed closed-cell foam strips.







Working on oil cooler inlet for the new oil cooler position, then will move on to ducting all the outlets for everything.

-Ryan
Attached Thumbnails
Radiator Hood Vent-dsc_0054_zps8aef2a79.jpg   Radiator Hood Vent-dsc_0055_zps5deafa98.jpg

Last edited by ThePass; 04-18-2014 at 07:32 PM.
ThePass is offline   Reply With Quote
Old 04-18-2014, 07:29 PM   #24
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Regarding the hood vent, you've already done the biggest thing to make it more possible and effective to properly duct the radiator on an N/A car out of the hood and that is to tilt the radiator further forward. Now you just build a duct, pretty simple. You've got enough photo content of super/race cars and how they route that duct, just copy.

The only bit you have to be a little clever about is how you choose to join whatever portion of the duct attaches to the hood with whatever portion remains fixed to the radiator, but there's plenty of ways to accomplish that detailed in said pics.
-Ryan
ThePass is offline   Reply With Quote
Old 04-21-2014, 09:46 AM   #25
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

I'm confused by your radiator layout, do you have the top of heat exchanger tilted back so the airflow comes in along the top (parallel to the face)?

Last edited by ecc3189; 04-21-2014 at 11:01 AM. Reason: I is good at grammar...
ecc3189 is offline   Reply With Quote
Old 04-21-2014, 09:57 AM   #26
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Whats the stick looking part on the last photo, the pass?

Thanks,
Dann
nitrodann is offline   Reply With Quote
Old 04-21-2014, 10:57 AM   #27
Junior Member

Join Date: Apr 2011
Location: Las Cruces, NM
Posts: 269
Total Cats: 16
Default

Quote:
Originally Posted by nitrodann View Post
Whats the stick looking part on the last photo, the pass?

Thanks,
Dann
Look at the photo above it.
Stock is offline   Reply With Quote
Old 04-21-2014, 11:15 AM   #28
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Painted steel?
nitrodann is offline   Reply With Quote
Old 04-21-2014, 01:22 PM   #29
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by ecc3189 View Post
I'm confused by your radiator layout, do you have the top of heat exchanger tilted back so the airflow comes in along the top (parallel to the face)?
There's an intercooler that isn't in the picture that seals over the top hole if that's what you mean..? It's a V-mount setup.

Quote:
Originally Posted by nitrodann View Post
Whats the stick looking part on the last photo, the pass?

Thanks,
Dann
Part of the splitter frame/support. The last pic was just to show some of the clearances of the ducting around stuff.

-Ryan
ThePass is offline   Reply With Quote
Old 04-21-2014, 04:22 PM   #30
Junior Member
iTrader: (1)

Join Date: Aug 2013
Posts: 224
Total Cats: 13
Default

So the air will go in through your inlet duct and pass through the upper intercoolee and exit out an opening in the hood while the air going through the dmradiator that is tilted back will exit where exactly?
circuitmstr74 is offline   Reply With Quote
Old 04-21-2014, 04:24 PM   #31
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

Quote:
Originally Posted by ThePass View Post
There's an intercooler that isn't in the picture that seals over the top hole if that's what you mean..? It's a V-mount setup.

-Ryan
Oh so the intercooler traps the air on the top and it either has to go up through the intercooler and out of the hood or down through the radiator and under the car?
ecc3189 is offline   Reply With Quote
Old 04-21-2014, 04:33 PM   #32
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by circuitmstr74 View Post
So the air will go in through your inlet duct and pass through the upper intercoolee and exit out an opening in the hood while the air going through the dmradiator that is tilted back will exit where exactly?
I suspect into the engine bay "like" an OEM radiator ...???????
thasac is offline   Reply With Quote
Old 04-21-2014, 04:48 PM   #33
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

this is why I love this site, all sorts of new(to me) ideas. I hate how miatas don't have the space for parallel heat exchangers and this is a cool solution. Too bad it prevents you from bringing the air after the radiator up through the hood
ecc3189 is offline   Reply With Quote
Old 04-21-2014, 05:08 PM   #34
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by thasac View Post
I suspect into the engine bay "like" an OEM radiator ...???????
I think the question was posed knowing that he's got a full flat undertray on the car, which is a bit of a departure from OEM.

I suspect that the plan is that the air passing through the radiator will go under the car between the bottom of the car and the undertray, exiting out the top of the diffuser, but I could be wrong. Or maybe it exits behind the front wheels?
krazykarl is offline   Reply With Quote
Old 04-22-2014, 12:21 AM   #35
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by krazykarl View Post
I think the question was posed knowing that he's got a full flat undertray on the car, which is a bit of a departure from OEM.

I suspect that the plan is that the air passing through the radiator will go under the car between the bottom of the car and the undertray, exiting out the top of the diffuser, but I could be wrong. Or maybe it exits behind the front wheels?
Bingo the radiator's exit is ducted just as much as the inlet; it's being routed out of the fenders behind the front wheels. No air under the car this way. Those who have seen my front fender setup will understand how this will work pretty well

The pic probably would've made more sense with the intercooler in place, but it's currently "under construction" - I'm learning to TIG aluminum for this project so that I can modify the outlets on the intercooler and fab new intake piping for this new setup.

-Ryan

Last edited by ThePass; 04-22-2014 at 01:22 AM.
ThePass is offline   Reply With Quote
Old 04-22-2014, 09:33 AM   #36
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

I really like the layout for this. I would love to see the ducting to the rear of the fenders just to see how it routes around everything. Apart from the bracing for the hood pins and the cross member you added for the IC mount, did you have to do any other reinforcement? I'm planning to use cheap temporary ducting for my first track event so I haven't nailed down a permanent design in sheet metal yet.
ecc3189 is offline   Reply With Quote
Old 04-22-2014, 09:37 AM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by ecc3189 View Post
this is why I love this site, all sorts of new(to me) ideas. I hate how miatas don't have the space for parallel heat exchangers and this is a cool solution. Too bad it prevents you from bringing the air after the radiator up through the hood
do you mean side-by-side?

there is PLENTY of room for parallel heat exchangers.

You could stack an oil cooler, intercooler, a/c condensor, and radiator without any issue if you wanted.
Braineack is offline   Reply With Quote
Old 04-22-2014, 10:40 AM   #38
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by ThePass View Post
Bingo the radiator's exit is ducted just as much as the inlet; it's being routed out of the fenders behind the front wheels. No air under the car this way. Those who have seen my front fender setup will understand how this will work pretty well

The pic probably would've made more sense with the intercooler in place, but it's currently "under construction" - I'm learning to TIG aluminum for this project so that I can modify the outlets on the intercooler and fab new intake piping for this new setup.

-Ryan
Have any pics of the ducting on the back side? this is shaping up to be the best looking cooling setup I've seen on a miata. Where's the oil cooler going?
krazykarl is offline   Reply With Quote
Old 04-22-2014, 10:48 AM   #39
Junior Member

Join Date: Jun 2013
Location: Raleigh, NC
Posts: 122
Total Cats: -10
Default

Quote:
Originally Posted by Braineack View Post
do you mean side-by-side?

there is PLENTY of room for parallel heat exchangers.

You could stack an oil cooler, intercooler, a/c condensor, and radiator without any issue if you wanted.
I mean where every heat exchanger got clean, ambient airflow. So no IC or oil coolers in front of radiators. I've seen oil coolers in front of passenger tires (I might do this with the outlet ducted to louvers on top of the fender) but I haven't seen an IC/radiator setup I liked until now.

Other cars don't have this problem since they are tall enough to have space to put the IC completely under the radiator so they don't share air.

Not saying any of the setups I've seen on here don't work great, I just want to find the setup that makes the most logical sense in my head from a drag vs. cooling balance. The only reason I've not considered top mount intercoolers is the height of the mass but really an IC and piping isn't that much weight and I'm guessing ThePass lost that weight in cutting the rad support up there
ecc3189 is offline   Reply With Quote
Old 04-22-2014, 12:09 PM   #40
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by krazykarl View Post
Have any pics of the ducting on the back side? this is shaping up to be the best looking cooling setup I've seen on a miata. Where's the oil cooler going?
Don't have pics of that, have to leave something to the imagination Oil cooler ducting is on my work bench right now, should have it done in the next couple days then I can take pics. Setup is common among super cars - dedicated duct inlet on the front of car into angled oil cooler, outlet routed to side of front bumper just ahead of the front wheel well.

Quote:
Originally Posted by ecc3189 View Post
Not saying any of the setups I've seen on here don't work great, I just want to find the setup that makes the most logical sense in my head from a drag vs. cooling balance. The only reason I've not considered top mount intercoolers is the height of the mass but really an IC and piping isn't that much weight and I'm guessing ThePass lost that weight in cutting the rad support up there
I've shifted my main priority to achieving the maximum amount of cooling possible - can't win a race if the car is overheating or broken down in the pits. I want to feel totally comfortable flogging the car in 105* heat, not nervously watching the gauges hoping it survives. This necessitated separating the heat exchangers so they could all get the lowest temp air possible. (My old setup was rad/IC/oil cooler all stacked one in front of the other) Priority two is to focus on how the air flows through the car, since that is just as important as the external flow for aero.

I am sure the center of mass of the rad/IC has shifted an inch or two higher, but overall I don't think it's too bad considering the oem metal removed as well as how significantly lower the radiator and all of its water weight sits now.

-Ryan

Last edited by ThePass; 04-22-2014 at 12:19 PM.
ThePass is offline   Reply With Quote
