Old 04-28-2016, 12:38 AM   #21
ʎpunq qoq
Thread Starter

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Most older cranks were done the same way as the 6 above. Especially the straight fours with only 3 main bearings. The old mini cooper cranks are cross drilled through the bearing journals requiring no plugs.

For a performance crank you don't want the oiling holes in the bearings on the outer ends. I think it's to do with the centrifugal forces pushing the oil only to the outer side of the bearing and it has to work against the rotation force to get to the top and side of the bearing where the load is on the upstroke. Something like that...
Madjak is offline   Reply With Quote
Old 04-28-2016, 01:08 AM   #22
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

Madjak, have you thought about adding extra Oiling holes into the rod journals? i only do it when im removing plugs as a while im in there type of deal, it seems to help rod bearings last as there is oil directly on the power stoke.
Twibs415 is offline   Reply With Quote
Old 04-28-2016, 01:13 AM   #23
ʎpunq qoq
Thread Starter

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

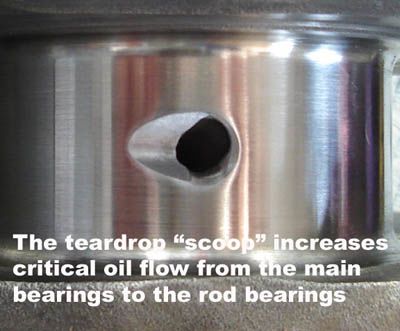

I can say it has never occurred to me. I've read about teardropping the journal holes in the direction of rotation to help the oil change direction. How much this would help though is questionable.




At what angle do you add the additional holes? Any photos?
Attached Thumbnails
Removing ball bearings from crank journals-80-oiling1_b_ca7bb0e98c72988817f4b6d8d8111394ff9aff68.jpg
Madjak is offline   Reply With Quote
Old 04-28-2016, 01:20 AM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Quote:
Originally Posted by Dietcoke View Post
Wow that's bizarre and neat at the same time. Cost saving measure by Mazda or?
It's called manufacturing.

Quote:
Originally Posted by hi_im_sean View Post
I was raised on small block chevys, and come to think of it, they dont have any holes to seal(iirc), they just drill from journal to journal i guess.
Thank god they don't have any oiling problems...
curly is offline   Reply With Quote
Old 04-28-2016, 01:24 AM   #25
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

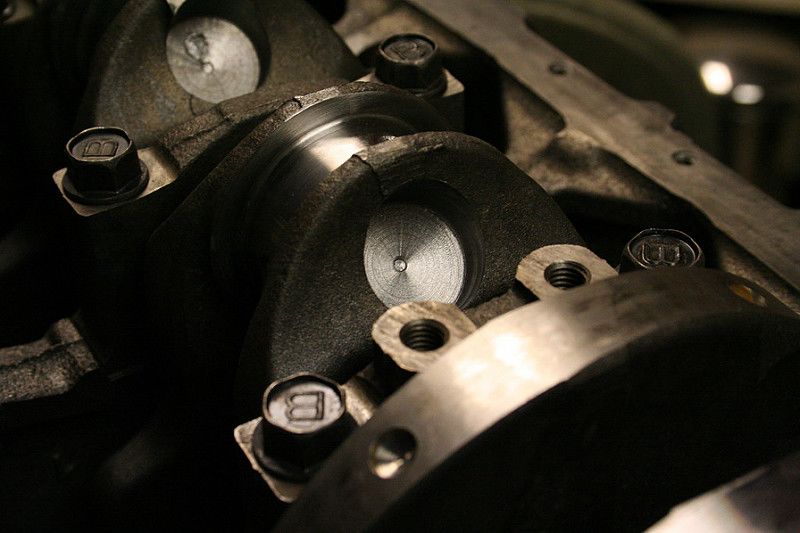

you almost cant see it in this picture but the cross drill is there

.
Attached Thumbnails
Removing ball bearings from crank journals-80-8594542498_4f38ffb97e_c_70574e196223c2ce121bb11320dc8a17ba583ebf.jpg
Twibs415 is offline   Reply With Quote
Old 04-28-2016, 01:35 AM   #26
ʎpunq qoq
Thread Starter

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Did you get the oil journal welded then bored out for lightening? I'll do some research on perpendicular drilling the extra holes in the big ends... interesting idea!
Madjak is offline   Reply With Quote
Old 04-28-2016, 01:43 AM   #27
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

No, they get bored out then plugged up with tapered aluminum plugs and red loctite.. makes removal easy if need be.you can see the smashed in plug on the far journal in that last picture.

it takes forever to bore out the big ends like that and i cant wait to do my next crank....
Twibs415 is offline   Reply With Quote
Old 04-28-2016, 10:18 AM   #28
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default


Last edited by sixshooter; 04-28-2016 at 10:29 AM.
sixshooter is online now   Reply With Quote
Old 05-01-2016, 01:49 AM   #29
ʎpunq qoq
Thread Starter

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

Quote:
Originally Posted by sixshooter View Post
???

I spoke to a machinist and he said he could use spark erroding machine to burn them out. He has a 4mm nozzle that would remove the bearings without much damage to the surrounding crank.

Apparently the entire crank gets put in a fluid bath and the nozzle sucks the fluid up through the center whilst the outer body arcs and melts whatever is infront of the nozzle. The molten metal gets extracted through the nozzle via the fluid.
Madjak is offline   Reply With Quote
Old 05-01-2016, 11:21 PM   #30
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

For cleaning the holes when you get to that point.
sixshooter is online now   Reply With Quote
