Default Roof or no roof...weight v Aero.

I have been trying to buy a damaged race roof cheap from a supplier but he is out of town...was hoping to have it fitted and ready to race on Saturday....

Between the race weight roof and the new f/glass race weight boot lid I was hoping to drop a decent amount of weight and have a crack and my PB lap time.

Turns out neither the roof or boot will be ready and I suddenly thought had the brain wave... save even more weight and just take the whole bloody roof off.

Now I can't decide whether the Aero loss will be offset by the weight loss....

Anyone care to elaborate....?

track is approx 2.8km long with only one main straight that will have a top speed around `90 - 200 KPH.
mx5-kiwi is offline   Reply With Quote
Old 02-10-2016, 12:11 AM   #2
Senior Member

Join Date: May 2011
Posts: 548
Total Cats: 56
Default

aero > weight in this case. I've found the hard top to be worth 1-2 seconds depending on the track.
EErockMiata is offline   Reply With Quote
Old 02-10-2016, 12:26 AM   #3
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Do you intended to sawsall the windshield off?
Leafy is offline   Reply With Quote
Old 02-10-2016, 03:10 AM   #4
Senior Member
Thread Starter

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

not at this point...
mx5-kiwi is offline   Reply With Quote
Old 02-10-2016, 01:22 PM   #5
Newb
iTrader: (2)

Join Date: Jan 2016
Posts: 35
Total Cats: 1
Default

Without a doubt run the top! Weight is ~ linear penalty, Aero penalty is squared.
spec is offline   Reply With Quote
Old 02-10-2016, 01:38 PM   #6
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 783
Total Cats: 103
Default

Hard top is worth the weight. There's a local track here with a huge straightaway, even on a 120 to 140HP Miata it's worth about 6 to 10MPH at the end of the straight. Lap times are much better at all tracks with it on.
Arca_ex is offline   Reply With Quote
Old 02-10-2016, 01:50 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Theres a picture somewhere where 949 (i think, may have been someone else) ran a piece of coroplast on top of the cage, and recieved some aero benefit.
aidandj is offline   Reply With Quote
Old 02-10-2016, 02:16 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Roof is always better.
Savington is offline   Reply With Quote
Old 02-10-2016, 03:36 PM   #9
Junior Member

Join Date: Feb 2012
Location: Quebec city, Canada
Posts: 122
Total Cats: 1
Default

Even with autocross?
bigben is offline   Reply With Quote
Old 02-10-2016, 03:42 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Maybe not for something like an ES car. CSP might be a wash. Competitive SSM cars have them.
Savington is offline   Reply With Quote
Old 02-10-2016, 03:43 PM   #11
Junior Member

Join Date: Feb 2012
Location: Quebec city, Canada
Posts: 122
Total Cats: 1
Default

Thanks!
bigben is offline   Reply With Quote
Old 02-10-2016, 04:25 PM   #12
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by aidandj View Post
Theres a picture somewhere where 949 (i think, may have been someone else) ran a piece of coroplast on top of the cage, and recieved some aero benefit.

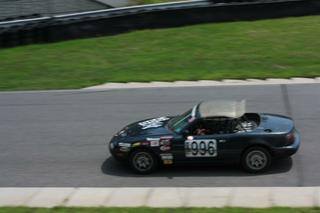

I know AJ Hartman Racing did this on his chumpcar miata to avoid OEM hardtop penalty.

Edit - Looking at it he obviously used either carbon fiber or glass that he had laying around. Not coroplast. Similar idea.

(sorry for potato quality, only shot I could find)
Attached Thumbnails
Roof or no roof...weight v Aero.-ayoqxh8.jpg

Last edited by dasting; 02-10-2016 at 04:36 PM.
dasting is offline   Reply With Quote
Old 02-10-2016, 05:06 PM   #13
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

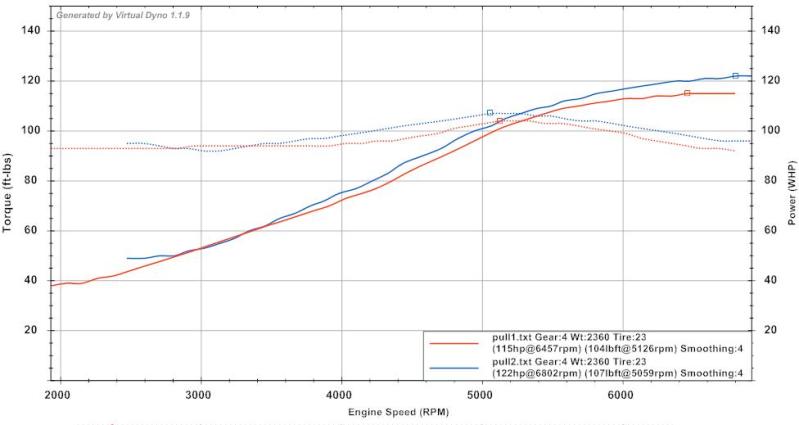

This is where virtual dyno is really cool. Make a 4th gear pull with the top and without the top, don't correct for the weight difference, and it'll give you an answer which is faster for any given speed.

I logged a couple pulls a long time ago in a NA8 with headlights up vs down and the areo difference showed up pretty big above 40mph.

I feel like you could pretty near pinpoint the speed where your areo advantage overtook the weight advantage and it'd give you a clearcut answer to your question.

Attached Thumbnails
Roof or no roof...weight v Aero.-stock_zps5bb442be.jpg
pdexta is offline   Reply With Quote
Old 02-10-2016, 05:10 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Savington View Post
Maybe not for something like an ES car. CSP might be a wash. Competitive SSM cars have them.
Only a couple do. It's not worth the weight, like cool though. WE don't go fast enough for drag to matter and if you can't drastically over power your front aero with your rear then your wing sucks
Leafy is offline   Reply With Quote
Old 02-11-2016, 12:38 PM   #15
Junior Member

Join Date: May 2014
Location: ATX
Posts: 178
Total Cats: 14
Default

Quote:
Originally Posted by pdexta View Post
This is where virtual dyno is really cool. Make a 4th gear pull with the top and without the top, don't correct for the weight difference, and it'll give you an answer which is faster for any given speed.

I logged a couple pulls a long time ago in a NA8 with headlights up vs down and the areo difference showed up pretty big above 40mph.

I feel like you could pretty near pinpoint the speed where your areo advantage overtook the weight advantage and it'd give you a clearcut answer to your question.

Speaking of, do you template for a stock NA8? I downloaded virtual dyno the other day, but all the settings it needs looks like Greek and I just wanted to mess around with it for fun.
cabowabo is offline   Reply With Quote
Old 02-11-2016, 08:51 PM   #16
Junior Member

Join Date: Jan 2009
Posts: 173
Total Cats: 28
Default

How much does the "race roof" weigh? They are available here in the states at about 11lbs before you add the poly window.
unk577 is offline   Reply With Quote
Old 02-11-2016, 08:52 PM   #17
Junior Member

Join Date: Dec 2014
Posts: 89
Total Cats: 1
Default

What about hard top vs soft top? Any lap time time difference there???
Neddy is offline   Reply With Quote
Old 02-11-2016, 09:47 PM   #18
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by Neddy View Post
What about hard top vs soft top? Any lap time time difference there???
I've never been to a track that allows the soft top to be up.
dasting is offline   Reply With Quote
Old 02-11-2016, 11:12 PM   #19
Senior Member
Thread Starter

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 782
Total Cats: 23
Default

Quote:
How much does the "race roof" weigh? They are available here in the states at about 11lbs before you add the poly window.
I imagine the same, its just a fibreglass outer skin so should be in the ball park...we have to have a 5mm Poly windows (and ali bracing) where some countries can use 4mm.

Two guys who race in the same Classic Japanese class I do have done it already and say the weight saving is significant. they told me the figures at the time but i forget now...I just know its the next stage of car delveopment
mx5-kiwi is offline   Reply With Quote
Old 02-12-2016, 02:06 AM   #20
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Leafy View Post
Only a couple do. It's not worth the weight, like cool though. WE don't go fast enough for drag to matter and if you can't drastically over power your front aero with your rear then your wing sucks
Mine weighs 11 lbs with poly window. I think it is worth 11 for autocross but not if it is 45 lbs like a stock one. On the track you want the top regardless.
bbundy is offline   Reply With Quote
