Default RX8 oil cooler for boosted Miata?

I've searched a good bit here and via google, but have not found where anyone has tried using this unit on a Miata. They can be picked up used for about $125. From what I've read, the thermostats could be better, but the oil cooling capabilities are good. It appears to be much easier to package than an RX7 long unit. The line sizes wouldn't be restrictive. What do you guys think?

04 08 Manual Mazda RX8 RX 8 Motor Engine Oil Cooler Right Passenger Side | eBay
fwman1 is offline   Reply With Quote
Old 10-26-2015, 11:29 AM   #2
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Where are you gonna fit it?
Mazduh is offline   Reply With Quote
Old 10-26-2015, 11:43 AM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Posts: 124
Total Cats: 2
Default

I don't think it is huge. I picked this up from an RX8 forum..
6.5 X 5 X 2"....core size...endtanks make it wider overall 8" wide.

I am still very early in the process of considering this.

Obviously, since lots of smart miata guys have cooled their oil, I figured someone had tried it if it was viable, but I was unable to find any threads where it had been considered or attempted.
fwman1 is offline   Reply With Quote
Old 10-26-2015, 02:56 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Why not just use a Mocal/Setrap cooler like everyone else? We know they work well and are about the same price if not cheaper then that.
shuiend is offline   Reply With Quote
Old 10-26-2015, 03:15 PM   #5
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

be very careful with used oil coolers. if it came from a car with a blown motor good chances the debris is till in the oil cooler. from a short time when i worked at a corvette shop i saw 2-3 brand new engines get killed from reusing the oil cooler.
OGRacing is offline   Reply With Quote
Old 10-26-2015, 04:29 PM   #6
Junior Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Posts: 124
Total Cats: 2
Default

I appreciate the input guys, and the warning. I'm not trying to sell the idea as much as see if anyone has tried it (doesn't look like it). If not, then this is a great place to figure out why.

Here is why I thought this could be a decent idea for my sub 250whp NB. OEM goodness with a built in thermostat allows you to use a less expensive sandwich plate. You'd be looking at approximately $175 dollars plus the lines. Now obviously, saving $150-200 bucks is not worth replacing an engine, but if the part is sourced carefully and thoroughly checked out it seems like it might be worth looking into.
fwman1 is offline   Reply With Quote
Old 10-26-2015, 04:56 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,338
Default

Less expensive like the Glowshift plate that caused Shuiend's engine to not develop oil pressure?
Savington is offline   Reply With Quote
Old 10-26-2015, 05:44 PM   #8
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by shuiend View Post
Why not just use a Mocal/Setrap cooler like everyone else? We know they work well and are about the same price if not cheaper then that.
excuse my shamess plug... or earls oil cooler






if you want to do some testing. grab yourself one and see if it does a good job..
Attached Thumbnails
RX8 oil cooler for boosted Miata?-80-philleonard_mg_rv8_bl_3887c5919f441d01ab7c9fbbdabaec7e4a69eb61.jpg
OGRacing is offline   Reply With Quote
Old 10-26-2015, 06:12 PM   #9
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

as far as buying used oil coolers. What do you think about running it through an ultrasonic cleaning? Would that remove enough debris to give confidence in reusing it? or don't even risk it.
cyotani is offline   Reply With Quote
Old 10-26-2015, 06:15 PM   #10
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by OGRacing View Post
excuse my shamess plug... or earls oil cooler






if you want to do some testing. grab yourself one and see if it does a good job..
whats the price of the equivalent cooler to the setrab 25 row that many people use on here?
cyotani is offline   Reply With Quote
Old 10-26-2015, 06:19 PM   #11
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by cyotani View Post
as far as buying used oil coolers. What do you think about running it through an ultrasonic cleaning? Would that remove enough debris to give confidence in reusing it? or don't even risk it.
i wouldn't risk it. i'm also the kind of guy that uses the most expensive stainless lines and AN fitting i can buy. at least for anything that holds oil pressure. IMO spending an extra $100 bucks could save you a blown motor or
a fire.
OGRacing is offline   Reply With Quote
Old 10-26-2015, 08:35 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by fwman1 View Post
I appreciate the input guys, and the warning. I'm not trying to sell the idea as much as see if anyone has tried it (doesn't look like it). If not, then this is a great place to figure out why.

Here is why I thought this could be a decent idea for my sub 250whp NB. OEM goodness with a built in thermostat allows you to use a less expensive sandwich plate. You'd be looking at approximately $175 dollars plus the lines. Now obviously, saving $150-200 bucks is not worth replacing an engine, but if the part is sourced carefully and thoroughly checked out it seems like it might be worth looking into.
Been through 2 built motors due to oil problems from a cheap glow shift plate. If you can't afford a mocal plate, you can't afford to add an oil cooler.
shuiend is offline   Reply With Quote
Old 10-26-2015, 09:09 PM   #13
Junior Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Posts: 124
Total Cats: 2
Default

Thank to everyone for the input. Guess no one here has thought this was worth a try.

Shuiend, sorry you had such a tough time. I read part of your issues in the threads from 2012. You deserve credit for not giving in!
fwman1 is offline   Reply With Quote
Old 11-06-2015, 05:29 PM   #14
Junior Member

Join Date: Apr 2011
Location: Oregon
Posts: 278
Total Cats: 7
Default

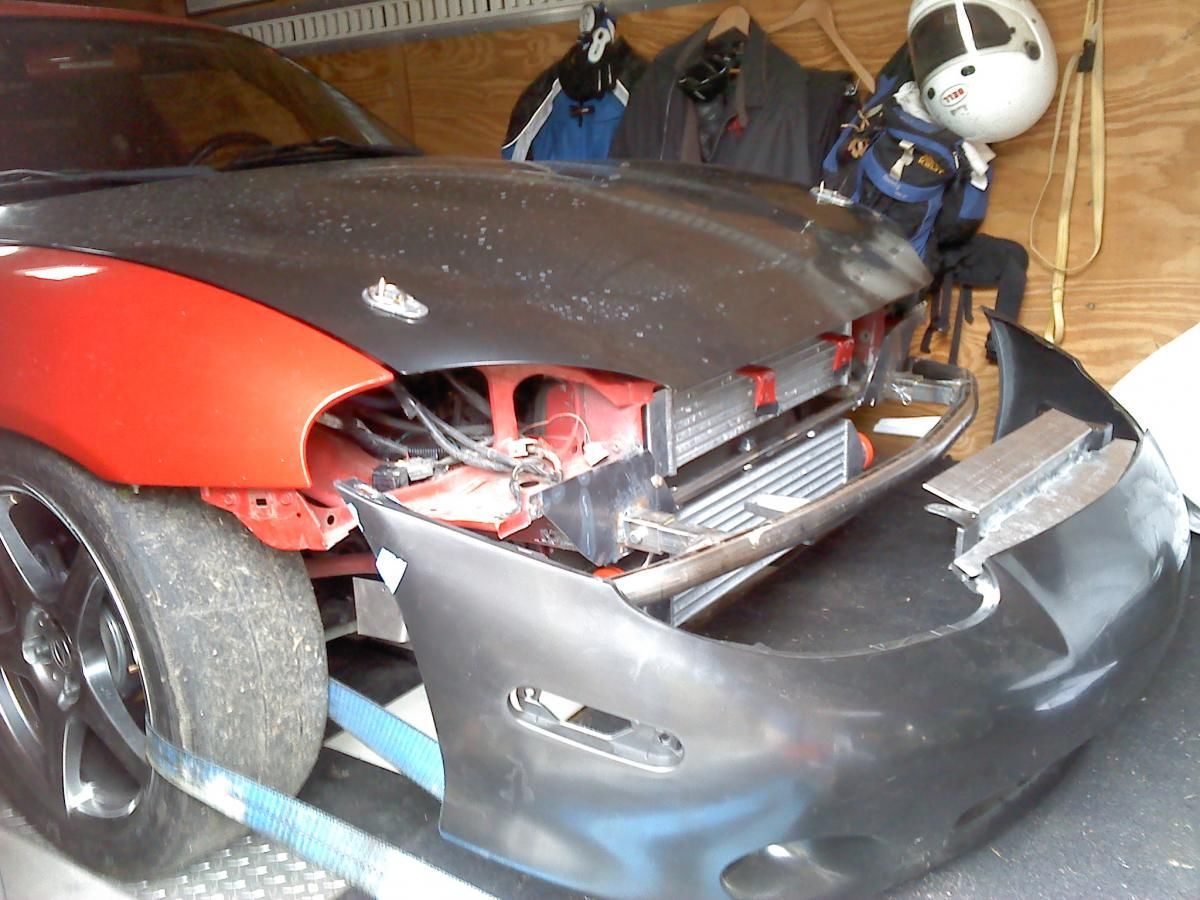

The RX-7 cooler was cheap, easy to install and has more than enough cooling capacity. It fit in nicely above the intercooler. I did have some trouble sourcing the oil fittings. I also had to add an OEM oil/water oil cooler to help warm the oil, as I found that the oil was not warming up on cool days.
Attached Thumbnails
RX8 oil cooler for boosted Miata?-80-80_picture_php_pictureid_2389_a1985c8a4ab1be20a62f651a8fd7e02b9b1fb196_7591785978d38cd37036aa.jpg   RX8 oil cooler for boosted Miata?-80-80_picture_php_pictureid_3250_91f90601d8b7adccce4cd166820927ef82e68577_dd13dd0c6408119c1865c5.jpg

Last edited by gtred; 11-06-2015 at 06:26 PM.
gtred is offline   Reply With Quote
