Old 04-11-2013, 03:53 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by v01canic View Post
i used Russell fittings for everything on my car and they worked well.

I know you didnt ask for this but thought i would add it for other people that may be looking for some help:

http://www.jegs.com/images/fittingselectionguide.pdf
You don't know what you're missing.
hustler is offline   Reply With Quote
Old 04-11-2013, 05:36 PM   #22
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

by not using mocal fittings? Kinda set the car up once and havent had to touch it again.
v01canic is offline   Reply With Quote
Old 04-12-2013, 02:43 AM   #23
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by v01canic View Post
i used Russell fittings for everything on my car and they worked well.
They have to sell it to someone... won't be me.
Rennkafer is offline   Reply With Quote
Old 04-12-2013, 04:49 AM   #24
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 266
Default

Quote:
Originally Posted by hornetball View Post
Here's a link for you.

https://www.miataturbo.net/general-m...od-read-70535/

I would not, under any circumstance, use a push-fitting for an oil line. But, if you do, be very careful to get the high-temperature rated hose. Even that is marginal for typical track oil temperatures.
Thought push-locks were ok with the proper hose as long as the hose was hose clamped. Didn't Crusher use push lock fittings?
Mobius is offline   Reply With Quote
Old 04-14-2013, 11:47 PM   #25
Newb

Join Date: Jul 2012
Location: Tampa Bay, FL
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by 240_to_miata View Post
Thanks for all the Input guys. I picked up some fragola because they are a local CT company.
Good choice. I run all Fragola lines and fittings on my Subaru and never had an issue.
ShockerGT is offline   Reply With Quote
Old 04-14-2013, 11:56 PM   #26
Senior Member

Join Date: Feb 2012
Location: chicago
Posts: 665
Total Cats: -35
Default

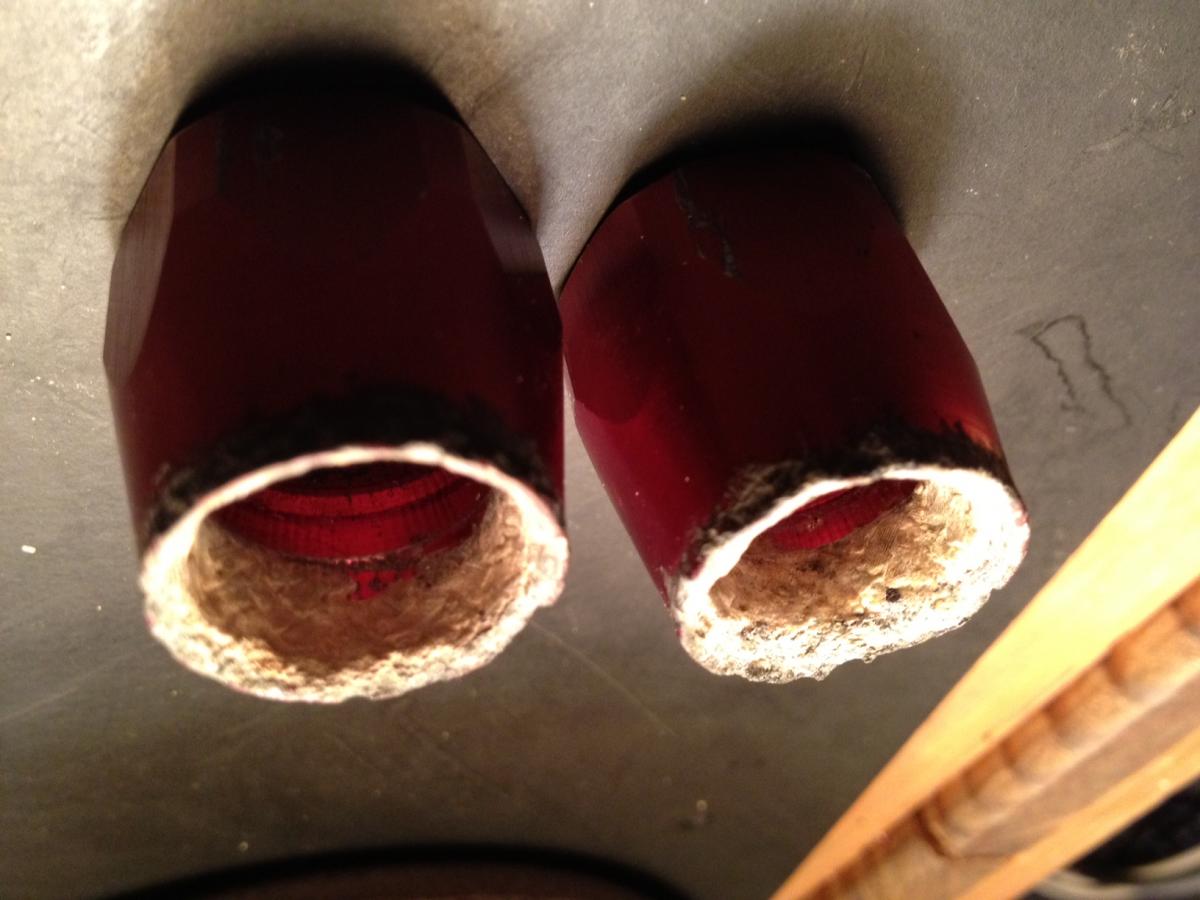

here is what you can expect from Russell after a year.

Attached Thumbnails
School me on AN lines/fittings-psreynol-25401-albums-random-459-picture-photo-1-2305.jpg
psreynol is offline   Reply With Quote
Old 04-15-2013, 09:11 PM   #27
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,311
Total Cats: 1,335
Default

Quote:
Originally Posted by Mobius View Post
Thought push-locks were ok with the proper hose as long as the hose was hose clamped. Didn't Crusher use push lock fittings?
Fragola and Aeroquip push on with retention clamps on our cars.
emilio700 is offline   Reply With Quote
Old 04-16-2013, 06:32 PM   #28
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 233
Total Cats: 14
Default

The push-locks can be very hit or miss. I think most work fine with retention clamps, but a number of manufacturers say not to on the basis that the clamp, coupled with the size/sharpness of the barb can cut the ID of the hose.
Supe is offline   Reply With Quote
Old 04-17-2013, 04:18 AM   #29
Newb

Join Date: Jan 2013
Posts: 23
Total Cats: -83
Default

Push locs are fine when using them for what they were designed for. When you assemble them correctly you literally have to cut them off. If you can pull them apart with your hands you did something wrong somewhere. Prefect solution for low pressure situations ie: catch can lines, fuel return, turbo drain, etc. Also as stated in a previous post, make sure they're supported properly.
Tork is offline   Reply With Quote
Old 04-17-2013, 09:40 AM   #30
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Yes real push lok fittings from parker require the line to be cut off. They also don't sell a fuel rated hose, all of the hoses are designed for low pressure petro based hydrualic fluid, water/glycol, and air. And parker also warns against using any sort of clamps with them, they claim the clamp can compromise the integrity of the seal.

Push lok and barb w/ clamp are two very different animals.
Leafy is offline   Reply With Quote
Old 04-18-2013, 10:22 PM   #31
Junior Member

Join Date: Dec 2012
Location: Indianapolis
Posts: 65
Total Cats: 35
Default

BMRS

/thread
plucas is offline   Reply With Quote
