Old 12-20-2011, 12:01 AM   #141
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

where and price?
Pitlab77 is offline   Reply With Quote
Old 12-20-2011, 12:11 AM   #142
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

PM the guy at club roadster.
miatauser884 is offline   Reply With Quote
Old 12-21-2011, 03:06 AM   #143
I'm Miserable!
iTrader: (5)

Join Date: Oct 2010
Location: Queens, NYC
Posts: 201
Total Cats: 3
Default

Sorry, if I missed this, what's the guy's sn at club roadster who makes the brackets?
bigx5murf is offline   Reply With Quote
Old 12-21-2011, 10:22 AM   #144
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

hnguyen037 Not sure why he shows up as account inactive here.
miatauser884 is offline   Reply With Quote
Old 12-21-2011, 10:57 AM   #145
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Pro-Car Innovation makes it. He sells it for them. Looks nice, but heavy. let us know how it works out?
Seefo is offline   Reply With Quote
Old 01-08-2012, 04:12 PM   #146
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 698
Total Cats: 48
Default

Anyone have experience putting a Recaro Pro Racer Hans in a miata? I remember a guy posting pictures of them in his car a few years ago, but the website is no longer active (specthismiata.com). I've gone through a few miata-friendly seats now and I'm tall enough that none of them have worked with my head and neck restraint. I'm thinking pretty hard about just ponying up the cash and going back to a Recaro Pro Racer like I had in my old E30, which worked with my head and neck restraint, but I'd like some sort of confirmation that I'm not gonna have to hack up my interior first.
jpreston is offline   Reply With Quote
Old 01-09-2012, 07:08 PM   #147
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Track View Post
Pro-Car Innovation makes it. He sells it for them. Looks nice, but heavy. let us know how it works out?
I got my seats in with these mounts on Sunday.

The Good: Quality of brackets seem to be top notch. They are extremely well thought out. Nice hardware included. Lots of adjustment possibility. I have mine adjusted all the way back, and it it perfect.

The Bad: 1. Taller guys may not feel like it goes back far enough. Honestly though. I probably have mine set back too far, but it's predominately DD so I went for comfort. 2. This is probably the bigger issue. The Buddy Clubs were wide enough that they required the brackets be flipped so that the mounting bolt is on the inner side of the bracket instead of the outside. So the seat can't go lower than the top pf the bolts. This lost me at least 1" of height adjustment, so my thighs barely clear the steering wheel with the seat pads in place. Actually driving may prove that the pads have to be removed.

All in all it's not bad considering only slight hammering to one spot on the tunnel to get the bracket in place. There are ways to modify the floor to get lower, but I didn't want to do this. There is amounting point for the crotch part of the harness, and numerous adjustments to angle the seat. I could probably angle the seat down more to get more clearance for my thighs.

FYI: Get a set of F***ing ratchet wrenches for installing bolts into seats. I could have probably shaved half the time or more.
miatauser884 is offline   Reply With Quote
Old 01-09-2012, 08:54 PM   #148
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Pitlab77 is offline   Reply With Quote
Old 01-09-2012, 08:55 PM   #149
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

still have not pulled the trigger on seats because of brackets.
Pitlab77 is offline   Reply With Quote
Old 01-10-2012, 12:33 AM   #150
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Yes, that is the guy.
miatauser884 is offline   Reply With Quote
Old 01-11-2012, 07:18 PM   #151
Senior Member

Join Date: May 2011
Posts: 548
Total Cats: 56
Default

Round and Round I go with race seats. In talking to Moti of BBfab he suggested a FIA homologated fiberglass shell seat. I went down to subesports.com since they are local and tried out some seats.

I had honestly planned on getting something cheap like momo starts but all the cheap ---- at subesports was un-comfortable as hell. The only two seats I felt were worth a damn were the Cobra Imola and the Cobra Suzuka.

Any one have experience mounting these? Any one have any opinion one what brackets I should use? Cobra sells some and they look nice but are god aweful expensive and have a sort of triangle shape to them... I'm wondering if this will create fitment problems. link to bracket here http://www.subesports.com/products/c...bra/prodID/677

Two last questions... for mounting the side mount brackets to the floor... what length and diameter Grade 8 bolts are people using? Also does the NB driver side seat belt receiver work for bolting to the trans tunnel or should I find an earlier model one with a longer "pigtail'.

TIA
EErockMiata is online now   Reply With Quote
Old 01-11-2012, 07:29 PM   #152
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by EErockMiata View Post
Round and Round I go with race seats. In talking to Moti of BBfab he suggested a FIA homologated fiberglass shell seat. I went down to subesports.com since they are local and tried out some seats.

I had honestly planned on getting something cheap like momo starts but all the cheap ---- at subesports was un-comfortable as hell. The only two seats I felt were worth a damn were the Cobra Imola and the Cobra Suzuka.

Any one have experience mounting these? Any one have any opinion one what brackets I should use? Cobra sells some and they look nice but are god aweful expensive and have a sort of triangle shape to them... I'm wondering if this will create fitment problems. link to bracket here http://www.subesports.com/products/c...bra/prodID/677

Two last questions... for mounting the side mount brackets to the floor... what length and diameter Grade 8 bolts are people using? Also does the NB driver side seat belt receiver work for bolting to the trans tunnel or should I find an earlier model one with a longer "pigtail'.

TIA
I had to bend my seatbelt receiver, but it should work just fine on the trans tunnel otherwise.

I don't have any experience with those seats or the mounts (perhaps pictures would help).

I used the two stock bolts on the front of the seat, then I picked up some comparable 14mm bolts to use to mount in the floor. I think a 14mm is usually a M10.

There is a pretty good seat thread that might have your seat in it (I remember a few cobra installs on there) on miata.net. Search (in google):
5/6 point race seat picture miata.net

and it should pop up.
Seefo is offline   Reply With Quote
Old 01-11-2012, 07:43 PM   #153
Senior Member

Join Date: May 2011
Posts: 548
Total Cats: 56
Default

really appreciate the fast response track.

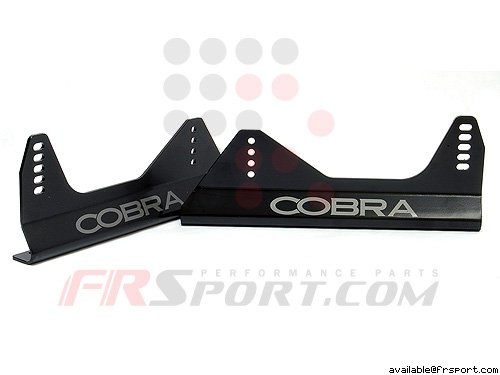

The brackets that they have in stock at subesports look sorta like these


They are a touch shorter and don't quite have as many holes for mounting (I'll prob drill one to get as low as possible). My concern was that little jog in teh vertical section of the bracket. I'm guess that one that is just a standard L shape would be easier to mount but possibly more prone to deform in an impact event?

I scoped that miata.net thread and there is indeed ample good info available there however not much info on the hardware actually used. I guess maybe the best thing to do is just get the seat in place with off the shelf hardware from a hardware store and then order up replacements in grade 8 hardware.
Attached Thumbnails
EErockMiata is online now   Reply With Quote
Old 01-11-2012, 07:52 PM   #154
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Yea I definitely would not use that bracket. thats going to force you out further from the trans tunnel and 100% will not allow you to center the seat (or even get it close).

I would stay away from that, perhaps you can find another manufacturer's side mount that fits the cobra you want.

I found plenty of grade 8 hardware at Ace hardware (and class 10.9 too!). Just try to stick with metric that way any adjustments or movements of the seat won't require 3 different wrenches/sockets.

I picked up a bolt, two washers and a lock flange nut for each leg. I also bought some cheap hot rolled steel then cut it to 6"x4" and painted it (rust) for the seat backing plates. I assume you plan to cut the rear hump (I suggest it for clearance and low).
Seefo is offline   Reply With Quote
Old 01-11-2012, 09:08 PM   #155
Senior Member

Join Date: May 2011
Posts: 548
Total Cats: 56
Default

Quote:
Originally Posted by Track View Post
Yea I definitely would not use that bracket. thats going to force you out further from the trans tunnel and 100% will not allow you to center the seat (or even get it close).

I would stay away from that, perhaps you can find another manufacturer's side mount that fits the cobra you want.

I found plenty of grade 8 hardware at Ace hardware (and class 10.9 too!). Just try to stick with metric that way any adjustments or movements of the seat won't require 3 different wrenches/sockets.

I picked up a bolt, two washers and a lock flange nut for each leg. I also bought some cheap hot rolled steel then cut it to 6"x4" and painted it (rust) for the seat backing plates. I assume you plan to cut the rear hump (I suggest it for clearance and low).
You pretty much hit my plan right on the head. Good to know that grade 8 hardware is available locally for the most part. I really appreciate the clarifications you've thrown down. It's going to make the first few hours of my install go much easier.

The Cobra shouldn't be that different than most of the fiberglass backed seats out there. I was under the impression that the front-back spacing on most of the FIA/SFI seats are pretty close. Off to do some more research! I am for sure going to start looking for new brackets, I know that much.

Last edited by EErockMiata; 01-11-2012 at 09:24 PM.
EErockMiata is online now   Reply With Quote
Old 01-14-2012, 04:08 PM   #156
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

I have a Cobra Imola 2 for my passenger seat. I used steel OMP brackets to mount it: https://www.pegasusautoracing.com/pr...asp?RecID=9188

It was really easy to mount but it's the only seat I've had on the passenger side. I have a Momo Cup VTR on the driver's side and it took a lot more work.
njn63 is offline   Reply With Quote
Old 01-14-2012, 06:49 PM   #157
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

^very reasonable price for a steel side mount bracket btw.
Seefo is offline   Reply With Quote
Old 01-14-2012, 07:37 PM   #158
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,020
Total Cats: 114
Default

To those with a seat bolted to the floor: Can you still remove the hardtop with the latches or do you have the spec miata plates? I need to slide my seat forward a couple of inches if I want to take the top off. Still on the oem latches though.
Oscar is offline   Reply With Quote
Old 01-14-2012, 07:41 PM   #159
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Would anyone with the ultrashield seats reccomend them for anything but track use?
jbrown7815 is offline   Reply With Quote
Old 01-14-2012, 10:37 PM   #160
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by jbrown7815 View Post
Would anyone with the ultrashield seats reccomend them for anything but track use?
my seat is blocked by the roll bar from going to far back....the wings on my seat are 2" forward of where the door and the frame meet.



Quote:
Originally Posted by jbrown7815 View Post
Would anyone with the ultrashield seats reccomend them for anything but track use?
which ones? I think some people will tell you to stay away from the aluminum seats that have the flared sides that can hit your ribs. I don't have any experience with that, but I think thats more of a concern on non-caged cars. especially if you are on the street.
Seefo is offline   Reply With Quote
