Old 03-13-2013, 07:06 PM   #61
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

I found that WD40 does pretty well on cleaning up the sealant left behind from removing the rubber seals. It takes a little elbow grease, but it seemed to work quicker than other solutions I tried.
Midtenn is offline   Reply With Quote
Old 03-13-2013, 07:16 PM   #62
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,673
Total Cats: 1,561
Default

Quote:
Originally Posted by miata2fast View Post
Clean up of paint, seam sealer, and adhesive has been the biggest hurdle in any welding I have done on the body. It is like 3:1 in time investment over welding. Maybe more.

I have had good luck with a wire wheel on a drill. A 90* angle die grinder with a scotch bright pad works pretty good in some areas too. I used various size wood chisles for the globs of seam sealer or undercoating in many spots.
Pics or gtfo.
sixshooter is online now   Reply With Quote
Old 03-13-2013, 07:19 PM   #63
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Quote:
Originally Posted by sixshooter View Post
Pics or gtfo.
I am still working on my ghetto engine bay.
miata2fast is online now   Reply With Quote
Old 03-12-2014, 09:03 PM   #64
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

Thread revival!

What did you use for Seam welding your racecar? Mig, tig, rods or semi...

I have some time to work on the tub and will attack this while the wiring is out.
joyrider is offline   Reply With Quote
Old 03-12-2014, 09:09 PM   #65
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Mig.
It's as easy as laying down caulk.

I couldn't imagine tig welding all the seams, could take weeks, or even months.

Stick welding would be to messy.
Erat is offline   Reply With Quote
Old 03-13-2014, 10:55 AM   #66
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Erat View Post
I couldn't imagine tig welding all the seams, could take weeks, or even months.
LOL.

I could TIG it just as fast as a mig. No need for filler material, just melt down the hip to the point they bond. Being that your welding mild steel, you don't need to wait for a purge or postflow.

Being that the parts your welding here are all protruding with factory tack welds your not compromising anything with autogenously welding TIG.
shlammed is offline   Reply With Quote
Old 03-13-2014, 11:08 AM   #67
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Erat View Post
Mig.
It's as easy as laying down caulk.

I couldn't imagine tig welding all the seams, could take weeks, or even months.
I will probably be tig welding my seams sometime in the near future. I will let you know how it goes, I really expect that I will spend more money on prep time, then the actual welding.
shuiend is offline   Reply With Quote
Old 03-13-2014, 11:31 AM   #68
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Quote:
Originally Posted by shlammed View Post
LOL.

I could TIG it just as fast as a mig. No need for filler material, just melt down the hip to the point they bond. Being that your welding mild steel, you don't need to wait for a purge or postflow.

Being that the parts your welding here are all protruding with factory tack welds your not compromising anything with autogenously welding TIG.
The plus side of tig welding everything is not having to do all the post work. So that right there alone makes it worth it to use the tig process. A lot of times where i work i'll tig parts together even if there is 100 of them because that's 100 parts i don't have to grind down had i used the mig.

I know for a fact mig welding would be faster though. You can simply move the gun faster, it's easier to manuver and you don't have to stick your head right down next to it and worry about dipping the tip.

Quote:
Originally Posted by shuiend View Post
I will probably be tig welding my seams sometime in the near future. I will let you know how it goes, I really expect that I will spend more money on prep time, then the actual welding.
Pre prep always takes longest and costs the most.
But like i said, post prep and not having to grind out welds to make things look decent is key.
Erat is offline   Reply With Quote
Old 03-13-2014, 11:35 AM   #69
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Erat View Post
The plus side of tig welding everything is not having to do all the post work. So that right there alone makes it worth it to use the tig process. A lot of times where i work i'll tig parts together even if there is 100 of them because that's 100 parts i don't have to grind down had i used the mig.

I know for a fact mig welding would be faster though. You can simply move the gun faster, it's easier to manuver and you don't have to stick your head right down next to it and worry about dipping the tip.



Pre prep always takes longest and costs the most.
But like i said, post prep and not having to grind out welds to make things look decent is key.
Honestly for me, I only own a TIG welder, so that is why I am doing it that way. I have only used a mig welder once in my life, and that was trying to seam weld a friends car. I did not care for it at all, but then again I was given no directions. Basically handed the mig welder and said go for it.
shuiend is offline   Reply With Quote
Old 03-13-2014, 01:18 PM   #70
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Tig FTW. This is from the local Miata forum: NorCal Rotary and Roadsters • View topic - WTB: seam welding the door openings

Twibs is on here somewhere I believe? He may be willing to chime in if he sees this.
EO2K is offline   Reply With Quote
Old 03-13-2014, 02:55 PM   #71
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

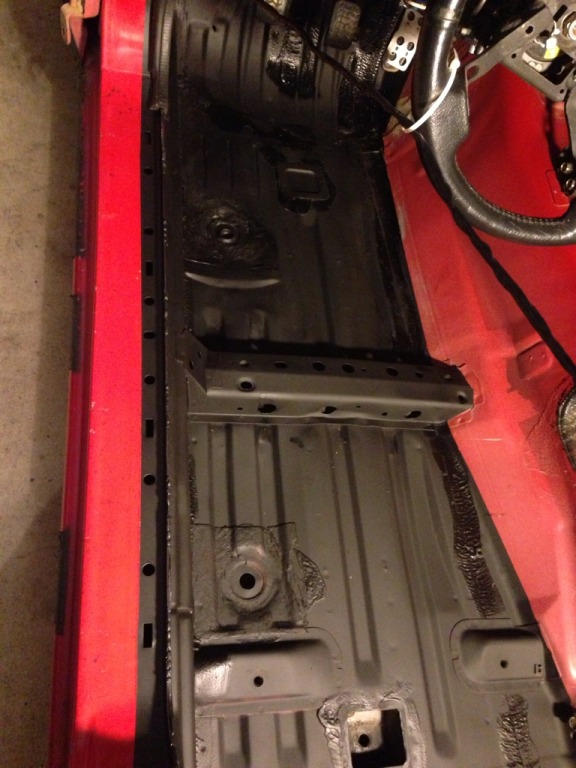

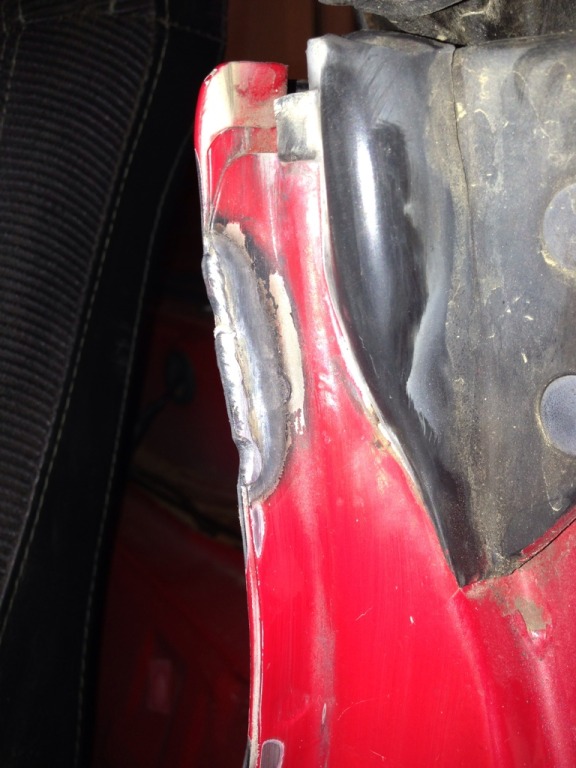

Is it that much different than my flux core welding?



I even painted mine too.



Just less mess?
Attached Thumbnails
Some Seam Weld Photos-a438c367-dc8f-4052-b2a5-c7f255054bd7-1590-0000012ec20f8370_zps0d6d3128.jpg   Some Seam Weld Photos-e3d3b409-072f-4174-ae74-250feee3de6e-1590-000001ddb544e4fb_zpsdbc711aa.jpg
curly is offline   Reply With Quote
Old 03-14-2014, 02:00 AM   #72
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 581
Total Cats: 4
Default

That's nice Curly, I have access to flux core too. I'll give it a shot. Used MIG for trailer building and didn't like the mess it does and all the grinding needed.

Nice work BTW.
joyrider is offline   Reply With Quote
Old 03-14-2014, 02:21 AM   #73
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

Soo iv mig'd and tig'd miatas. And by far its much nicer to tig the door seams. Its the little things that add up that make it worth while. no possible spatter hitting the windshield or windows causing burn sports on the glass, no spatter hitting anything (carpet, dash, etc) cause there is virtually none. The door seals continue to fit as they should without a heaping mess of hot glue gun style weld behind them.

On the door seams not much filler is needed only on a few sections where there is a large gap.

For the rest of the car its MUCH MUCH faster to mig weld. I have tig'd behind the fender area which wasn't to bad but the worst was behind the dash. ill probably never do that again.


On my personal car, i originally mig'd it then i got my tig so i ground off all the old welds and re did them. Much cleaner but a bunch of work.
Twibs415 is offline   Reply With Quote
Old 03-14-2014, 02:25 AM   #74
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 388
Total Cats: 41
Default

Mig = some mess
flux core = more mess

Either will make a good seam weld.

You guys talking about your tigs.... most tig machines will stick weld as well :P Stick with HF start ftw.
leboeuf is offline   Reply With Quote
Old 03-14-2014, 02:34 AM   #75
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

I have a cone shaped wire wheel and a standard wire wheel in my DeWalt drill. They made all the difference. It really is a colossal mess, just be ready to wire wheel and vacuum once you're done. And make sure you're ready to do all of it at once, if you go back to do more, you'll recreate the mess within minutes.
curly is offline   Reply With Quote
Old 03-14-2014, 11:33 AM   #76
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

[

Last edited by ryansmoneypit; 03-14-2014 at 11:51 AM.
ryansmoneypit is offline   Reply With Quote
Old 03-14-2014, 12:03 PM   #77
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Twibs415 View Post
... but the worst was behind the dash. ill probably never do that again..
run a switch instead of a pedal. You can sit cross legged on the floor and weld away.

set the panel proper and running a switch is great. I use a switch for almost everything that isn't aluminum.
shlammed is offline   Reply With Quote
Old 03-15-2014, 01:24 AM   #78
Junior Member
iTrader: (6)

Join Date: Feb 2011
Posts: 421
Total Cats: 9
Default

Arc control wasnt the issue. The issue was there is so much god damn sealer.
Twibs415 is offline   Reply With Quote
Old 03-15-2014, 08:55 AM   #79
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Quote:
Originally Posted by curly View Post
I have a cone shaped wire wheel and a standard wire wheel in my DeWalt drill. They made all the difference. It really is a colossal mess, just be ready to wire wheel and vacuum once you're done. And make sure you're ready to do all of it at once, if you go back to do more, you'll recreate the mess within minutes.
I also used a wire wheel, and it cleaned the surface like squeaky. It was less of a hassle for me since my tub was bare. Definitely the way to go here.
miata2fast is online now   Reply With Quote
Old 08-10-2015, 10:18 AM   #80
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

I recognize those photos! My old silver car!

Does anyone have advice on how to clean between the layers? I can clean the outside well enough with flapper disks, I'm sick of making booger welds from contamination and want to try and make these welds as pretty as I can with my mig.

Anyone remember what voltage and wire feed settings they used?




Quote:
Originally Posted by sjmarcy View Post

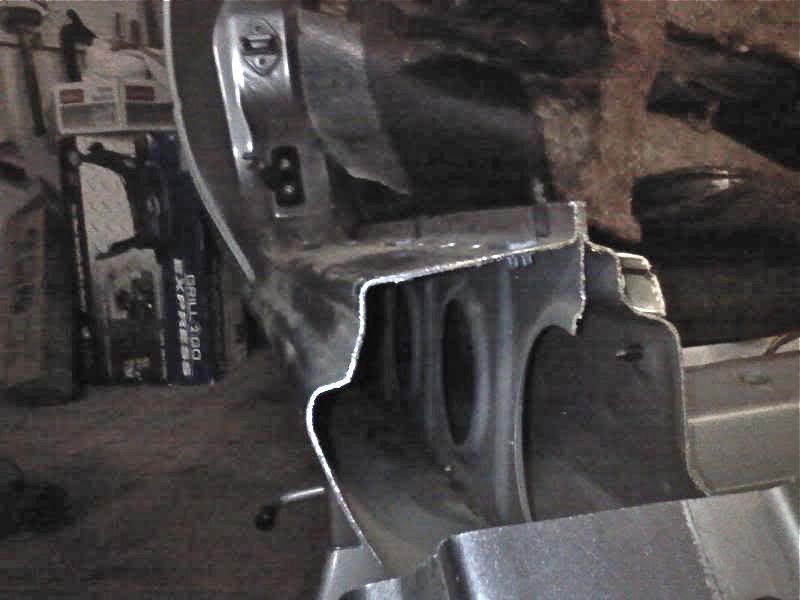

Here are some rocker cross section photos I came across. The one with extra sheet metal is from an NB, the basic one is an NA. Hmm I didn't know this! It seems like there are some extra zones that could benefit from seam welding on an NB, the outboard layers to one another. I wonder if the NA cars varied over the years. I think that Miatas got more unibody gussets over the years. FWIW my 97 has reinforcement at the rocker behind the seat and at the corners of the foot wells under the dash at the tranny tunnel and at the outboard kick panel.



Attached Thumbnails
Some Seam Weld Photos-80-22701d1313170398_some_seam_weld_photos_narocker_89b921bd14673e84e80d4df59b3be367edef5363.jpg
BenR is offline   Reply With Quote
