Old 08-10-2015, 10:24 AM   #81
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Show a picture of your welds. Might be just a case of proper machine set up. Cantamination usually results in bubbling, spattering and wierd growths while the weld is cooling. Of course, this is only from my own personal experience.
ryansmoneypit is offline   Reply With Quote
Old 08-10-2015, 11:06 AM   #82
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

Wire wheel seams, scrape out what sealant you can with a carpet knife then heat up the seam with a hand held torch and wire brush whatever burnt crap escapes. Once the sealant you can't see has burned, when the mig wire hits it doesn't booger much if any at all.

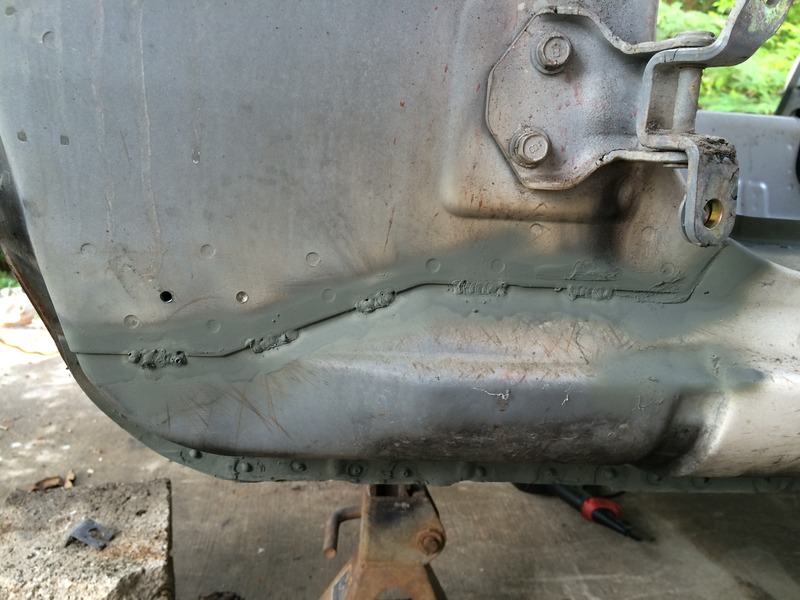

Left most weld was the first which I didn't "burn" with the torch, heated the rest up and wire brushed the ensuing soot and got much better results
Attached Thumbnails
Some Seam Weld Photos-fb1b1a7a-f82c-4b8a-aff4-81c7414265a4_zpsvbwtilou.jpg
Sirnixalot is offline   Reply With Quote
Old 08-10-2015, 11:13 AM   #83
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Oh, yeah. You're good to go.
ryansmoneypit is offline   Reply With Quote
Old 08-11-2015, 11:05 PM   #84
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by ryansmoneypit View Post
Show a picture of your welds. Might be just a case of proper machine set up. Cantamination usually results in bubbling, spattering and wierd growths while the weld is cooling. Of course, this is only from my own personal experience.

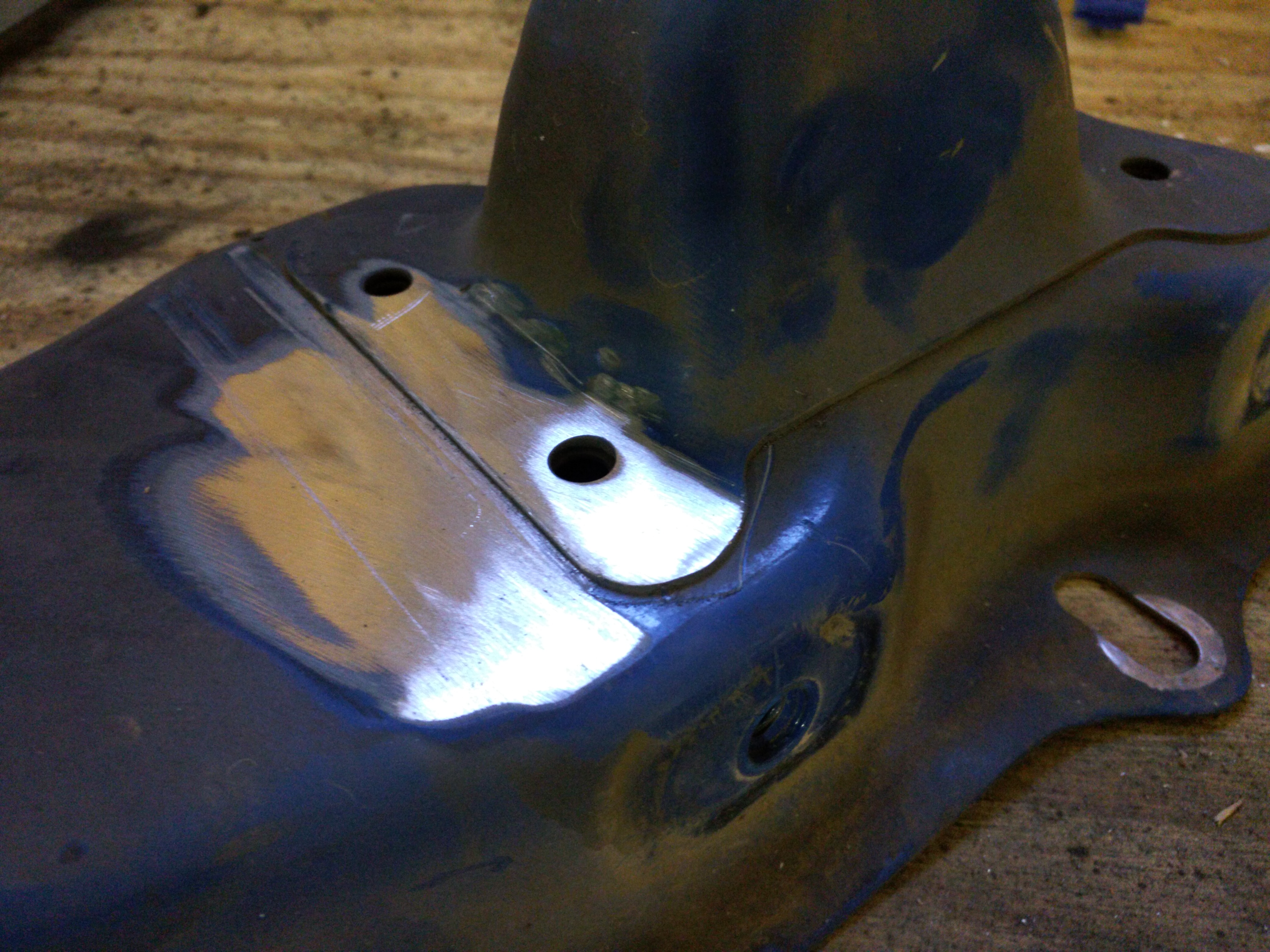

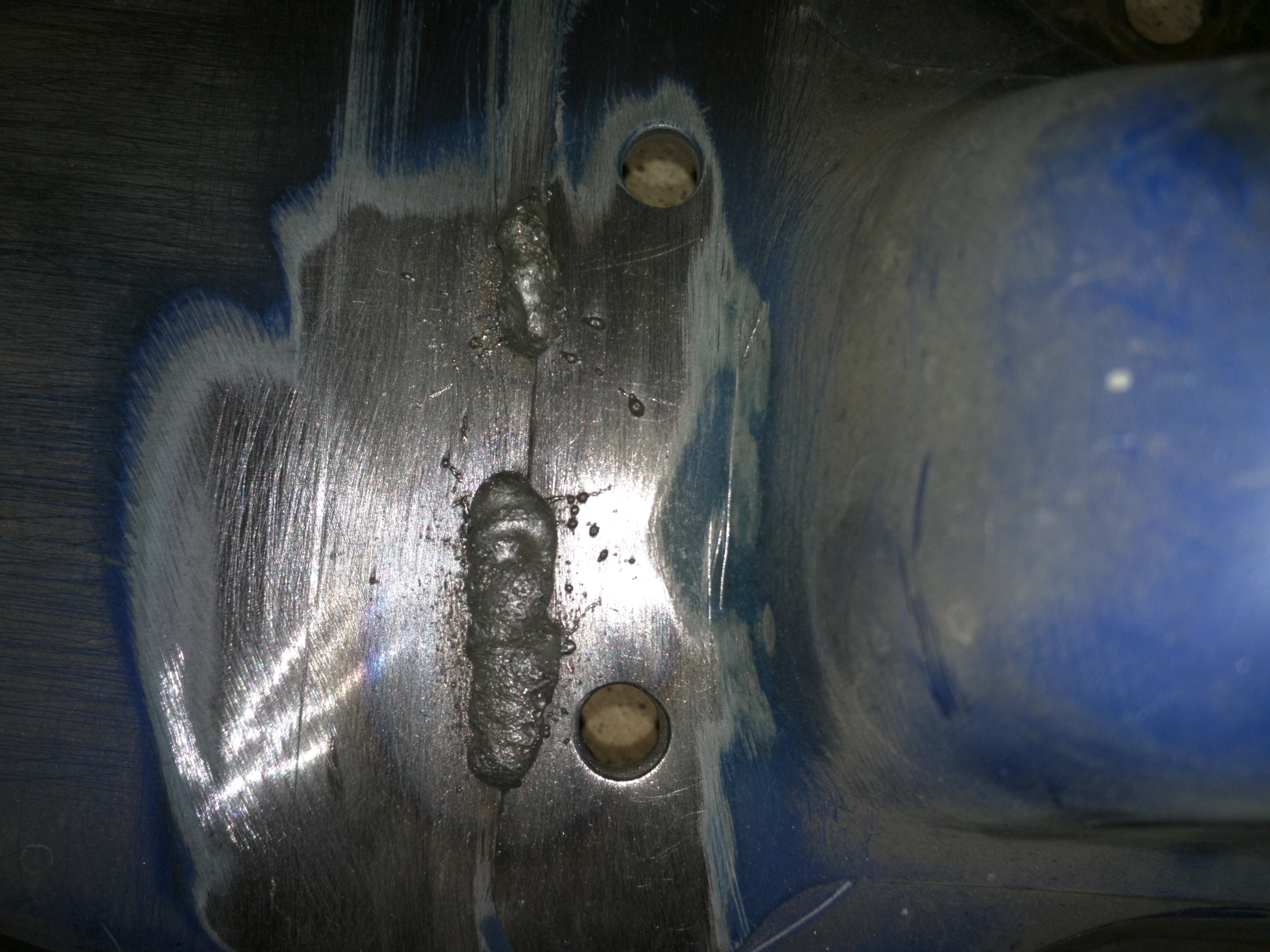

This is a scrap piece of the car, I'm still new so any advice is appreciated.

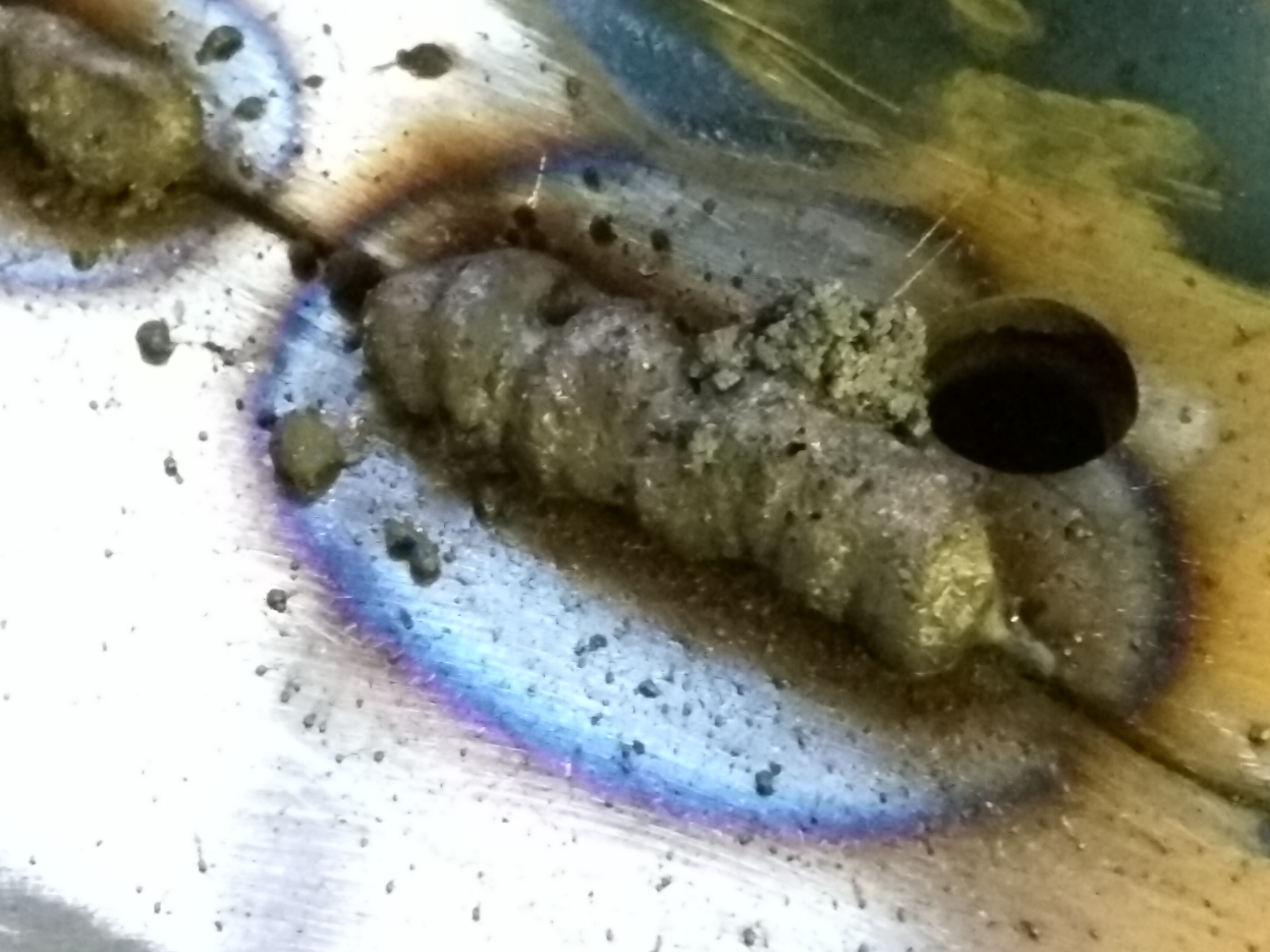

I see growths, I imagine I need to get it cleaner? How would I clean between the seams?




Update: Sounds like burn the area with a torch is the solution to cleaning between the pinched seams?
Attached Thumbnails
Some Seam Weld Photos-weld.jpg   Some Seam Weld Photos-weld2.jpg   Some Seam Weld Photos-weld3.jpg

Last edited by BenR; 08-11-2015 at 11:18 PM.
BenR is offline   Reply With Quote
Old 08-12-2015, 10:48 AM   #85
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

It's not a full blow solution as it doesn't get it all. But I have found it helps greatly.

Also those welds look cold (keep in mind I am self taught and no expert)
Sirnixalot is offline   Reply With Quote
Old 08-12-2015, 10:53 AM   #86
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

^^^^ yes, contaminated and cold. Those worms and mountains are from grinder dust and the adhesive. Blow it all out with air, then weld. And turn it up! You can stitch with lots of heat.
ryansmoneypit is offline   Reply With Quote
Old 08-12-2015, 11:02 AM   #87
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

^ not entirely true. My little Lincoln 125 amp on the lowest setting can still burn through the thin stuff. That's probably down to my impatience though and trying to run a longer bead than I should without cooling down.
Sirnixalot is offline   Reply With Quote
Old 08-12-2015, 11:06 AM   #88
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

That's why I used the word stitch. One Bead, wait for orange to cool, then another. Repeat as necessary. It starts to go pretty fast. Not ideal for structural steel building, but fine for a seam on a car. Wire size can have a pretty big effect too, but . 030 sounds fine.

Edit: maybe stitch wasn't the best wording for what I was meaning.
ryansmoneypit is offline   Reply With Quote
Old 09-07-2015, 08:16 PM   #89
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Sirnixalot View Post
It's not a full blow solution as it doesn't get it all. But I have found it helps greatly.

Also those welds look cold (keep in mind I am self taught and no expert)



Changed to different size and type of wire. That seems to have made a huge difference, the welds self clean much better and the pools are hotter and easier to control.

My little 110 doesn't seem to have enough voltage to weld with that other stuff.
BenR is offline   Reply With Quote
Old 09-07-2015, 10:00 PM   #90
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Quote:
Originally Posted by BenR View Post
Changed to different size and type of wire. That seems to have made a huge difference, the welds self clean much better and the pools are hotter and easier to control.

My little 110 doesn't seem to have enough voltage to weld with that other stuff.
What are you finding works better? I just bought some 035 wire from NAPA today prepping for some seam welding this off season. I forget the brand name, really didn't think it would matter all that much.
90civichhb is offline   Reply With Quote
Old 09-08-2015, 12:13 PM   #91
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

.25 Hobart solid core mig has a copper coating, with argon co2 75/25. Lincoln electric 140 hd, set to d on power, 2 on feed. May not be the best, but seems to be working.

Last edited by BenR; 09-08-2015 at 12:27 PM.
BenR is offline   Reply With Quote
Old 09-24-2015, 11:45 PM   #92
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Quote:
Originally Posted by 90civichhb View Post
What are you finding works better? I just bought some 035 wire from NAPA today prepping for some seam welding this off season. I forget the brand name, really didn't think it would matter all that much.
I usually stick to a welding supply shop, but depends on what your Napa has, maybe some nice stuff. I'm using Hobart .023 wire, same as above, otherwise. Copper coated wire and using c25 gas. Cleaning the item being welded is key.

Stumbled on this thread while looking at other people's seam welding. Hope to have pics of my subframe rails and seam welding in the next coming weeks, Chassis is stripped but still removing seam sealer, one panel at a time.

So far, all I've done is subframes and control arms, and other various parts. I had them sand blasted and that saved me prep time. On the Chassis parts I have done, I've used paint stripper (muratic acid) and scotch-lock buffing pads to clean the areas. So far, so good!
chance91 is offline   Reply With Quote
Old 09-25-2015, 12:40 PM   #93
Junior Member
iTrader: (1)

Join Date: Feb 2012
Location: Hagerstown, MD
Posts: 140
Total Cats: 0
Default

Quote:
Originally Posted by BenR View Post
.25 Hobart solid core mig has a copper coating, with argon co2 75/25. Lincoln electric 140 hd, set to d on power, 2 on feed. May not be the best, but seems to be working.
Settings seem odd to me. Just saying. Seems hot for any sheet metal on a miata and not enough wire speed.

And you can definitely weld .03 and .035 wire with your machine...
ericwh is offline   Reply With Quote
Old 09-25-2015, 09:52 PM   #94
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

how the hell do you get it to weld sheet on D.

On my 125 amp flux core Lincoln its A and a gnats **** above 1 wire feed. Must be the 035 wire.
Sirnixalot is offline   Reply With Quote
Old 09-25-2015, 10:33 PM   #95
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Because Flux core burns quite a bit hotter. And...you weld like a *****. I weld hot as hell, I just move fast.
ryansmoneypit is offline   Reply With Quote
Old 09-26-2015, 01:08 AM   #96
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by ericwh View Post
Settings seem odd to me. Just saying. Seems hot for any sheet metal on a miata and not enough wire speed.

And you can definitely weld .03 and .035 wire with your machine...


Not a pro over here. I fully realize I may be doing it all wrong. I would love suggestions on how to do it better.

Less heat was fat beads with less penetration.

I have a bit of vintage Mazda miata sheet I've cut off to run beads on. I will run and take a photo of any combo setting on this wire and gas.
BenR is offline   Reply With Quote
Old 09-26-2015, 10:48 AM   #97
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

Is it plausible to do this type of work with just the flux core or is running gas a necessity?
90civichhb is offline   Reply With Quote
Old 09-26-2015, 12:53 PM   #98
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 387
Total Cats: 38
Default

I would think the Flux core is the best option. I think you can get wire specifically designed for dirty work.
In fact I would try Flux core and gas if I did any more seam welding
leboeuf is offline   Reply With Quote
Old 09-26-2015, 04:53 PM   #99
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Quote:
Originally Posted by 90civichhb View Post
Is it plausible to do this type of work with just the flux core or is running gas a necessity?
I think a good quality Flux core wire and proper settings you'd be fine. My personal preference is always gas, but if you don't mind the bit of mess, flux core would work.
chance91 is offline   Reply With Quote
