Old 11-02-2012, 07:26 PM   #1
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default SSMtobeturbo'd is now turbo'd

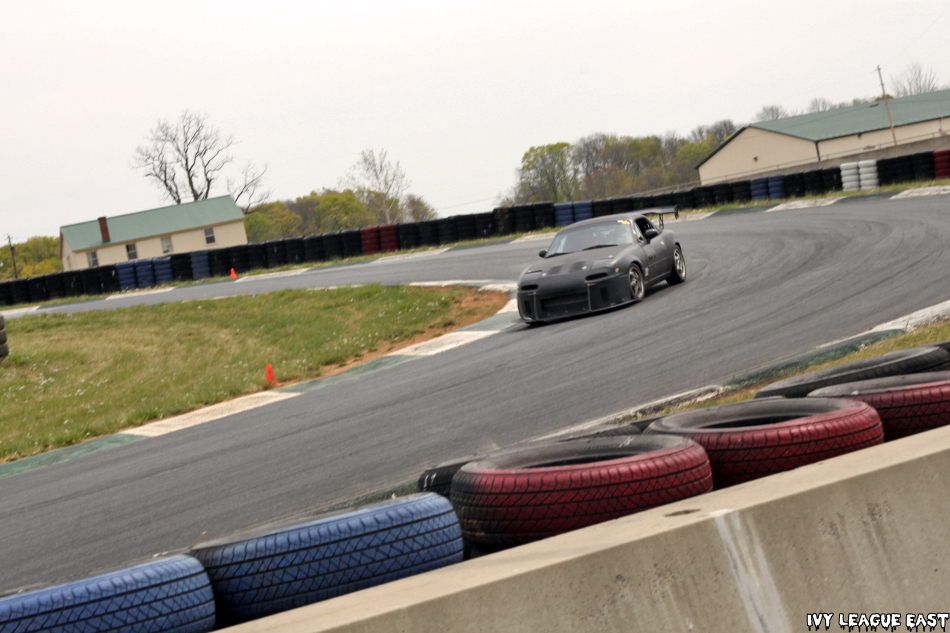

Well after a bit of a nightmare year, which included wouldn't start when cold (buy ez start); overheating problems (take thermostat out); running too cool (as thermostat is out - block off radiator using cardboard then put new thermostat back in); hood flying off (concentrate more), electrical fire (rewire) lil' turbo finally showed her potential last weekend at Summit Point, WV

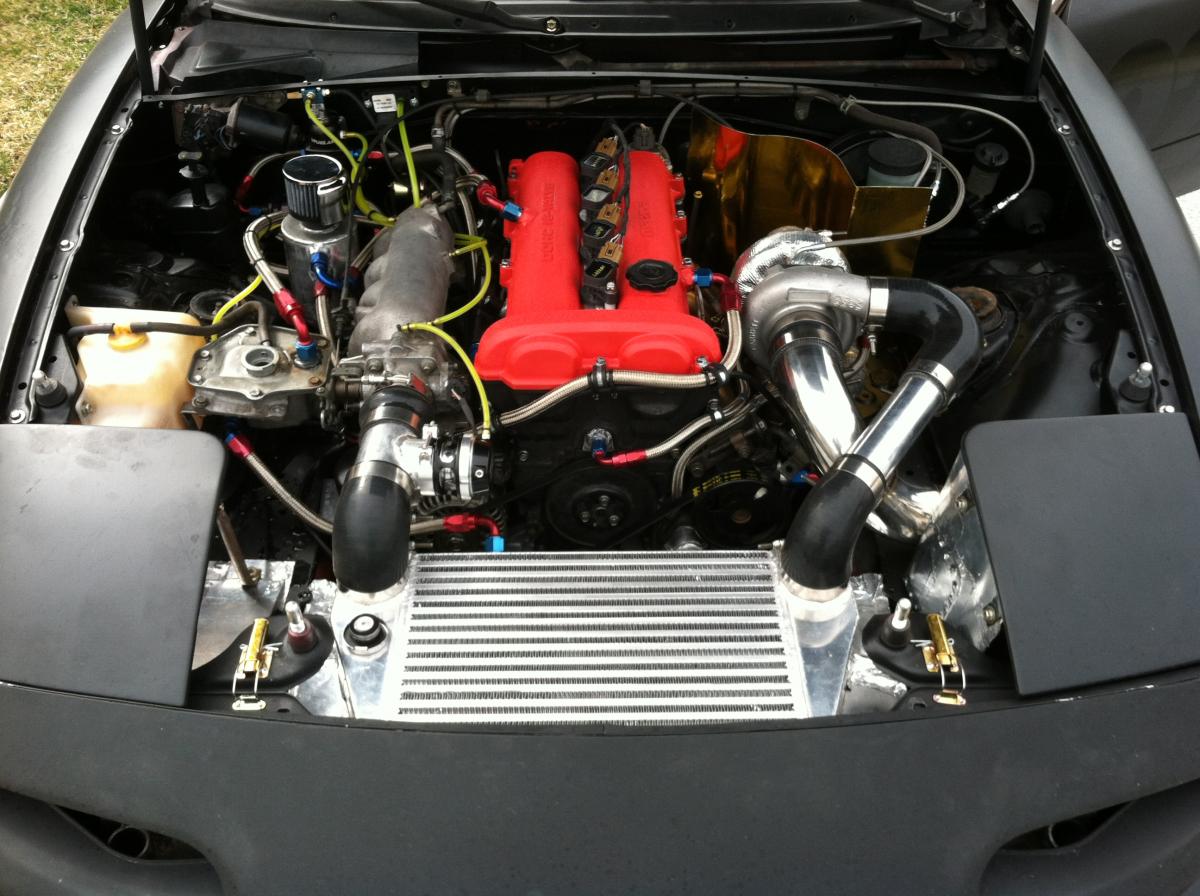

Build Specs:

1990 Spec Miata chassis
1994 1.8 engine
Mazdaspeed 6 speed transmission
949 racing twin disc racing clutch
Wiseco pistons with Eagle H-beam connecting rods
Mazdaspeed crankshaft with ACL racing bearing
Supertec valve springs/retainers/keepers Stock valves
GT2871RS turbo
750cc Injector Dynamic injectors
Deatschwerks 300lph intank pump
Turbos-smart Comp-gate 40mm waste gate
AEM EMS v1 (30-1710 box)
AEM EBC solenoid
Monster mad max front splitter
Supermiata GTC 200 wing
repainted hotrod flat black

- still on Spec Miata bilstein shocks, 7" wheels and shaved Toyo RA1s but upgraded brakes to TrackSpeed BBK 11.75 with DTC60s

Tuned to 302 rwhp / 284 lb/ft torque on E85 at 21 psi (more on this later)


link to video here - https://vimeo.com/51962874


This was only the third time I'd driven the car at speed so i was very timid on the brakes so not to flat spot the tires and very very gentle on the accelerator until lined up straight as scared of the turbo boost with 302 hp on 7" spec miata tires.... but in a straight line ..........zooooom, zooooooooooom!

There was really no need to heel and toe ......except it does sound good!

I felt bad (afterwards) giving the first Porsche the pass and then out accelerating him .... but he was faster than me in the corners (as I was being so gentle) so i gave him and easy pass between 2 and 3. When i get more confident with the car, I'll get him in the corners as well - no problem


Next steps now that car is running well:

Retuned off E85 onto premium gas (done - more later)
Winter project - upgrade to 949 Xida coilovers; 949 15 x 10" 6ULs; hoosiers and fender flares

Thanks to my main man, Zak for making this happen and my wife for not ever bothering to check the bank balance ..........

Cheers
SSM now turbo'd
Attached Thumbnails
SSMtobeturbo'd is now turbo'd-img_1294.jpg   SSMtobeturbo'd is now turbo'd-turbo-miata.jpg
SSMtobeturbo'd is offline   Reply With Quote
Old 11-02-2012, 07:47 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Good choice on the v mount, mine was great for on track AITs close to or at ambient.

Looks great
Splitime is offline   Reply With Quote
Old 11-02-2012, 09:41 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

VERY nice. 'Grats man
18psi is offline   Reply With Quote
Old 11-04-2012, 07:34 AM   #4
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

It might be the angle of the camera, and it might be that you were just taking it easy but it looks like you're mid-track in T7 which would hurt your entry to T8 a lot. I'm used to being way left in 7, allowing for more go pedal.
stinkycheezmonky is offline   Reply With Quote
Old 11-04-2012, 11:28 AM   #5
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

Looks great! Converting a spec miata to turbo was my first thought. I could not find the right donor before coming across the TC car I bought.
k24madness is offline   Reply With Quote
Old 11-04-2012, 11:39 AM   #6
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

Super clean! Pics of the turbo manifold?
viperormiata is offline   Reply With Quote
Old 11-05-2012, 10:55 AM   #7
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

Why would you spend all that money and be on Bilsteins and 7" rims?
jacob300zx is offline   Reply With Quote
Old 11-05-2012, 09:19 PM   #8
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by stinkycheezmonky View Post
It might be the angle of the camera, and it might be that you were just taking it easy but it looks like you're mid-track in T7 which would hurt your entry to T8 a lot. I'm used to being way left in 7, allowing for more go pedal.
Hey Stinkycheezmonky - Great name!

I reviewed the vid and the line looks ok (ish!) to me - I am taking it easy but my front right wheel isn't too far away from the right hand side of the track at turn in .... so probably just the camera angle. On a side note, i do run the midtrack line at 7 when racing my spec miata to (i) defend against others and (ii) even thou flat all the way from exit of 6 to 10, the spec miata race car doesn't need to go far right to take the corner

Cheers
SSMtobeturbo'd is offline   Reply With Quote
Old 11-05-2012, 09:24 PM   #9
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by k24madness View Post
Looks great! Converting a spec miata to turbo was my first thought. I could not find the right donor before coming across the TC car I bought.
I'm not sure using a spec miata was the smartest idea as the cars are generally much more expensive than a later date donor car..... but I did it mainly for ease, convenience and full roll cage. Hind sight is a wonderful thing as probably much cheaper to buy a newer donor car, strip out, weld in new cage and used saved money for better suspension and big wheels


Cheers
SSM
SSMtobeturbo'd is offline   Reply With Quote
Old 11-05-2012, 09:29 PM   #10
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

What are you using for vacuum line? That looks really clean.
vehicular is offline   Reply With Quote
Old 11-05-2012, 09:30 PM   #11
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Cool beans!

flounder is offline   Reply With Quote
Old 11-05-2012, 09:31 PM   #12
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by jacob300zx View Post
Why would you spend all that money and be on Bilsteins and 7" rims?
1 - because it started off as a spec miata
2 - because the build budget effectively doubled as we progressed - little things like a 6 speed mazda speed transmission and new {racing} clutch soon add up ....... and I ran effectively out of money
3 - been having soooooo many troubles this year that not prepared to spend more money on the suspension and wheels until solved teething problems - hopefully we are now there and it's now worth while investing mo money
SSMtobeturbo'd is offline   Reply With Quote
Old 11-06-2012, 02:52 AM   #13
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

what intercooler is that?
motormechanic is offline   Reply With Quote
Old 11-08-2012, 03:28 PM   #14
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

Quote:
Originally Posted by SSMtobeturbo'd View Post
Hey Stinkycheezmonky - Great name!

I reviewed the vid and the line looks ok (ish!) to me - I am taking it easy but my front right wheel isn't too far away from the right hand side of the track at turn in .... so probably just the camera angle. On a side note, i do run the midtrack line at 7 when racing my spec miata to (i) defend against others and (ii) even thou flat all the way from exit of 6 to 10, the spec miata race car doesn't need to go far right to take the corner

Cheers
Understood.
stinkycheezmonky is offline   Reply With Quote
Old 11-08-2012, 07:44 PM   #15
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by vehicular View Post
What are you using for vacuum line? That looks really clean.
?
vehicular is offline   Reply With Quote
Old 11-14-2012, 09:32 PM   #16
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by vehicular View Post
What are you using for vacuum line? That looks really clean.
Sorry for belated reply - was traveling with work all of last week

we use Tygon fuel lines
SSMtobeturbo'd is offline   Reply With Quote
Old 11-14-2012, 09:33 PM   #17
Newb
Thread Starter

Join Date: Jul 2011
Posts: 43
Total Cats: 5
Default

Quote:
Originally Posted by motormechanic View Post
what intercooler is that?
CX racing - cheap but functional
SSMtobeturbo'd is offline   Reply With Quote
Old 11-15-2012, 01:08 AM   #18
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by SSMtobeturbo'd View Post
Sorry for belated reply - was traveling with work all of last week

we use Tygon fuel lines

What fittings do you use? They look like some kind of push-to-connects, or something?
vehicular is offline   Reply With Quote
