Old 11-14-2012, 06:52 PM   #1
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default building my cage

About to start my cage and need a quick question answered. I am buying a new die to bend 1 & 1/2" pipe but don't know how tight of a clr (center line radius) I need for my miata. They offer 4.5, 5.5 and 6.5"
FowlerMotorsports is offline   Reply With Quote
Old 11-14-2012, 07:07 PM   #2
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

You can do everything you need to do with the 4.5". Most people I know with Benders go with the tightest radius at or over 3x tube diameter.
rharris19 is offline   Reply With Quote
Old 11-14-2012, 07:12 PM   #3
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Thanks! I need to look if anyone here has done a cage setup themselves but this phone is to slow to search. I have a harddog to go off of so it will help a bit.
FowlerMotorsports is offline   Reply With Quote
Old 11-14-2012, 07:44 PM   #4
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

Check the rulebook for your organization too. I feel like I remember seeing a bend radius min/max in one of the rulebooks.
jpreston is offline   Reply With Quote
Old 11-14-2012, 07:49 PM   #5
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

In every rulebook I have looked at, nasa, scca, chump, lemons it says that the radius must be a minimum of 3x the diameter of the pipe. Consult your rule book for the group you intend to run with.
rharris19 is offline   Reply With Quote
Old 11-14-2012, 08:33 PM   #6
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

I'm not running a class, it will be a street cage but it will hit the track for fun. Still think 4.5" is what I need?
FowlerMotorsports is offline   Reply With Quote
Old 11-14-2012, 09:09 PM   #7
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

Even if you're not racing yet, I'd still look over the rulebooks that rharris mentioned and build to those specs. If you don't want to use all the bars they require, fine, but make sure the ones that you do use comply to those requirements. That way if you ever decide to move to some sort of w2w, you'll have a cage that's either ready to go or just needs a couple bars added. Or if you decide to sell the car, you'll have a much larger group of potential buyers.

And all that goes without saying that the current requirements are what they are because of previous trial and error. Stick pretty close to the rulebooks and you should end up with a cage that'll do it's job if you ever need it.
jpreston is offline   Reply With Quote
Old 11-14-2012, 09:17 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

There's no such thing as a street cage. Build it to a ruleset (NASA/SCCA) or don't waste your time.
Savington is offline   Reply With Quote
Old 11-14-2012, 09:23 PM   #9
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Quote:
Originally Posted by jpreston View Post
Even if you're not racing yet, I'd still look over the rulebooks that rharris mentioned and build to those specs. If you don't want to use all the bars they require, fine, but make sure the ones that you do use comply to those requirements. That way if you ever decide to move to some sort of w2w, you'll have a cage that's either ready to go or just needs a couple bars added. Or if you decide to sell the car, you'll have a much larger group of potential buyers.

And all that goes without saying that the current requirements are what they are because of previous trial and error. Stick pretty close to the rulebooks and you should end up with a cage that'll do it's job if you ever need it.
I have the 2012 SCCA rulebook in hand and have covered it, my local track (which is the only track I plan to get on) doesn't do much racing and does more member days than anything.

Quote:
Originally Posted by Savington View Post
There's no such thing as a street cage. Build it to a ruleset (NASA/SCCA) or don't waste your time.
Blackbird Fab would argue with that, their cage is what I would like to get mine close to.
FowlerMotorsports is offline   Reply With Quote
Old 11-14-2012, 10:17 PM   #10
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by Savington View Post
There's no such thing as a street cage. Build it to a ruleset (NASA/SCCA) or don't waste your time.
^ This.
1. A cage on a street car is asking for dents in your skull.

2. Depending on the intended organization, and discipline, your design will be radically different.


Ever seen video of the interior of a car during an accident, everything goes EVERYWHERE. Don't be a dummy and bounce your skull off your neat cage. That's a big reason that racers wear helmets.

For instance, the "cage" I'm planning for my autocross car will be VERY different from anything he needs. Not only because he runs NASA and I, SCCA, but because my car has no windshield, and safety is only a secondary concern.(I know I know, but when's the last time you've heard of an autocross car flipping?)
tpwalsh is offline   Reply With Quote
Old 11-14-2012, 10:25 PM   #11
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

I have never been a fan of the street cage idea, but if you do it make sure it conforms to the following rule set for the forward hoops.



NASA Rules:
15.6.8 Forward Hoops (Option 1)
The forward hoops shall extend from the main hoop (in a forward direction) to the floor
by following the roof and the “A” pillar of the car. There shall be a bar connecting the
two (2) forward hoops at the top of the windshield mounted as close to the roof as
possible without violating CCR Section #15.6.20 Inspection. The forward hoops shall
incorporate no more than four bends each. Optionally a “15.6.9 Halo Hoop (Option 2)”
or “15.6.10 Front Hoop (Option 3)” construction may also be acceptable.

15.6.9 Halo Hoop (Option 2)
A “halo bar” extends from the main hoop (in a forward direction) following the roof line to
the windshield then following along the top of the windshield, then following the roof line
back to the main hoop, thus creating a “halo” over the driver’s head. A “halo” bar shall
be constructed of one (1) continuous piece of tubing. One (1) down tube following the
“A” pillar must support the “halo” on each side of the car. The down tubes shall
incorporate no more than two (2) bends each.

15.6.10 Front Hoop (Option 3)
A “front hoop” is a bar that extends up from the floor, then follows the “A” pillar up to the
roof, then follows the roof line across the top of the windshield, then back down the other
“A” pillar, and then terminates on the floor. There must be one (1) horizontal bar
(following the roof line) connecting the main hoop and the forward hoop on each side of
the car. The front hoop shall incorporate no more than four (4) bends.

This is convertible to a legal cage:
rharris19 is offline   Reply With Quote
Old 11-14-2012, 10:25 PM   #12
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Maybe I should rephrase my definition of cage. I want a rollbar

My intentions:



Attached Thumbnails

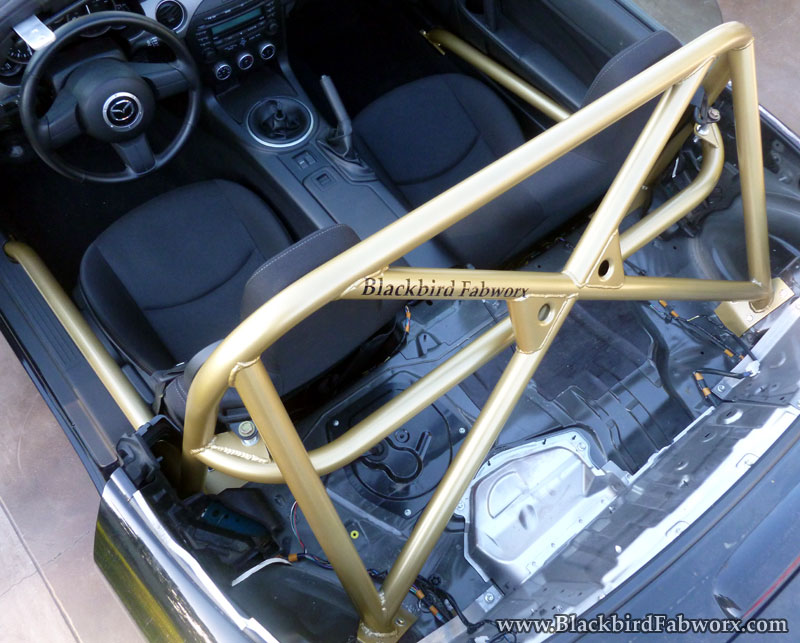

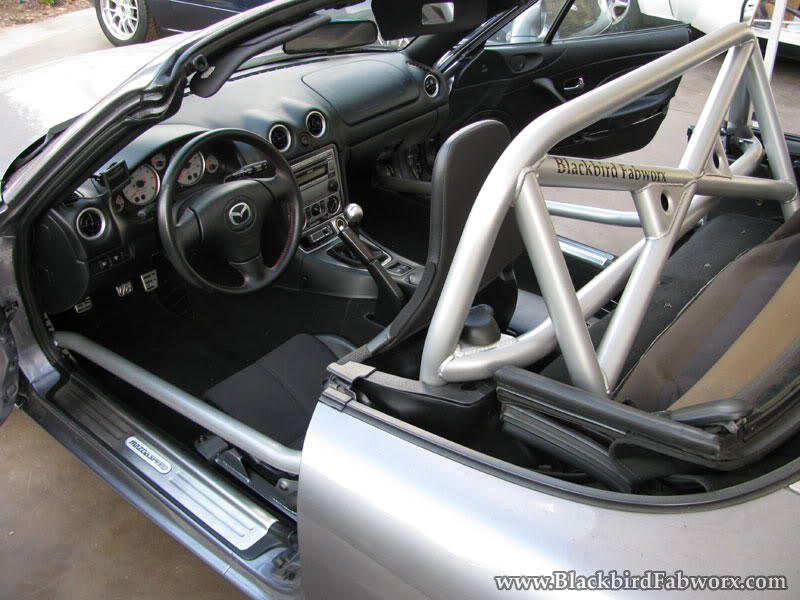

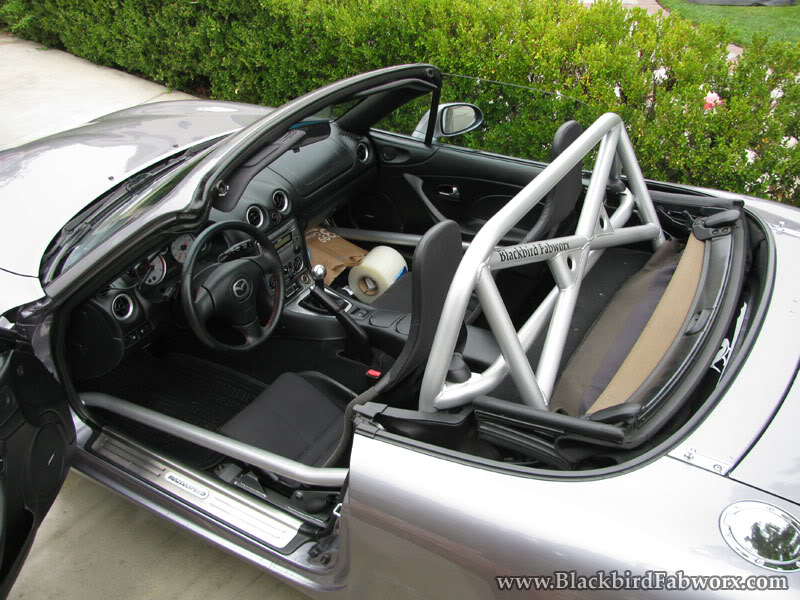

building my cage-p1020401w.jpg   building my cage-msm-gt3-6-032w.jpg   building my cage-msm-gt3-6-020w.jpg
FowlerMotorsports is offline   Reply With Quote
Old 11-14-2012, 11:14 PM   #13
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by FowlerMotorsports View Post
Maybe I should rephrase my definition of cage. I want a rollbar
That changes things 100%.

While I cannot give you a good answer I would love it if you did a write up on everything you do to build your roll bar. Sometime in the distant future I will be wanting to do the same thing.
shuiend is online now   Reply With Quote
Old 11-14-2012, 11:26 PM   #14
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Cage, rollbar, blah blah

I will be sure to take several pics during the build but it will most likely start next weekend.
FowlerMotorsports is offline   Reply With Quote
Old 11-15-2012, 12:08 AM   #15
Newb

Join Date: Aug 2011
Location: Brisbane
Posts: 39
Total Cats: -14
Default

Quote:
Originally Posted by tpwalsh View Post
^ This.
1. A cage on a street car is asking for dents in your skull.
No Dents, in my skull yet, finger crossed:

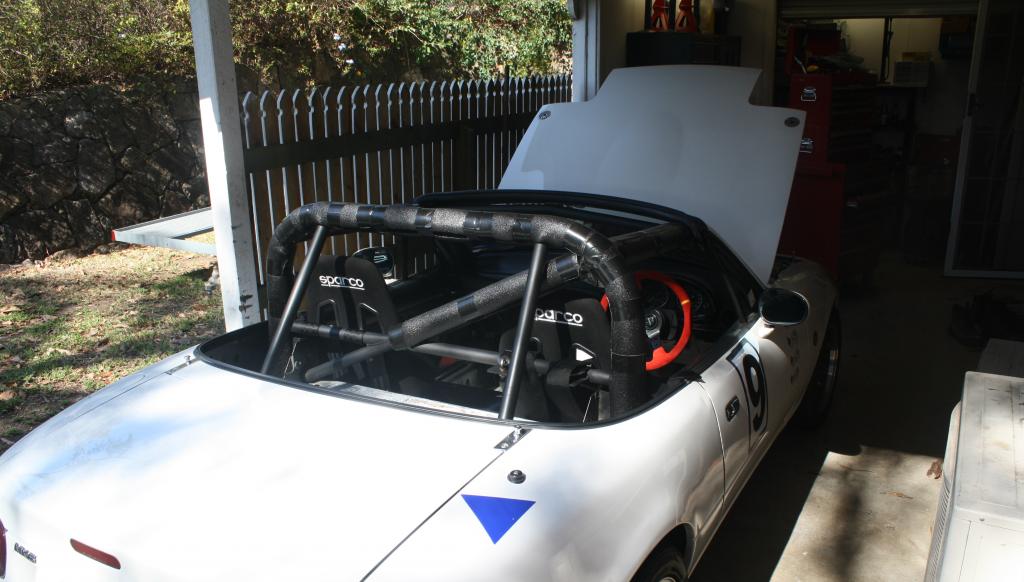

Attached Thumbnails
building my cage-img_3492-1.jpg
toppertee is offline   Reply With Quote
Old 11-15-2012, 01:36 AM   #16
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

1.5" is too thin for a roll bar/cage. Go with 1.75" 0.095" wall
motormechanic is offline   Reply With Quote
Old 11-15-2012, 03:18 AM   #17
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Quote:
Originally Posted by FowlerMotorsports View Post
About to start my cage and need a quick question answered. I am buying a new die to bend 1 & 1/2" pipe but don't know how tight of a clr (center line radius) I need for my miata. They offer 4.5, 5.5 and 6.5"
Unless you know what you're doing (maybe you do) don't mess with 1" tubing. Every tube you need in a basic cage for a miata should be 1.5". You might just be saying the die can do both even though you don't intend to use 1", but just wanted to clarify.


Quote:
Originally Posted by tpwalsh View Post
(I know I know, but when's the last time you've heard of an autocross car flipping?)
I have personally seen this happen.

And wouldn't you feel the fool (assuming you survived the incident) to be the guy who intentionally did his cage in a way that doesn't protect you in a rollover, when that's the primary point of a cage, if you're unlucky enough to have to find out how bad your design is?

-Ryan
ThePass is offline   Reply With Quote
Old 11-15-2012, 03:21 AM   #18
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Woah woah woah, I posted the above then read the rest of the thread and noticed you are not building a cage you're building a roll bar.

BIG DIFFERENCE - not just "blah blah, same thing" - not at all.

A roll bar should be 1.75" tubing.

1.5" Should ONLY be used in a roll cage

If you're looking at an SCCA rulebook you should already know this.

Quote:
Originally Posted by motormechanic View Post
1.5" is too thin for a roll bar/cage. Go with 1.75" 0.095" wall
Just about every cage in miatas are done in 1.5", and this is absolutely acceptable. For a roll bar though, the only ones that meet NASA/SCCA are 1.75"

On the subject of thickness, I would agree that that is adequate, but SCCA requires .120 for roll bars, so which rule book you're following changes things.

-Ryan
ThePass is offline   Reply With Quote
Old 11-15-2012, 08:37 AM   #19
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by motormechanic View Post
1.5" is too thin for a roll bar/cage. Go with 1.75" 0.095" wall
double post.
tpwalsh is offline   Reply With Quote
Old 11-15-2012, 08:41 AM   #20
Junior Member

Join Date: Dec 2006
Posts: 192
Total Cats: 8
Default

Quote:
Originally Posted by motormechanic View Post
1.5" is too thin for a roll bar/cage. Go with 1.75" 0.095" wall
I dunno about NASA but in SCCA land 1.5 is just fine for some applicationsSolo/Solo Trials at the very least(1.5x0.120, and 1.5x0.095 I think is good for GCR cages and the 1.5x0.120 is heavier per foot than 1.75x0.095
tpwalsh is offline   Reply With Quote
