Default Super Touring Light Miata (SCCA STL Class)

Im toying with the idea of building an SCCA STL class car for season after next.

Here are the highlights of the class:
Weight with driver 2399 Updating and backdating between years is legal
Brakes - must use stock brakes
ABS only from the car it was designed for.
Engine (N/A only)
11:1 Maximum Compression
No head porting
.425 maximum lift cams

Suspension stock pickup points, shocks, swaybars, etc are open
Wheels 15 x 7 maximum
Tires are open
Differential is open as is rear end gearing

Thoughts:
Start with a 2002 chassis, Make sure it has sport brakes, 6 speed and ABS. Im a fairly big fan of ABS Is the 2002+ ABS that much better than the 1999-2001? I know a lot aren't. If I started with a 1999 chassis, it would be much cheaper to build it.
How easy would be to put a 1999 motor in a 2002 chassis?
Add an OS Giken differential, and play with gearing a bit, Im thinking of starting with 4:3 and going from there.
Xida coilovers, ISC spherical bearings, etc...
Small 2 splitter by the rules and very small rear wing by the rules.
Engine I think should be a 1999-2001 with big cams, bored to 1849CC, flattop intake, COP, dry sump. Rebello believes they could get this to 225-235 hp keep it under 8500 RPM to be reliable. They have several cam profiles for .425 lift
Ive thought about the 2002+ motors, but not sure of all the differences, and also not sure the extra midrange torque would be helpful as the car would most likely spend almost no time under 5000 RPM.

Really looking for thoughts between the 1999 and 2002 chassis and engine combinations?
tblackey is offline   Reply With Quote
Old 12-30-2011, 11:10 PM   #2
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 51
Default

I've not kept up with SCCA rules in a few years, but wouldn't the update/backdate rule allow you to start with a 99 chassis then swap to sport brakes/02+ ABS/VVT motor/etc.?
jpreston is offline   Reply With Quote
Old 12-30-2011, 11:34 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by jpreston View Post
I've not kept up with SCCA rules in a few years, but wouldn't the update/backdate rule allow you to start with a 99 chassis then swap to sport brakes/02+ ABS/VVT motor/etc.?
I plan to run STL next year. In fact, just ordered some suspension today.
Looks like it will be more fun than ITS. Last I looked at rules, brakes were open. I've seen them with wilwoods.

I've also been told that the hot setup will be a 99 head with big cams. Apparently they can get better power up top on the 99 head due to better cam selection. There are interference concerns with the VVT head. The VVT head has been shown to make more torque down low, but you shouldn't be under 4-5k rpm at any point anyway.

IMO, 225-235 is very optimistic. That would have to be crank hp, and even then on a very friendly dyno.
Ben is offline   Reply With Quote
Old 12-30-2011, 11:44 PM   #4
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by jpreston View Post
I've not kept up with SCCA rules in a few years, but wouldn't the update/backdate rule allow you to start with a 99 chassis then swap to sport brakes/02+ ABS/VVT motor/etc.?
Thats what it sounds like to me.

225 whp seems pretty optimistic for N/A 1.8. Even at 8.5k rpm.
Seefo is offline   Reply With Quote
Old 12-30-2011, 11:49 PM   #5
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I agree with Track, it would be extremely impressive to top the 200 number N/A. Emilios motor in crusher was severely built, and I think he was around 150 hp, though that was limited by his class. Also, miata2fast has a heavily built motor running itb's, and I don't think he's close to 200 either. I'm not 100% sure on any of the numbers I said, so don't hold me to it. Hopefully those two chime in on your build.

Good luck, car will be sick no matter what.
wittyworks is offline   Reply With Quote
Old 12-31-2011, 12:24 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default

Quote:
Originally Posted by Track View Post
Thats what it sounds like to me.

225 whp seems pretty optimistic for N/A 1.8. Even at 8.5k rpm.
225whp n/a on stock ports isn't optimistic - it's impossible.

225-235bhp is ~190whp, which is probably doable with enough cam and revs.
Savington is online now   Reply With Quote
Old 12-31-2011, 12:28 AM   #7
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by Savington View Post
225whp n/a on stock ports isn't optimistic - it's impossible.

225-235bhp is ~190whp, which is probably doable with enough cam and revs.
yea, sorry whp is habit, thats why I said its a bit optimistic (in otherwords, I didn't mean to put the 'w' in).

Either way, I have still yet to see a dyno for more than ~180whp. Either way, go for it! I am not trying to discourage, just warn that the hp figure seemed a bit optimistic. Then again, those dynos probably didn't have the funding this would have.
Seefo is offline   Reply With Quote
Old 12-31-2011, 02:10 AM   #8
Newb
Thread Starter

Join Date: Sep 2011
Posts: 14
Total Cats: 6
Default

It was 225-235 at the motor - Sorry for any confusion. I'm thinking 180-190 at the wheels. My motor now with 10:1 and a ported head is at 208hp on an engine dyno with a set of Integral stage 3 cams, no drysump. I think the drysump would add 5-6 hp, bigger cams should add a bit, 1 point more compression, but no ported head. Might be slightly optimistic, but maybe not. I know the FP/EP motors are pretty close to that.

The brakes are not allowed in STL. I have a set of the rules here. They are allowed in STU though.

G. Brakes
1. OEM brake systems must be used. Alternate OEM brakes rotors or
calipers from the same manufacturer will be considered.

I can't image trying to swap the ABS to an earlier car. Actually I can image it, but it would not be fun. I've put a Honda S2000 ABS system into a Mazda RX7, so I know I could, but I would rather buy the 2002 and swap the engine I think?
tblackey is offline   Reply With Quote
Old 12-31-2011, 06:56 AM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,329
Default



190whp and 2400lbs and they don't allow big brakes? Looks like they want a repeat of the T1 vette fiasco.
Savington is online now   Reply With Quote
Old 12-31-2011, 12:07 PM   #10
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by tblackey View Post
I’m a fairly big fan of ABS – Is the 2002+ ABS that much better than the 1999-2001?
I think I noticed a difference betwen the 03 I had and my 99, but it might just be the EBD in the 03, I seem to be unable to dial in enough rear bias on the 99 (even with rear sport rotors).

There is a lot of FUD around VVT, especially in High comp, big Cam theoretical setups. It's not rocket science, it's just not that many to copy

Is the inteference (cam lobe to lifter pocket)less of a problem in the 99 head?
Or is the "interference issue" around the valve-piston clearance at max advance (which might be visited by mistake with poor VVT control).
NiklasFalk is offline   Reply With Quote
Old 01-01-2012, 10:28 AM   #11
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Same manufacturer... wonder if you could get away with running some RX7 calipers or something? I've seen two Miatas now with them, both track cars. They built that set up long ago though, before there were willwood kits around.
falcon is offline   Reply With Quote
Old 01-02-2012, 10:31 AM   #12
Newb

Join Date: Oct 2010
Posts: 18
Total Cats: 9
Default

We have built a STL Miata ran 2 events last year working out some bugs. Had a minor problem with a rod bearing and have the engine back out now. Going back together soon with different cams and should be even better.
We are going at this a little different than most are, we are running a 1.6 at 2132lbs

Your build sheet looks good except:
Flat top manifold isnt legal - Must be USDM part
Dry Sump Isnt legal

Just a couple things to look at before you spend money on stuff you cant have. Good luck with it and hope to see you at the track!

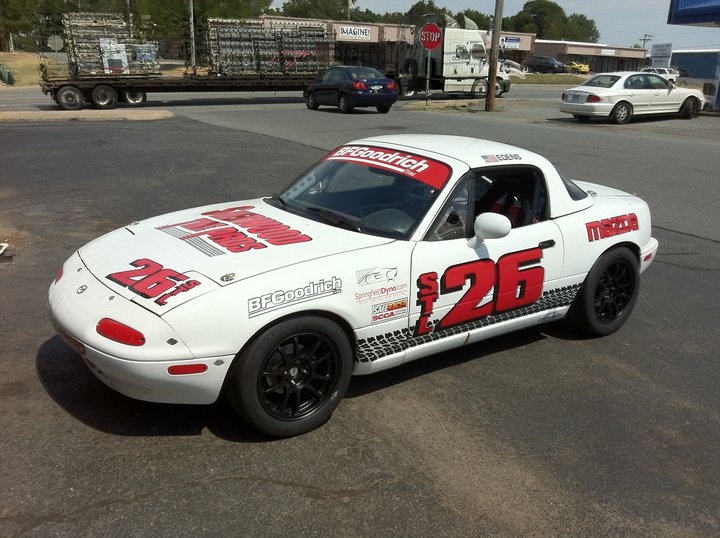

Here is a pic of our car, minus the aero parts in this pic...
Attached Thumbnails
Super Touring Light Miata (SCCA STL Class)-283558_217428294961268_127278693976229_511849_464613_n.jpg   Super Touring Light Miata (SCCA STL Class)-283558_217428294961268_127278693976229_511849_464613_n.jpg

Last edited by Edens; 01-02-2012 at 10:53 AM.
Edens is offline   Reply With Quote
Old 01-02-2012, 08:17 PM   #13
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,316
Total Cats: 1,340
Default

I get lot of customers ordering parts and getting set up advice for STL and STU cars these days. It seem there is a bit of money to be had if you do well.

Can someone with knowledge of the SCCA ST scene break down what contingencies/prize money is available and from whom?

I'm not crazy about the engine rules and 8" wheel max myself but it is a interesting engineering challenge going up against cars with a bunch more power.
emilio700 is offline   Reply With Quote
Old 01-02-2012, 11:43 PM   #14
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

From what I've read on the miata net the 01 come with bigger brake optional package which pre 00 do not have. Also o1 motors have the vvt...don't know if you'll keep that but that's an option. I don't know if there's any other performance changes between the nba/nbb models.
triple88a is offline   Reply With Quote
Old 01-03-2012, 05:01 PM   #15
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Quote:
Originally Posted by emilio700 View Post
I get lot of customers ordering parts and getting set up advice for STL and STU cars these days. It seem there is a bit of money to be had if you do well.

Can someone with knowledge of the SCCA ST scene break down what contingencies/prize money is available and from whom?

I'm not crazy about the engine rules and 8" wheel max myself but it is a interesting engineering challenge going up against cars with a bunch more power.
STL is a regional only class, so there are almost zero contingencies/prize money to speak of (as far as I know).

STU is a national class, it should have contingencies similar to other national classes. That is, Mazdaspeed contingincies of up to $500 for a win (if 4 starters). Also, Mazdaspeed pays $1000 for a division championship, up to $1200 for a June Sprints win. Hoosier, BFG, and Goodyear all have tire contingincies. Hoosiers is 2 free tires for a win (min. 3 starters in class), BFG gives 3 free tires for a win (min. 3 starters in class). Goodyear is 2 free tires for a win (min. 3 starters in class). Hawk and Cobalt also have a brake pad contingency of 1 axle set of pads for a win. Carbotech usually has a contingency program but it hasn't been listed.

So all in all for a National win with four starters (might be possible in STL/STU) you would get $500 cash, 2-3 free tires and a set of front or rear pads.

As I was writing this, I checked the SCCA website and it looks like for this year and onward STL is a national class. So all of the contingencies I listed for STU will apply. However, STL will run with STU at the runoffs, so no STL car would have a chance at the Runoffs... An STL car (or STU for that matter) running at a "Regional" race will not qualify for any of these contingencies, only at "National" races.

BTW entry fees for National races are on the order of $350 for a single and $500 for a double. So the entry fee will suck up most of the cash winnings from Mazdaspeed.
Efini~FC3S is offline   Reply With Quote
Old 01-03-2012, 05:23 PM   #16
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,897
Total Cats: 109
Default

Quote:
Originally Posted by NiklasFalk View Post
Is the inteference (cam lobe to lifter pocket)less of a problem in the 99 head?
Or is the "interference issue" around the valve-piston clearance at max advance (which might be visited by mistake with poor VVT control).
The lifter pocket is the same between the 99 head and the vvt head IIRC. It is not that big a deal to modify the lifter hole for the camshaft to clear however.

I would think that interference of valve and piston on a vvt motor would be an easy problem to solve. What might not be so easy is to keep the vvt working properly and from breaking other parts at such a high rpm.
miata2fast is offline   Reply With Quote
Old 01-05-2012, 09:45 PM   #17
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

If you have your heart set on running in the SCCA why not run in a prod class? There is no contingency money available in regional racing or tire contingency for that matter. At the national level, running up front can help offset cost of entry fees and tires.

As far as hp, 180 whp seems to be good for a 1.8 ep car, 150 is big for a limited prep f car. My car dynoed at 154 and 112#, with intergal 4 cams, 10:1 Pistons and the allowed porting and crank work. Tuned on 100 octane race gas.

Now I see the above post showing STU will be a national class. Plan on spending some bucks for an engine with nationally competitive power.
hingstonwm is offline   Reply With Quote
Old 01-06-2012, 03:21 PM   #18
Newb

Join Date: Oct 2010
Posts: 18
Total Cats: 9
Default

Our first STL Engine made 150whp and 120wtq and was limited to 7500rpm, it was a 1.6L

New engine is almost ready to go in...
Edens is offline   Reply With Quote
Old 01-06-2012, 03:39 PM   #19
Newb
Thread Starter

Join Date: Sep 2011
Posts: 14
Total Cats: 6
Default

On a 1.6 I would think 150-165 is possible, but difficult without the 99 head.

STU is going to be tough. A friend of mine is building an S2000 with about 300 Crank HP and revs to 10K RPM. To be competitive you would need boost, and even then I'm not sure.

STL is a national class as well, and with the limits the Miata should do fairly well. Weight is a concern of course at 2400lbs for a 1.8. EDENS approach to use a 1.6 at 2132 might be faster, hard to know. Easier for sure.
tblackey is offline   Reply With Quote
Old 01-06-2012, 04:53 PM   #20
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by Edens View Post
Our first STL Engine made 150whp and 120wtq and was limited to 7500rpm, it was a 1.6L

New engine is almost ready to go in...
What are the rules for head porting in the class? Im guessing the wtq number is d/t compression ratio.
hingstonwm is offline   Reply With Quote
