Old 04-13-2011, 11:04 AM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ThePass View Post
Sav - going to do one track day with the setup as-is and I suspect after it I'll be wanting to upgrade to your Inconel stuff.
Why waste expensive track time on something you know will fail?
Quote:
Originally Posted by ThePass View Post
My turbo uses 8mm studs though. Can any old machine shop drill and tap the manifold for the larger 10mm stud as well as drill out the holes in the turbo, or is that a specialty job?
Maybe you gayz should consider doing bolts, EDM drilled for Inconel safety wire.
hustler is offline   Reply With Quote
Old 04-13-2011, 11:07 AM   #22
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

It makes me lol that we're back on this topic again. I ran into an "engineer" with a turbo 240 that has this problem and he went on and on about how this problem is caused by the exhaust flying around on cornering and how he fixed the problem with titanium bolts from "baller bolts". Later that day his turbo came loose and he wanted Trackspeed's contact info, lol. I could have stretched those bolts in 3 laps, for the record.

It's funny how so many people have this problem, yet a short list of people have the answer.
hustler is offline   Reply With Quote
Old 04-13-2011, 12:19 PM   #23
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by ThePass View Post
For what reason?

Don't know about the ETD but my greddy cast manifold shouldn't have any issues with it that I can think of.
No room. Enlarge the holes and you encroach on the walls of a runner or 2.

I would rather experiment with 8 mm inconel studs than bust my ETD mani.
JasonC SBB is offline   Reply With Quote
Old 04-13-2011, 12:44 PM   #24
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

To the OP, IMHO the best is a tubular manifold with standard flange/TSE inconel studs just due to the costs involved with the tial parts:

vband housing, flanges & clamps
ewg
more expensive manifold & downpipe
safety drilling CHRA bolts
TurboTim is online now   Reply With Quote
Old 04-13-2011, 12:55 PM   #25
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

I was going to say, this question could be answered with one variable...... how much are you willing you spend?

Pros and Cons to both, but each resolve the issue.
flier129 is offline   Reply With Quote
Old 04-13-2011, 01:20 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

FWIW I have had my TSE studs in my mani for about 4 months now? My studs haven't come loose or broken. They don't even look burned. I think that is winning.

Savington you may want to put something in the instructions about "be careful with the studs until they work harden". I noticed that the incolnel was kinda maleable and I almost messed some threads up when I did the initial install. After they were on the car for a while they were very hard.
Faeflora is offline   Reply With Quote
Old 04-13-2011, 01:23 PM   #27
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I drilled my greddy etd manifold and td04 for 10mm studs without issue.

I used rb26dett turbo studs (inconel) and did not have any failures from multiple track days. Studs are also cheap from Nissan.
falcon is offline   Reply With Quote
Old 04-13-2011, 02:30 PM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by Faeflora View Post
Savington you may want to put something in the instructions about "be careful with the studs until they work harden". I noticed that the incolnel was kinda maleable and I almost messed some threads up when I did the initial install. After they were on the car for a while they were very hard.
Yeah, we do say that thread quality in the manifold is really, really important.

It's probably not working hardening, FYI - it's likely heat treating.
Savington is offline   Reply With Quote
Old 04-13-2011, 05:01 PM   #29
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by falcon View Post
I drilled my greddy etd manifold and td04 for 10mm studs without issue.
I suspect the ETD shorty is very different. Pix later.
JasonC SBB is offline   Reply With Quote
Old 04-13-2011, 06:16 PM   #30
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Flossin with V-bands isn't something most of you could handle anyway.
hustler is offline   Reply With Quote
Old 04-15-2011, 11:55 AM   #31
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by hustler View Post
Flossin with V-bands isn't something most of you could handle anyway.
Correct.

Anyways, if I had a setup that used 10mm bolts, I wouldn't be dicking around asking questions I'd just buy Sav's kit. As it is, some of the less popular/lower budget kits run 8mm bolts, and call us flacid for our puny studs but we'd like see if we can get in on a little piece of the good stuff and possibly run the 10mm kit or find an 8mm solution.
ThePass is offline   Reply With Quote
Old 04-16-2011, 03:12 PM   #32
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

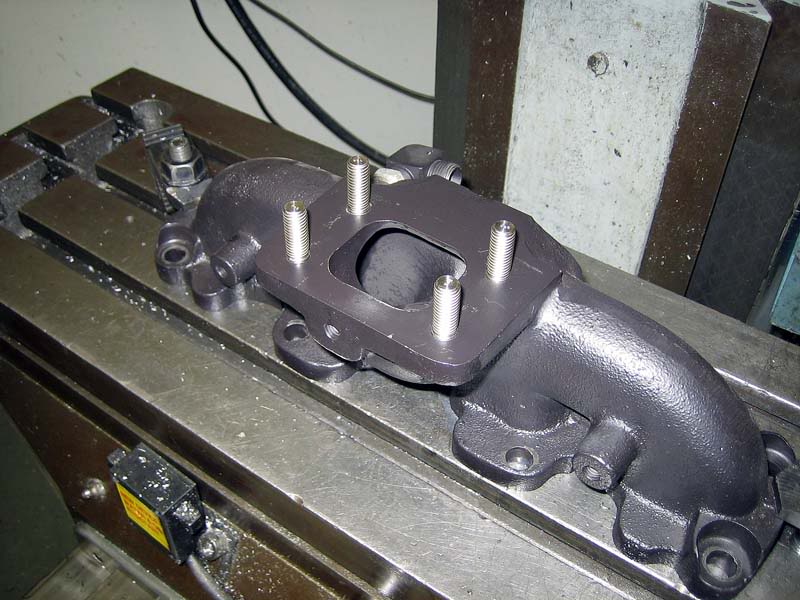

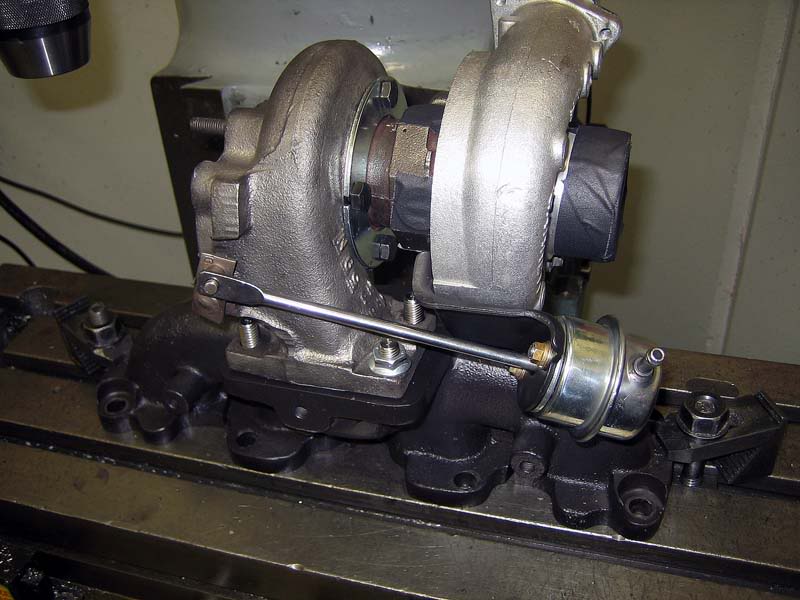

I drilled/tapped my older BEGi manifold for TSE 10mm studs and enlarged the holes in the T25 without issue. You have to set the turbo partially in place and then put the nuts on, they won't go on with the turbo fully seated.

Name:  inconelstudsinmanifold-small.jpg
Views: 30
Size:  85.3 KB

Name:  checkingturbofitonstuds-small.jpg
Views: 22
Size:  69.4 KB
Rennkafer is offline   Reply With Quote
Old 04-19-2011, 11:42 PM   #33
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

My other problem with the ETD shorty mani is that I needed to cut one of the studs to be able to mount it.

Would inconel be impossible to cut with a hacksaw?
Cutoff wheel?
JasonC SBB is offline   Reply With Quote
Old 04-20-2011, 12:24 AM   #34
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,109
Total Cats: 127
Default

I would imagine Savington's supplier could get him 8mm, the cost would just be a lot higher due to low quantity, might be an option idk
jacob300zx is offline   Reply With Quote
Old 04-20-2011, 01:31 AM   #35
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by falcon View Post
I drilled my greddy etd manifold and td04 for 10mm studs without issue.

I used rb26dett turbo studs (inconel) and did not have any failures from multiple track days. Studs are also cheap from Nissan.
So how are the Begi/TSE studs different than the RB26 studs? Are they 10mm x 1.5 x ~47mm?
kenzo42 is offline   Reply With Quote
Old 04-20-2011, 09:02 AM   #36
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Quote:
Originally Posted by JasonC SBB View Post
My other problem with the ETD shorty mani is that I needed to cut one of the studs to be able to mount it.

Would inconel be impossible to cut with a hacksaw?
Cutoff wheel?
cutting inconel shouldn't be an issue. It will be more difficult than a regular bolt of course but not impossible. Cutoff wheel would definitely do it cleanly.
TurboTim is online now   Reply With Quote
Old 04-20-2011, 02:13 PM   #37
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Quote:
Originally Posted by jacob300zx View Post
I would imagine Savington's supplier could get him 8mm, the cost would just be a lot higher due to low quantity, might be an option idk
The cost of the 10mm kit is already fairly high - it's justifiable, and when in comes down to it what's $200 if it makes your car reliable at the track? But, I don't think there would be much if any of a market for a $250-$300 8mm kit (just throwing out a number here), especially since a lot of the guys who have 8mm studs have more budget oriented turbo setups, myself included.

After Buttonwillow, my current setup is holding. Right now I have ATP turbo studs and locking nuts and nordlock washers from FM. As this car does run on a tight budget, I'll pursue the 10mm conversion avenue if/when my current stuff doesn't work any more. However, I am only running 7psi at the track - for reliability - so I am creating much less heat and stress than many of you, and that may mean my setup will be just fine.

Andrew looked at my turbo over the weekend and was actually surprised by the amount of room that it had - apparently the main issue will be the 15mm nut - they used to use 14mm nuts but not anymore, so if my studs die I'll take the turbo off and measure from the centerpoint of the hole to the nearest obstruction and I'll know if his kit will be useable on a TDO4. If anyone has a TD04 off their car, please give it a measure and let me know.

-Ryan
ThePass is offline   Reply With Quote
Old 04-20-2011, 02:36 PM   #38
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by kenzo42 View Post
So how are the Begi/TSE studs different than the RB26 studs? Are they 10mm x 1.5 x ~47mm?
Ours are a bit shorter than that. Depending on the length on each side and the center shank, it may not fit on the lower rear stud location on a T25 turbo setup. I don't think the RB26 studs are 1.5 either - rumor has it that they are 1.25 pitch.

We can do a run of M8 studs- I need 10 guys to commit to it at the cost on the website (~160), and I cannot offer any sort of guarantee/warranty since they will be totally untested. They will be the same as the M10 studs - same alloy, same super high quality, same rolled threads. The testing part is why we've never explored it - it was hard enough to get the M10 studs properly vetted.
Savington is offline   Reply With Quote
Old 04-20-2011, 02:42 PM   #39
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Count me in.
What non-safety-wire nuts do you recommend?
I'm not a he-man track stud so 8mm inconel studs and decent nuts shd work OK.
JasonC SBB is offline   Reply With Quote
Old 04-20-2011, 02:54 PM   #40
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

The Resbond/Stage8 combo seems to do the trick for us.
