Old 05-28-2013, 01:54 AM   #121
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by njn63 View Post
You can also use the f-body ARP studs in place of the 90-93s. Somehow it's significantly cheaper for 5 f-body studs than it is for 4 Miata ones.

Part number is 100-7708.
Interesting from Summit 5 of the F-body studs are $13.82 and 4 Miata studs are $26.67. .509 knurl versus .507 probably close enough. 2.5" long instead of 2.75". why are they so much cheaper I wonder.
bbundy is offline   Reply With Quote
Old 05-28-2013, 05:56 AM   #122
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by bbundy View Post
Interesting from Summit 5 of the F-body studs are $13.82 and 4 Miata studs are $26.67. .509 knurl versus .507 probably close enough. 2.5" long instead of 2.75". why are they so much cheaper I wonder.
Volume... (or deeper pockets in the Miata camp )
Different number of "splines" on the knurl so you have to persuade the F-body ones a bit more than the Miata specific ones during install.
NiklasFalk is offline   Reply With Quote
Old 05-28-2013, 09:35 AM   #123
Junior Member

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Mazda's front hubs are reboxed NTNs, available for ~$100 in a few places. You can occasionally find Timkens for ~$65, and those are reboxed NTNs as well, but the Timkens may or may not have the ABS ring in the correct place and availability is spotty. I have yet to experiment with anything cheaper than the $65 Timkens.
FYI, Ive had better luck finding the ABS version of the hubs (they are the same hub, obviously). Since I have a non ABS car, I just cold chisel the ring off. Soup.

Quote:
Originally Posted by Spookyfish View Post

I am having the hubs sanded down very slighly (2/100th) so you can actually slip them in and out of the bearings by hand, without destroying the bearings. I had that done a while ago so I'm not replacing bearings this time.
I dont think thats going to work out the way you think it will, but Id be interested in hearing your experience after the fact.
cucamelsmd15 is offline   Reply With Quote
Old 05-28-2013, 09:42 AM   #124
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by cucamelsmd15 View Post
I dont think thats going to work out the way you think it will, but Id be interested in hearing your experience after the fact.
The current hubs were done the same way and I could tap them out with a woorden stick. So for me, it works. I can replace hubs without replacing the bearing. That means being able to replacing drive shafts in the pit lane.
Laur3ns is offline   Reply With Quote
Old 05-28-2013, 06:25 PM   #125
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Savington View Post
I have a Mazda hub floating around we were using for R&D. I'll try to post some photos of the Dorman part and the Mazda part together later this week.
I lied. I got a China Dorman hub. D'oh.
Savington is online now   Reply With Quote
Old 05-28-2013, 07:15 PM   #126
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by cucamelsmd15 View Post
I dont think thats going to work out the way you think it will, but Id be interested in hearing your experience after the fact.
Current hub was done in the same way and came out
nicely with a wooden stick and a tap from a hammer.
Bearings need no replacing this time.
Laur3ns is offline   Reply With Quote
Old 05-28-2013, 11:17 PM   #127
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Fresno CA
Posts: 137
Total Cats: 3
Default

I just received my Rockauto order and got one of the Taiwan and one of the China rear hubs. After reading the posts here I decided to check the measurements around the entire hub. They are virtually the same except for the noted stud design difference between the 90-93 hub and the 94+ hub and the inside spline depth. The 94+ hub splines are cut deeper into the center of the hub vs the 90-93. Given the spline difference on the 94+ hub, that's the one I'm going to use. I contacted Rockauto and emailed them with pics and requested an RMA # and a shipping tag. Hopefully they will have the 94+ one in stock.
twothirdsCobra is offline   Reply With Quote
Old 05-29-2013, 11:45 AM   #128
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Let us know if they are able to get you a specific one. I am returning my Made in China Dorman to Amazon and need to figure out how to get a Made in Taiwan unit to match my other one.
Scrappy Jack is offline   Reply With Quote
Old 05-31-2013, 09:13 AM   #129
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

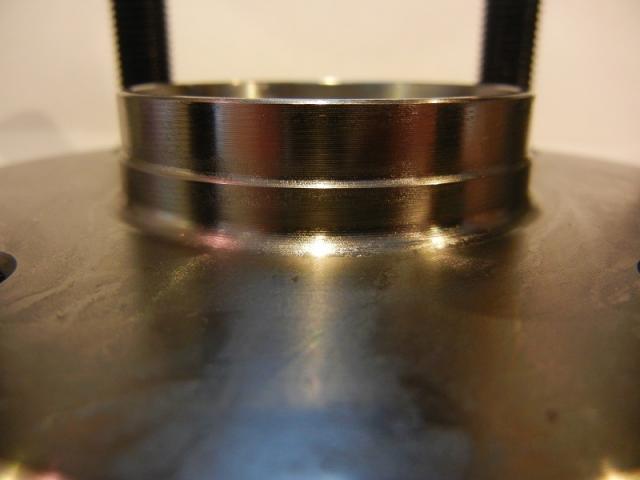

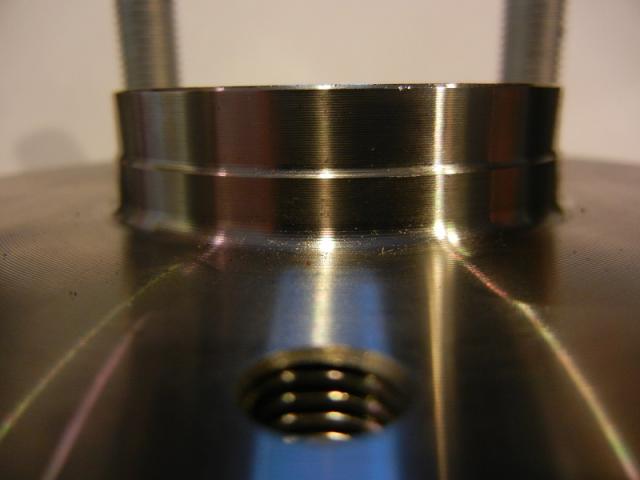

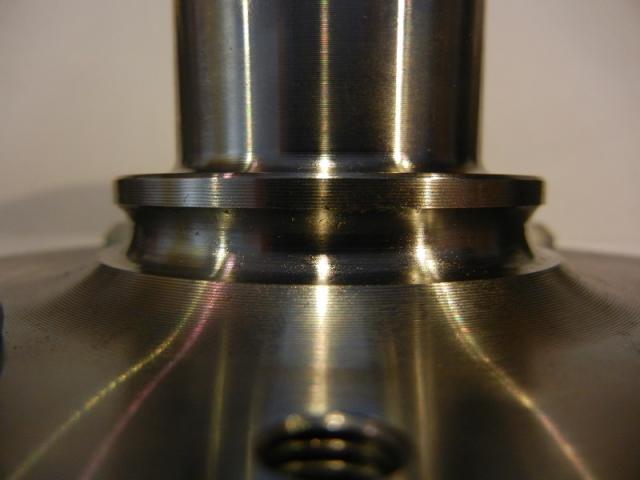

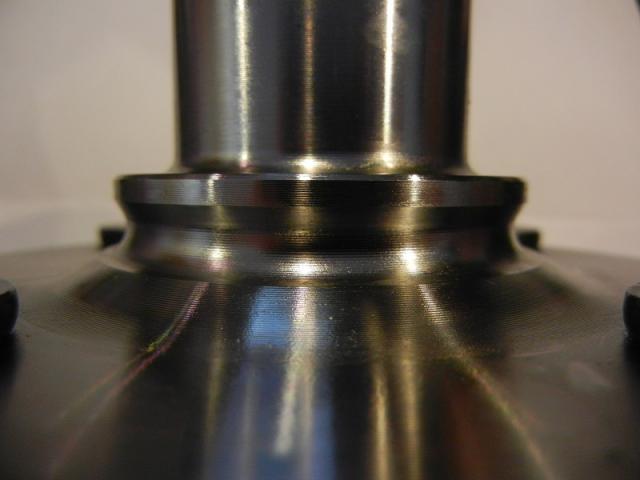

For those of you with more expertise and/or any idea what to look for, is there a reason NOT to just run one of the China and one of the Taiwan hubs if you are swapping out the wheel studs?

Taiwan:


China:


Taiwan:


China:
Attached Thumbnails
When was the last time you changed your rear hubs?-rearhub02_taiwan_zps42d820cc.jpg   When was the last time you changed your rear hubs?-rearhub02_china_zps3e423013.jpg   When was the last time you changed your rear hubs?-rearhub01_taiwan_zpsb5850581.jpg   When was the last time you changed your rear hubs?-rearhub01_china_zps8b74c18e.jpg

Last edited by Scrappy Jack; 05-31-2013 at 02:04 PM. Reason: Added labels to pictures
Scrappy Jack is offline   Reply With Quote
Old 05-31-2013, 04:40 PM   #130
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Please disregard my last post. I was apparently having a mental block with regards to the differences in the two hubs.

Since I have 94+ ARP rear studs sitting in a box, I want to keep the Made in China hub and send back the Made in Taiwan hub.

When I look on eBay, all of the pictured hubs appear to be the Made in China version (no additional holes, black studs). Amazon's picture was the Made in Taiwan version (additional holes, silver studs). That leads me to believe that the China version may be a more recent one?
Scrappy Jack is offline   Reply With Quote
Old 05-31-2013, 07:30 PM   #131
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by NiklasFalk View Post
Volume... (or deeper pockets in the Miata camp )
Different number of "splines" on the knurl so you have to persuade the F-body ones a bit more than the Miata specific ones during install.
I pulled them through using a lug nut. Didn't seem like any excessive force was needed.

.002" is seriously nothing. Manufacturing tolerances on a knurled surface are more than.
njn63 is offline   Reply With Quote
Old 06-01-2013, 01:13 AM   #132
Junior Member

Join Date: May 2012
Posts: 68
Total Cats: -3
Default

So the F body studs are shorter or longer?
compaddict is offline   Reply With Quote
Old 06-01-2013, 12:29 PM   #133
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

I think a 1/4" shorter.
curly is offline   Reply With Quote
Old 06-02-2013, 10:25 PM   #134
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by njn63 View Post
I pulled them through using a lug nut.
Huge no-no, dude. You likely twisted the splines as you pulled/twisted the stud into the hole. The splines are what retains the stud in the hub, so you run the risk of the stud spinning and losing the lugnut.

Never, ever pull studs into the hubs with lug-nuts. Press them in using a hydraulic press.
Savington is online now   Reply With Quote
Old 06-02-2013, 10:28 PM   #135
Junior Member

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Huge no-no, dude. You likely twisted the splines as you pulled/twisted the stud into the hole. The splines are what retains the stud in the hub, so you run the risk of the stud spinning and losing the lugnut.

Never, ever pull studs into the hubs with lug-nuts. Press them in using a hydraulic press.
The HF C clamp press also works for the cheapasses.
cucamelsmd15 is offline   Reply With Quote
Old 06-02-2013, 10:56 PM   #136
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by cucamelsmd15 View Post
The HF C clamp press also works for the cheapasses.
That works too. Anything that presses straight in, vs. applying a twisting force, is fine.
Savington is online now   Reply With Quote
Old 06-03-2013, 02:03 AM   #137
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Savington View Post
Huge no-no, dude. You likely twisted the splines as you pulled/twisted the stud into the hole. The splines are what retains the stud in the hub, so you run the risk of the stud spinning and losing the lugnut.

Never, ever pull studs into the hubs with lug-nuts. Press them in using a hydraulic press.
I guess it's possible, but I've pulled them in with a lugnut and then taken them out again -- splines were all fine. If you lube up the threads with penetrating oil then it goes in with a lot less force required than is used to torque the lug nuts (like 40 ft-lbs).

--Ian
codrus is offline   Reply With Quote
Old 06-03-2013, 02:31 AM   #138
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by codrus View Post
I guess it's possible, but I've pulled them in with a lugnut and then taken them out again -- splines were all fine. If you lube up the threads with penetrating oil then it goes in with a lot less force required than is used to torque the lug nuts (like 40 ft-lbs).

--Ian
ARP explicitly prohibits it. It's your car, though
Savington is online now   Reply With Quote
Old 06-03-2013, 07:39 PM   #139
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Quote:
Originally Posted by Savington View Post
You likely twisted the splines as you pulled/twisted the stud into the hole. The splines are what retains the stud in the hub, so you run the risk of the stud spinning and losing the lugnut.
Is this something you've seen happen or is it just a theory? Because a wheel stud that is properly torqued has a **** ton of clamp load (something like 5 tons) acting on a small flange... it's not spinning easily based on the math.

The risks I see in installing a stud using a lug nut are:
-Taking out the splines and ending up with a stud that spins during tightening/loosening.
-Ending up with a stud that isn't completely bottomed out. (This could become a huge problem when the stud gets pulled through further and clamp load is reduced severely)
njn63 is offline   Reply With Quote
Old 06-03-2013, 08:03 PM   #140
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by njn63 View Post
Is this something you've seen happen or is it just a theory? Because a wheel stud that is properly torqued has a **** ton of clamp load (something like 5 tons) acting on a small flange... it's not spinning easily based on the math.
Explain to me how you're going to properly torque it when it's spinning in the hub.
Savington is online now   Reply With Quote
