Wilwood Prop valve guys...couple questions - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Race Prep Miata race-only chat.
Sponsored by:
Sponsored by:

Reply



LinkBack Thread Tools Search this Thread
Old 10-19-2012, 05:51 PM   #21
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Just get the prob valve and most of this **** does not matter. Please, stop knowing everything their is to know about tracking a Miata, from FSAE and auto-x. We get it, you are Steven Hawking.
hustler is offline   Reply With Quote
Old 10-19-2012, 05:55 PM   #22
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Not everyone who races a miata does it on the track. My posts you currently object with are directed at kinavo, who doesnt sound like a track guy, and if he is he isnt serious.
Leafy is offline   Reply With Quote
Old 10-19-2012, 08:05 PM   #23
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
Not everyone who races a miata does it on the track. My posts you currently object with are directed at kinavo, who doesnt sound like a track guy, and if he is he isnt serious.
I still have to read it. I highly recommend you formally apologize to the forum for your incredulity or no one will like you.
hustler is offline   Reply With Quote
Old 10-19-2012, 11:11 PM   #24
Junior Member
iTrader: (1)

Join Date: Aug 2011
Location: Queens, NYC
Posts: 139
Total Cats: 5
Default

I'm definitely not at the same level as most people here. I'm still a noob who just has dreams at this point. I have less than 10 hpde's at this point. However, I do have much experience and local success with autocross but I'm well aware they are two very different beast.

Anyways, I'm just trying to learn. And yes I search that's why my post count is so low. Sorry to have caused trouble.
Kinavo is offline   Reply With Quote
Old 10-20-2012, 12:16 AM   #25
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

You're not causing trouble, my mother never loved me.

The answer is to get a Wilwood prop-valve from TSE, get the biggest brakes you can afford all the way around, and never look back.
hustler is offline   Reply With Quote
Old 10-22-2012, 10:48 PM   #26
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: College Station/Bryan
Posts: 57
Total Cats: 6
Default

Quote:
Originally Posted by hustler View Post
You're not causing trouble, my mother never loved me.

The answer is to get a Wilwood prop-valve from TSE, get the biggest brakes you can afford all the way around, and never look back.
This guy knows what he is talking about im running Flying miata BBK not sure i will ever have to mess with brake BS ever with this setup and i have 15+ track weekends on 1 set of pads im not fast but 2:07 at TWS is not slow either. that alone is great justification for the cost long term. Hustler is way faster BTW.
t2couger is offline   Reply With Quote
Old 10-22-2012, 11:32 PM   #27
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I'm slow as **** at TWS. Everyone has tons of seat time there in our "crew", I've driven each direction once.
hustler is offline   Reply With Quote
Old 01-03-2013, 02:59 AM   #28
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Richmond, VA
Posts: 325
Total Cats: 20
Default

Quote:
Originally Posted by hustler View Post
Just get the prob valve and most of this **** does not matter. Please, stop knowing everything their is to know about tracking a Miata, from FSAE and a We get it, you are Steven Hawking.
Stephen Hawking and he can't operate a track car until mind control happens.

FSAE seems to come up a lot, wonder how many are former FSAE people here.

Biggest brakes you can afford with emphasis on hardware balance rather than prop valve is my take. Prop valve is best in transients. Spreadsheets with applied force, pistons sizes etc are nice though the issue has been figured out by many vendors already.
vtjballeng is offline   Reply With Quote
Old 01-03-2013, 07:32 PM   #29
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Quote:
Originally Posted by JETSWU87 View Post
My question is for the guys who've played with adjusting this thing a lot, I though i read someone who said even with the valve at full rear...it isn't enough to lock up the rear brakes, granted pad, tire compound etc all play a role..but anyone else share there experiences?

TIA!
I have the same pads and the bias valve and i can very easily lockup the rear with enough bias. A lot of people fail to take off the OEM bias valve which is where they are running into the problem.

If you take it down to HPDE1 days and get all your braking done in a straight line you wont have any problems. I can see how trail braking would cause an issue but i havent had one... i just ease into it to adjust speed if i went in too hot instead of stabbing
v01canic is offline   Reply With Quote
Old 01-03-2013, 07:42 PM   #30
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,659
Total Cats: 76
Default

'90, sport brakes, XP 10/8 F/R, wilwood prop valve on R888s........I had to dial a lot out of the rear to get to where the fronts would just lock before the rears.
z31maniac is offline   Reply With Quote
Old 01-03-2013, 08:09 PM   #31
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by v01canic View Post
I have the same pads and the bias valve and i can very easily lockup the rear with enough bias. A lot of people fail to take off the OEM bias valve which is where they are running into the problem.

If you take it down to HPDE1 days and get all your braking done in a straight line you wont have any problems. I can see how trail braking would cause an issue but i havent had one... i just ease into it to adjust speed if i went in too hot instead of stabbing
How the heck do you even install the bias valve without removing the stock one? Unless you're one of those crafty buggars that puts it in the trans tunnel.
Leafy is offline   Reply With Quote
Old 01-03-2013, 08:23 PM   #32
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,659
Total Cats: 76
Default

Quote:
Originally Posted by Leafy View Post
How the heck do you even install the bias valve without removing the stock one? Unless you're one of those crafty buggars that puts it in the trans tunnel.
I see you've never visited the southern half of the country.

Rednecks have amazing engineering skills.
z31maniac is offline   Reply With Quote
Old 01-04-2013, 01:21 AM   #33
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Quote:
Originally Posted by Leafy View Post
How the heck do you even install the bias valve without removing the stock one? Unless you're one of those crafty buggars that puts it in the trans tunnel.
It's on the trans tunnel
v01canic is offline   Reply With Quote
Old 01-04-2013, 09:25 PM   #34
Junior Member

Join Date: Oct 2011
Location: Montreal, QC
Posts: 194
Total Cats: 28
Default

Slightly OT, but brake-bias-related: how does changing the brake bias affect behaviour during trailbraking? Would more rear bias increase the tendency to rotate, or stabilize it? The reason I ask is because my current setup - stock brakes with FM Stage 2 set up to FM's alignment and sway settings - seems very squirrelly if I brake too deep into the corner.

I don't doubt that using more rear brake would give me better braking in a straight line, but I'm afraid as to what might happen if my newb *** brushes the brakes while turning if it's going to oversteer even more than it does while stock.
TalkingPie is offline   Reply With Quote
Old 01-04-2013, 09:30 PM   #35
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

It should make it more stable, up till the point where the rears start locking instead of the fronts.
Leafy is offline   Reply With Quote
Old 01-04-2013, 09:59 PM   #36
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Adjusting for rear tire lockup is not the only threshold. More rear brake bias will make the car less stable under braking during corner entry. But as long as it is not too much, it helps with getting the car rotated during trail braking.

This is one big reason why I have cockpit adjustable brake bias. It makes dialing in the instability an easy thing to do while on the track. BTW the bias valve does not have to be mounted on the transmission tunnel. I have a Wilwood cable adjuster which is not just useful for the bias bar dual master style setups. I have a thread about it around here somewhere.
ZX-Tex is offline   Reply With Quote
Old 01-05-2013, 01:19 AM   #37
Junior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 208
Total Cats: 0
Default

Link to thread please...

Marc, I think you may be analyzing it too deeply (driving in your helmet) look ahead and let your body do the rest. One of the best things about the Miata is the very easy ability to correct an oh **** moment. Just remember to look ahead at the next corner (not the one you're on) and be smooth with all inputs
v01canic is offline   Reply With Quote
Old 01-05-2013, 12:18 PM   #38
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by ZX-Tex View Post
This is one big reason why I have cockpit adjustable brake bias. It makes dialing in the instability an easy thing to do while on the track. BTW the bias valve does not have to be mounted on the transmission tunnel. I have a Wilwood cable adjuster which is not just useful for the bias bar dual master style setups. I have a thread about it around here somewhere.
Its the same adjuster as the balance bar? Interesting I may have to snag one once I can get enough natural rear bias that I dont just have the valve cranked fully open. And after I double check the rules.
Leafy is offline   Reply With Quote
Old 01-05-2013, 12:40 PM   #39
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
Adjusting for rear tire lockup is not the only threshold. More rear brake bias will make the car less stable under braking during corner entry. But as long as it is not too much, it helps with getting the car rotated during trail braking.

This is one big reason why I have cockpit adjustable brake bias. It makes dialing in the instability an easy thing to do while on the track. BTW the bias valve does not have to be mounted on the transmission tunnel. I have a Wilwood cable adjuster which is not just useful for the bias bar dual master style setups. I have a thread about it around here somewhere.
What you call "helping the rear" I call "properly set-up car". It's neutral, the car does whatever you want no matter how ridiculous...it's a pretty cool place.

Semantics.txt

Last edited by hustler; 01-05-2013 at 12:58 PM.
hustler is offline   Reply With Quote
Old 01-05-2013, 01:09 PM   #40
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

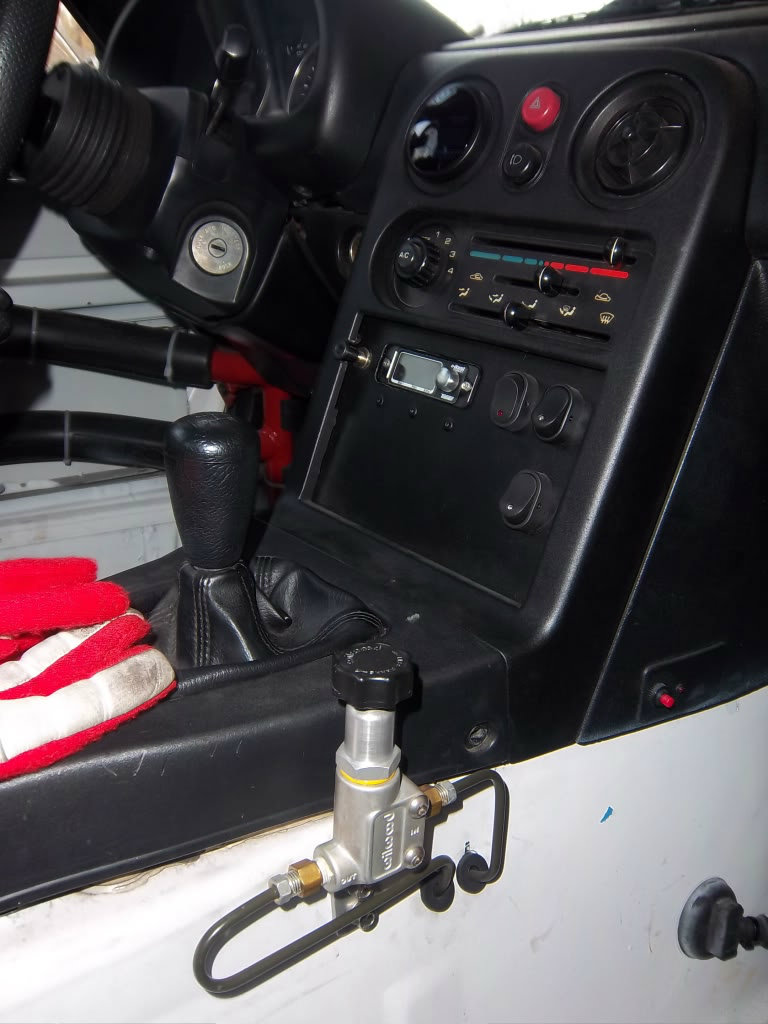

Dam already - just do it... redneck installed, like a cracker...
Seriously, there should be no conideration of installing one... it's a must-have

Attached Thumbnails
Wilwood Prop valve guys...couple questions-100_0198-1_zps9c289310.jpg
GeneSplicer is offline   Reply With Quote
