Default 1.6 Supercharged NB build.

I thought I would start a progress thread for those other crazy fools that are into S/C rather than turbos.

Here is my car before I start (already been posted in my noob post).

Name:  1e56c8d3.jpg
Views: 19
Size:  80.6 KB
Name:  a6abbf31.jpg
Views: 21
Size:  83.9 KB
Name:  ba6cfdc3.jpg
Views: 20
Size:  121.1 KB
Name:  7dfb6105.jpg
Views: 19
Size:  175.2 KB
Name:  a9d39be6.jpg
Views: 18
Size:  132.3 KB
Name:  477d288a.jpg
Views: 19
Size:  161.9 KB

This week I have got the ECU all wired in and also the relevant sensors in place.

Wideband gauge:

Name:  40c6bedc.jpg
Views: 17
Size:  113.4 KB
Name:  6849f336.jpg
Views: 16
Size:  101.3 KB

Wiring for IAT and MAP:


ECU wiring


Name:  b811b370.jpg
Views: 19
Size:  88.2 KB

Adaptronic stuck to the back of the glovebox with velcro.

Name:  38cf5a59.jpg
Views: 16
Size:  139.3 KB
Name:  423b4137.jpg
Views: 17
Size:  120.6 KB

Lick of paint on the S/C outlet

Name:  1b5417e3.jpg
Views: 19
Size:  241.4 KB

Then the fun begins...

Name:  d5ec98f1.jpg
Views: 17
Size:  133.8 KB
Name:  7609d0fc.jpg
Views: 18
Size:  130.8 KB
Loads of room to fill:
Name:  216ea8f5.jpg
Views: 18
Size:  145.2 KB

But the mounting bracket for the S/C doesnt fit so needs some fabrication so im stuck untill Monday.

Intercooled NA.

Name:  bc951731.jpg
Views: 24
Size:  121.8 KB
Name:  10529912.jpg
Views: 16
Size:  211.0 KB
eafy is offline   Reply With Quote
Old 06-16-2011, 01:34 PM   #2
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Looks good. Did the car come factory with a 1.6l I know in the US all NB's have a 1.8l.
Sean is offline   Reply With Quote
Old 06-16-2011, 01:57 PM   #3
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

outside the US some locations had 1.6l still coming in NA\NBs past 93
Techsalvager is offline   Reply With Quote
Old 06-16-2011, 02:02 PM   #4
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Yeah in Europe we get 1.6s

Less power than than 1.8 but it feels 'revier', there isn't a lot of difference between them on the road.

Only down side is that because the 1.6 is limited to Europe and Phillipines there isn't a wide selection of parts, most come from USA or Japan.

An MP62 1.6 NB has got to be quite rare.
eafy is offline   Reply With Quote
Old 06-16-2011, 02:16 PM   #5
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Nice I like the car. I have had both 1.6l and 1.8l to be honest in close to stock form I will take the 1.6l all day it is almost as fast but gas mileage is much better.
Sean is offline   Reply With Quote
Old 06-16-2011, 02:42 PM   #6
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

This is how I got to where I am now:

http://www.mx5nutz.com/forum/index.p...=1&entry687988
eafy is offline   Reply With Quote
Old 06-20-2011, 04:58 PM   #7
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

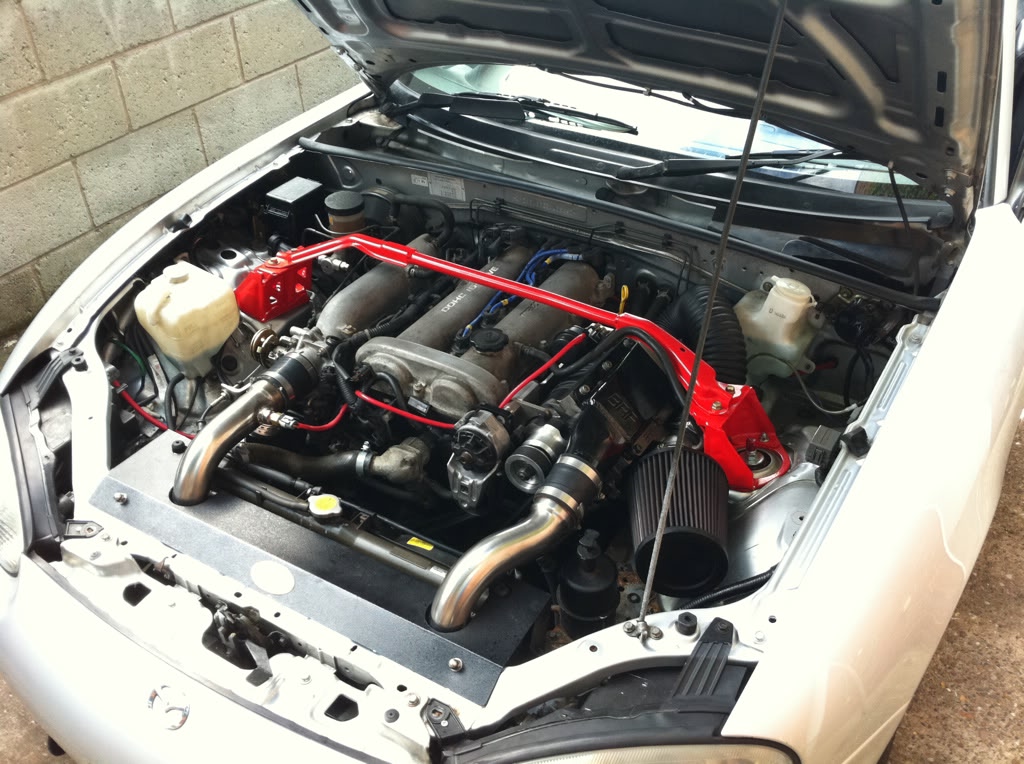

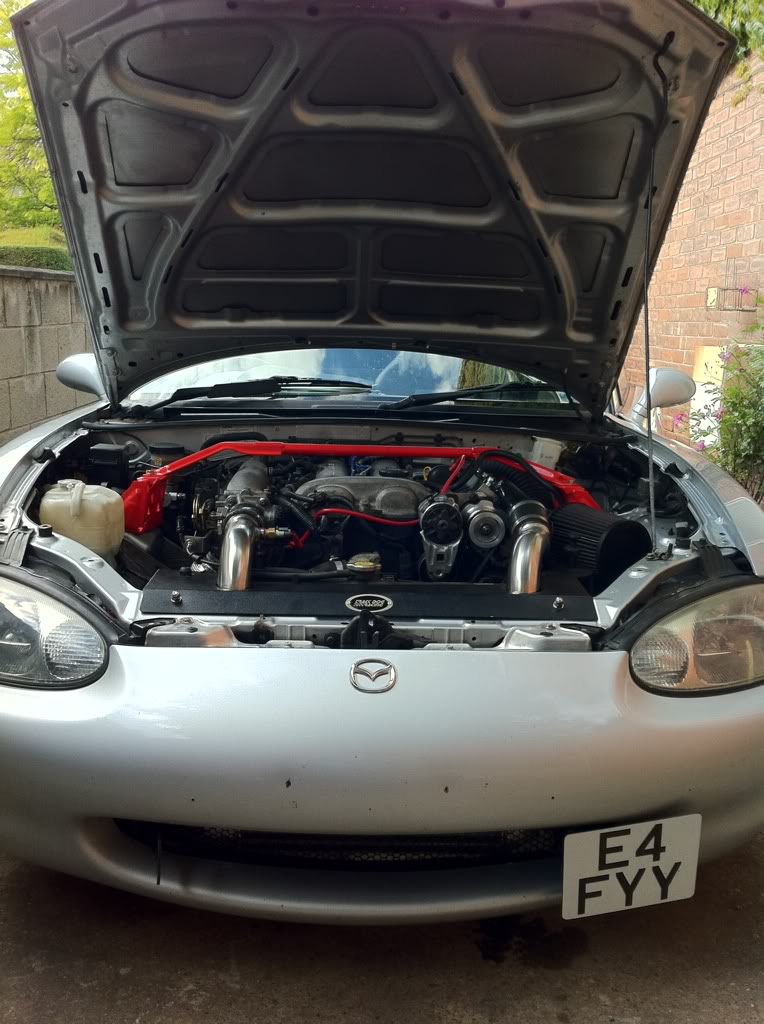

So over the weekend I got some longer studs and some 20mm spacers to give me the clearance.

Name:  cce98018.jpg
Views: 17
Size:  167.0 KB
Name:  5234bc0f.jpg
Views: 20
Size:  123.0 KB
eafy is offline   Reply With Quote
Old 06-20-2011, 05:25 PM   #8
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Looks great how does it run?
Sean is offline   Reply With Quote
Old 06-20-2011, 08:12 PM   #9
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Its running great at the min.

The adaptronic ECU is still tuning it so it's early days yet.

It starts and idles great and the power picks up at 2k revs
eafy is offline   Reply With Quote
Old 06-21-2011, 05:35 PM   #10
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Sure looks nice, although I knew a friend at the track who had a hard time with the supercharger belts. Sometimes they would snap without any warning or way too much slack, besides that it ran decent for a 1.6.

The Mercury Capri, if I recall well, is the same engine with the minor difference of the water circuation on the CH.
mazpr is offline   Reply With Quote
Old 06-21-2011, 06:10 PM   #11
Junior Member

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Nice! More details on the dual throttle mod please! Trying to figure out the routing for the cables. Thanks!
Greg G is offline   Reply With Quote
Old 06-21-2011, 08:49 PM   #12
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Greg: Ill get some pics of the DTB soon, I have done my back in fitting this so It wont be for a few days.
Basically there is a second throttle cable holder on the 1st TB and then it runs along the top of the radiator and then under the charger to the 2nd TB.
Very simple but very very effective - no lack of response what so ever.

Mazpr: Hopefully I wil have no issues with slack as the auto tensioner is taking care of that
eafy is offline   Reply With Quote
Old 06-22-2011, 06:11 PM   #13
Newb

Join Date: Jan 2009
Location: Pontefract UK
Posts: 15
Total Cats: 0
Default

There is a huge thread here on DTB's that gives a lot of info or Mx5nutz has even more info
allanhelen is offline   Reply With Quote
Old 06-23-2011, 12:39 PM   #14
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Yeah Nutz is a good place to look.

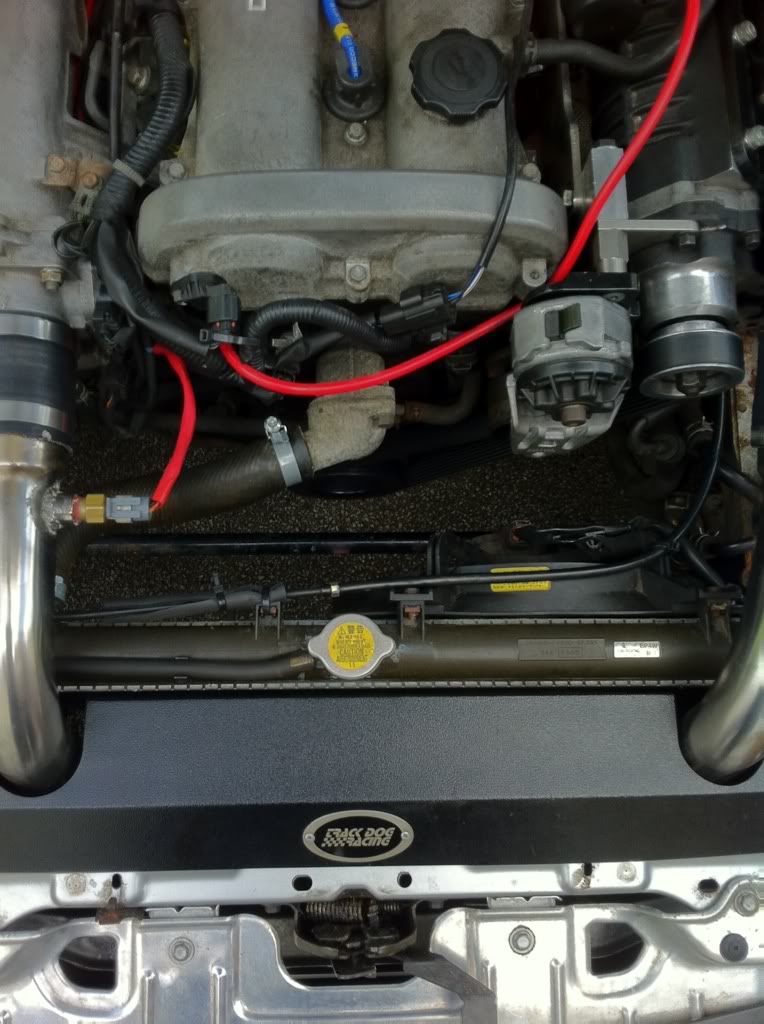

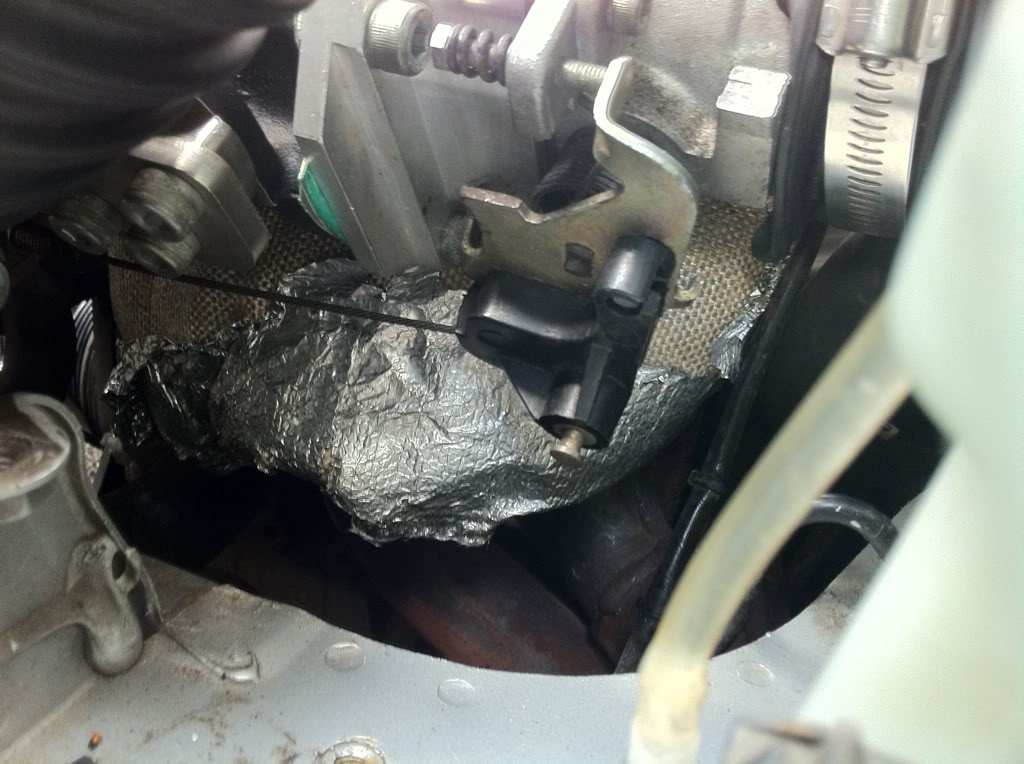

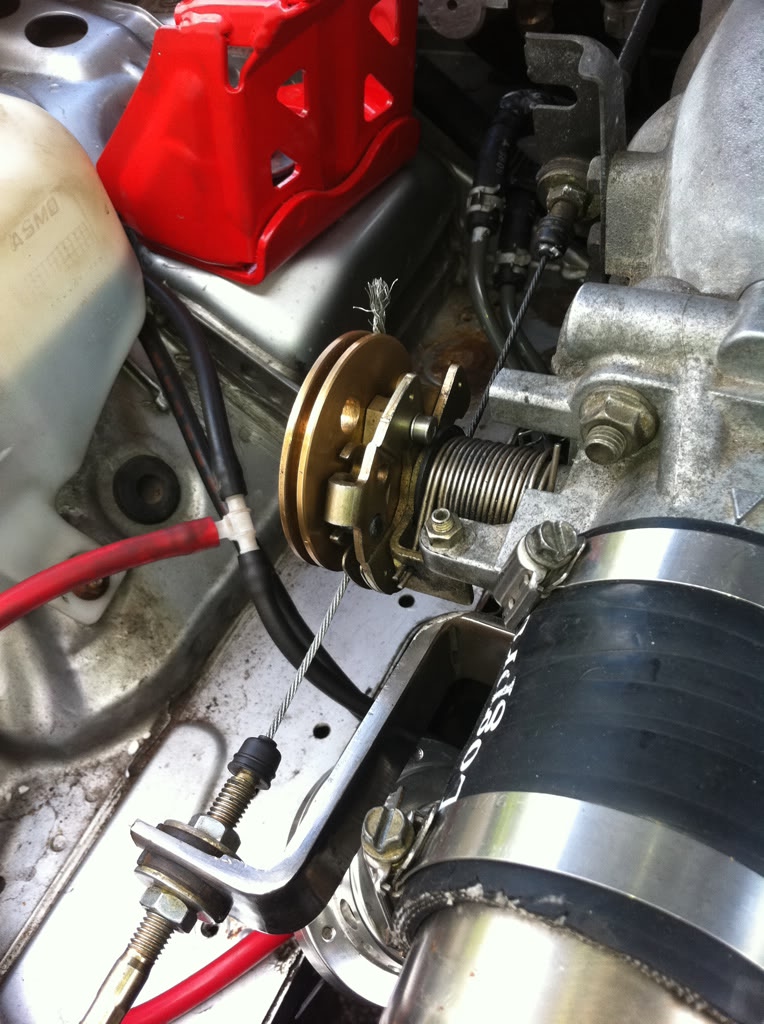

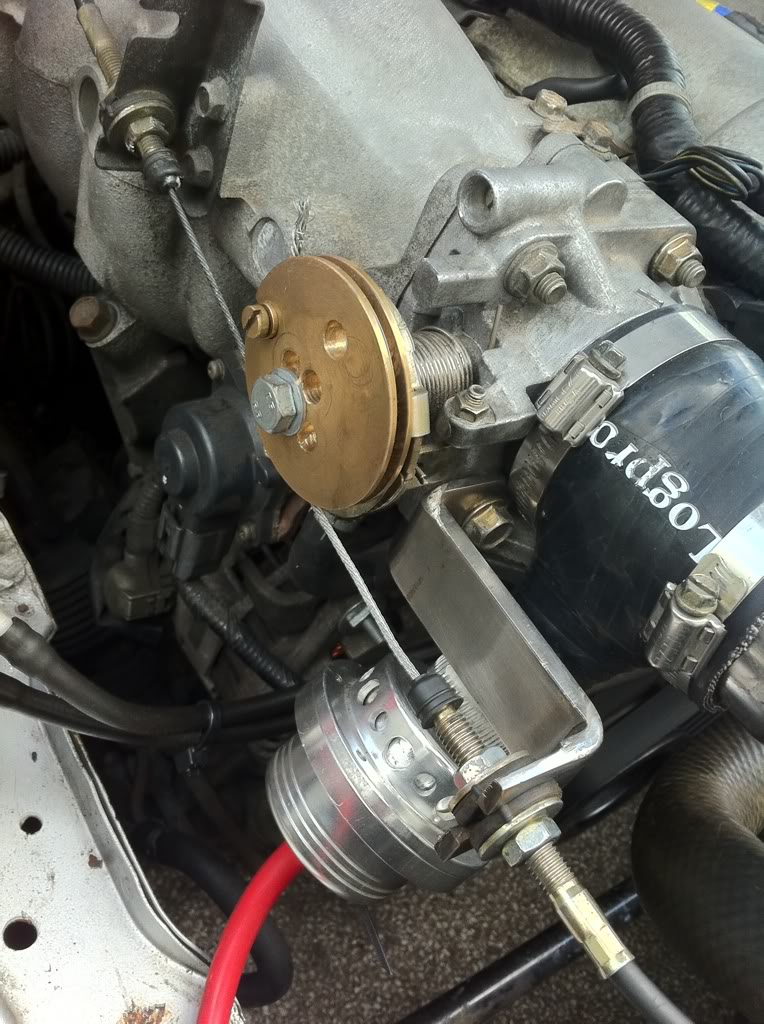

here is the more details pics anyway...

Name:  1249534d.jpg
Views: 16
Size:  145.3 KB
Name:  d84f1a1d.jpg
Views: 18
Size:  152.3 KB
Name:  7c61ac3d.jpg
Views: 17
Size:  113.8 KB

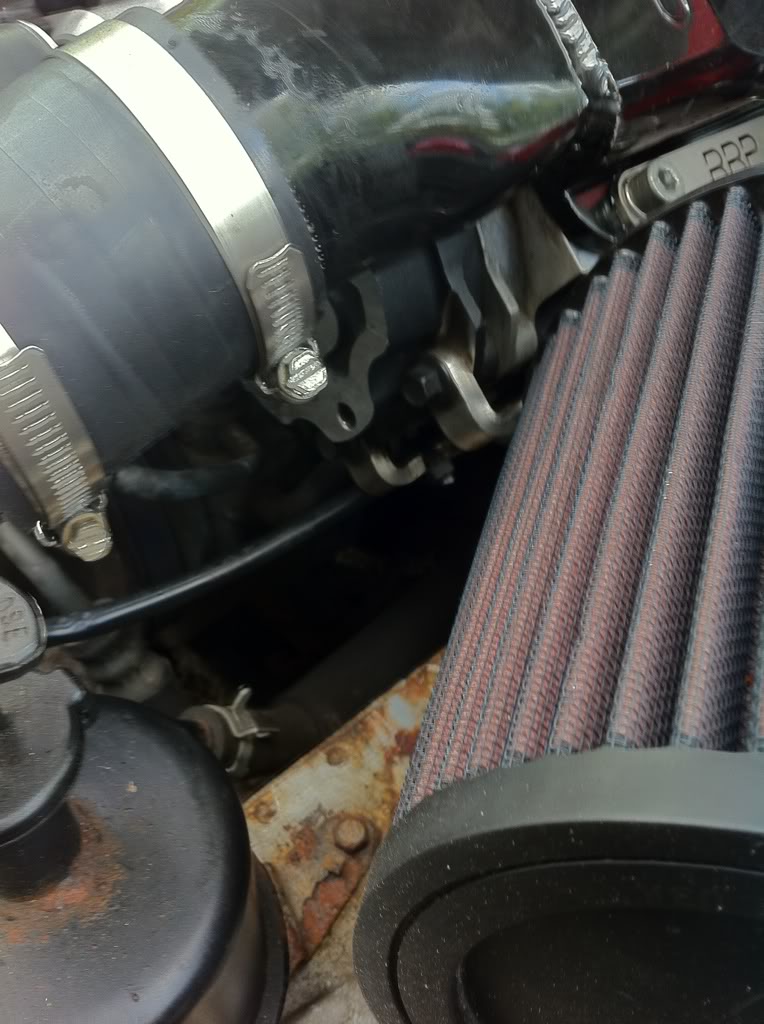

Name:  eec0c5e4.jpg
Views: 18
Size:  106.7 KB
Name:  89986c59.jpg
Views: 19
Size:  110.5 KB

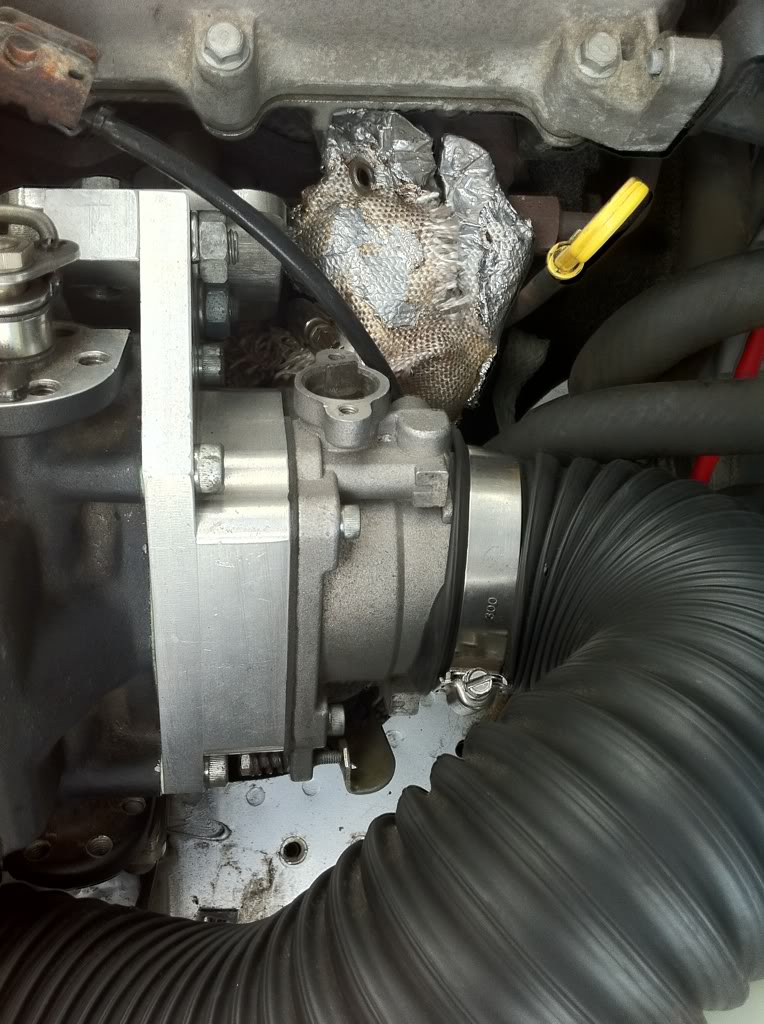

Name:  7566696a.jpg
Views: 17
Size:  134.0 KB
eafy is offline   Reply With Quote
Old 07-02-2011, 10:05 AM   #15
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

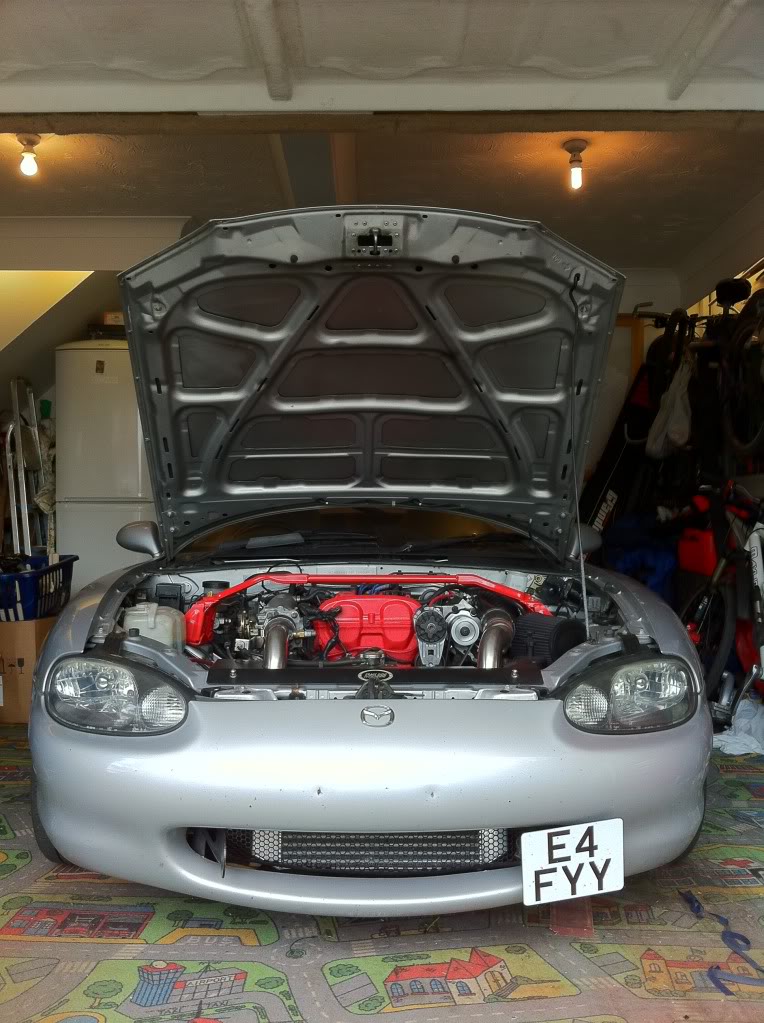

Little bit of painting done.

Cam cover

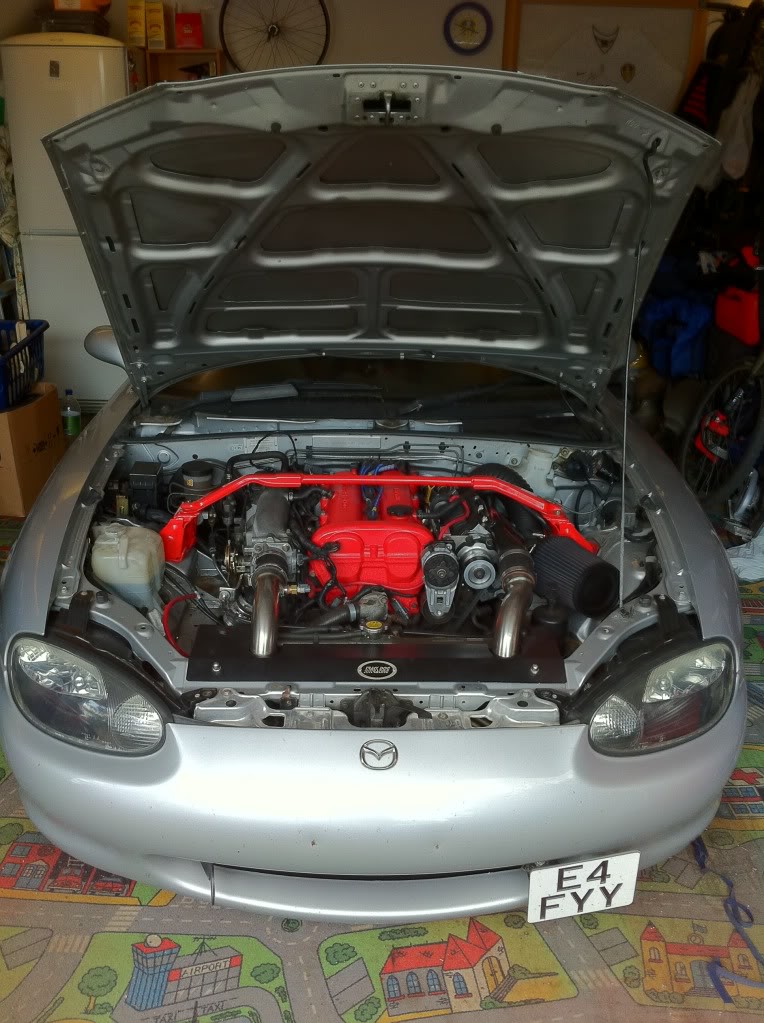

Name:  IMG_0933.jpg
Views: 19
Size:  145.1 KB
Name:  IMG_0934.jpg
Views: 20
Size:  143.4 KB

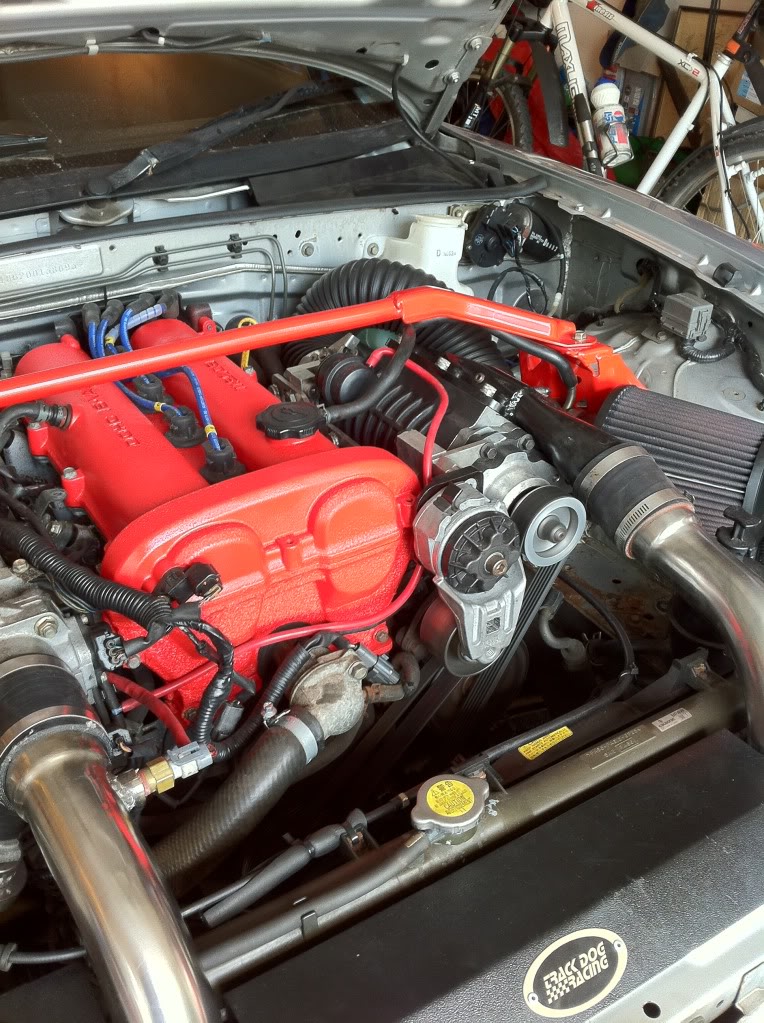

Name:  IMG_0935.jpg
Views: 19
Size:  203.2 KB

Black lghts

eafy is offline   Reply With Quote
Old 07-07-2011, 12:15 PM   #16
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

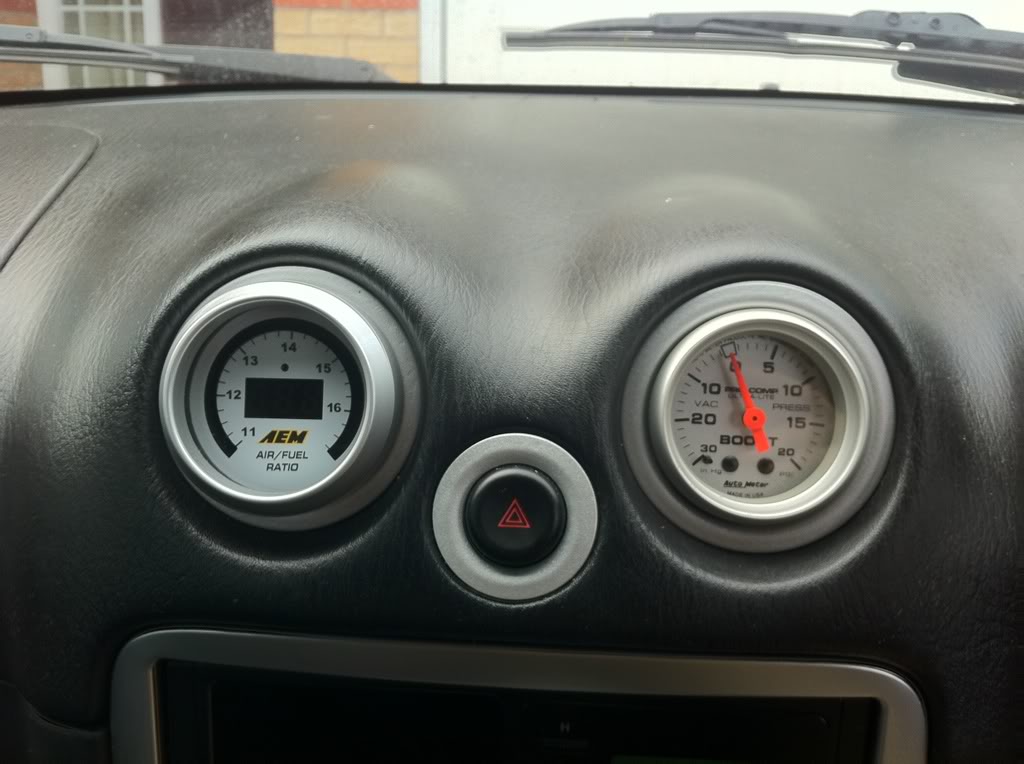

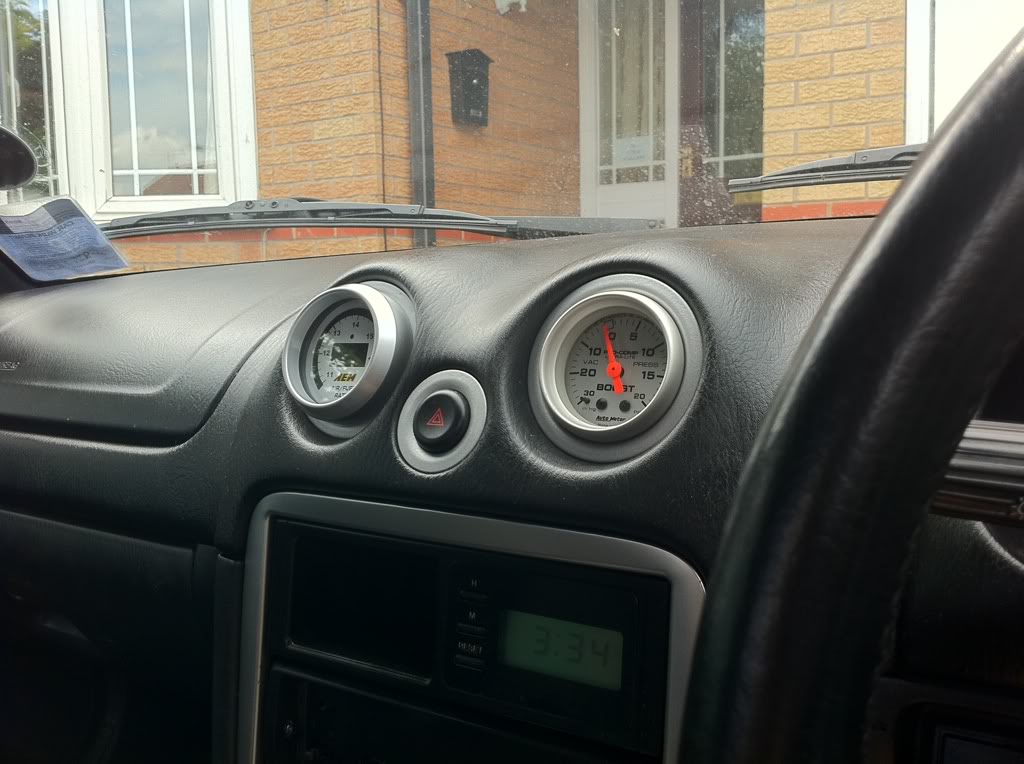

Added a boost gauge thats I picked up for next to nothing

Name:  f12cc932.jpg
Views: 17
Size:  106.3 KB
Name:  3cc4bfa6.jpg
Views: 17
Size:  83.6 KB

Just need to change my speedo to white now to match these gauges.
eafy is offline   Reply With Quote
Old 07-20-2011, 10:01 AM   #17
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Quick video I filmed to show the sound of the charger and exhaust note


eafy is offline   Reply With Quote
Old 07-26-2011, 04:03 PM   #18
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

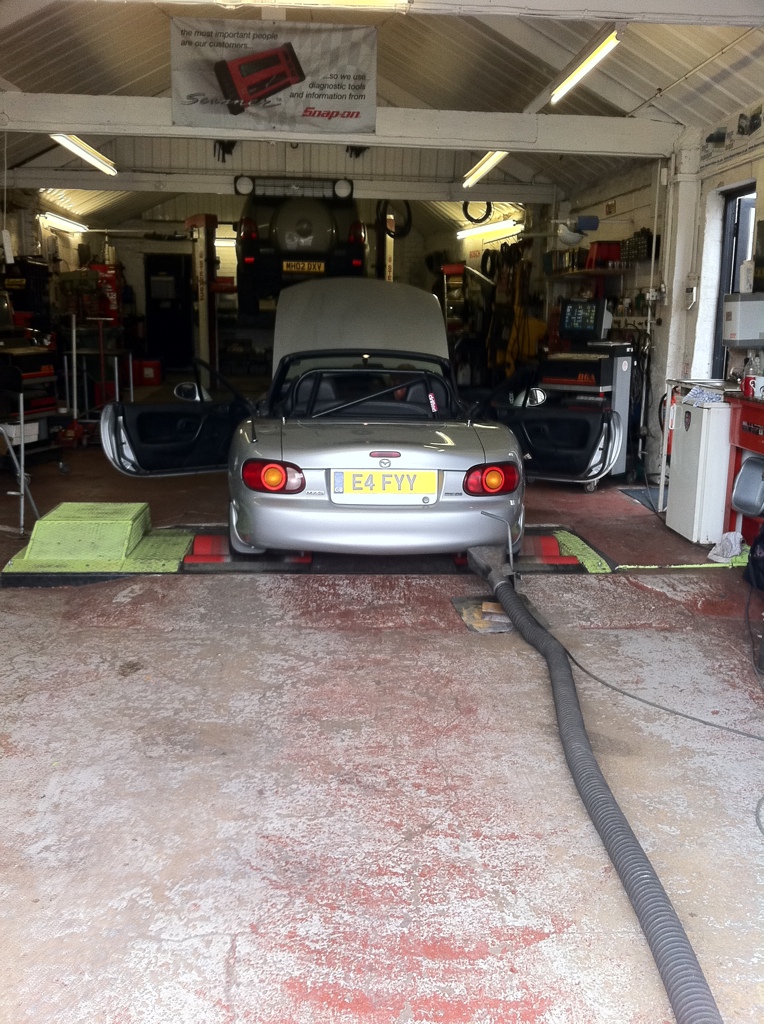

Well the car has been for a dyno run and tune today.

I was expecting to get the car back with an optimistic 200 horses. The car had 110 from the factory so adding 90 is quite a large amount.

So we did this

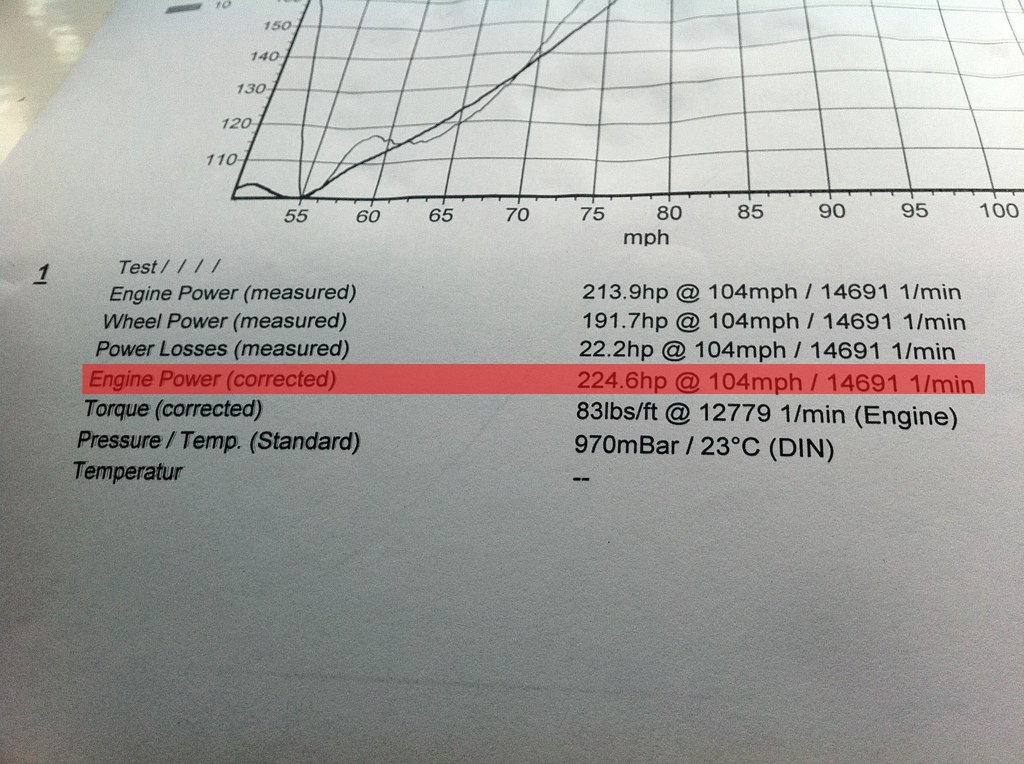

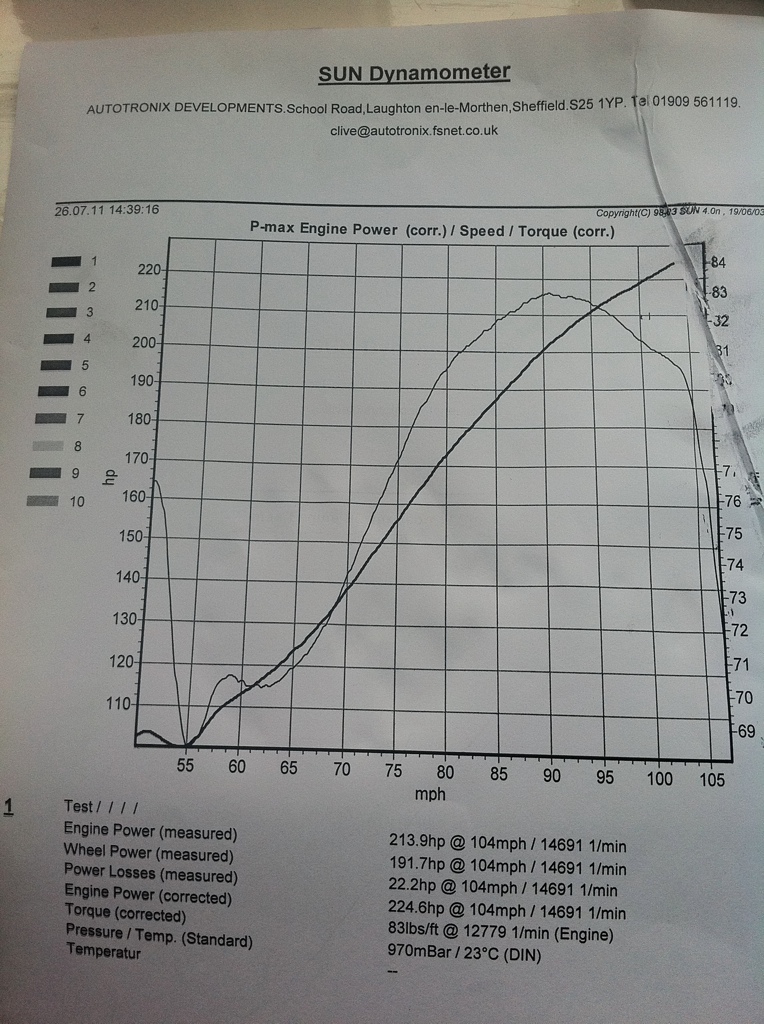

And we got this:





WOW! thats a lot more than I was planning :blink:
Obviously the torque figure is wrong as the dyno needs recalibrating which is happening on Monday.
Attached Thumbnails
1.6 Supercharged NB build.-1ea3d9ec.jpg   1.6 Supercharged NB build.-793f48cbcopy.jpg   1.6 Supercharged NB build.-67737261.jpg

Last edited by eafy; 07-26-2011 at 04:47 PM.
eafy is offline   Reply With Quote
Old 07-26-2011, 04:17 PM   #19
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

That is great. I would imagine this will make for a great street set up. I am really surprised to see this much power out of a supercharger. How much boost is it set to?
Sean is offline   Reply With Quote
Old 07-26-2011, 04:49 PM   #20
Newb
Thread Starter

Join Date: May 2011
Location: UK
Posts: 38
Total Cats: 0
Default

Im surprised it made that much! I think it comes down to the intercooler being sooo good.
It hits 11 PSI on my engine.

I have fixed the youtube link above so now it works. It sounded like a jet!
