Default Heat shield for hotside sc?

curious if anyone uses such to help keep temps off a hotside charger.. I've got my brackets done and think I'm close enough to the header that I might need to consider one for just helping temps stay lower.
foxyroadster is offline   Reply With Quote
Old 07-09-2011, 11:53 PM   #2
Junior Member

Join Date: Nov 2005
Location: Athens
Posts: 197
Total Cats: 0
Default

I use 1 of these and have wrapped the exhaust.
http://www.trackdogracing.com/website/heat_shields.htm

Dramatically reduced under bonnet and SC temps
eunos1800 is offline   Reply With Quote
Old 07-10-2011, 02:59 AM   #3
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

No brainer
jeff_man is offline   Reply With Quote
Old 07-10-2011, 03:26 AM   #4
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Quote:
Originally Posted by eunos1800 View Post
I use 1 of these and have wrapped the exhaust.
http://www.trackdogracing.com/website/heat_shields.htm

Dramatically reduced under bonnet and SC temps
Yeah, no kiddin'. I loved mine so much I kept for my turbo install. Works great.
viperormiata is offline   Reply With Quote
Old 07-10-2011, 09:49 PM   #5
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

I modified the stock metal shield - it also works great.
BarbyCar is offline   Reply With Quote
Old 08-16-2011, 04:10 AM   #6
Junior Member
iTrader: (5)

Join Date: Dec 2010
Posts: 142
Total Cats: 2
Default

I'm another who has the TDR blanket. Put it on when I changed my stock manifold for an '01+ manifold. I haven't taken any actual temps underhood but it is noticeably cooler in the area with the blanket in place.
chiefmg is offline   Reply With Quote
Old 08-28-2011, 08:08 AM   #7
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I have the header wrapped and the TDR header blanket.
TNTUBA is offline   Reply With Quote
Old 08-28-2011, 01:13 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

I have a TDR blanket I'm selling if anyone is interested
18psi is offline   Reply With Quote
Old 03-30-2012, 11:14 AM   #9
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Virginia Beach
Posts: 76
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
I have a TDR blanket I'm selling if anyone is interested
Sold?
talonaj24 is offline   Reply With Quote
Old 04-01-2012, 10:35 AM   #10
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

My header is heat wrapped and has a TDR cover. Works very very well.
falcon is offline   Reply With Quote
Old 04-03-2012, 04:05 PM   #11
Junior Member
iTrader: (1)

Join Date: Aug 2009
Posts: 48
Total Cats: 0
Default

Quote:
Originally Posted by talonaj24 View Post
Sold?
Yea, I bought it after he posted that.
SmokeSR is offline   Reply With Quote
Old 04-04-2012, 03:50 AM   #12
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,765
Total Cats: 18
Default

Quote:
Originally Posted by SmokeSR View Post
Yea, I bought it after he posted that.
Like a year ago...
IcantDo55 is online now   Reply With Quote
Old 04-04-2012, 09:40 AM   #13
Junior Member
iTrader: (1)

Join Date: Aug 2009
Posts: 48
Total Cats: 0
Default

Going on the car over the next couple weeks. Hopefully it's as good as everyone says it is.
SmokeSR is offline   Reply With Quote
Old 02-22-2013, 09:49 PM   #14
Junior Member

Join Date: Oct 2011
Posts: 97
Total Cats: 0
Default

Quote:
Originally Posted by chiefmg View Post
i'm another who has the tdr blanket. Put it on when i changed my stock manifold for an '01+ manifold. I haven't taken any actual temps underhood but it is noticeably cooler in the area with the blanket in place.
+1
gthill13 is offline   Reply With Quote
Old 01-19-2014, 03:43 PM   #15
Newb
iTrader: (1)

Join Date: Jun 2013
Posts: 36
Total Cats: 0
Default

I also have used the Trackdog heat shield, and was very happy with the results. At the same time I wrapped the headers. I live in Texas, and my engine bay used to get very hot. It used to burn you if you touched my hood (like leave skin in the hood hot). Now my temps are acceptable.

I even saw a noticeable drop on my water temps. I used to always sit on the right site of the halfway mark on my gauge. Now I am always on the left, like a stock car should be.

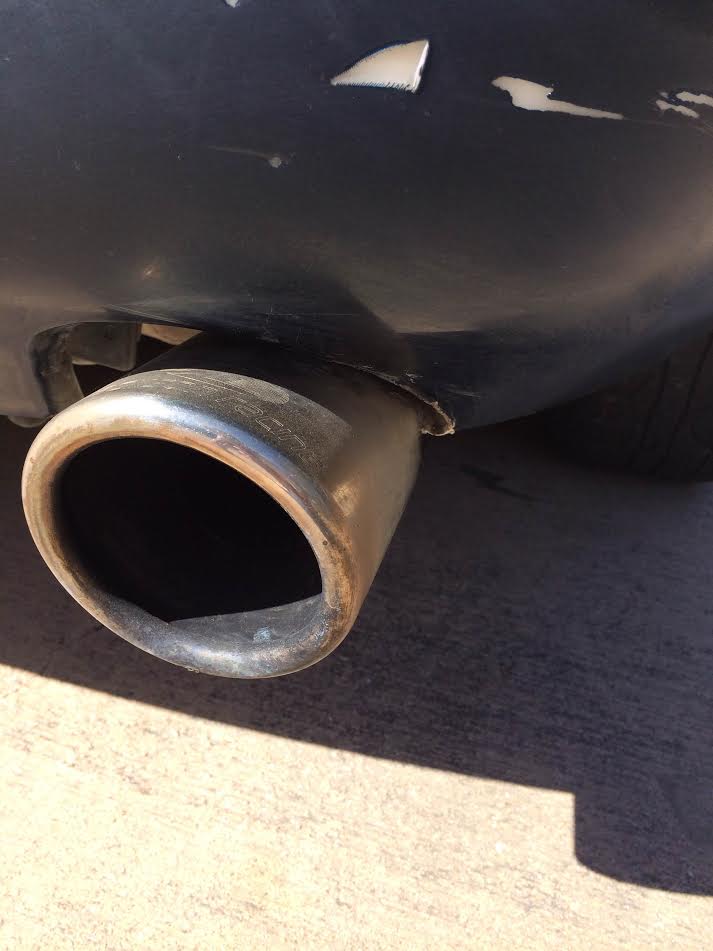

My bumper ended up melting a little after I put the heat shield on. So I know the header is getting hot. Only time will tell if the welds will take that much heat.
Attached Thumbnails
Heat shield for hotside sc?-oe6s3jm.jpg
verch101 is offline   Reply With Quote
Old 01-19-2015, 05:01 AM   #16
Junior Member

Join Date: Nov 2014
Posts: 51
Total Cats: -14
Default

I have noticed that several turbo cars use the heat shield blanket. I assume it will also work for a m45 JRSC. Even stock NAs get pretty warm under the hood. I was considering a turn signal intake and headlight cover intake, but the blanket might just be the ticket
DonPlatt is offline   Reply With Quote
Old 01-20-2015, 11:20 PM   #17
Tweaking Enginerd
iTrader: (2)

Join Date: Mar 2013
Location: Boulder, CO
Posts: 480
Total Cats: 37
Default

Header wrap and TDR here, big improvement
Ted75zcar is offline   Reply With Quote
Old 01-22-2015, 12:45 PM   #18
Junior Member

Join Date: Sep 2013
Location: Denver, CO
Posts: 76
Total Cats: -9
Default

I built my own stainless steel heat shield at one point in time. I had a Jackson Racing header so the stock heat shield wouldn't fit. I can't say that I noticed much of an improvement. The thing I did notice an improvement on was a turn signal intake, that seemed to lower the intake air temps a good bit. (measured with a bipes set to retard timing with increase in iat, not a thermometer)
lexintexan is offline   Reply With Quote
Old 02-01-2015, 09:18 AM   #19
Newb

Join Date: Jan 2012
Posts: 9
Total Cats: 0
Default

I have a quest. I am on 1.6 NB with a charger. The distance between charger and collector pipe is around 3cm. Pipes are warped with heat bandage, I have TDR blanket over, but it is in contact with the charger (I drove it like this 5K km). Should I remove it and keep only bandage or to modify the original metal shield to have a distance between it and the charger?
dexterJr is offline   Reply With Quote
Old 02-06-2015, 09:00 AM   #20
Junior Member

Join Date: Aug 2014
Posts: 88
Total Cats: -1
Default

I used the blanket for a few hundred miles but don't like that it won't fit under the BRP bracket and is smashed against the steering shaft.

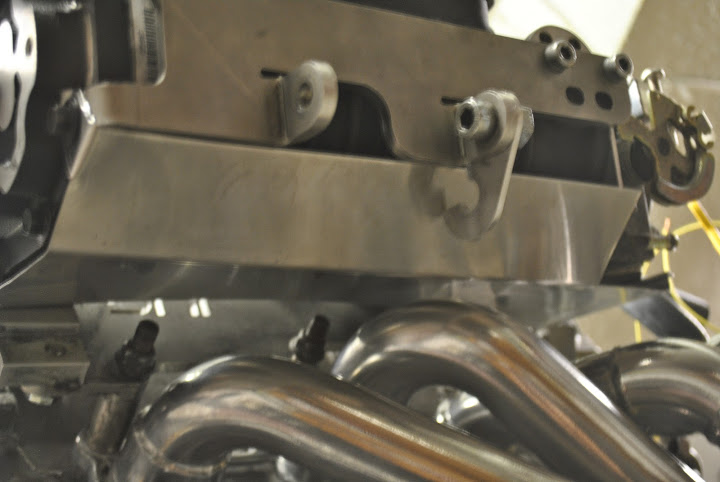

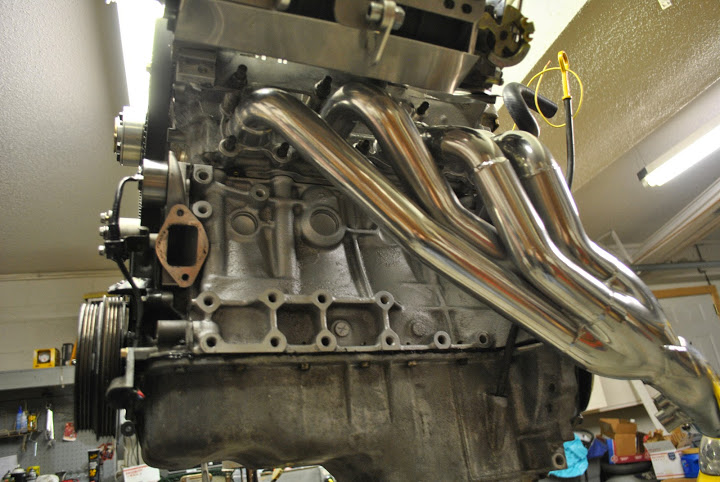

I sold it and ceramic coated the RB header to lower under hood heat (maybe) and built a stainless shield which will protect the SC oil and grease from direct radiant heat.







Attached Thumbnails
Heat shield for hotside sc?-dsc_2810.jpg   Heat shield for hotside sc?-dsc_2812.jpg   Heat shield for hotside sc?-dsc_2806.jpg   Heat shield for hotside sc?-dsc_2804.jpg
