Default M45 Hp and Tq estimates?

I've got a 2000 that has been running a JR M45 for several years. Over the years, I have replaced stock parts with: 4:1 header, full 2.5 in. RoadsterSport3 exhaust, fully enclosed DDMWorks Intake. I am planning on adding a MS, but am still currently running the JR magic black box.

Questions:
What kind of Hp/Tq difference should I expect from stock with my current setup?
Would my system safely cope with a smaller nose pulley (62.5mm)?
If so: How much will this affect boost (1-1.5 psi?), how would this affect Hp/Tq?
What kind of difference would a MS make as far as my numbers?

I understand the gains will be minimal, as there is no major changes being made.
kw1h is offline   Reply With Quote
Old 06-27-2012, 01:43 AM   #2
Newb
iTrader: (1)

Join Date: Dec 2009
Location: SA, Tx
Posts: 32
Total Cats: 0
Default

just scroll down a couple of threads and you will find what your looking for
oscargarza88 is offline   Reply With Quote
Old 06-27-2012, 03:54 PM   #3
Elite Member
iTrader: (7)

jeff_man's Avatar

Join Date: May 2007
Location: Dallas, Tx
Posts: 3,056
Total Cats: 103
Default

"I am planning on adding a MS" > "4:1 header, full 2.5 in. RoadsterSport3 exhaust, fully enclosed DDMWorks Intake."
jeff_man is offline   Reply With Quote
Old 06-27-2012, 06:02 PM   #4
Newb
Thread Starter

Join Date: Jun 2010
Location: Dublin, Georgia
Posts: 43
Total Cats: 0
Default

Thanks Jeff, just who I was hoping to hear from. I assumed the MS would help out immensely, I was just trying to get familiar with all of it first. Would my current system accept the smaller nose pulley?
kw1h is offline   Reply With Quote
Old 06-27-2012, 06:44 PM   #5
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

FWIW:

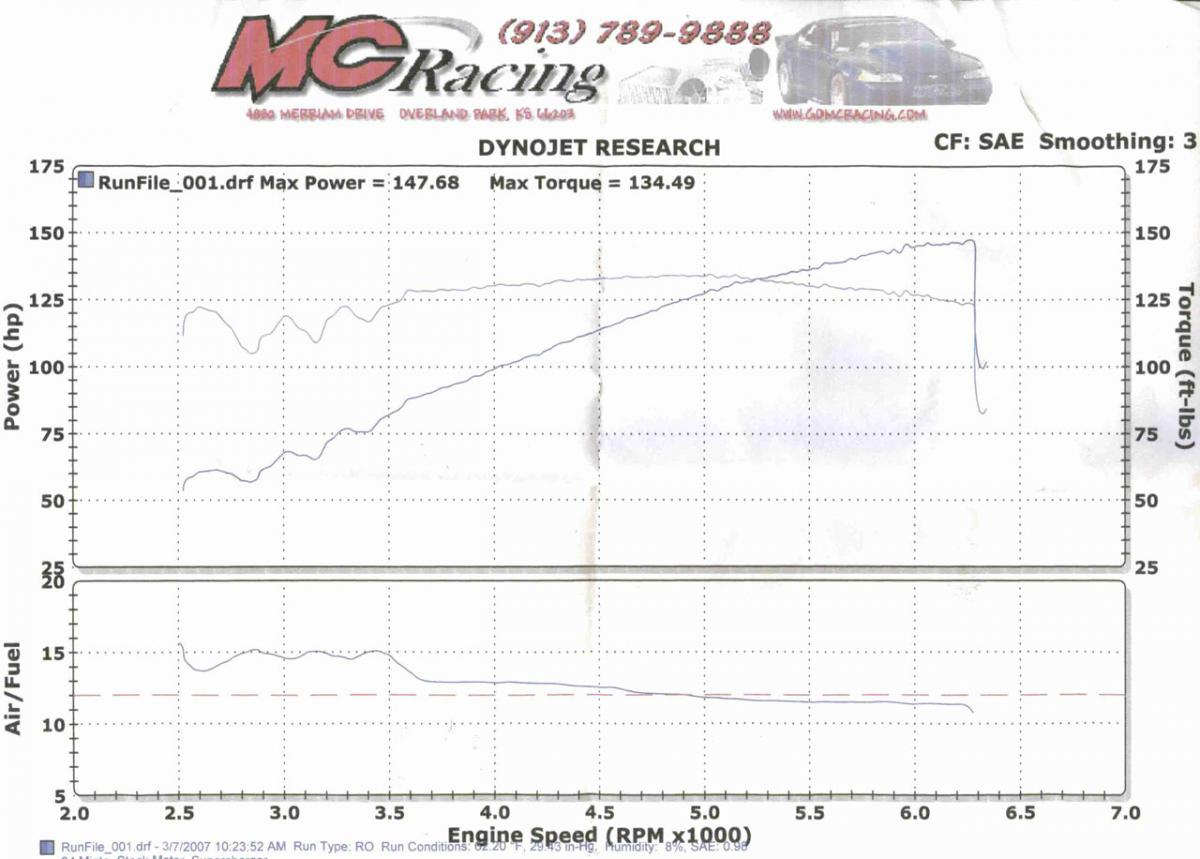

94 1.8, M45, 62mm pulley, stock manifold, 2.5" borla, high flow cat, stock injectors, low fuel pressure, o2 clamp and p-p-p-p-powercard!!

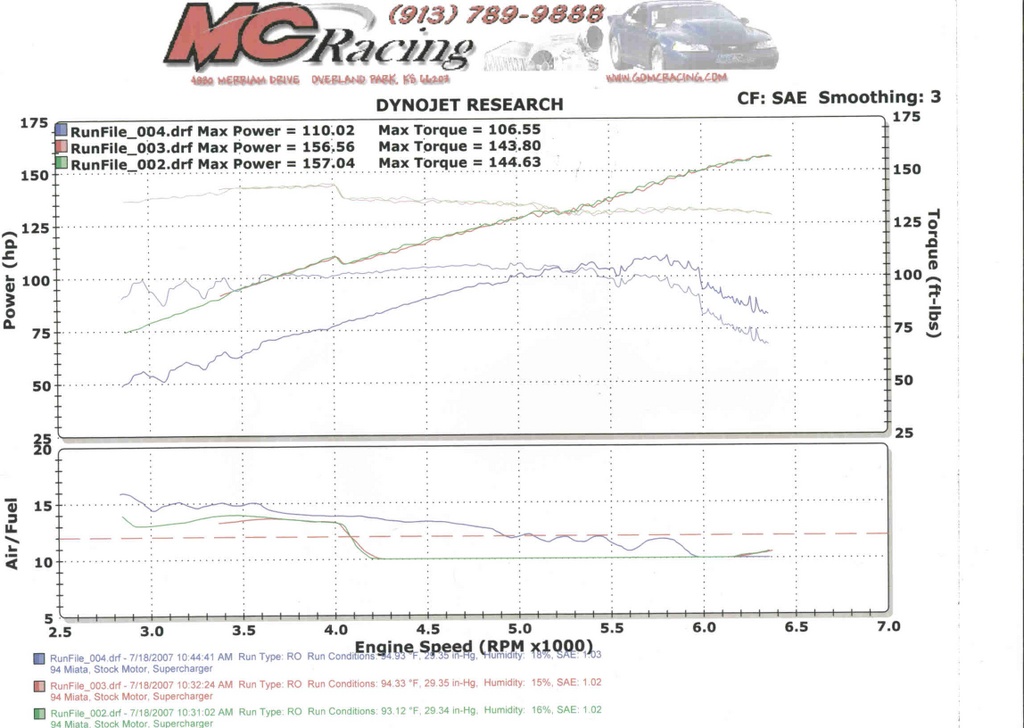

94 1.8, M45, 62mm pulley, header, 2.5" borla, no cat, stock injectors, bell fpr, MS1PNP:



We did a little tuning after those 2 runs but I can't find the dyno sheet, all it did was smooth out the dip at 4000 and improve the fuel delivery. Injectors were running at near 100% and the stock fuel pump died shortly after. If IIRC final numbers were 164hp/147tq.
Attached Thumbnails
M45 Hp and Tq estimates?-dyno.jpg   M45 Hp and Tq estimates?-miatadyno.jpg
elesjuan is offline   Reply With Quote
Old 06-27-2012, 07:16 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

ms = priority#1

I tuned a m45 setup after he ran on the crapcard and the difference was big everywhere.

otherwise elesjuan answered everything
18psi is offline   Reply With Quote
Old 06-27-2012, 07:48 PM   #7
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by elesjuan View Post
FWIW:

94 1.8, M45, 62mm pulley, stock manifold, 2.5" borla, high flow cat, stock injectors, low fuel pressure, o2 clamp and p-p-p-p-powercard!!




94 1.8, M45, 62mm pulley, header, 2.5" borla, no cat, stock injectors, bell fpr, MS1PNP:



We did a little tuning after those 2 runs but I can't find the dyno sheet, all it did was smooth out the dip at 4000 and improve the fuel delivery. Injectors were running at near 100% and the stock fuel pump died shortly after. If IIRC final numbers were 164hp/147tq.
Wheel or crank power? That's only marginally better than my did with MS, cam and some tuning
Oscar is offline   Reply With Quote
Old 06-28-2012, 02:17 AM   #8
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by Oscar View Post
Wheel or crank power? That's only marginally better than my did with MS, cam and some tuning
Oh that's wheel baby! The kit was sold in favor of a FM2 kit, then upgraded to a chinacharger. Too many 20psi runs killed the rings before a dyno could be taken. About 10 minutes into the first drive that car put BUS LENGTHS on a new SS camaro...

I'm pretty impressed with the power of your n/a car, man!
elesjuan is offline   Reply With Quote
Old 06-28-2012, 09:33 AM   #9
Newb
Thread Starter

Join Date: Jun 2010
Location: Dublin, Georgia
Posts: 43
Total Cats: 0
Default

Ah, this has affirmed my fears. I originally rebuilt the engine and replaced all if the parts because I had planned to sell the car to start down the turbo road. I see that was a good idea now. Thanks
kw1h is offline   Reply With Quote
Old 06-29-2012, 01:12 AM   #10
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by kw1h View Post
I've got a 2000 that has been running a JR M45 for several years. Over the years, I have replaced stock parts with: 4:1 header, full 2.5 in. RoadsterSport3 exhaust, fully enclosed DDMWorks Intake. I am planning on adding a MS, but am still currently running the JR magic black box.

Questions:
What kind of Hp/Tq difference should I expect from stock with my current setup?
Would my system safely cope with a smaller nose pulley (62.5mm)?
If so: How much will this affect boost (1-1.5 psi?), how would this affect Hp/Tq?
What kind of difference would a MS make as far as my numbers?

I understand the gains will be minimal, as there is no major changes being made.
My '92 1.6 made 140.hp on a Dynodynamics dyno. They typically read 10%~15% lower than a dynojet. This would extrapolate to 155~160 whp.
I am running a small pulley and make about 9 psi. I run with 1.8 tan injectors and AFPR as well as a JR boost timing control box.
I just got a LINK for mine so I expect to get rid of the AFM which supposedly lets you make another 10 or so HP. The Link should allow for much better fuel and timing tuning so there should be some gains there too.

I suspect that going with a MS you will see a substantial improvement because of the tuning ability and the deletion of the AFM. I have heard that simply replacing an AFPR with the JR powercard has resulted in very substantial gains as measured on a dyno. I mean going from 150 to 165 whp.. Since you already have the black box, your gains might be less dramatic, but they should still be significant. If you run larger injectors and the smaller pulley, you should see very noticeable improvements in your power. How much power are you making now?
silver92b is offline   Reply With Quote
Old 06-29-2012, 03:33 AM   #11
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

196whp and 176wtq according to PO

01, m45, 150mm overlay pulley and 62.5 nose pulley, EMU, tdr intercooler, 2.5" exhaust. 8psi on cold mornings. 7 normally.

hated it. pulled it and am now running a turbo.
fwMiata is offline   Reply With Quote
Old 06-29-2012, 11:38 AM   #12
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by fwMiata View Post
196whp and 176wtq according to PO

01, m45, 150mm overlay pulley and 62.5 nose pulley, EMU, tdr intercooler, 2.5" exhaust. 8psi on cold mornings. 7 normally.

hated it. pulled it and am now running a turbo.
Oh, I did not read that in the thread. He was clearly making a lot of power already for an M45. I agree that if making a lot of power is the goal, turbochargers are the best way to go. It's very difficult if not impossible to upgrade blowers in the positive displacement systems. Just too cumbersome if if one finds the blower itself.
silver92b is offline   Reply With Quote
Old 06-29-2012, 06:44 PM   #13
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

No... The previous owner of my car.... PO... Don't know about anyone else...
fwMiata is offline   Reply With Quote
Old 06-29-2012, 08:48 PM   #14
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

I am sorry, I'm confused. You are now running a turbo in your car? I guess you are no longer interested in the information about the M45 setup... I must read these post more carefully. Sorry for posting irrelevant info...
silver92b is offline   Reply With Quote
Old 06-29-2012, 10:25 PM   #15
Newb
Thread Starter

Join Date: Jun 2010
Location: Dublin, Georgia
Posts: 43
Total Cats: 0
Default

No Silver92b, I am still running the supercharger. I plan on selling the car to start fresh on a new one with a turbo setup. I am not sure how much power I am making now, as I have never had the car dyno'd. That was the reason for creating the thread, to get a general idea. I have definitely noticed an increase in torque over the stock supercharger. I do not usually run my rpm's too high (I don't race), so I don't pay as much attention to hp.
kw1h is offline   Reply With Quote
Old 06-29-2012, 10:45 PM   #16
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by kw1h View Post
No Silver92b, I am still running the supercharger. I plan on selling the car to start fresh on a new one with a turbo setup. I am not sure how much power I am making now, as I have never had the car dyno'd. That was the reason for creating the thread, to get a general idea. I have definitely noticed an increase in torque over the stock supercharger. I do not usually run my rpm's too high (I don't race), so I don't pay as much attention to hp.
.

I can understand wanting to try a new thing. You can definitely get a lot more power easier with a turbo set up. However, it will cost you a pretty penny unless you are a DIY guy and buy everything at bargain prices. Take a look at the FM turbs kits and BEGI turbo kits and you'll get an idea of the cost vs power. The supercharger is not a bad bang for the buck even though people in this forum hate superchargers.

BTW, I don't know how far you are from Atlanta, but there is a dyno day on the works at a shop near Peachtree city.. Maybe you could come and get a baseline for $50 on July 14th... Check the forum MX5Atlanta owners it would be wise to see where you are and where you want to go before you start spending money, time and effort.....
silver92b is offline   Reply With Quote
Old 06-29-2012, 10:59 PM   #17
Newb
Thread Starter

Join Date: Jun 2010
Location: Dublin, Georgia
Posts: 43
Total Cats: 0
Default

I just recently moved to Statesboro, which is around 3 hours from Atlanta. That is where I have went in the past to get dyno's and some tuning done (different cars), Top Speed in particular. I have been driving this Miata for several years now with the supercharger, so I guess it is just that I have grown used to the thrill it gives. Back when I auto-crossed some, it was fantastic. But now that I am consumed with work and family, I am not able to enjoy like I used to. Turbo lag is more fun for daily driving imo.
kw1h is offline   Reply With Quote
Old 06-30-2012, 12:21 AM   #18
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by kw1h View Post
I just recently moved to Statesboro, which is around 3 hours from Atlanta. That is where I have went in the past to get dyno's and some tuning done (different cars), Top Speed in particular. I have been driving this Miata for several years now with the supercharger, so I guess it is just that I have grown used to the thrill it gives. Back when I auto-crossed some, it was fantastic. But now that I am consumed with work and family, I am not able to enjoy like I used to. Turbo lag is more fun for daily driving imo.
Well, good luck in your next stage . I think you'll have a lot of fun. Still, I'd get it on a dyno first and see what it does... It would be a shame to find that what you have now is a lot more cost effective... Do check out the price of the better turbo kits & the installation costs as well. Just to make sure, you know.
silver92b is offline   Reply With Quote
Old 06-30-2012, 06:35 PM   #19
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

i was just posting what my car made and the mods it had.

was not trying to be confusing.

I bought it supercharged, it was peppy, but I like the turbo setup much better.
fwMiata is offline   Reply With Quote
Old 06-30-2012, 10:57 PM   #20
Junior Member
iTrader: (1)

Join Date: Dec 2011
Location: Atlanta
Posts: 88
Total Cats: 0
Default

Quote:
Originally Posted by fwMiata View Post
i was just posting what my car made and the mods it had.

was not trying to be confusing.

I bought it supercharged, it was peppy, but I like the turbo setup much better.
OK, I was confusing you and the OP. Of course since neither of you is running a SC and you are happy with your turbos, I think this thread is done and I really don't even understand why it was started in the first place. Sorry for taking up bandwidth.
