Default M45 Kit Components

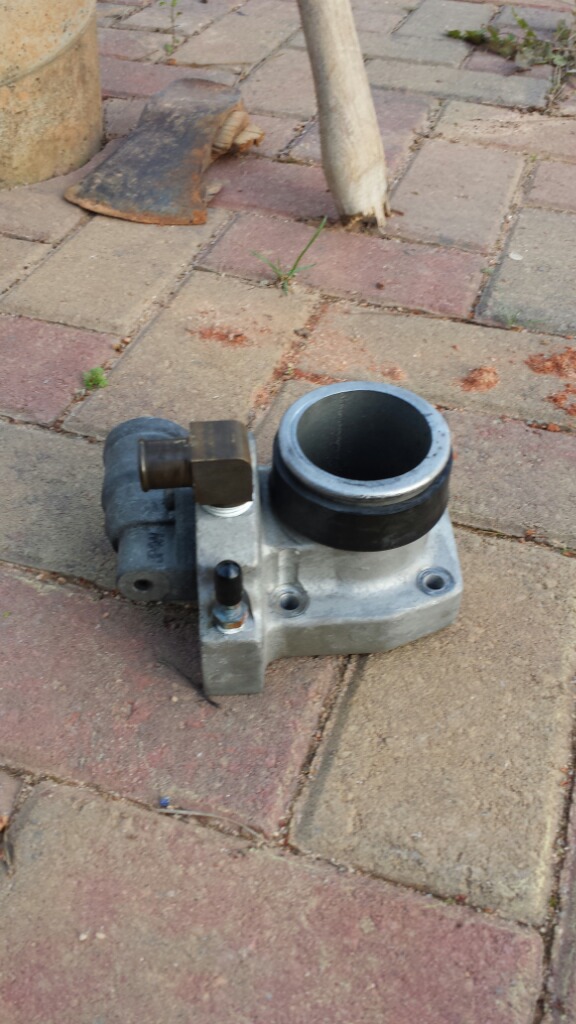

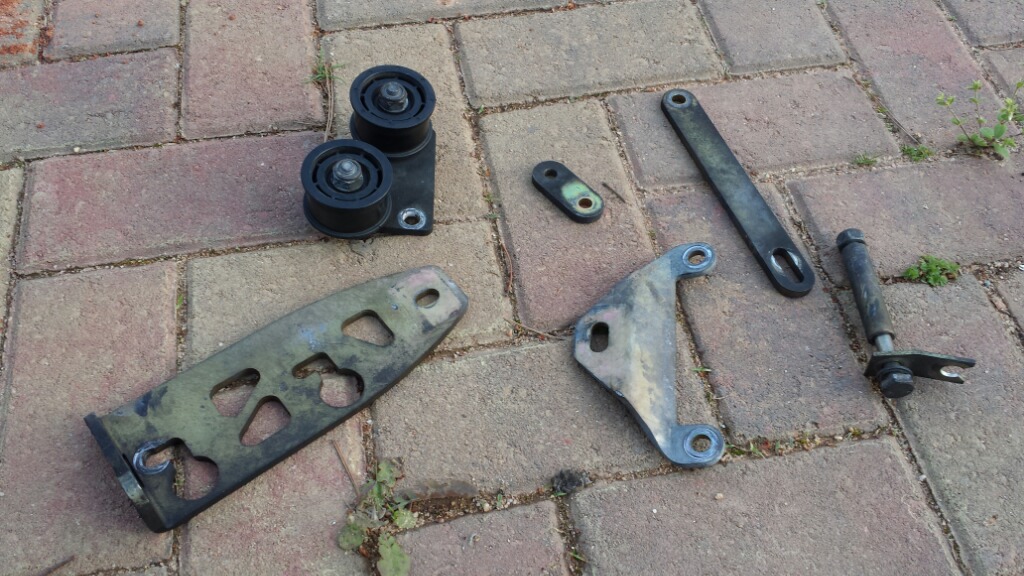

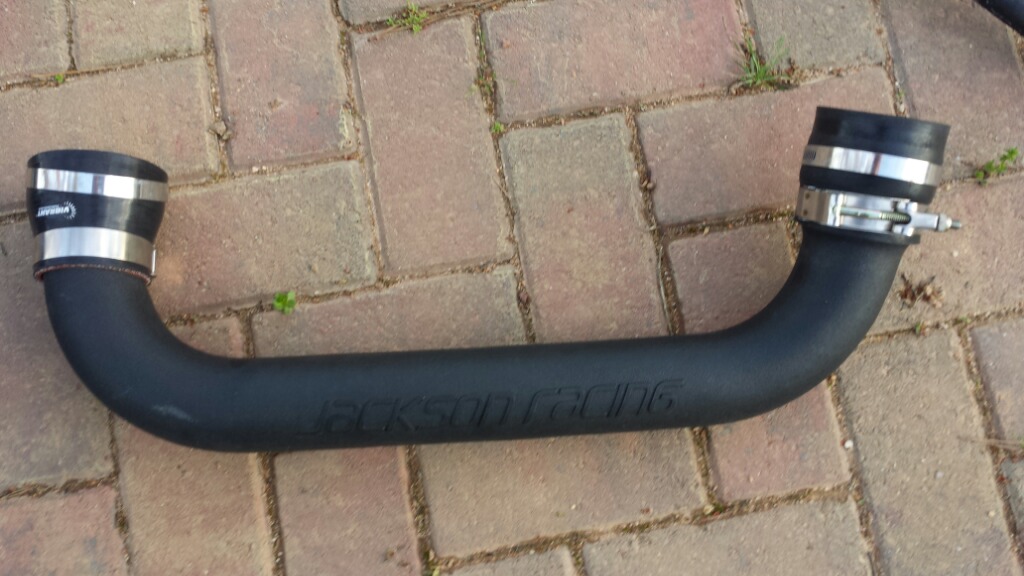

Hello MT community, I am finally joining the forced induction club! I know I will get a lot of crap for buying a second hand JR kit but I managed to get it down to 2000 with MegaSquirt and upgrades ! I need the community's help I am not really sure if all the parts listed are being sent over since there are a few upgrades included. I've attached the ad and the photos that were sent to me. Can anyone identify what's missing or if everything is there? I would really appreciate any help I can get. Just trying not to be ripped off since I am still a Planning to upgrade the intercooler, Supra injectors, and eventually the AEM water/meth injection.


[For Sale] [NB] M45 Jackson Racing Supercharger kit











Attached Thumbnails
M45 Kit Components-img_51111.jpg   M45 Kit Components-img_51131.jpg   M45 Kit Components-img_51151.jpg   M45 Kit Components-img_51121.jpg   M45 Kit Components-img_51141.jpg

M45 Kit Components-img_51161.jpg
Dominicanaso is offline   Reply With Quote
Old 04-03-2014, 02:36 AM   #2
Junior Member

Join Date: Sep 2013
Location: Denver, CO
Posts: 76
Total Cats: -9
Default

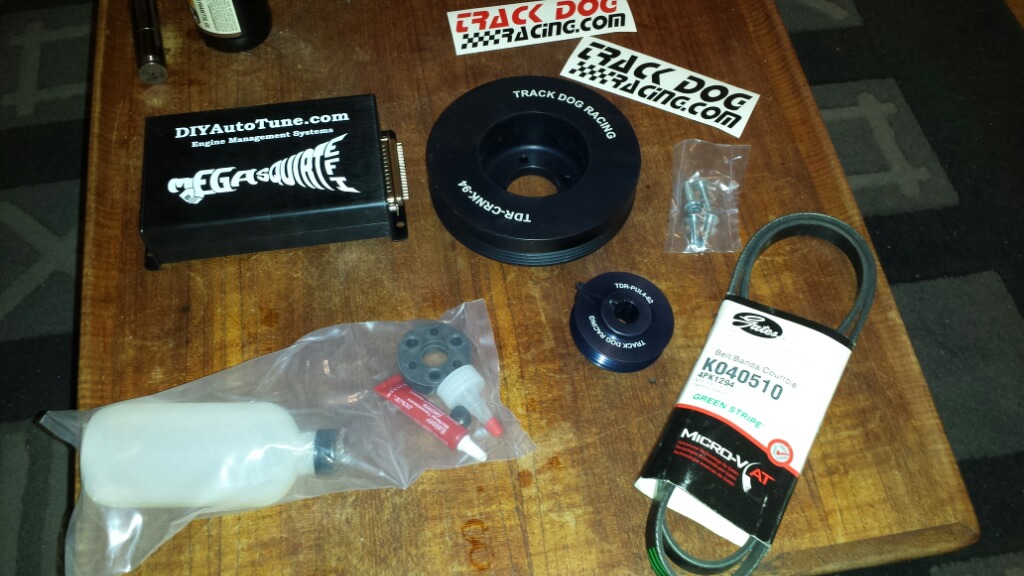

It looks like everything is there, I don't notice anything missing. It looks like a later version of the supercharger and its nice to have the pulley options. Definitley ad an intercooler if you plan to run those track dog pulleys.
lexintexan is offline   Reply With Quote
Old 04-03-2014, 03:41 AM   #3
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,517
Total Cats: 142
Default

Quote:
Originally Posted by Dominicanaso View Post
...

As I mentioned over on M.net, those pulleys will result in a 2.4/1 ratio which will over-speed that blower by at least 2500 rpm. Additionally, the M45 becomes far less efficient (yes, it's possible) at those speeds, with a great deal of the potential gains from the increase being lost to severely increased IAT's and the timing surrendered for it. An IC and some injection will certainly help, but if you're set on a SC, you may want to consider an MP62 over the M45 as a better starting point.

.02
good2go is offline   Reply With Quote
Old 04-03-2014, 10:33 AM   #4
Newb
Thread Starter

Join Date: May 2013
Location: Portland, ME
Posts: 23
Total Cats: -10
Default

Quote:
Originally Posted by good2go View Post
As I mentioned over on M.net, those pulleys will result in a 2.4/1 ratio which will over-speed that blower by at least 2500 rpm. Additionally, the M45 becomes far less efficient (yes, it's possible) at those speeds, with a great deal of the potential gains from the increase being lost to severely increased IAT's and the timing surrendered for it. An IC and some injection will certainly help, but if you're set on a SC, you may want to consider an MP62 over the M45 as a better starting point.

.02
To be honest this is temporary id like to get anywhere from 170-200WHP nothing more just for this season. I have already began gathering turbo parts for next season for a high horsepower build. I only wanted to pick this up because I thought it was a good price including the MS.

From what I've red people have run the setup but like you said it causes lots of heat and has resulted in the bearings giving out early due to the over spinning. What do you think would be best, switching out the nose/pulley wise in order to still maintain good power and be able to keep it between 6-8 psi
Dominicanaso is offline   Reply With Quote
Old 04-03-2014, 03:42 PM   #5
Junior Member

Join Date: Sep 2013
Location: Denver, CO
Posts: 76
Total Cats: -9
Default

I would suggest fabricating or purchasing some sort of heat shield that will protect the supercharger from radiant heat from the header. I have a racing beat header on my setup and made a stainless steel heat shield. I have noticed that any instances of heat soak / high intake air temps have been reduced. (in the neighborhood of around 15 degrees farenheit)

Changing the oil in the supercharger while you have it off wouldnt be a bad idea, especially since I see your kit comes with some extra oil. 4 oz ought to do it.

All that being said I think 170 is do-able, but 200 is going to be tough. I make around 140, stock nose pulley and afpr / bipes band-aids set-up. Intercooler will be a must have for you, and make sure you clean and oil that air filter! I have read that the water to air intercoolers are not worth the time, but can not speak from experience.
lexintexan is offline   Reply With Quote
Old 04-18-2014, 08:14 AM   #6
Junior Member
iTrader: (1)

Join Date: Jan 2014
Posts: 50
Total Cats: 2
Default

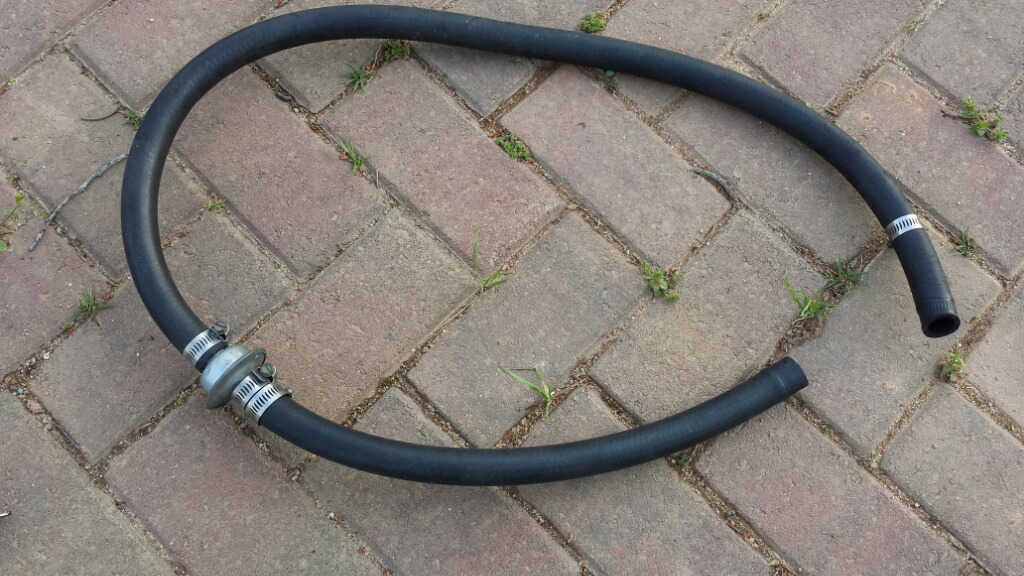

can someone tell me what the metal piece is in this picture and where i can get one... i dont have one on my m45

tehmaxfactr is offline   Reply With Quote
Old 04-18-2014, 11:39 AM   #7
Newb

Join Date: Jun 2009
Posts: 6
Total Cats: 0
Default

It's a check valve to keep boost pressure from leaking out through the idle air circuit.

Not sure where to find those. Try TDR or Moss.
kkleinwi is offline   Reply With Quote
Old 04-18-2014, 11:42 AM   #8
Junior Member
iTrader: (1)

Join Date: Jan 2014
Posts: 50
Total Cats: 2
Default

So..... im probably loosing boost?
tehmaxfactr is offline   Reply With Quote
Old 04-18-2014, 11:52 AM   #9
Newb

Join Date: Jun 2009
Posts: 6
Total Cats: 0
Default

Yep.
kkleinwi is offline   Reply With Quote
Old 04-18-2014, 12:38 PM   #10
Junior Member
iTrader: (1)

Join Date: Jan 2014
Posts: 50
Total Cats: 2
Default

Quote:
Originally Posted by kkleinwi View Post
Yep.
Supercharger Bypass Check Valve (90-00)

ordered one!
tehmaxfactr is offline   Reply With Quote
Old 05-03-2014, 12:56 AM   #11
Newb

Join Date: Nov 2013
Location: Holiday, Florida
Posts: 18
Total Cats: 0
Default

You could have bought an av23 check valve on amazon for half that price.
Inspecta is offline   Reply With Quote
Old 11-06-2014, 03:00 PM   #12
Junior Member

Join Date: Nov 2014
Posts: 51
Total Cats: -14
Default

Won't he need a timing card and fuel control card fo running the sc?
DonPlatt is offline   Reply With Quote
Old 11-06-2014, 03:01 PM   #13
Junior Member
iTrader: (1)

Join Date: Jan 2014
Posts: 50
Total Cats: 2
Default

You can run this supercharger and it will run off the factory ecu, up to 6 pounds of boost, but he does have a megasquirt in that picture.
tehmaxfactr is offline   Reply With Quote
Old 11-06-2014, 03:03 PM   #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by DonPlatt View Post
Won't he need a timing card and fuel control card fo running the sc?
Or something that doesn't suck.


Quote:
Originally Posted by tehmaxfactr View Post
You can run this supercharger and it will run off the factory ecu, up to 6 pounds of boost, but he does have a megasquirt in that picture.
Badly.
